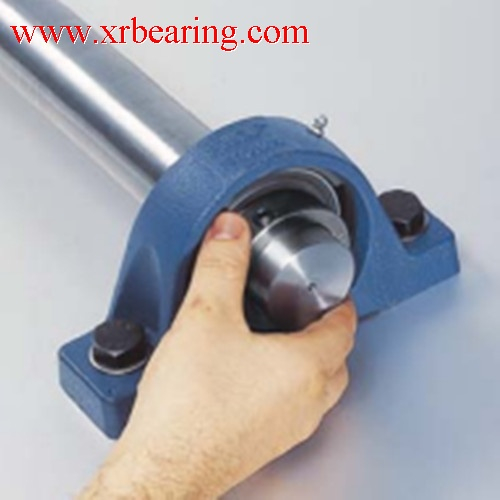

SY2.3/16TF Y Bearing

SY2-3/16TF Cast Iron Plummer Block with Grub Screws Insert 2-3/16 inch Bore

SY511U Housing and YAR211-203-2F Bearing

Weight: 3.6kg

SY2.3/16TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY2.3/16TF plummer block unit consist of SY511U Housing and YAR211-203-2F Bearing, SY2.3/16TF bearing plummer block unit can accommodate moderate initial misalignment, SY2.3/16TF bearings is widely used in many industrial application, the inner diameter is 55.563mm, the outer ring is 127mm,the height is 55.6mm, the weight of SY2.3/16TF bearings is 3.6kg.

SY2.3/16TF bearings with a standard inner ring are designed in according with a moduar concept, each SY2.3/16TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Ball Bearing Units efficiently prevent grease from leaking out of the interior of the bearing, and perform extremely well at keeping contaminates, such as dust and water, from entering. This is achieved by installing the seal to the outer ring of the bearing and installing the slinger to the inner ring of the bearing.
