FAG 22308-E1-T41A vibrating screen bearing

  • 22308-E1-T41A bearing

  • Bearing 22308-E1-T41A price

Keywords:FAG 22308-E1-T41A Bearing for vibratory machinery

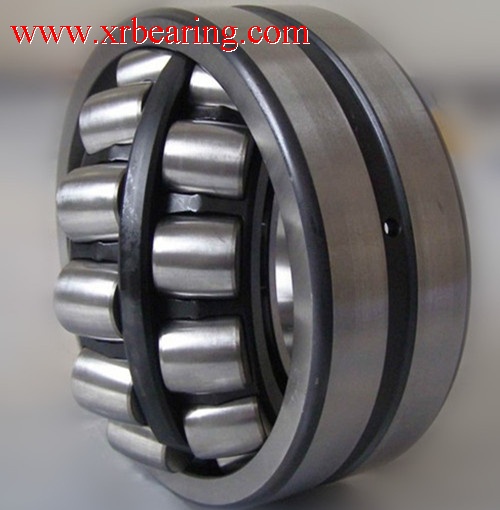

FAG 22308-E1-T41A bearing is double row spherical roller bearing and also called self-aligning roller bearing,FAG 22308-E1-T41A bearing is diffent with the commonly size and we can see the suffix T41A, It has one sheet steel window cage half per row of rollers with high geometrical stability and all cage parts are subject to a special surface hardening process, it design and special used in vibratory machinery, the inner diameter is 40mm,outer size is 90mm,the width is 33mm,the weight of FAG 22308-E1-T41A bearing is 1.05kg,it consisted of inner ring,outer ring,double row rollers and pressed steel cages,black chamfer and cylindrical bore & tapered bore are avaiable.XRB as one of the biggest China bearing manufacturer can supply the best solution for our bearing customers according to their specific applications.

High precision chrome steel FAG 22308-E1-T41A

High precision FAG 22308-E1-T41A bearing for vibratory machinery
22308-E1-T41A Bearing,
40×90×33mm bearing
FAG 22308-E1-T41A bearing type spherical roller bearing
inner diameter 40mm
outer diameter 90mm
width diameter 33mm
FAG 22308-E1-T41A bearing weight 1.05kg
FAG 22308-E1-T41A bearing are available from many design, variants, series and size,

►FAG 22308-E1-T41A bearing
have specially designed raceways and accommodate a large number of spherical rollers.

►FAG 22308-E1-T41A bearings are designed to achieve a high capacity with low friction and continuous roller alignment. This bearing type is ideal for operating conditions

►FAG 22308-E1-T41A vibrating screen bearing contain spherical rollers,they can carry both axial and shaft direction capacity.
22308-E1-T41A bearing
Metarial:High quality chrome steel
Lubrication:Oil or grease
sealed:Rubber sealed or press steel shielded
dynamic load rating: 156kN
static load rating:149kN
Fatigue load limit:13.1kN
Reference speed:7500r/min
FAG 22308-E1-T41A bearing are widely used in industry area:
►Vibrating screen
►Crane Hooks
Industrial gearboxes
►Pulp & papernes
Material handling
Fluid machinery
Mining & construction

XRB is the FAG 22308-E1-T41A China bearing manufacturer & factory & exporter & supplier ,it can supply FAG 22308-E1-T41A bearing, Our large quantity FAG 22308-E1-T41A bearing Stock can meet your need with lowest price and fast delivery

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our FAG 22308-E1-T41A bearing to your office at the first time.
