Inquire Add to Basket

Item:
F-809035.NU228-E-J20AA
Price:
Bearing F-809035.NU228-E-J20AA price

Details

Keywords:FAG F-809035.NU228-E-J20AA bearing,F-809035.NU228-E-J20AA insulated bearing

FAG F-809035.NU228-E-J20AA bearing is insulated bearing and cylindrical roller Bearings with a Ceramic Coating, The coatings are subjected to a 100% quality inspection and guarantee a dielectric strength of at least 1000 VDC (J20AA, J20C) or 500 VDC (J20B), respectively. this kind of bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

FAG F-809035.NU228-E-J20AA bearing suitable for high and middle high speed,but low cost maintenance.FAG as one of the biggest top quality bearing brand,Quality can be approved by the market.

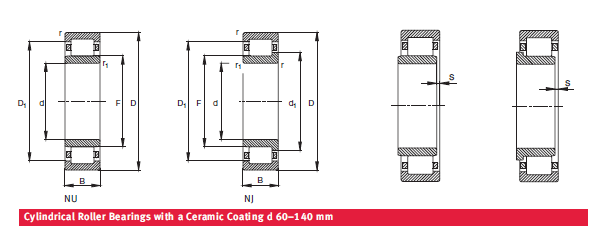

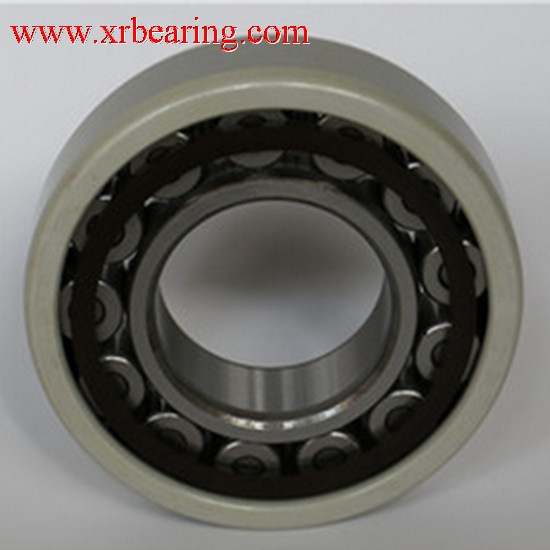

FAG F-809035.NU228-E-J20AA insulated cylindrical roller bearing

High speed F-809035.NU228-E-J20AA insulated bearing	FAG F-809035.NU228-E-J20AA Bearing 140×250×42mm bearing
FAG F-809035.NU228-E-J20AA Bearing type	Insulated cylindrical roller bearing
inner diameter	140mm
outer diameter	250mm
width diameter	42mm
FAG F-809035.NU228-E-J20AA insulated cylindrical roller bearing weight	9.39kg
FAG insulated bearing are available from many design, variants, series and size, ►FAG insulated deep groove ball bearing with a coated inner ring or outer ring,with seals on both sides and radial clearance C ►FAG F-809035.NU228-E-J20AA bearing with nylon cage can accommodate very heavy radial loads and very high speeds,	Design: F-809035.NU228-E-J20AA
	►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:165kN ►static load rating:167kN ►Fatigue load limit:22.6kN ►Reference speed:4500r/min ►limiting speed:4800r/min
FAG F-809035.NU228-E-J20AA bearing are widely used in industry area:	►Power generation ►wheelsets and traction motors(rail vehicles) ►DC and AC motors (drivetrains) ►generators (wind power)

XRB is the FAG F-809035.NU228-E-J20AA bearing exporter & supplier,it can supply FAG F-809035.NU228-E-J20AA bearing, Our large quantity FAG insulated cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find EASIER F-809035.NU228-E-J20AA Bearing, the other type and brand insulated cylindrical roller bearing

insocoat cylindrical roller bearing
FAG Current-Insulated Bearings

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality FAG F-809035.NU228-E-J20AA bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
