Item:
NU219-E-M1-F1-J20B-C4
Price:
Bearing NU219-E-M1-F1-J20B-C4 price

Details

Keywords:FAG NU219-E-M1-F1-J20B-C4 bearing,NU219-E-M1-F1-J20B-C4 insulated bearing

FAG NU219-E-M1-F1-J20B-C4 bearing is insulated bearing and cylindrical roller Bearings with a Ceramic Coating, The coatings are subjected to a 100% quality inspection and guarantee a dielectric strength of at least 1000 VDC (J20AA, J20C) or 500 VDC (J20B), respectively. this kind of bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

FAG NU219-E-M1-F1-J20B-C4 bearing suitable for high and middle high speed,but low cost maintenance.FAG as one of the biggest top quality bearing brand,Quality can be approved by the market.

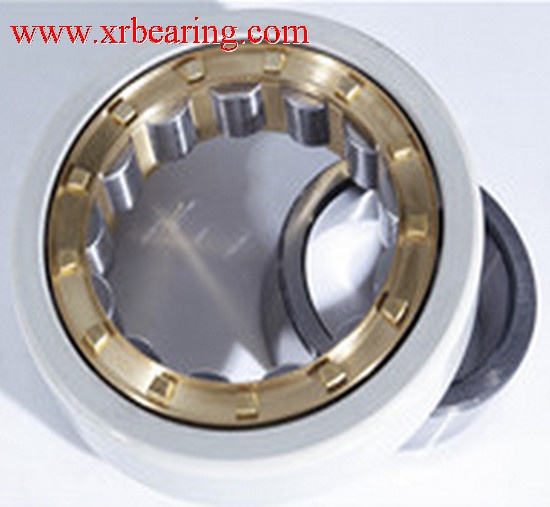

FAG NU219-E-M1-F1-J20B-C4 insulated cylindrical roller bearing

High speed NU219-E-M1-F1-J20B-C4 insulated bearing	FAG NU219-E-M1-F1-J20B-C4 Bearing 95×170×32mm bearing
FAG NU219-E-M1-F1-J20B-C4 Bearing type	Insulated cylindrical roller bearing
inner diameter	95mm
outer diameter	170mm
width diameter	32mm
FAG NU219-E-M1-F1-J20B-C4 insulated cylindrical roller bearing weight	3.25kg
FAG insulated bearing are available from many design, variants, series and size, ►FAG insulated deep groove ball bearing with a coated inner ring or outer ring,with seals on both sides and radial clearance C4 ►FAG NU219-E-M1-F1-J20B-C4 bearing with brass cage can accommodate very heavy radial loads and very high speeds,	Design: NU219-E-M1-F1-J20B-C4
	►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:165kN ►static load rating:167kN ►Fatigue load limit:22.6kN ►Reference speed:4500r/min ►limiting speed:4800r/min
FAG NU219-E-M1-F1-J20B-C4 bearing are widely used in industry area:	►Power generation ►wheelsets and traction motors(rail vehicles) ►DC and AC motors (drivetrains) ►generators (wind power)

XRB is the FAG NU219-E-M1-F1-J20B-C4 bearing exporter & supplier,it can supply FAG NU219-E-M1-F1-J20B-C4 bearing, Our large quantity FAG insulated cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find EASIER NU219-E-M1-F1-J20B-C4 Bearing, the other type and brand insulated cylindrical roller bearing

insocoat cylindrical roller bearing
FAG Current-Insulated Bearings

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality FAG NU219-E-M1-F1-J20B-C4 bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
