Item:
insocoat bearing
Price:
NU1013M/C3VA3091 bearing price

Details

Keywords:NU1013M/C3VA3091 bearing, NU1013M/C3VA3091 insulated bearing

NU1013M/C3VA3091 bearing is insulated bearing and cylindrical roller Bearings with a Ceramic Coating,it also named NU1013M/C3VA3091 insocoat bearing, the bearing have an electrically insulating coat on the outer ring(suffix VL0241) or on the inner ring(suffix VL2071), respectively. insulated bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated & insocoat bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

NU1013M/C3VA3091 bearing provide a bearing function and electrical insulation,virtually eliminates premature bearing failure caused by stray electric currents,electrical insulated bearing can reduce the number of failures and improve the machine uptime,reduce the cost of maintenace.

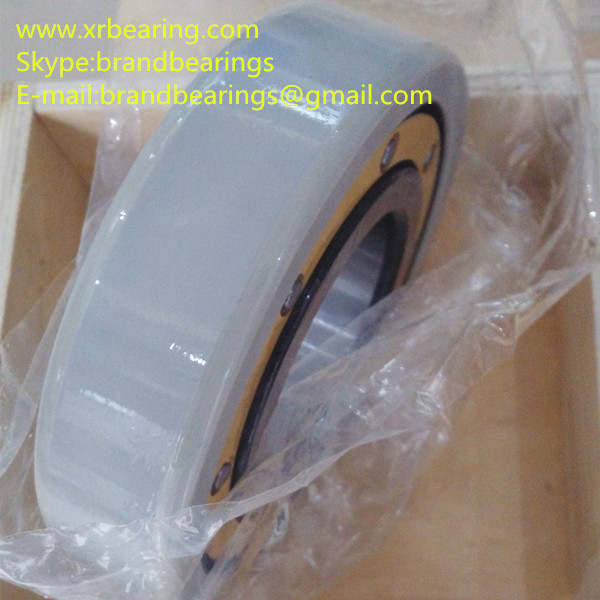

NU1013M/C3VA3091 electrically insulated bearings

High speed NU1013M/C3VA3091 insulated bearing	NU1013M/C3VA3091 Bearing 65×100×18mm bearing
NU1013M/C3VA3091 Bearing type	Insulated cylindrical roller bearing
inner diameter	65mm
outer diameter9	100mm
width diameter	18mm
NU1013M/C3VA3091 insulated cylindrial roller bearing weight	0.5kg
insulated bearing are available from many design, variants, series and size, ► Insulated tapered roller bearing with a coated inner ring or outer ring,with inch & metric size insocoat bearing ►NU1013M/C3VA3091 bearing with steel cage can accommodate very heavy radial loads and very high speeds,	Design: NU1013M/C3VA3091
	►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:38kN ►static load rating:47.5kN ►Fatigue load limit:0kN ►Reference speed:0r/min ►limiting speed:7500r/min
NU1013M/C3VA3091 bearing are widely used in industry area:	►Power generation ►wheelsets and traction motors(rail vehicles) ►DC and AC motors (drivetrains) ►generators (wind power)

XRB is the NU1013M/C3VA3091 China bearing manufacturer & exporter & supplier,it can supply NU1013M/C3VA3091 bearing, Our large quantity insulated cylindrical roller bearing Stock can meet your need with lowest price and fast delivery. Also you can find EASIER NU1013M/C3VA3091 Bearing, the other type and brand insulated cylindrical roller bearing,insocoat tapered roller bearing,Current-Insulated Bearings,the quality can meet top brand like FAG Bearing.

XRB bearings provide effective protection against AC and DC currents. The specifications for different design are:

VL0241 Electrical resistance:min.50MW,breakdown voltage:max.operating voltage 1000V DC.

VL0246 Electrical resistance: >150MW,breakdown voltage:max.operating voltage 3000 V DC.

VL2071 Electrical resistance: min.50 MW,breakdown voltage: max.operatingvoltage 1000 V DC.

VL2074 Electrical resistance: >150MW,breakdown voltage: max.operating voltage 2 000 V DC.

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality NU1013M/C3VA3091 bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
