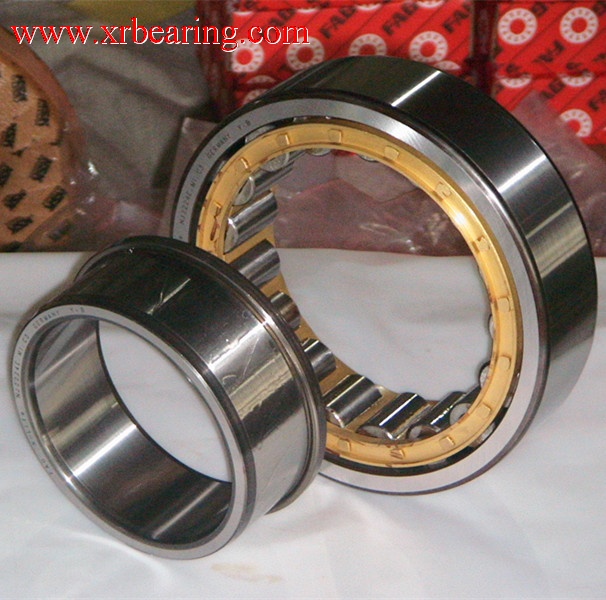

NU10/560 MA Bearing

  • NU10/560 MA

  • Bearing NU10/560 MA price

Keywords:NU10/560 MA bearing,NU10/560 MA cylindrical roller bearing

NU10/560 MA bearing is
Cylindrical roller bearing   and commonly type and widely used in many application like the spindle of machine, it contains inner ring, outer ring,and steel & brass & nylon cage,cylindrical roller bearing can carry radial and axial loads in both directions,NU10/560 MA Cylindrical roller bearings are particularly versatile and are simple in design,separable,EASIER also supply single-row full-complement cylindrical roller bearing,double-row cylindrical roller bearings,double-row cylindrical roller bearings.XRB can supply normal clearance,C2,C3,C4,C5 clearance. bearing NU10/560 MA (brass cage) suitable for high and middle high capacity,but low cost maintenance.EASIER as one of the biggest top quality bearing brand,Quality can be approved by the market.


Good price   NU10/560 MA Cylindrical roller bearing,NU10/560 MA Bearing

High precision Cylindrical roller bearing

NU10/560MA Bearing
560×820×115mm bearing
                               NU10/560 MA Bearing type cylindrical roller bearing
roller bearing inner diameter 560mm
roller bearing outer diameter 820mm
roller bearing width diameter 115mm
             NU10/560 MA Cylindrical roller  bearing weight 210kg
bearing are available from many design, variants, series and size,

cylindrical roller bearings
have specially designed raceways and accommodate a large number of asymmetrical rollers.

►NU10/560 MA bearing with brass cage can accommodate very heavy radial loads and very high speeds,

NU10/560 MA cylindrical roller bearing have two flange on either  the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat

►cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers.
Full-complement cylindrical roller bearings.
Design:
cylindrical roller bearing NU10/560 MA
Metarial:High quality chrome steel
Lubrication:Oil or grease
dynamic load rating: 2330kN
static load rating:4250kN
Fatigue load limit:310kN
Reference speed:750r/min
limiting speed: 1000r/min
NU10/560 MA bearing are widely used in industry area: ►Power generation
►Aggregate processing
Oil fields&Pumps
►Crop shears
Rolling mills
Gear drives &Hoists
Mining & construction









































XRB is the
NU10/560 MA China bearing manufacturer & factory & exporter & supplier ,it can supply NU10/560 MA bearing, Our large quantity NU10/560 MA Cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find NU10/560 M Bearing, the other type and brand cylindrical roller bearing :

NJ cylindrical roller bearing
N cylindrical roller bearing
NUP cylindrical roller bearing
NF cylindrical roller bearing
NN double row cylindrical roller bearing
NNU double row cylindrical roller bearing
SL Full-complement cylindrical roller bearing

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality NU10/560 MA bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
