Keywords:SNL506-605 housing for 1305 KTN9 bearing,SNL506-605 plummer block housing

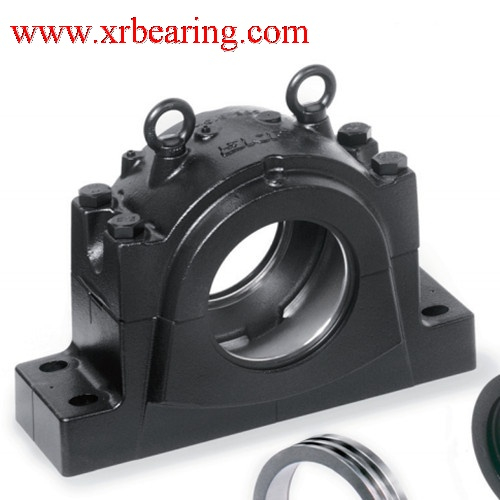

SNL506-605 housing enable the bearings to achieve maximum bearing service life with less need for maintenance,this supports user efforts to further reduce mainenace costs, SNL506-605 Bearing housing are designed for easy alignment and handing during installation. SNL506-605 bearing housing are made of grey cast iron,and primarily intended for 1305 KTN9 bearing with a H305 Adapter sleeve,TNS605 Seals and TSN506-605 End cover,the shaft of SNL506-605 plummer block housing is 20mm,and the height is 89mm,length is 185mm,the weight of SNL506-605 housing is 2kg,the Split plummer block housing are not only working with pherical roller bearings, But also Carb toroidal roller bearings,1305 EKTN9 Bearing and self-aligning ball bearings.
Application of SNL506-605 housings:
* Material handling
* Handling system
* Mining and construction
* Metallurgical
* Pulp and paper
Advantage of XRB SNL506-605 Plummer block housings:
* Long service life
* Robust design
* Long relubrication intervals
* Ready for relubrication
* Condition monitoring facilities
* Avoid risk of mixed caps
* Fast and easy mounting and dismounting
XRB as the biggest Plummer block housing supplier and China bearing manufacturer,it can supply the best solution for plummer block housing and the bearings according to their specific applications. ,it can supply Original SNL506-605 housing and Bearing,1305 EKTN9 Bearing,2305 EKTN9 Bearing, Our large quantity SNL506-605 plummer block housings Stock can meet your need with lowest price and fast delivery.

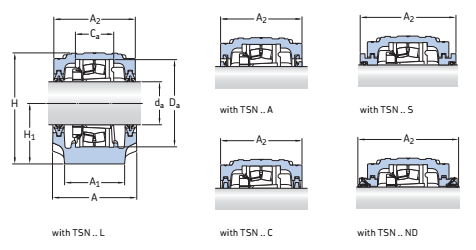

Designation of SNL plummer block housing
suffix:
- housing for a bearing on an adapter sleeve and a straight shaft
G Housing for a bearing with a cylindrical bore and for a stepped shaft
L Housing for a non-locating bearing arrangement
F Housing for a locating bearing arrangement
TURT Housing prepared for oil lubrication(spherical roller bearings)with seals
TURA Housing prepared for oil lubrication(Carb toroidal roller bearing)with seals
TURP Housing with a special seal for large axial movement and circulating oil lubrication
V Housing with grease escape holes in the base
We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our SNL506-605 housing to your office at the first time.More technical details,please contact with :
E-mail: brandbearings@gmail.com, Skype:brandbearings
