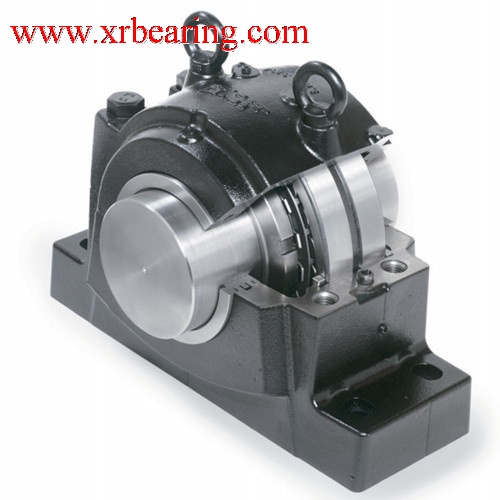

SNL516-613 housing for 22313EK bearing

Inquire Add to Basket

  • SNL516-613

  • Bearing housing SNL516-613 price

Keywords:SNL516-613 housing for 22313EK bearing,SNL516-613 plummer block housing

SNL516-613 housing enable the bearings to achieve maximum bearing service life with less need for maintenance,this supports user efforts to further reduce mainenace costs, SNL516-613 Bearing housing are designed for easy alignment and handing during installation. SNL516-613 bearing housing are made of grey cast iron,and primarily intended for 22313EK bearing with a H313 Adapter sleeve,TNS613 Seals and TSN613 End cover,the shaft of SNL516-613 plummer block housing is 60mm,and the height is 177mm,length is 315mm,the weight of SNL516-613 housing is 9.5kg,the Split plummer block housing are not only working with 22213EK Spherical roller bearings, But also 21313EK bearing,C2313KTN9 Carb toroidal roller bearings,1313EKTN9 Bearing and 2313EKTN9 self-aligning ball bearings.

Application of SNL516-613 housings:

* Material handling
* Handling system
* Mining and construction
* Metallurgical
* Pulp and paper

Advantage of XRB SNL516-613 Plummer block housings:

* Long service life
* Robust design
* Long relubrication intervals
* Ready for relubrication
* Condition monitoring facilities
* Avoid risk of mixed caps
* Fast and easy mounting and dismounting

XRB as the biggest Plummer block housing supplier and China bearing manufacturer,it can supply the best solution for plummer block housing and the bearings according to their specific applications. ,it can supply Original  SNL516-613 housing and 21313EK Bearing, 2313EKTN9 Bearing,1313EKTN9 Bearing,C2313K Bearing,  Our large quantity  SNL516-613 plummer block housings  Stock can meet your need with lowest price and fast delivery.

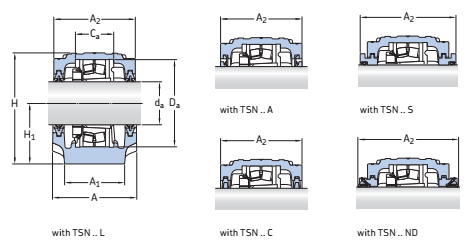

Designation of SNL plummer block housing
suffix:
-  housing for a bearing on an adapter sleeve and a straight shaft
G Housing for a bearing with a cylindrical bore and for a stepped shaft
L  Housing for a non-locating bearing arrangement
F  Housing for a locating bearing arrangement
TURT Housing prepared for oil lubrication(spherical roller bearings)with seals
TURA Housing prepared for oil lubrication(Carb toroidal roller bearing)with seals
TURP Housing with a special seal for large axial movement and circulating oil lubrication
V  Housing with grease escape holes in the base

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our  SNL516-613 housing to your office at the first time.More technical details,please contact with :


E-mail: brandbearings@gmail.com, Skype:brandbearings
