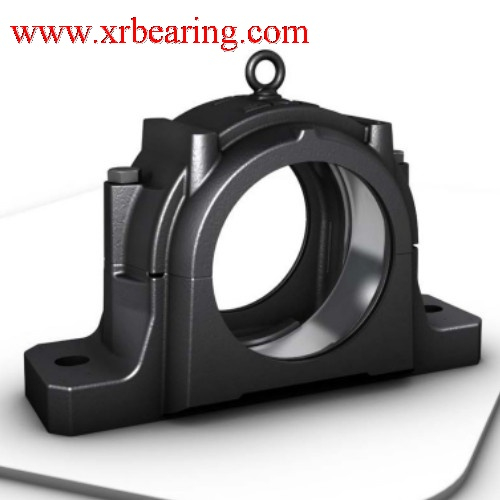

SNLN3024 housing for 23024CCK/W33 bearing

Inquire Add to Basket

  • SNLN3024

  • Bearing housing SNLN3024 price

Keywords:SNLN3024 housing for 23024CCK/W33 bearing,SNLN3024 plummer block housing

SNLN3024 bearing housing enable the bearings to achieve maximum bearing service life with less need for maintenance,this supports user efforts to further reduce mainenace costs, SNLN3024 Bearing housing are designed for easy alignment and handing during installation. SNLN3024 bearing housing are made of grey cast iron,and primarily intended for 23024CCK/W33 bearing with a H3024 Adapter sleeve,TSN3024 Seals and ASNH3024 End cover,the shaft of SNLN3024 plummer block housing is 110mm,and the height is 218mm,length is 380mm,the weight of SNLN3024 housing is 17.5kg,the Split plummer block housing are not only working with 23024CCK/W33 Spherical roller bearings, But also C3024K Carb toroidal roller bearings.

Application of SNLN3024 housings:

* Material handling
* Handling system
* Mining and construction
* Metallurgical
* Pulp and paper

Advantage of XRB SNLN3024 Plummer block housings:

* Long service life
* Robust design
* Long relubrication intervals
* Ready for relubrication
* Condition monitoring facilities
* Avoid risk of mixed caps
* Fast and easy mounting and dismounting

XRB as the biggest Plummer block housing supplier and China bearing manufacturer,it can supply the best solution for plummer block housing and the bearings according to their specific applications. ,it can supply Original  SNLN3024 Bearing housing and 23024CCK/W33 Bearing, C3024K Bearing,  Our large quantity  SNLN3024 plummer block housings  Stock can meet your need with lowest price and fast delivery.

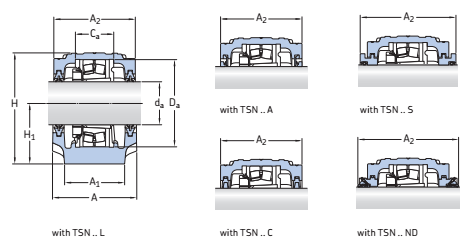

Designation of SNL plummer block housing
suffix:
-  housing for a bearing on an adapter sleeve and a straight shaft
G Housing for a bearing with a cylindrical bore and for a stepped shaft
L  Housing for a non-locating bearing arrangement
F  Housing for a locating bearing arrangement
TURT Housing prepared for oil lubrication(spherical roller bearings)with seals
TURA Housing prepared for oil lubrication(Carb toroidal roller bearing)with seals
TURP Housing with a special seal for large axial movement and circulating oil lubrication
V  Housing with grease escape holes in the base

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our  SNLN3024 housing to your office at the first time.More technical details,please contact with :


E-mail: brandbearings@gmail.com, Skype:brandbearings
