China SYJ25TF Pillow Block Ball Bearing Units

Availability:
  • SYJ25TF
  • Bearing SYJ25TF price
Keywords: SYJ25TF bearing Plummer block housing unit,SYJ25TF bearings

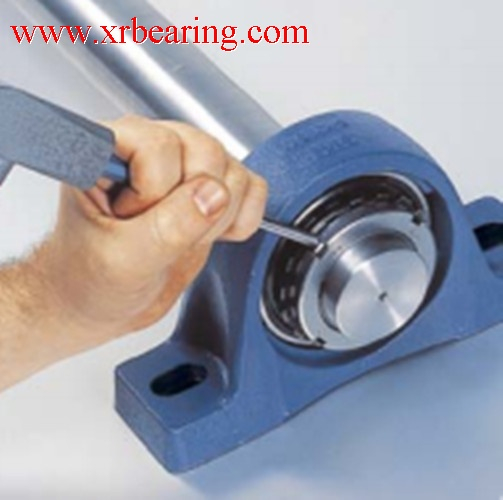

SYJ25TF Pillow block Bearing units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SYJ25TF plummer block unit consist of SYJ505 Housing and YAR205-2F Bearing, SYJ25TF bearing plummer block unit can accommodate moderate initial misalignment, SYJ25TF bearings is widely used in many industrial application, the inner diameter is 25mm, the outer ring is 70.5mm, the height is 34.1mm,  the weight of SYJ25TF bearings is 0.72kgSYJ25TF bearings with a standard inner ring are designed in according with a moduar concept, each SYJ25TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.

Dimensions - SYJ 25 TF Dimensions - SYJ 25 TF Dimensions - SYJ 25 TF

DIMENSIONS

d
25 mm
d1
≈ 33.74 mm
A
38 mm
A1
24 mm
B
34.1 mm
B4
5 mm
H
36.5 mm
H1
16 mm
H2
70 mm
J
102.5 mm
J
max. 111 mm
J
min. 94 mm
L
140 mm
N
13 mm
N1
21.5 mm
s1
19.8 mm


In fact, the insert ball bearing is a variant of the deep groove ball bearing. the outer diameter surface of the outer ring is spherical, which can be fitted into the corresponding concave spherical surface of the bearing housing to play the role of centering. The insert ball bearing is mainly used to bear the combined radial and axial load, which is mainly the radial load. Generally, it is not suitable to bear the axial load alone.


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SYJ25TF bearings, Our large quantity SYJ25TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ25TF bearings to your office at the first time.More technical details,please contact with :
