Forklift Mast Roller Bearing

Forklift bearings are a very important hardware component used in forklifts. Forklift bearings play an irreplaceable role in the work of forklifts.

Forklift mast main roller bearing
Forklift mast sprocket bearing, Forklift mast chain pulley bearing
Forklift mast combined bearing
Forklift mast side roller bearing
Cylindrical roller bearing
Slewing Bearing

Most of Forklift Bearing we have in stocks, Just Please let us know your bearing items, quantity demand and more details...
Availability:
Inquire Add to Basket

  • EASIER / TKW

Forklift bearings are a very important hardware component used in forklifts. Forklift bearings play an irreplaceable role in the work of forklifts.



Forklift mast roller bearing


Because of its special purpose, forklift bearings need to carry several tons or even heavier weight, so it is different from ordinary ordinary bearings. Its processing technology, bearing materials, and performance are better than ordinary bearings. Industrial handling vehicles are widely used in ports, stations, airports, freight yards, factory workshops, warehouses, circulation centers and distribution centers, etc., and can enter cabins, carriages and containers for loading and unloading and handling of palletized goods. It is an essential equipment for pallet transportation and container transportation.

Mast-Bearing



Forklifts play a very important role in the company's logistics system and are the main force in material handling equipment. It is widely used in various sectors of the national economy such as stations, ports, airports, factories, warehouses, etc. It is an efficient equipment for mechanized loading and unloading, stacking and short-distance transportation. Self-propelled forklifts appeared in 1917. During the Second World War, forklifts were developed. China began manufacturing forklifts in the early 1950s. Especially with the rapid development of China's economy, the material handling of most companies has departed from the original manual handling and replaced it with forklift-based mechanized handling. Therefore, in the past few years, the demand for China's forklift market has grown at a double-digit rate every year.


forklift mast roller bearing (2)



Forklift mast main roller bearing

Forklift mast sprocket bearing, Forklift mast chain pulley bearing

Forklift mast combined bearing

Forklift mast side roller bearing

Cylindrical roller bearing

Slewing Bearing


Forklift Mast Roller Bearing, Single Row

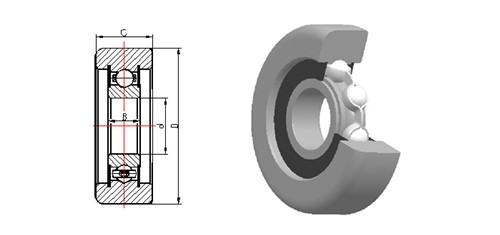

Fork mast roller



EASIER Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG20A1-1 20*65*20/15 15.94 7.88
MG25A1-1T 25*70*17/17 17.22 11.39 80605KT
MG25A1-2T 25*80*22/17 17.22 11.39 180705KT
MG25A1-4T 25*80*22/16 17.22 11.39
MG25A1-8 25*80*22/16 17.22 11.39
MG25A1-9M2T1 25*80*22/17 17.22 11.39
MG25A1-14 25*70*27/15 10.78 6.98
MG25A1-19 25*74.6*25.4/17 17.22 11.39 MG305DDA
MG25A1-20 25*70.2*23/17 17.22 11.39 30305V
MG25A1-32 25*76.2*25.4/17 17.22 11.39 MG305DD
MG25.4A1-1 25.4*74.6*25.4/17 17.22 11.39
MG28A1-3 28*77.2*27/18 25.67 15.3
MG30A1-2T 30*90*22/17 25.67 15.3
MG30A1-3T 30*91.5*24/19 27 15.19
MG30A1-10 30*82.5*27/19 27 15.19 MG306DDB
MG30A1-17 30*88.9*25.4/19 27 15.19 MG306DD
MG30A1-34T 30*92.5*24/19 27 15.19
MG35A1-2T 35*102*25.4/20 33.36 19.21 80607KT
MG35A1-13 35*80*25/21 33.36 19.21
MG35A1-16 35*101.6*28.58/21 33.36 19.21 MG307FFA
MG35A1-47 35*92*31.75/21 33.36 19.21 MG207FFU
MG35A1-89 35*81.86*27.1/17 25.67 15.3 MG207FFA
MG35A1-132 35*95.377*25.3/21 33.36 19.21
MG35A1-135 35*94.62*25.4/21 33.36 19.21 MG307FFK
MG35A1-178 35*88.4*31.88/17 25.67 15.3 MG207FFB
MG35A1-206 35*102*25.4/20 33.36 19.21
MG40A1-1M2T1 40*102*25.5/23 40.75 24.01
MG40A1-4M2T1 40*109.7*32/23 40.75 24.01
MG40A1-8T 40*109.7*32/23 40.75 24.01 180708KT
MG40A1-22 40*101.42*28.575/23 40.75 24.01
MG40A1-23 40*102.24*28.575/23 40.75 24.01
MG40A1-30 40*107.28*26.17/22 40.75 24.01
MG40A1-41 40*114.9*28.21/23 40.75 24.01
MG40A1-43 40*94.99*28.57/21 40.75 24.01
MG40A1-46 40*115*28.2/23 40.75 24.01
MG40A1-97 40*109.7*32/23 40.75 24.01 30708
MG40A1-104 40*95*28.58/21 29.52 18.14 MG208FFH
MG40A1-124 40*101.6*28.58/23 40.75 24.01 MG308FFH
MG40A1-141 40*113.95*31.75/23 40.75 24.01 MG308FFA
MG40A1-148 40*112*32/23 40.75 24.01
MG40A1-194 40*101.35*28.58/21 29.52 18.14 MG208FFK
MG40A1-229 40*106.64*26.17/22 40.75 24.01
MG45A1-2M2T1 45*123.5*34/25 52.86 31.83
MG45A1-14 45*119.5*29/25 52.86 31.83
MG45A1-43 45*100.96*28.5/19 31.67 20.68 MG209DD
MG45A1-62 45*127.06*31.75/25 52.86 31.83 MG309DDA
MG45A1-70 45*119*30/25 52.86 31.83 30309
MG45A1-71 45*128.22*31.75/25 52.86 31.83 MG309DD
MG45A1-129 45*120*32/25 52.86 31.83
MG45A1-149M2T1 45*124*34/25 52.86 31.83
MG50A1-1T 50*130*40/27 61.86 37.94 10310HT
MG55A1-1T 55*110*31.34/21 43.38 29.22 80711K
MG55A1-2T 55*149*45/33 77.44 62.71 80611K5T
MG55A1-3T 55*149.5*45/33 77.44 62.71 80611K6T
MG55A1-4T 55*151*45/33 77.44 62.71 80611K2T
MG55A1-5T 55*165*45/33 77.44 62.71 80611K3T
MG55A1-43 55*151.9*38.1/29 71.57 44.76 MG311FFA
MG55A1-51T 55*119.2*34/25 41.02 30.87 80511K0T
MG55A1-52T 55*119.6*34/25 41.02 30.87 80511K1T
MG55A1-53T 55*120*34/25 41.02 30.87 80511K2T
MG55A1-60T 55*118.2*34/25 41.02 30.87 80511KX1
MG55A1-65 55*164.3*38.1/29 71.57 44.76 MG311FF
MG55A1-66 55*151.89*38.1/29 71.57 44.76 MG311ZZA
MG60A1-5 60*126.7*31/22 47.76 32.93
MG60A1-6 60*149.5*45/31 81.75 51.85
MG60A1-16T 60*165*45/33 93.87 60.44
MG65A1-5 65*181*56/33 93.87 60.44
MG65A1-11 65*174.5*45/33 93.87 60.44
MG65A1-12 65*183.5*45/33 93.87 60.44
MG70A1-2 70*200*56/35 104.13 68.04
MG75A1-13 75*179.5*52/40 113.42 76.97
MG75A1-14 75*180*45/37 122.94 86.5
MG75A1-18 75*199.5*50/37 122.94 86.5
MG75A1-19 75*200*57/37 122.94 86.5
MG80A1-1 80*215*60/43 144 108.49
MG85A1-1 85*169*45/34 77.16 59.28
MG90A1-2M1 90*224.5*58/43 144 108.49
MG90A1-5M1 90*225**59/43 122.14 92.72
MG90A1-6M1 90*244.15*68/43 122.14 92.72
MG90A1-7M1 90*223*59/43 122.14 92.72
MG90A1-8 90*220*55/43 144 108.49
MG100A1-4M1 100*250*65/47 183.69 153.08





EASIER Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG25A2-1 25*76.2*25.4/17 22.38 11.49 MG305DDB
MG25A2-11 25*52.4*17/17 14.02 7.9 MRS900
MG25A2-17 25*62.4*20/20 22.38 11.49 MRS948
MG28A2-1 28*78.1*24/21 26.86 14.11
MG30A2-2 30*86.36*28.58/16.6 19.46 11.31 MG206FFK
MG30A2-9 30*81*29/16.59 19.46 11.31 MG206FFU
MG30A2-10 30*82*29/16.59 19.46 11.31 MG206FFUB
MG30A2-11 30*88*29/16.59 19.46 11.31 MG206FFUP
MG30A2-14 30*70*22/22 19.46 11.31 MRS901
MG30A2-17 30*78*22/22 19.46 11.31 MRS907
MG35A2-15 35*92*31.2/20 33.36 19.21
MG35A2-21 35*101.33*28.58/21 33.36 19.21 MG307FFP
MG35A2-28 35*82.2*31.2/20 33.36 19.21 MG207FFWB
MG36A2-2 36*101.4*27.5/21 33.36 19.21
MG40A2-13 40*109.6*31/23 40.75 24.01
MG40A2-14 40*108.6*31/23 40.75 24.01 MG308FFAB
MG40A2-17 40*112*32.23/21.65 35.07 23.18 MG308FFUA
MG45A2-2 45*117*40/25 52.86 31.83
MG45A2-5 45*114*35/25 52.86 31.83
MG50A2-1T 50*123*40/27 61.86 37.94 10310RT
MG50A2-2 50*129*40/27 61.86 37.94
MG50A2-3 50*130*40/27 61.86 37.94
MG50A2-4 50*131*40/27 61.86 37.94
MG50A2-5T 50*123.5*40/27 61.86 37.94 10310RT
MG50A2-6T 50*123.8*40/27 61.86 37.94 10310RT
MG70A2-1M1 70*200*56/37 122.94 86.5
MG70A2-2M1 70*200*56/39 122.94 86.5
MG74.85A2-1M1 74.85*200*57/39 122.94 86.5
MG75A2-1M1 75*200*57/39 122.94 86.5
MG100A2-1M2T1 100*203*52/34 122 93
MG100A2-4 100*205*52/34 122 93





EASIER Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG24A3-1 24*61.7*24/16 20.6 14.8
MG30A3-1 30*81.28*25.4*19.6 19.46 11.31 MG206FFA
MG35A3-1 35*107*25/21 33.36 19.21
MG35A3-2 35*91.9*32/21 33.36 19.21
MG35A3-3 35*95*30/21 33.36 19.21 30307V-B
MG35A3-4 35*101.35*28.58/21 33.36 19.21 MG307FFE
MG40A3-1T 40*112.3*29/18 29.52 18.14 Y30208T
MG40A3-8 40*119.2*34/25 40.75 24.01
MG40A3-9T 40*109.7*28/23 40.75 24.01 130308KT
MG40A3-11 40*112.2*30/23 40.75 24.01 30308V
MG40A3-12 40*100.838*25.4/19.6 29.52 18.14 MG208FFA
MG40A3-13 40*118.5*28/23 40.75 24.01
MG40A3-14T 40*112.4*29/18 29.52 18.14 Y30208CT
MG40A3-15T 40*112.8*29/18 29.52 18.14 Y30208JT
MG40A3-16 40*111*29/18 29.52 18.14 Y30208CT(D=111)
MG45A3-1 45*118.5*26/25 52.86 31.83
MG45A3-2T 45*118.5*26/25 52.86 31.83 130309KT
MG55A3-1T 55*120*34/25 41.02 30.87 80511YT
MG55A3-2T 55*121.5*34/25 41.02 30.87 80511Y1T
MG55A3-3T 55*122.5*34/25 41.02 30.87 80511Y2T
MG55A3-6T 55*123.5*34/25 41.02 30.87 80511Y3T
MG55A3-7 55*121.5*34/25 41.02 30.87 980811
MG55A3-9 55*112.23*31.34/21 43.38 29.22 30711K1
MG55A3-10 55*121.4*36/25 41.02 30.87 30811K1
MG55A3-11T 55*121*34/25 41.02 30.87 980811JT
MG55A3-12 55*112.5*35/21 43.38 29.22
MG55A3-13 55*122.5*34/25 41.02 30.87 30511K1-C
MG65A3-1 65*161*45/33 93.87 60.44 80613K





EASIER Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG30A4-1M2T1 30*91.5*24/19 27 15.19
MG30A4-2 30*92*24/19 27 15.19
MG30A4-3M2T1 30*92*24/19 27 15.19
MG30A4-5 30*91.5*24/19 27 15.19
MG35A4-1M2T1 35*102*28/21 33.36 19.21
MG35A4-4 35*107.9*31/21 33.36 19.21
MG35A4-5M2T1 35*102.3*28/21 33.36 19.21
MG40A4-2T 40*111.3*29/18 29.52 18.14 Y30208-N
MG40A4-4 40*94.8*28/23 40.75 24.01
MG40A4-5 40*95.2*28/23 40.75 24.01
MG40A4-6 40*100*30/23 40.75 24.01
MG45A4-1 45*101.346*28.47/19 31.67 20.68
MG45A4-2 45*101.2*28.3/19 31.67 20.68
MG45A4-6M2T1 45*119*32/25 53 32
MG45A4-7M2T1 45*119.5*29/25 53 32
MG45A4-8M2T1 45*120*29/25 53 32
MG45A4-13 45*120*29/25 52.86 31.83
MG45A4-15M2T1 45*120*32/25 53 32
MG45A4-16 45*101*28/19 31.67 20.68
MG50A4-2M2T1 50*102*30/25.5 35.07 23.2
MG50A4-4M2T1 50*143.5*41/27 61.86 37.94
MG50A4-5M2T1 50*143.2*41/27 61.86 37.94
MG50A4-7 50*102*30/25.5 35.07 23.2
MG55A4-2M2T1 55*151.5*45/29 71.57 44.76
MG55A4-3T 55*151.5*45/29 71.57 44.76 10311T
MG55A4-4M2T1 55*152*45/29 71.57 44.76
MG55A4-8 55*118.5*34/25 41.02 30.87 980811B
MG55A4-9 55*152*45/29 71.57 44.76
MG55A4-12T 55*118.5*34/25 41.02 30.87 980811NX
MG55A4-13T 55*119.2*34/25 41.02 30.87 980811NT
MG55A4-14 55*152.5*45/29 71.57 44.76
MG55A4-15 55*151.5*45/29 71.57 44.76
MG55A4-18T 55*118.7*34/25 41.02 30.87 980811NX-Y
MG60A4-1 60*148*45/31 81.75 51.85
MG60A4-2 60*150*45/31 81.75 51.85
MG60A4-3 60*152*45/31 81.75 51.85
MG65A4-2M2T1 65*184*45/33 93.87 60.44
MG65A4-3M2T1 65*183.5*45/33 93.87 60.44
MG65A4-6 65*183.5*45/33 93.87 60.44
MG70A4-1M1 70*200*56/35 104.13 68.04
MG80A4-1 80*215*60/43 144 108.49
MG85A4-1M2T1 85*169*45/34 83.21 63.96
MG100A4-1 100*203*52/34 122 93
MG100A4-2 100*205*52/34 122 93
MG100A4-3 100*207*52/34 122 93
MG100A4-4M1 100*248*64/47 183.69 153.08





EASIER Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG30A5-1M2T1 30*84.5*25/19 27 15.19
MG30A5-2 30*84.5*25/19 27 15.19
MG30A5-3M2T1 30*92*24/19 27 15.19
MG35A5-1T 35*102*25.5/21 33.36 19.21 180707KT
MG35A5-2M2T1 35*102*28/21 33.36 19.21
MG35A5-4M2T1 35*102.5*28/21 33.36 19.21
MG35A5-8M2T1 35*94.5*25/21 33.36 19.21
MG35A5-9M2T1 35*106.5*25/21 33.36 19.21
MG35A5-10M2T1 35*107.7*25/21 33.36 19.21
MG35A5-15M2T1 35*95.7*25/21 33.36 19.21
MG35A5-16M2T1 35*96.7*25/21 33.36 19.21
MG35A5-17M2T1 35*108.7*25/21 33.36 19.21
MG40A5-1 40*101.6*28.58/23 40.75 24.01
MG40A5-2M2T1 40*113.8*32/23 40.75 24.01
MG40A5-3M2T1 40*114.3*32/23 40.75 24.01
MG40A5-4M2T1 40*114.8*32/23 40.75 24.01
MG40A5-5 40*113.8*32/23 40.75 24.01
MG40A5-6M2T1 40*118.5*28/23 40.75 24.01
MG40A5-7 40*114.3*32/23 40.75 24.01
MG40A5-8M2T1 40*119.7*28/23 40.75 24.01
MG40A5-9M2T1 40*120.7*28/23 40.75 24.01
MG45A5-3T 45*119*29/25 52.86 31.83 180709KT
MG45A5-5M2T1 45*119.3*29/25 52.86 31.83
MG45A5-6M2T1 45*119*29/25 48.8 29.3
MG45A5-8M2T1 45*119.5*29/25 48.8 29.3
MG45A5-10 45*119*29/25 48.8 29.3
MG45A5-13M2T1 45*119.4*29/25 48.8 29.3
MG50A5-1 50*123.3*34/27 61.86 37.94
MG50A5-2 50*123.9*34/27 61.86 37.94
MG60A5-4M2T1 60*148.5*45/31 81.75 51.85
MG60A5-5M2T1 60*149.5*45/31 81.75 51.85





EASIER Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG24A6-1 24*70.5*24/20.5 20.6 14.8
MG24A6-2 24*71.0*24/20.5 20.6 14.8
MG24A6-3 24*70.0*24/20.5 20.6 14.8
MG35A6-3 35*107.8*25/21 33.36 19.21
MG35A6-4 35*108.7*25/21 33.36 19.21
MG35A6-5 35*85*25/17 25.67 15.3
MG40A6-1 40*107.6*30/23 25.6 18.1
MG40A6-2 40*107.7*30/20 25.6 18.1
MG40A6-3 40*123*33.5/23 35.07 23.18
MG40A6-10 40*98.5*28.5/22 40.75 24.01
MG45A6-5 45*127*29.92/25 52.86 31.83
MG45A6-6 45*127.81*29.92/25 52.86 31.83
MG45A6-8 45*117*32/25 52.86 31.83
MG45A6-9 45*118*32/25 52.86 31.83
MG45A6-10 45*119*32/25 52.86 31.83
MG45A6-11 45*120*32/25 52.86 31.83
MG45A6-12 45*127.06*31.7/25 52.86 31.83
MG45A6-13 45*127*31.5/25 52.86 31.83
MG45A6-16 45*126.62*31.75/25 52.86 31.83
MG50A6-1 50*129*34/27 62 38.5
MG50A6-2 50*130*34/27 62 38.5
MG50A6-3 50*131*34/27 62 38.5
MG50A6-4 50*132*34/27 62 38.5
MG50A6-7T 50*123*34/29 62 38.5
MG60A6-1 60*149*36/31 81.75 51.85
MG60A6-2 60*150*36/31 81.75 51.85
MG60A6-3 60*151*36/31 81.75 51.85
MG60A6-4 60*152*36/31 81.75 51.85
MG75A6-1M2T1 75*200*57/39 122.94 86.5





Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG20A7-1M1 20*62.2*28.5/15 15.94 7.88
MG24A7-1 24*61.8*24/15 18.14 10.18
MG24A7-2 24*69.5*24/20 20.6 14.8
MG24A7-5 24*71.0*24/20 20.6 14.8
MG24A7-8 24*70*26/15 18.14 10.18
MG24A7-9 24*69.5*26/15 18.14 10.18
MG28A7-5 28*75.2*26/21 26.63 13.89
MG28A7-6 28*80.5*24/21 26.63 13.89
MG28A7-9 28*80*24/21 26.63 13.89
MG28A7-10 28*79.5*24/21 26.63 13.89
MG28A7-11 28*75.2*26/21 26.63 13.89
MG28A7-19 28*81*24*21 26.63 13.89
MG28A7-27 28*77.4*26/21 26.63 13.89
MG33A7-1 33*75.3*24/20.5 19.5 11.68
MG33A7-3 33*76.2*24/20.5 19.5 11.68
MG35A7-1M2T1 35*97*28*21 33.36 19.21
MG35A7-2M2T1 35*97.5*28/21 33.36 19.21
MG35A7-3M2T1 35*98*28/21 33.36 19.21
MG35A7-4M2T1 35*105*28/21 33.36 19.21
MG35A7-5M2T1 35*105.5*28/21 33.36 19.21
MG35A7-6M2T1 35*106*28/21 33.36 19.21
MG35A7-7M2T1 35*102*28/21 33.36 19.21
MG35A7-8M2T1 35*102.5*28/21 33.36 19.21
MG35A7-9M2T1 35*103*28/21 33.36 19.21
MG35A7-10M2T1 35*109*28/21 33.36 19.21
MG35A7-11M2T1 35*109.5*28/21 33.36 19.21
MG35A7-12M2T1 35*110*28/21 33.36 19.21
MG35A7-13M2T1 35*94*28/21 33.36 19.21
MG35A7-14M2T1 35*94.5*28/21 33.36 19.21
MG35A7-15M2T1 35*95*28/21 33.36 19.21
MG35A7-16M2T1 35*96.5*28/21 33.36 19.21
MG35A7-17 35*88.2*37/21 33.36 19.21
MG35A7-26M2T1 35*97*25/21 33.36 19.21
MG35A7-30 35*102.5*28/21 33.36 19.21
MG35A7-32 35*97.5*28/21 33.36 19.21
MG40A7-1M2T1 40*115*32/23 40.75 24.01
MG40A7-2M2T1 40*115.5*32/23 40.75 24.01
MG40A7-3M2T1 40*116*32/23 40.75 24.01
MG40A7-5 40*97.5*28.5/25 40.75 24.01
MG40A7-9M2T1 40*123*32/23 40.75 24.01
MG40A7-10M2T1 40*123.5*32/23 40.75 24.01
MG40A7-11M2T1 40*124*32/23 40.75 24.01
MG40A7-14 40*99*27/23 40.75 24.01
MG40A7-19 40*115*32/23 40.75 24.01
MG40A7-21 40*89.9*29/23.8 29.52 18.14
MG40A7-22 40*101*40/25 40.75 24.01
MG40A7-23M2T1 40*119*27/23 40.75 24.01
MG40A7-24M2T1 40*119.5*27/23 40.75 24.01
MG40A7-25M2T1 40*120*27/23 40.75 24.01
MG40A7-26 40*102.5*25.5/22 29.52 18.14
MG40A7-37M2T1 40*109*23/23 40.75 24.01
MG45A7-4 45*115*30/25 52.86 31.83
MG45A7-7 45*117*30/25 52.86 31.83
MG45A7-10 45*113.8*30/25 52.86 31.83
MG45A7-12M2T1 45*119.5*32/25 48.8 29.3
MG45A7-14 45*114*35/25 52.86 31.83
MG45A7-15 45*115*35/25 52.86 31.83
MG45A7-16 45*116*35/25 52.86 31.83
MG45A7-17 45*117*40/25 52.86 31.83
MG45A7-18 45*118*40/25 52.86 31.83
MG45A7-19 45*119*40/25 52.86 31.83
MG45A7-20 45*127.06*31.75/25 52.86 31.83
MG50A7-1 50*123.5*40/33 61.86 37.94
MG50A7-4 50*122.5*40/33 61.86 37.94
MG55A7-1M2T1 55*152*45/29 71.57 44.76
MG55A7-2M2T1 55*151.5*45/29 71.57 44.76
MG55A7-3 55*152*45/29 71.57 44.76
MG65A7-1 65*135*41/34 44 34.18
MG65A7-2 65*135*42/34 44 34.18





Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG25A8-1 25*78.7*25/17 17.22 11.39
MG30A8-1 30*78*28/24 27 15.19
MG35A8-1M2T1 35*108*25/21 33.36 19.21
MG35A8-2M2T1 35*109.2*25/21 33.36 19.21
MG40A8-3M2T1 40*118*28/23 40.75 24.01
MG40A8-4M2T1 40*119.2*28/23 40.75 24.01
MG40A8-5M2T1 40*120.2*28/23 40.75 24.01
MG50A8-1 50*129*38/27 61.86 37.94





Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG35A9-1 35*91.24*31.88/21 33.36 19.21 MG207FFH
MG35A9-2 35*110.26*30.28/21 33.36 19.21 MG207FFK
MG35A9-3 35*111*31/21 33.36 19.21
MG35A9-4 35*91*31/21 33.36 19.21
MG35C1-4 35*92*31/20 43.7 30.7
MG35C1-5 35*111.5*30/20 43.7 30.7
MG35C1-6 35*107.8*24.8/21 43.7 30.7
MG40C1-1 40*110*32/23 40.66 36.65
MG40C1-4 40*101*34/25 40.66 36.65
MG45C1-1 45*102*28.5/19 40.66 36.65
MG45C1-2 45*100.96*28.45/19 28.7 29
MG55C1-1T 55*149.5*45*33 110 96.69
MG55C1-2T 55*149*45*33 110 96.69
MG55C1-3T 55*151*45*33 110 96.69
MG30C2-1M1 30*78*24/22 30 22
MG35C2-1 35*88.5*33/29 44 30.7
MG45C2-1 45*101.3*28.3/19 40.66 36.65
MG90C2-1M1 90*400*60/58 480 620
MG90C2-2M1 90*400*58/60 480 620
MG50C4-1 50*163*46/43 76.65 68.95
MG60C4-1 60*126.8*31.12/22 57.42 61.7
MG60C4-2 60*126.8*31.2/22 57.42 61.7
MG65C4-1 65*183.5*45/33 93.1 89.4
MG100C4-1M11 100*250*65/47 182 199
MG25E1-1 25*70.2/55*22*15 14 7.87
MG30E1-1 30*85*31/19 26.7 14.9
MG35E1-1 35*92*31.2/20 38.74 26.79
MG35E1-2 35*111.2*30/20 38.74 26.79
MG35E1-3 35*92*31.5/21 38.74 26.79
MG35E1-4 35*92.2*31.2/20 38.74 26.79 MG207FFUE
MG35E1-5 35*112.7*30/20 38.74 26.79
MG35E1-6 35*98.5*28/20 38.74 26.79
MG35E1-7 35*89.3*30/17 25.6 15.5
MG35E1-8 35*88.5*30/20 38.74 26.79
MG40E1-1 40*111.2*32.2/21.5 56.3 39
MG40E1-3 40*95*28.58/21 40.2 30.1
MG50.8E1-1 50.8*132.7*30/25 50 39
MG50.8E1-2 50.8*126.75*33/25 50 39
MG50E1-2 50*126.75*30/25 50 39
MG55E1-1 55*163.58*52.5/49.2 138.26 129.4
MG55E1-2 55*163.58*52.5/49.2 138.26 129.4
MG55E1-3 55*166.5*52.5/49.2 138.26 129.4
MG55E1-4 55*163*52.5/49.2 138.26 129.4





Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG30E2-1 30*88.5*29/16.59 23 19.05
MG30E2-2 30*89.0*29/16.59 23 19.05
MG30E2-3 30*86.7*28.6/16.6 23 19.05 MG206FFW
MG35E2-1 35*101.35*28.6/21 38.74 26.79 MG207FFU
MG35E2-2 35*101.5*26/20 38.74 26.79
MG35E2-3 35*92.5*31/21 38.74 26.79
MG35E2-4 35*82.2*31.2/20 38.74 26.79
MG35E2-5 35*88.8*30/25 38.74 26.79
MG40E2-3 40*102.9*43/30 56.5 51.8 MG5208VFFA
MG40E2-4 40*127.4*43/30 56.5 51.8
MG40E2-5 40*126.5*43/30 56.5 51.8
MG40E2-6 40*127.4*45/30 56.5 51.8 MG5208VFFPA
MG40E2-7 40*104*43/30 56.5 51.8
MG40E2-8 40*104.3*41/30 56.5 51.8 MG5208VFFQQ
MG40E2-9M45 40*111.6*32.2/21.5 56.3 39
MG40E2-11 40*126.8*43/30 56.5 51.8
MG40E2-12 40*105*43/30 56.5 51.8
MG40E2-13 40*104.2*43/30 56.5 51.8
MG40E2-15 40*128*43/30 56.5 51.8
MG40E2-20 40*127.3*43/30 56.5 51.8
MG50E2-1 50*163.83*43/30.2 69.73 69.55 MG5210VFF
MG55E2-1 55*189.48*45.97/38.5 83.97 84.06 MG5211VFF
MG55E2-2 55*159.2*47.8/38.5 83.97 84.06 MG5211VFFA
MG55E2-3 55*100*50/56


MG60E2-1 60*202.18*54.1/36.5 104.44 102.79 MG5212VZZA
MG60E2-2 60*189.48*54/36.5 104.44 102.79 MG5212VZZ
MG60E2-3 60*205*54.1/36.5 104.44 102.79 MG5212VZZＢ
MG65E2-1 65*188.3*52.3/46.8 122 136 MG5213VFF
MG65E2-2 65*188*52/47 122 136
MG65E2-3 65*188.4*52/47 122 136
MG65E2-4 65*188*52/47 122 136
MG28E3-1 28*78.5*24/21 14.97 10.04
MG30E3-1 30*79.5/77.7*28.58/16.6 14.97 10.04 MG206FFH
MG30E3-2 30*86.38*28.58/16.6 14.97 10.04 MG206FFK
MG30E3-3 30*80.2/78.2*28.58/16.6 14.97 10.04
MG35E3-1 35*88.6*30/25 38.74 26.97
MG35E3-2 35*89.2*30/25 38.74 26.97
MG35E3-3 35*106.5*25/20 38.74 26.97
MG40E3-1 40*100.84*25.4/19.6 40.2 30.1 MG208FFE
MG40E3-2 40*104.1*42.5/30.2 56.5 51.8
MG40E3-3 40*103.0*44/30.2 56.5 51.8
MG40E3-4 40*126.9*44.5/30.2 56.5 51.8
MG40E3-5 40*101.6*35/30 56.5 51.8
MG40E3-6 40*126.5*43/30 56.5 51.8
MG50E3-1 50*140*56.5/54 115.2 70.6
MG35E6-1 35*107.5*25*21 38.74 26.79
MG35E6-2 35*90*25*17 25.6 15.5
MG45E6-1 45*107.2*30.5/19 31.67 20.68
MG50.8E6-1 50.8*126.22*30.6/24.2 50 39
MG50.8E6-2 50.8*126.99*30.6/24.2 50 39
MG35E9-1 35*91.25*31.9/22.5 38.74 26.79
MG35E9-2 35*92*31.5/21 38.74 26.79
MG35E9-3 35*91.2*32/20 38.74 26.79
MG35E9-4 35*111*30/20 38.74 26.79
MG35E9-5 35*111*30/20 38.74 26.79
MG35E9-6 35*91.03*31.88/21 38.74 26.79
MG35E9-7 35*91*32/17 25.6 15.5
MG12.7N1-1 12.7*47.6*25.4/27 38.3 60.5
MG30N1-1 30*62*20/20 55.3 35.4
MG30N1-2M1 30*54*29/85 44.57 68.53
MG35N1-1 35*72*29/20 25 52
MG43N1-1 43*91.8*28/21.5 35 61.5
MG45N1-1 45*90*32/30 75.5 121.6
MG75N1-1 75*105*30/30 124 259
MG15.8N1-1 15.875*50.8*31.75/33.5 49 77.4
MG16N2-1 16*32*24 64.06 90.5
MG17N2-1M1 17*40*20/21 22.2 36.2
MG25N2-1M1 25*52*19.7/20 23.1 33.5
MG25N2-2M1 25*52*24/25 39.98 67.81
MG40N2-1 40*80*20/20 35 61.5
MG50N2-1 50*90*19.8/20 43 84.5
MG50N2-2 50*90*20/19 43 84.5
MG55N2-1M1 55*110*30.5/31 57.8 140
MG30Q1-1 30*62*24.8/25 30 45
MG35Q7-1 35*88.2*30/21 35 26.44
MG45Q1-1M2 45*100*40/40 156 780
MG50Q1-1M2 50*106*50/35 156 780
Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG13R1-1M1 13*52*18/24 25.6 31.4
MG20R1-1M1 20*57*18.5/14.8 20.1 21
MG22R1-1M1 22*52*15.5/16.4 24.3 28.4
MG25R1-3M1 25*62*18/19.5 36.4 36.7 MR35-1
MG25R1-4M1 25*52*15.5/16.5 23 26.26
MG25R1-5 25*52*20.6/20.6 29.48 36.75 70030
MG25R1-6M1 25*52*15.5/16.4 24.3 28.4
MG25R1-8M1 25*62*18/20 36.4 36.7
MG25R1-9 25*72*28/28 61 66 70077V
MG25R1-11M1 25*70*22/22 36.4 36.7
MG25R1-13 25*52*15.5/14 26.2 10.4 92205A
MG30R1-8M1 30*62*16/16.5 31.58 42
MG30R1-10 30*75*23/23 47.8 76.3
MG31.75R1-2M1 31.75*82.5*25.4/25.4 51 64
MG35R1-8M11 35*98.5*33/29.5 58.69 81.31
MG35R1-10M1 35*84.9*31/24 66.4 83.7
MG35R1-11 35*97.5*33/30 65.42 90.07
MG35R1-12 35*96.5*33/30 65.42 90.07
MG35R1-15M1 35*83.5*33/29.5 60 116
MG35R1-18 35*97.5*32/30 65.42 90.07
MG35R1-24M1 35*70.4*23/24 47.75 74.96
MG35R1-25M11 35*101.2*29.9/23.4 69.3 73.9
MG36R1-1M1 36*99.3*28/25 72.51 107.3
MG40R1-1M1 40*78*26/23 50.4 64.3
MG40R1-4M1 40*88.5*35/20.5 90.9 141
MG40R1-9 40*125.85*35/30 130 138
MG45R1-6M1 45*89.5*22/23 54 73.5
MG45R1-8M1 45*73.5*21/18 45 70.1
MG50R1-1 50*90*20/18 65.96 82.68 92210A
MG50R1-2M1 50*102*32/25.5 66.16 81.87
MG50R1-3M1 50*90*20/18.5 53.5 70.9
MG50R1-6M1 50*102*32/32 65.96 82.68
MG50R1-7 50*140*42/29 148 164
MG50R1-8M1 50*102*30/25 65.96 82.68 SX1061PX1
MG50R1-15M1 50*100*32/25.5 66.16 81.87
MG55R1-7M1 55*115.8*38.5/39.5 78.4 117.7
MG55R1-14M1 55*100.3*28/21 65 85
MG55R1-15 55*97*31/29 79 128
MG55R1-16M1 55*109.83*26/26.5 80 137
MG55R1-17M1 55*100*31/31 69.66 120.2
MG60R1-6M1 60*107.5*38.1/38.1 102.49 182.3
MG60R1-7M1 60*110*28/28 84.29 141.7 R60*110*28/28
MG60R1-9M1 60*120*54/50 192 322 R60X120X54/50
MG60R1-10M1 60*113*34/34 84.29 141.7 7E-CRG60*113*34
MG60R1-19M1 60*105*35/36 102.49 182.3
MG62R1-1M1 62*112*36/28 76 103.3
MG62R1-2 62*112*36/28 76 103.3
MG62R1-3M1 62*112*36/28 84.29 141.7
MG65R1-4 65*115*36/32 98 149 7E-CRG65X115X36-3
MG65R1-5M1 65*115*36/36 98 149
MG65R1-10M1 65*115*36/31.7 82.5 137.4
MG65R1-11M1 65*115.5*36/31.7 82.5 137.4
MG70R1-3M1 70*129*40/36 128.94 198.5 7E-CRG70X129X40
MG70R1-4M1 70*180*81/83(85) 490 730
MG70R1-5M1 70*189.5*55/45 150 367
MG70R1-7M1 70*180*81/83(85) 490 730
MG75R1-1M1 75*130*35/35 88.13 147.3 XR1357-1
MG75R1-2M1 75*130*40/40 131.3 245.5 XR1365-1
MG75R1-4M1 75*126.8*48/40 121 239
MG75R1-5M1 75*128*40/40 131.3 245.5 7E-CRG75X128X40-4
MG75R1-6M1 75*124*33/33 131.3 245.5 7E-CRG75X124X33-1
MG75R1-8M1 75*130*40.2/40 131.3 245.5 CRG-75X130X40.2
MG75R1-9M1 75*128*40/40 110.2 196.4 R75*128*40/40
MG75R1-10M1 75*130*40/40 110.2 196.4
MG75R1-12 75*130*31/31 176 245
MG85R1-1M1 85*172*45/34 186.13 240 R85X172X45/34
MG85R1-2M1 85*169*45/34 186.13 240
MG90R1-1M1 90*150*40/40 139.8 255.6
MG95R1-1 95*207*59/56 352.2 637.6
MG100R1-1 100*250*65/47 290 550
MG110R1-1M1 110*299*66/50 513.42 707.78
MG120R1-1 120*243*66/48 405 634 SX2453PX1
MG120R1-3 120*220*64/67.5 347.2 637.4





Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG17R2-1M1 17*40*20/21 28.19 35.69
MG20R2-1M1 20*47*24/25 71.43 55.91
MG20R2-4M1 20*47.1*24/25 71.43 55.91
MG25R2-1 25*52*15.5/16 23 26.3 404#
MG25R2-2M1 25*52*24/25 39.3 52.5
MG25R2-4M11 25*52*17.2/17.2 27.8 33.2
MG30R2-2M1 30*62*21/23.5 37.57 52.58
MG30R2-3BM11 30*52.8*19/18 27.2 39.26
MG30R2-6M1 30*62*21/23.5 37.57 52.58
MG35R2-5M11 35*60.5*23/20 44.5 65.79
MG35R2-6M11 35*60.5*23/20 44.5 65.79
MG35R2-8M1 35*60.5*22/17 44.45 65.68
MG35R2-9M1 35*61.8*22/17 44.45 65.68
MG35R2-17 35*62*20/20 38.6 54.75
MG40R2-2M1 40*105.8*22/23 63.18 79.77
MG40R2-3BM11 40*81.8*21/18 42.7 65.7
MG40R2-4M1 40*79.95*22/15.5 53 63
MG40R2-5M11 40*73.8*25/20 51.3 74.7
MG40R2-6M11 40*70.8*21/18 42.7 65.7
MG40R2-7M1 40*91.95*22/15.5 65.5 60
MG40R2-8M11 40*73.8*25/20 51.3 74.7
MG40R2-9M11 40*78.1*21/18 42.7 65.7
MG40R2-10M11 40*70.1*21/18 42.7 65.7
MG45R2-3M1 45*80.5*25/17 51.08 86.79
MG45R2-4M1 45*81.8*25/17 51.08 86.79
MG45R2-6M11 45*74.8*21/17.2 51.08 86.79
MG45R2-7M11 45*81.8*25/17.2 51.08 86.79
MG50R2-1M1 50*110*30/32 108.5 173.3
MG50R2-3M11 50*90.8*27/20 64.85 92.5
MG50R2-4 50*150*61/63 222 340
MG50R2-5M11 50*90.8*27/20 64.85 92.5
MG50R2-8T 50*123*34/27 94.81 113.34
MG50R2-9M1 50*130*63/65 223 340
MG52R2-1M1 52*110.5*32/26.15 65.96 82.68
MG55R2-1 55*110*26/26 82.53 137.46
MG55R2-2M1 55*110*26/26 78.4 117.7
MG55R2-3 55*110*26/26.2 82.53 137.46
MG55R2-4M1 55*100.5*28/22 63.9 87.5
MG55R2-5M1 55*120*40/43 168 269
MG60R2-1M11 60*110.8*32/22 92.9 129.1
MG60R2-2M11 60*127.8*34/22 92.9 129.1
MG60R2-3M11 60*110.8*32/22 92.9 129.1
MG60R2-4M1 60*150*73/75 315 493
MG60R2-5M1 60*120.8*37.5/37.5 160 192
MG60R2-6 60*135*42/44 168 239
MG65R2-1 65*180.3*72/78.6 346 595.2
MG65R2-2M1 65*108.7*35/27 84.3 141.8 NUTD65H
MG65R2-3M1 65*120.3*27/23 80.8 126
MG65R2-4M1 65*130.4*29/25 80.8 126
MG65R2-5M1 65*160*73/75 280 460
MG70R2-1M1 70*150*40/42 210 338
MG70R2-2M1 70*180*83/85 490 730 NNTR70X180X85
MG70R2-3M1 70*190*58/60 304 456
MG70R2-4M1 70*160*58/60 304 456
MG70R2-5M1 70*151.5*36/36 140 188
MG75R2-1M1 75*160*40/42 178.5 310
MG80R2-1M1 80*220*60/62 455 590
MG90R2-1M1 90*190*52/54 347 556 NUTR 90 190
MG100R2-1M1 100*180*63/65 387 693
MG110R2-1M1 110*200*63/65 410 780
MG140R2-1M1 140*250*76/78 630 1180
MG140R2-3M1 140*300*76/78 630 1180
Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG25R3-1M1 25*70.5*25/20 36.4 36.7
MG25R3-2M1 25*70*25/20.5 36.4 36.7
MG28R3-1M1 28*80*24/15 35.9 44.1
MG28R3-2M1 28*78*24/21 35.9 44.1
MG28R3-3M1 28*78.4*24/21 35.9 44.1
MG28R3-4M1 28*78.2*24/21 35.9 44.1
MG28R3-5M1 28*77.5*28/18 35.9 44.1
MG30R3-1M1 30*76*23/19 45.66 46
MG30R3-2M1 30*77*23/19 45.66 46
MG35R3-1M1 35*88*36/31 100 130
MG36R3-1 36*102.546*28/25 85 104
MG40R3-1M1 40*100*33/29.5 92.05 108.1
MG45R3-1M1 45*123.5*34/25 85 150
MG50R3-1 50*109.35*41/37 125.14 199.37 50945
MG55R3-1 55*120*49/45 100 150
MG65R3-1M1 65*149*40/40 150 230





MG25R4-1 25*62*30/34 50.6 75.5
MG55R4-1 55*94*27/27 79 128 XR0946-1
MG55R4-2 55*97*31/31 79 128
MG55R4-3 55*96.2*33/33 79 128 XR1057-1
MG65R4-1 65*108.6*30/30 56.46 123 XR1152-1
MG76R4-1 76.2X164.5X38.3/29 105 150
Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG28R6-1M1 28*77.2*27/22.5 54.97 62.89
MG33R6-1M1 33*75.2*24/20.5 44.6 56.3
MG33R6-2M1 33*75.6*24*20.5 44.6 56.3
MG33R6-3M1 33*75.9*24/20.5 44.6 56.3
MG35R6-3 35*78*20/20.5 47.75 74.96
MG35R6-4M1 35*88.5*32/32 100 135
MG35R6-5M1 35*88.5*35/36 100 135
MG35R6-6M1 35*78*23/24 58 98.5
MG36R6-1 36*90.4*29/23.5 75.94 93.67
MG40R6-1 40*90.5*29/29 65.32 84.02
MG40R6-2M1 40*78*24/24 70 80
MG40R6-3M1 40*79.7*31/31 90.9 141
MG45R6-1M1 45*105.4*34/33.5 95.64 115.3
MG45R6-2M1 45*115.5*34/33.5 95.64 115.3
MG45R6-3M1 45*115.9*34/33.5 95.64 115.3
MG45R6-4T 45*89.55*30/28.6 71 128
MG45R6-6M1 45*105.8*34/33.5 95.64 115.3
MG45R6-7M1 45*106.1*34/33.5 95.64 115.3
MG45R6-8M1 45*89*30/28.5 71 128
MG45R6-9 45*106.3*34/33.9 119.5 166.2
MG45R6-10M1 45*105.2*34/29 95.64 115.3
MG45R6-11M1 45*106.5*34/29 95.64 115.3
MG45R6-12 45*127*31.75/29 89.98 77.82
MG45R6-13M1 45*106.1*34/28.5 95.64 115.3
MG50R6-1T 50*123*34/29 94.81 113.34 CG92310T





Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG17R7-1M1 17*56*19.6/18 27.8 53
MG25R7-1M1 25*78.2*25/17 45.8 49
MG25R7-2M1 25*78.5*30/25 54.97 62.89
MG28R7-3M1 28*77.2*25.5/22 47.5 58.2
MG30R7-1M1 30*75.2*24/20 57.11 67.25
MG30R7-2M1 30*75.45*24/20 57.11 67.25
MG30R7-3M1 30*75.95*24/20 57.11 67.25
MG30R7-9M1 30*75.1*24/20.5 57.11 67.25
MG30R7-10M1 30*75.6*24*20.5 57.11 67.1
MG30R7-12M1 30*75*24/19.7 57.11 67.25
MG30R7-13M1 30*76*24/19.7 57.11 67.25
MG30R7-15M1 30*76.20*24/20 57.11 67.25
MG30R7-16M1 30*78.20*24/24 57.11 67.25
MG30R7-18M1 30*79*24/24 57.11 67.25
MG30R7-31 30*75.2*24/20 57.11 67.25
MG30R7-32 30*75.7*24/20 57.11 67.25
MG30R7-33 30*76.2*24/20 57.11 67.25
MG30R7-40 30*75.9*24/23.5 57.11 67.25
MG30R7-46M1 30*75.2*24/20.75 57.11 67.25
MG32R7-1M1 32*77.2*25.5/22 44.6 56.3
MG35R7-2BT 35*78.3*23/21 41 64 35ZK
MG35R7-3BT 35*77.7*23/21 41 64 35XK
MG35R7-5T 35*78.8*23/21 41 64 35ZKL
MG35R7-10T 35*79.3*23/21 41 64 35ZKL1
MG35R7-11T 35*79.8*23/21 41 64 35ZKL2
MG36R7-2M1 36*90.2*29/23.5 63.18 79.77
MG36R7-6M1 36*89.5*29/22 75.68 93.6
MG36R7-7M1 36*90.5*29/22 75.68 93.6
MG40R7-1M1 40*89.9*29/28.5 68.9 98.68
MG40R7-2M1 40*90.2*29/28.5 68.9 98.68
MG40R7-4M1 40*90.5*29/28.5 68.9 98.68
MG40R7-9M1 40*89.9*29/28.5 68.9 98.68
MG40R7-10 40*90.1*29/27 63.18 79.77
MG40R7-12M1 40*89.9*29/23.8 46.1 79.8
MG40R7-15M1 40*90.8*29/23.8 46.1 79.8
MG42R7-3M1 42*105*34/26.2 95.64 115.3
MG42R7-4M1 42*105.7*34/26.2 95.64 115.3
MG42R7-7M1 42*105.7*34/28 95.64 115.3
MG42R7-8M1 42*105.7*34/28 95.64 115.3
MG42R7-11M1 42*104.7*29/24 92 108
MG42R7-12M1 42*105.0*29/24 92 108
MG42R7-13M1 42*105.3*29/24 92 108
MG42R7-14M1 42*105.6*29/24 92 108
MG45R7-1BT 45*89.6*30/28.6 70 122 45ZKJ
MG45R7-2BT 45*88.8*30/28.6 70 122 45XK
MG45R7-3BT 45*89.15*30/28.6 70 122 45ZK
MG45R7-4M1 45*107*26/26 95.64 115.3
MG50R7-2M1 50*123.4*40/40 137.8 170
MG50R7-4M1 50*124.2*44/30 101 135
MG60R7-1 60*107.5*36/37 84.29 141.7
MG65R7-1M1 65*123*37/34.8 107 180.5
MG65R7-4 65*135.6*42/35 128.94 198.5
MG65R7-5 65*123*37/38 107 180.5
MG75R7-1M1 75*129.3*34/32 121.66 189.2
MG75R7-2M1 75*130*34/32 121.66 189.2
MG75R7-4M1 75*129.3*34/34 146 253
MG75R7-5M1 75*130*34/34 146 253
MG82R7-1M1 82*149*42*42.7 291 380


Forklift Mast Roller Bearing, Double Row

Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG25B1-1 25*88.6*30.5/25.5 21.61 15.88
MG25B1-2 25*47*28/30 14.12 25.82
MG25B1-3 25*70*26/21 21.61 15.88
MG30B1-2M1 30*72.1*30/24 28.1 20
MG30B1-3M1 30*84.9*31/24 28.1 20
MG40B1-2 40*90.5*29/29 26.8 23.6
MG55B1-1 55*110*26/26 31.6 32.4
MG60B1-1 60*126*31/31 55.21 53.27





Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG28B2-1 28*77.6*28/23 28.1 20
MG30B2-1 30*70*27/24 25.92 20.66
MG30B2-2M1 30*70.2*24/24 21.57 16.24
MG30B2-3 30*75.6*26/24 25.92 20.66 LR 5206
MG35B2-1 35*90*27/27 33.94 26.67
MG35B2-2 35*90*34.9/34.9 44.5 35.55
MG40B2-1M1 40*100*36.5/36.5 60 43
MG40B2-2 40*104.2*43/30.2 38.2 30.2
MG40B2-3 40*127.3*43/30.2 38.2 30.2
MG45B2-1 45*109.4*38.5/30 47 38
MG50B2-1 50*120*30/30 43.3 43.2
MG60B2-1M1 60*149.4*41.5/36.5 53.7 55.7
Type Size(mm) Rated load(KN) Reference model
d*D*C/B Cr Cor
MG28B7-1 28*70*23/22.5 17.3 14.7
MG28B7-2M1 28*69.9*23/22.5 17.3 14.7
MG28B7-8M1 28*75.3*23/22.5 17.3 14.7
MG28B7-9M1 28*75.6*23/22.5 17.3 14.7
MG28B7-10M1 28*75.9*23/22.5 17.3 14.7
MG30B7-1 30*78.2*24/24 20.02 15.46
MG30B7-2 30*78.6*24/24 20.02 15.46
MG30B7-3 30*79*24/24 20.02 15.46
MG30B7-4 30*79.4*24/24 20.02 15.46
MG30B7-9 30*76*24/24 16.9 21.39
MG30B7-17 30*75.3*24/23.5 28.49 20.97
MG30B7-18 30*75.6*24/23.5 28.49 20.97
MG30B7-19 30*75.9*24/23.5 28.49 20.97
MG35B7-2 35*80.9*26/26 25.8 21.07
MG35B7-3 35*81.2*26/26 25.8 21.07
MG35B7-4 35*81.5*26/26 25.8 21.07
MG40B7-12M1 40*89.9*29/28.8 38.2 30.2
MG40B7-13M1 40*90.2*29/28.8 38.2 30.2
MG40B7-14M1 40*90.5*29/28.8 38.2 30.2
MG40B7-19 40*89.9*29/28.8 38.2 30.2
MG40B7-20 40*90.2*29/28.8 38.2 30.2
MG40B7-21 40*90.5*29/28.8 38.2 30.2
MG40B7-22M1 40*88.8*29/28.7 36.4 28.5
MG40B7-23M1 40*89.9*29/28.9 30 22.5 MRS1393
MG40B7-24M1 40*90.2*29/28.9 30 22.5 MRS1394
MG40B7-25M1 40*90.5*29/28.9 30 22.5 MRS1395
MG45B7-1 45*105.4*34/29 37.94 33.1
MG45B7-2 45*105.7*34/29 37.94 33.1
MG45B7-3 45*106*34/29 37.94 33.1
MG45B7-4 45*106.4*34/29 37.94 33.1
MG45B7-5 45*105.4*34/34 50.7 40.82
MG45B7-6 45*105.7*34/34 50.7 40.82
MG45B7-7 45*106.0*34/34 50.7 40.82
MG45B7-8M1 45*105.4*34/34 50.7 40.82
MG45B7-9M1 45*105.8*34/34 50.7 40.82
MG45B7-10M1 45*106.1*34/34 50.7 40.82
MG45B7-11M1 45*105.4*34/33.5 50.7 40.82
MG45B7-12M1 45*105.8*34/33.5 50.7 40.82
MG45B7-13M1 45*106.1*34/33.5 50.7 40.82
MG45B7-14 45*105.4*34/29 37.94 33.1
MG45B7-15 45*105.7*34/29 37.94 33.1
MG45B7-16 45*106*34/29 37.94 33.1
MG45B7-17 45*105.4*34/33.5 50.7 40.82
MG45B7-18 45*105.8*34/33.5 50.7 40.82
MG45B7-19 45*106.1*34/33.5 50.7 40.82
MG45B7-20 45*105.4*34/33.5 50.7 40.82
MG50B7-1M1 50*124.25*32/30.2 41 40
MG50B7-2M1 50*123.9*32/30.2 41 40
MG65B7-1T 65*136*42/34 58.5 63.1
MG65B7-2 65*135.1*42/34 61.45 62.3
MG65B7-3 65*135.6*42/34 61.45 62.3
MG65B7-4 65*136*42/34 61.45 62.3
MG65B7-5M1 65*135.3*42/34 61.45 62.3
MG36D1-1 36*108.8*28/28 41.55 51.36
MG36D1-2 36*108*28/28 41.55 51.36
MG36D1-4 36*109.5*28/28 43.83 51.37
MG40D1-1 40*124*43/30 74.08 59.76
MG55D1-2 55*163.58*60/49.2 138.26 129.4 MG5311VZZA
MG55D1-4 55*163.58*52.5/49.2 138.26 129.4 MG5311VFFA
MG40D2-1 40*103.5*44.5/30 74.08 59.76
MG40D2-2 40*103.5*43/30 74.08 59.76
MG40D2-3 40*126.6*43/30 74.08 59.76
MG40D2-4 40*103.5*43/30 74.08 59.76
MG40D2-5 40*126.5*43/30 74.08 59.76
MG55D2-1 55*159.25*47.8/38.8 122.48 89.06
MG55D2-2 55*136.8*47.8/38.5 122.48 89.06
MG55D2-3 55*136.8*47.8/33.3 103 78
MG40D3-1T 40*107/106*40/30.2 74.08 59.76 C40X107
MG40D3-2T 40*103.0/98*44/30.2 74.08 59.76
MG40D3-3T 40*104.1/101.6*42.5/30.2 74.08 59.76
MG40D3-4T 40*126.9/122.75*44.5/30.2 74.08 59.76
MG40D3-5 40*103.5*43/30.2 74.08 59.76
MG40D3-6 40*127*43/30.2 74.08 59.76
MG100E7-1M45 100*250*68/67 330 580
MG100E7-2M45 100*249.3*68/67 330 580
MG100E7-3M45 100*250.3*68/67 330 580
MG100E7-4M45 100*251*68/67 330 580


Forklift mast bearings

Fork mast roller

Type Size(mm) Rated load(KN) Reference model
B/L*d/D*C Cr Cor
SR30A95.5-1 30/45*16/95.5*12 14.82 12.18
SR49A74-1 49/68*25/74*25 15.1 10
SR50A67-1AM11 50/70*33/67*26 14.02 7.88
SR50A67-1M1 50/70*33/67*26 14.02 7.88
SR50A68-1M1 50/70*33/68*26 14.02 7.88
SR52A70-1 52/73*25/70*17 22.38 11.49
SR55A87-1T 55/75*30/87*22 27 15.19
SR60A96-1 60/90*38/96*30 40.75 24.01 83111DB
SR60A100-1 60/90*40/100*30 40.75 24.01
SR65A67-1M1 65/85*25/67*33 14.02 7.88
Type Size(mm) Rated load(KN) Reference model
B/L*d/D*C Cr Cor
SR54B40-1 54/70.5*19.6/40*30 15.79 10
SR54B41-1 54/70.5*19.6/41*30 15.79 10 MRS-1
SR55B47-1 55/75*24/47*30 118.56 10.85
SR60B41-1 60/80*19.6/41*30 15.79 10
SR60B41-2 60/80*19.6/41*30 15.79 10
SR60B42-1 60/80*19.6/42*30 15.79 10
SR60B42-2 60/80*20/42*30 15.79 10
SR60B42-3 60/80*19.6/42*30 15.79 10
SR60B47-1 60/80*24.4/47*30 22.22 12.36
SR60B52-1 60/84*25.4/52*30 22.27 12.41
SR60B52-2 60/84*25.4/52*30 22.27 12.41
SR60B52-3 60/84*25.4/52*30 22.27 12.41
SR60B54-1 60/80*25.4/54*30 22.27 12.41
SR60B58-1T 60/80*20/58*30 26 15.8 C58*80
SR60B58-2 60/80*30/58*30 30.3 15.88 C58X80D
SR60B80-2 60/90*42/80*30 31.4 22.5
SR62B52-1 62/84*25/52*38 15.88 30.3 84905D
SR70B72-1T 70/90*32/72*34.5 30 22.86





Type Size(mm) Rated load(KN) Reference model
B/L*d/D*C Cr Cor
SR45D40-1T 45/62*21.4/40*21 12.6 10.8
SR45D40-2 45/62*21.4/40*21 12.6 10.8
SR45D40-3T 45/62*21.4/40*21 12.6 10.8
SR55D40-1 55/70*21.4/40*30 12.6 10.8 RSL-3
SR55D40-2 55/70.5*21.4/40*30 12.6 10.8
SR55D41-1 55/70.5*21.4/41*30 12.6 10.8
SR55D47-1 55/75*25/47*30 19.3 15.2
SR55D47-2 55/75*24.4/47*30 19.3 15.2
SR55D47-3 55/75*24.4/47*30 19.3 15.2
SR55D47-4 55/75*24.4/47*30 19.3 15.2
SR55D47-5 55/75*24.4/47*30 19.3 15.2
SR60D40-1 60/80*21.4/40*30 12.6 10.8
SR60D40-1T 60/80*21.4/40*30 12.6 10.8
SR60D47-1 60/80*24.4/47*30 19.3 15.2
SR60D58-1T 60/80*30/58*30 25.76 32.23
SR60D58-2T 60/80*30/58*30 25.76 32.23
SR63.7D58-1T 63.7/88*31/58*40 25.76 32.23
SR74D52.2-1 74/96*27.4/52.2*30 21 19.3
Type Size(mm) Rated load(KN) Reference model
B/L*d/D*C Cr Cor
SR48E58-1 48/65*19.5/58*22 12.99 6.65
SR48E65-1 48/65*19.5/65*22 12.99 6.65
SR50E62-1M45 50/64*28/62*30 21 13
SR55E62-1M45 55/69*28/62*30 21 13
SR60E42-1 60/80*20/42*36 13.7 24
SR60E58-1M2 60/80*20/58*30 19.76 12.4 C2-3
SR60E58-2M2 60/8020/58*30 19.76 12.4
SR60E58-3M2 60/80*20/58*30 19.76 12.4
SR60E68-1M45 60/80*20/68*30 19.76 12.4 C68X80
SR60E90-1M1 60/80.5*50/90*30 93 155
SR70E82-1M2 70/90*30/82*34.5 30 22.6
SR70E82-2M2 70/90*30/82*36 30 22.6





Type Size(mm) Rated load(KN) Reference model
B/L*d/D*C Cr Cor
SR16N32-2 48*16/32*24 25.82 18.42
SR22N52-1M1 115*22/52*63 62 119
SR22N52-2M1 100*22/52*48 47 83
SR25N40-4 84*25/40*50


SR30N70-1M1 155*30/70*85 135 299
SR31.75N64-1 31.75*64/76 42.2 56
SR36N38-1 36/44.7*18/38*24 28.7 32.8 XR1057-2
SR40N45-1 40/51.7*22/45*24 43.5 34.3 XR1152-2
SR58N42.75-1 58/72.5*19/42.75*30.2 41 51
SR58N42.75-2 58/72.5*19/42.75*30.2 41 51
SR59.5N42-1 59.5/80*20/42*36 27 32
SR60N42-1 60/80*20.2/42*36 31.2 43.55 C42X80
SR60N42-2 60/80*20/42*36 44.13 58.8
SR60N42-3 60/85*20/42*36 44.13 58.81
SR60N42-4 60/85*20/42*36 44.13 58.81
SR60N42-5 60/85*20/42*36 44.13 58.81
SR60N42-6 60/80*20/42*36 44.13 58.81
SR60N42-7 60/80*20/42*37.5 44.13 58.81 84904
SR60N42-8 60/80*20/42*36 44.13 58.81
SR60N42-9 60/80*19/42*36 32 47 84904ARS
SR60N42-10 60/80*19/42*30.2 41 51
SR60N42-11 60/80*20.5/42*34 44.7 64.83
SR60N42-12 60/80*20.5/42*34 44.7 64.83
SR60N47-1 60/80*23.5/47*30 38 59
SR60N50-1 60/80*23.5/50*34 47.73 72.52
SR60N52-1 60/84*25.4/52*36 24.92 45.39
SR60N52-2 60/84*25.4/52*36 24.92 45.39 CRS25.4X52X84-2
SR60N52-3 60/84*25.4/52*36 34.8 47.1
SR60N52-4 60/84*25.4/52*36 34.8 47.1
SR64N58-1 64/88*31.75/58*40 43.6 72.9
SR64N58-2 64/88*31/58*40 53.4 80.1
SR64N58-3 64/88*31/58*40 53.4 80.1 MRS-22
SR68N42-1 68/90*20/42*34 43.1 61.8
SR68N42-2 68/90*20.5/42*34 44.7 64.83
SR82N52-1 82/108*23/52*40 62.53 90.16
SR82N60-1 82/108*32/60*40 108 69





Type Size(mm) Rated load(KN) Reference model

Cr Cor
SR40R100-1 115*40/100*48 100 140 08NUP1048V/115
SR40R85-1M1 220*40/85*135 214 438
SR45R47-1 45/66*17/47*22 31.19 31.38 2E-CRS19X47X66
SR45R90-2M1 221*45/90*135 186 428
SR45R90-3M1 211*45/90*125 206 488
SR46R52-1 46/60*24/52*30 61 51 XR1357-2
SR50R67-1 50/70*33/67*26 36.75 36.3 B-05
SR50R67-2 50/70*24.5/67*26 36.75 36.3
SR55R87-1 55/75*30/87*22 54.8 66.4
SR60.2R85-1 60.2/80.4*40/85*33.8 78.9 106.3
SR60R52-1M1 60/80.5*25/52*27 40.4 55.1
SR60R80-1 60/90*42/82*30 78.9 106.3 B-07
SR60R80-2 60/90*42/80*30 78.9 106.3
SR94R58-1 94/117*28.8/58*70 103 157
Type Size(mm) Rated load(KN) Reference model
d*D*C*L/H Cr Cor
SR10N50.5-1 10*25*30*50.5/29 10 12
SR16.2N35-1 16.2*35*23*40/39 18.2 30.2
SR16.2N35-2 16.2*35*20*40/44 16.4 25.88
SR16.2N35-3 16.2*35*23*40/39 18.2 30.2
SR19N39-1 19.2*39*28*43/44 28.11 41.48 CRS19X43X49
SR22N40-1 22*40*25*47/45 33.4 53.7 CRS22X46X40
SR68N58-1 31.75*58*40*68/61 43.6 72.9
SR68N58-2 31.75*58*40*68/61 43.6 72.9
SR68N58-3 31*58*40*68/61 58 100
Type Size(mm) Rated load(KN) Reference model
d*D*C*L Cr Cor
SR30R54-1M1 30*54*29*87.5 61.52 96.3
SR30R62-1M1 30*62*29*87.5 61.52 96.3
SR30R62-2M1 30*62*29*87.5 61.52 96.3
SR30R80-1M1 30*80*30.5*96 100 140
MG30N2-1M1 30*54*29*85 44.57 68.53
MG30N2-2M1 30*54*29*87.5 44.57 68.53
MG30N2-3M1 30*62*29*87.5 44.57 68.53
MG30N2-4M1 30*54*29*88 44.57 68.53





Type Size(mm) Rated load(KN) Reference model
d*D/D1*C/C1*B Cr Cor
CG25A1-1 25*160/140*40/24*30 44.93 27.22
CG30A1-1 30*94/80*31/20*19 27 15.19
CG30A1-6 30*127/120*32/20*19 27 15.19
CG30A1-7 30*105/85*30/20*19 27 15.19
CG30A1-9 30*82/70*30/22*16 19.46 11.31 780206V
CG30A1-12 30*87/75*34/22*26 27 15.19 780606K
CG35A1-2 35*105/90*30/21*21 33.36 19.21
CG35A1-10 35*109/90*30/20*21 33.36 19.21
CG35A1-16 35*90/80*29/21*21 33.36 19.21
CG35A1-35 35*97/81.6*30/20*21 33.36 19.21
CG35A1-38 35*97/83*30/21*21 33.36 19.21
CG35A1-41 35*119/101.75*38.3/28.6*21 33.36 19.21
CG40A1-5 40*113/95*32/21*23 40.75 24.01 780708K1
CG40A1-6 40*118/100*37/27*23 40.75 24.01
CG40A1-7 40*118/100*37/28*23 40.75 24.01
CG40A1-8 40*123/105*42/31*19 25.6 18.1
CG40A1-9 40*131/113*48/36*25 35.07 23.18
CG40A1-10 40*134/115*39/29*27 50.39 37.97 780408
CG40A1-11 40*134/115*43/32*27 50.39 37.97 780408H
CG40A1-12 40*138/120*37/28*23 40.75 24.01
CG40A1-17 40*114/100*36/28*23 40.75 24.01
CG40A1-21 40*142/124*34/27*23 40.75 24.01
CG40A1-39 40*118/100*32/26*23 40.75 24.01
CG40A1-40 40*118/100*34/27*23 40.75 24.01 780708K
CG40A1-42 40*105/95*29/21*23 40.75 24.01
CG40A1-43 40*120/110*40/30*23 40.75 24.01 780308
CG40A1-44 40*113/96*40/30*23 40.75 24.01 780308K2
CG40A1-48 40*118/104*37/23*23 40.75 24.01
CG40A1-50 40*118/100*37/28*23 40.75 24.01 780708H
CG40A1-56 40*114/100*34/27*23 40.75 24.01
CG40A1-60 40*107/94.5*32/21*23 40.75 24.01 780708K1S
CG40A1-61 40*140/120*34/27*23 40.75 24.01 780308K
CG45A1-1 45*123/106*44/32*25 52.86 31.83 780309H
CG45A1-2 45*123/110*38.5/31*25 52.86 31.83 780709H
CG45A1-3 45*126/110*36/25*25 52.86 31.83 780309K
CG45A1-4 45*138/116*36/25*25 52.86 31.83
CG45A1-7 45*117/105*36/26*25 52.86 31.83
CG45A1-8 45*135/123*36/26*25 47.76 32.93
CG45A1-10 45*123/106*44/32*25 52.86 31.83
CG45A1-15 45*121/110*36/28*25 52.86 31.83
CG45A1-16 45*123/110*40/31*25 52.86 31.83
CG45A1-17 45*126/110*38/28*25 52.86 31.83 780709
CG45A1-18 45*125/110*35/25*25 52.86 31.83 780709K
CG45A1-19 45*128/110*34/27*25 52.86 31.83
CG45A1-25 45*138/116*39/28*25 52.86 31.83 780309K5
CG45A1-28 45*126/110*44/34*25 52.86 31.83 780309K3
CG50A1-3 50*141/122*46/27*27 61.86 37.94 780310K
CG50A1-4 50*148/134*41/25*27 61.86 37.94 780310H
CG50A1-5 50*151/135*44/35*27 61.86 37.94
CG50A1-6 50*155/135*42/33*27 61.86 37.94
CG50A1-8 50*140/122*46/39*27 61.86 37.94
CG50A1-9 50*150/132*50/35*29 61.86 37.94
CG50A1-17 50*124/115*38/32*27 61.86 37.94
CG55A1-1 55*156/140*57/42*44.7 81.75 51.85
CG55A1-2 55*160/145*52/36*44.5 77.44 62.71 780411
CG65A1-1 65*176/160*65/44*49 104.13 68.04
CG75A1-1 75*216/200*72/56*54 144 108.9
CG75A1-2 75*216/200*66/50*54 1454 108.9
CG80A1-1 80*250/224*74/54*39 122.94 86.5





Type Size(mm) Rated load(KN) Reference model
d*D/D1*C/C1*B Cr Cor
CG25A3-1 25*70/62*15/6*15 14 7.88
CG25A3-2 25*86/74*30/12*17 22.38 11.49
CG30A3-1 30*80/72*16/8*16 19.46 11.31
CG30A3-2 30*75/66*16/8.4*16 19.46 11.31
CG30A3-3 30*90/80*25/15.5*19 27 15.19
CG35A3-1 35*91/81.6*21/14.6*21 33.36 19.21
CG35A3-2 35*88/77*25/14.7*21 33.36 19.21
CG35A3-3 35*88/80*25/11.6*21 33.36 19.21
CG40A3-1 40*102/88*23/18*23 40.75 24.01
CG40A3-2 40*103/93*23/18*23 40.75 24.01
CG40A3-3 40*100/91*32/14.2*23 40.75 24.01
CG40A3-4 40*103/93.2*23/14.7*26 40.75 24.01
CG40A3-5 40*103/88*23/18*23 40.75 24.01
CG40A3-6 40*102.5/88*24/18.5 40.75 24.01
CG40A3-7 40*102/87.6*23/18*23 40.75 24.01
CG45A3-1 45*113/99*31/14.5*25 52.86 31.83
CG45A3-2 45*110/100*25/14*25 52.86 31.83
CG45A3-3 45*110/97*25/18*25 52.86 31.83
CG45A3-4 45*113/100*31/17.5*25 52.86 31.83
CG50A3-1 50*139/125*31/14.5*27 62 38.5
Type Size(mm) Rated load(KN) Reference model
d*D/D1*C/C1*B Cr Cor
CG25B1-1 25*75/65*30/20*30 20.46 15.87
CG25B1-2 25*102/82*40/24*44 20.46 15.87
CG25B1-3 25*128/108*40/24*30 37.94 33.1
CG25B1-4 25*146/126*45/29*30 37.94 33.1
CG25B1-5M1 25*108/100*35/24*39 58.5 52.8
CG28B1-1M1 28*63/55*30/25*32 13.7 13
CG30B1-1 30*100/80*42/28*32 30 22.86
CG30B1-2 30*100/92*45/33*45 39.38 30.41
CG30B1-3 30*73/65*27/20.5*28 29 21
CG30B1-4M1 30*73/65*27/20.5*28 30 22
CG30B1-5M1 30*88/80*32/24*34 28 20
CG30B1-6M1 30*108/100*32/24*34 52.8 58.5
CG30B1-7M1 30*97/82*32/22*33.5 35.1 28.5
CG35B1-1 35*115/92*45/35*34 40 31.1
CG35B1-2 35*104/96*34/24*40 38.5 31
CG35B1-3 35*100/91.7*47/39.4*49 53 38.5
CG35B1-4 35*108/90*47/33*49 53 38.5
CG35B1-6M1 35*104/96*34/24*40 52.8 58.5
CG35B1-7 35*98/80*34/27*36 41.6 30.4
CG35B1-8 35*108/90*35/21*37 41.6 30.4
CG35B1-9 35*87.5/80*29/22*30 41.6 30.4
CG35B1-10 35*96/85*34/28*38 41.6 30.4
CG35B1-11 35*115/85*45/39*47 41.6 30.4
CG35B1-12M1 35*100/91.7*47/39.4*49 52.8 58.5
CG35B1-13M1 35*87/80*31/25*32 26 25
CG40B1-1 40*85/75*26/19*28 20.08 18.7
CG40B1-2 40*99/85*36/28*38 35.12 28.92
CG40B1-3 40*104/95.25*52/42.67*40 40.75 24.01
CG40B1-4 40*122/110*46/35*48 45.5 36.3
CG40B1-6M1 40*97/82*32/22*33.5 35.12 28.92
CG40B1-7 40*85/75*26.8/21*28 20.08 18.7
CG40B1-8M1 40*85/75*26/19*28 20 19
CG40B1-9M1 40*99/85*36/28*38 35 29
CG40B1-11M1 40*98/80*41/33*43 35 29
CG40B1-13M1 40*90/80*26/19*28 32 25
CG45B1-2 45*90/80*32/26*32.8 30 26.5
CG45B1-4 45*88/80*32/26*32.8 30 26.5
CG45B1-5 45*106/92.5*46/7.5*47 47 38
CG45B1-6 45*105/91*34/25*30 37.8 33.3
CG45B1-7 45*105/95*40/33*41 47 38
CG45B1-8 45*105/95*38/30.5*41 47 38
CG45B1-9 45*120/107.6*62/56*66 79.6 60
CG50B1-1 50*135/115*52/36*40 54 46.45
CG50B1-2 50*112/100*40/33*42 52.66 44.58
CG50B1-6 50*125/105*52/36*40 54 46.45
CG50B1-8M1 50*112/100*40/33*42 52.66 44.58
CG50B1-9M1 50*88/80*33/26.5*35 23 23
CG55B1-1 55*158/130*65/55*67 65.75 58.04
CG55B1-2 55*135/110*56/45*58 58.95 51.07
CG55B1-3M1 55*135/110*56/45*58 58.95 51.07
CG40C1-1 40*100/88*35/25*25 40.75 33 780708F
CG40C1-2 40*100/88*40/30*25 40.75 33 780708A
CG40C1-3 40*100/88*35/20*25 40.75 33 780708F1
CG50C1-1 50*124/104*43/31*30 50 46
CG40D1-1 40*90/80*30/25*20 30.3 40.6
CG40D1-2 40*94/84*35/30*20 30.3 40.6
CG40D1-3 40*89/81*25.4/20.5*20.5 30.3 40.6
CG40D1-4 40*135/122*52/41.5*30 74.08 59.76





CG25E1-1 25*108/89*38.1/31.75*24 42.6 35.8
CG30E1-1 30*90/80*36/27*19 26.7 14.9
CG35E1-3 35*98.5/86*50.3/30*20 38.74 26.79
CG35E1-4 35*98.5/86*50.3(39)/27*20 38.74 26.79
CG35E1-5 35*98.5/86*38/30*20 38.74 26.79
CG45E1-1M1 45*123/115*36/29*32 75.5 121.6
CG50E1-1 50*138/114*52/36*40 57 46.5
CG55E1-1M45T1 55/100*156/140*54/38*45 70.5 58.8
CG60E1-1M1 60*170/150*70/50*75 200 228
CG75E1-1M45T1 75/130*216/200*66/50*54 107.2 99.3
CG95E1-1 95*246/230*80/68 179 165
CG95E1-3 95*300/265*90/68*68 180 165
CG100E1-1 100*280/230*96/69*100 380 820
CG100E1-2 100*330/280*140/110*144 1024 1588





CG19N1-1 19.063*86/76*38.6/29.5*39.8 79.1 135.5
CG19N1-3 19.05*67.3/60.3*46.35/36.57*47.75 85.2 137.6
CG25N1-1 25*98/80*47/32.5*48.5 97 156.5
CG25N1-2 25*122/104*47/32.2*48.5 97 156.5
CG35N1-1 35*108/90*47/32.5*48.5 114 211.5
CG45N1-1M01 45*114/99*66.5/9*66.5 63 69
CG45N1-3M1 45*110/80*37/3.5*24 62 95
CG45N1-4 45*100/85*66.5 63 69
CG45N1-5 45*109.5/100.5*36/30*30 75 121
Type Size(mm) Rated load(KN) Reference model
d*D/D1*C/C1*B Cr Cor
CG25R1-2 25*117/104*46.5/32.5*48.5 85.35 110
CG25R1-3 25*108/90*46.5/32.5*48.5 85.35 110
CG30R1-1 30*73/65*27/20.5*28 50 62
CG30R1-2 30*77/65*34/22*26 57.8 72.8 780606K2
CG30R1-3 30*90/80*36/27*19 48 50
CG35R1-14M1 35*112/102*47/39.4*49 115.2 143
CG35R1-15M1 35*120/112*47/39.4*49 115.2 143
CG35R1-16M11 35*79/70*26/20*20 44.5 65.79
CG35R1-25M1 35*114.3/98.8*56/47*58 160 284
CG35R1-27M1 35*88/80*27/23*28 88 95
CG35R1-28 35*90/62*28.35/4*21.7 45.9 60.6
CG38R1-3 38.1*190.5/177.8*50.8/42*50.8 164.6 239.1
CG38R1-4 38.1*155.5/143*50.8/42*38 164.6 239.1
CG38R1-5 38.1*165/152*50.8/42*50.8 164.6 239.1
CG40R1-8 40*108/94*33.2/25*23 52.8 63.6
CG40R1-9 40*111/101*36/27*26 58.3 79.9
CG40R1-12 40*107.95/95*33.32/25.4*23 52.8 63.6
CG40R1-18 40*95.3/85*34.5/27*30 76.2 102
CG40R1-19 40*100/85*36/26*38 122.1 186.1
CG40R1-30 40*124/104*43/30*30 83.8 116.4
CG40R1-34 40*100/82*36/25*26 58.3 79.9
CG40R1-35 40*108/90*36/25*26 58.3 79.9
CG40R1-37 40*100/84*36/27*26 58.3 79.9
CG40R1-43 40*93/80*26/20*20 51.3 74.7
CG40R1-44 40*139/127*50.8/42*38 125 156
CG40R1-48 40*103.12/90.93*50.8/41.91*38.1 100 126
CG40R1-51 40*107.8/95.4*36.6/28.5*23 52.8 63.6
CG40R1-53 40*92/82*36/26*26 58.3 79.9
CG45R1-1 45*150/128*69/50*50.8 174 230
CG45R1-2 45*174/151*72/51*50.8 174 230
CG45R1-3 45*174/150*72/50*51 174 230
CG45R1-4 45*150/129*69/50*51 174 230
CG45R1-5 45*136/127*38/31*40 150.1 275.8
CG45R1-6 45*123/95*60/45*65 160 284.5
CG45R1-7M1 45*152.4/129.2*67/56*69 253 397
CG45R1-8M11 45*94/80*34/27*17.2 45 85.3
CG45R1-9 45*150/128*69/51*50 174 230
CG45R1-13 45*138/125*38/31*40 150.1 275.8
CG45R1-14 45*105/91*34/25*30 85 104
CG45R1-15 45*130/114.5*44.5/35*24.5 85 150
CG45R1-16 45*110/100*45/38*45 110 163
CG50R1-3 50*130/106*52/36*40 187 217
CG50R1-4 50*124/104*43/31*30 76.5 113.7
CG50R1-5 50*124/104*46/35*27 76.5 113.7
CG50R1-9 50*128/110*42.5/34*44.5 187 217
CG50R1-10 50*124/104*43/31*30 76.5 113.7
CG50R1-11 50*124/104*56/41*35 76.5 113.7
CG50R1-12M1 50*115/100*40/33*42 123.8 201.7
CG50R1-13 50*124/104*60/45*35 76.5 113.7
CG50R1-14 50*143/129*45/35*44 161.7 275.8
CG50R1-15M11 50*105/90*40/32.5*32 111.2 185.1
CG50R1-16M1 50*165/147*50/40.4*37 141 209
CG50R1-17 50*128/110*46.5/38*44.5 187 217
CG55R1-1 55*158/130*65/55*67 265.8 391.5
CG55R1-2 55*145/120*56/41*40 155 196
CG55R1-4 55*146/130*47/37*40 155 196
CG55R1-7M1 55*135/110*56/45*58 135 146
CG55R1-8 55*144/120*56/42*40 155 196
CG55R1-10 55*144/122*56/43*40 155 196 722711
CG55R1-11 55*144/124*68/51*50 265.8 391.5
CG55R1-12 55*155/135*42/34*27 117.5 137
CG55R1-13 55*156/140*57/42*44.7 160.8 208
CG70R1-1 70*176/160*68/49*53.4 250 365
CG70R1-2 70*184/170*47/37*40 186.7 269.7
CG75R1-1 75*216/200*80/68*68 480 690
CG75R1-3 75*216/200*91/72*68 480 690
CG80R1-3 80*246/230*73/62*77 505 644
CG95R1-1 95*246/230*80/68*68 612 817





Type Size(mm) Rated load(KN) Reference model
d*D/D1*C/C1*B Cr Cor
CG60R1-2 60*120/110*60.5/54.5*61.5 260 340
CG60R1-4 60*204/174*88/72*92 363 534 *
CG80R1-1 80*266/222*125/100*128 675 950 *
CG80R1-2M1 80*187/157*88/72*68 336.3 570.4
CG80R1-4 80*256/222*117/90*120 675 950 *
CG80R1-5 80*187/157*88/72*68 336.3 570.4
CG80R1-6 80*266/222*95/64*117 640 880 *
CG80R1-7 80*305/260*165/130*145 820 1160 *
CG100R1-1 100*218/184*106/88*85 387 693
CG100R1-2 100*346/302*155/130*160 736 980 *
CG100R1-3 100*305/254*135/105*150 1033 1721
CG100R1-4 100*280/240*96/69*100 540 960 *
CG100R1-5 100*296/252*125/100*128 795 1178 *
CG100R1-6 100*280/230*96/69*100 540 960 *
CG110R1-1 110*256/212*120/98*95 410 780
CG110R1-2M1 110*256/212*120/98*95 528 985
CG40R3-1 40*95/83*23/18*23 63 70
CG40R3-2 40*103/88*30/17.5*30 65.2 74.3
CG40R3-3 40*103/88.7*23/14.6*23 65.2 74.3
CG40R3-4 40*103/88*30/17.5*30 77.9 81.7
CG40R3-5 40*103/88*26/17.5*26 77.9 81.7
CG45R3-1 45X119/100X25/17.5*25 81.2 87.9
CG45R3-2 45*101.7/79.5*28.7/18.3*28.7 60.9 88.1


Previous:
Next:
Fork Truck Mast Bearing Fork Carrier heavy duty roller bearings forklift mast guide rollers Forklift mast chain pulley Forklift mast combined bearing mast side roller bearing mast sprocket bearing

Related Products

TKW Focuses On the Development and Manufacturing of General and Non-Standard Rolling bearings


Quick Links

Product Category

Contact Us

 Yandian Industrial zone, Linqing City, Liaocheng,Shandong Province, China,
 +86-635-8509787 / +86-13280450757
 +86-13280450757
 +86-13280450757
Copyright © 2008-2021 TKW BEARINGS  Technical support :  leadong
