Disc mower is also called weeder, mower, lawn mower, etc. Mower is a kind of mechanical tool used for mowing lawn and vegetation. It is composed of cutter head, engine, walking wheel, walking mechanism, blade, armrest and control part.
The cutterhead is installed on the walking wheel, the engine is installed on the cutterhead, and the blade is installed on the output shaft of the engine. The blade uses the high-speed rotation of the engine to improve the speed, which saves the working time of weeding workers and reduces a lot of human resources.
CLASS, NEW HOLLAND, KRONE

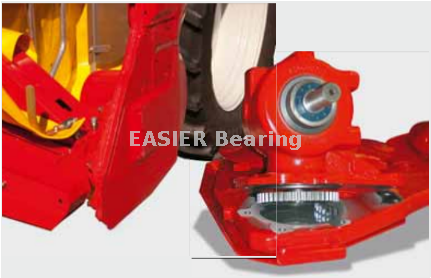

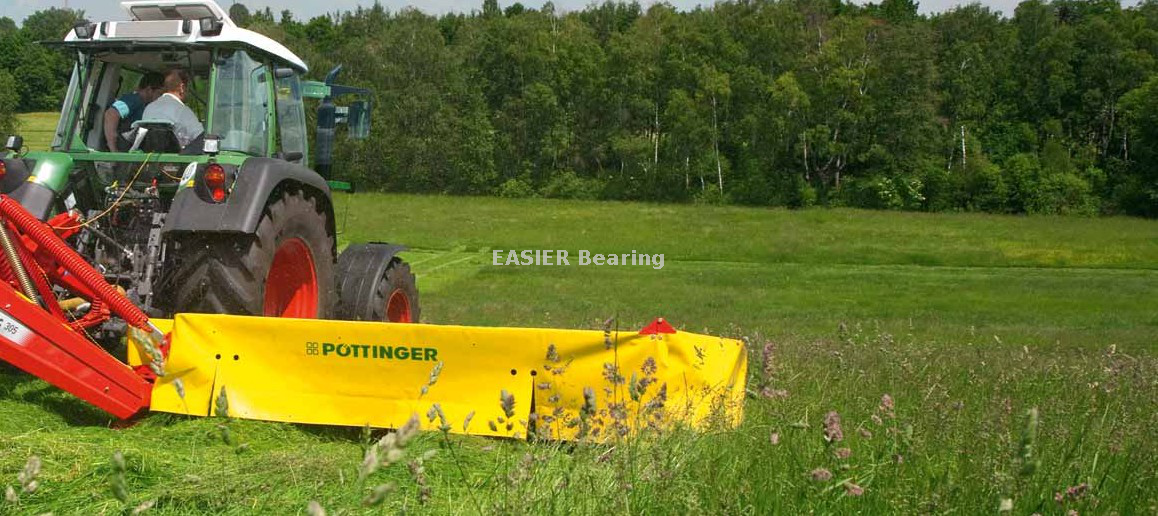

As disc mowers cut and prepare hay for drying, unplanned stops for maintenance or repairs means lost production Too often, conventional bearing and sealing arrange- ments enable such losses by allowing gear particles or other contaminants to enter the bearings Lubricant loss, bearing failures and costly breakdowns can follow, causing risks to operator safety and the bottom line
Designed to be more productive and easier to maintain, robust seal designs and relubri- cation-free bearing units from EASIER can help prevent unplanned downtime EASIER solutions have been tested to withstand heavy vibra- tion and harsh field conditions Integrated and compact, they also help OEMs reduce components and speed up assembly.
USER BENEFITS |
Provides longer bearing life, free of maintenance · Seal technology proven in harshly contaminated agricultural environments · Shaft and housing designed to provide an integrated barrier to contamination · Labyrinth spacer provides added protection to the bearing seals when exposed to external force due to wrapping debris |
Provides a 60% increase in strength over aluminum housings for added impact resistance |
Increases durability |
Provides better deck geometry and relationship to the frame |
Provides a more favorable load distribution · Increases theoretical bearing L10 life |
Designation | Type | Bore/shaft diameter | Bore type | Outer diameter | Seal type |
– | mm | – | mm | – | |

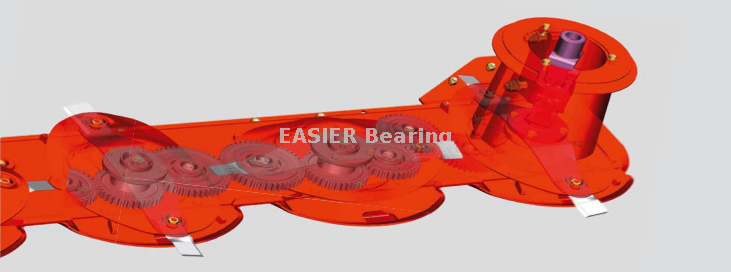

Idler gear – Special bearing | |||||
6209-ZZU-NR-NR-TN-C3-V2-L151-FE-R159 | 1 | 45 | Round | 85,000 | ZZ Double shield |

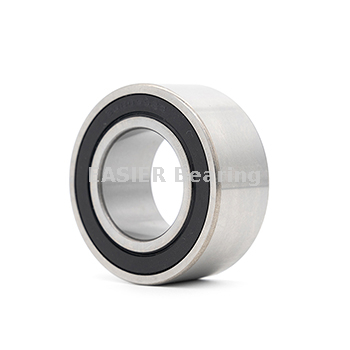

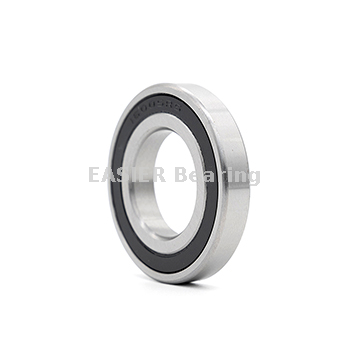

Disc/blade – Deep groove ball bearing (DGBB) | |||||
6207 2RS1 | 2 | 35 | Round | 72,000 | 1-lip RS1 |
6207 2RSH | 2 | 35 | Round | 72,000 | 1-lip RSH |
6307 2RS1 | 2 | 35 | Round | 80,000 | 1-lip RS1 |
6307 2RSH | 2 | 35 | Round | 80,000 | 1-lip RSH |

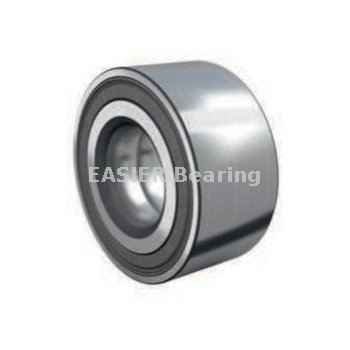

Disc/blade – Agri Hub | |||||
BAH-0013 E | 3 | 35 | Round | 72,043 | CS 1) |
BAH-0013 D | 3 | 35 | Round | 72,043 | CS |
BAH-0013 AB | 3 | 35 | Round | 72,043 | CS |
