Tillage Machinery Bearing

Availability:

tractor tillage equipment



With the development of agricultural technology and the wide application of automation equipment, specialized machinery and equipment are becoming more and more important in agriculture. Production and sales are getting higher and higher, and the use of corresponding bearings in agricultural machinery and equipment has also increased.



Tillage is the first step in the agricultural production process, twice a year in spring and autumn. The purpose of tillage is to prepare soil for new seeds. Turn nutrient-rich soil to the surface and integrate crop residues into the lower layer of the soil to promote decay.



Another important function of Tillage equipment is to decompose the soil so that it reaches the proper balance of water and air to avoid soil erosion. This is done by using a tillage disc to cut the soil and seedbed trimmer, then level and stabilize it,



Use the right equipment and tools and increase the potential benefits and efficiency of agricultural production, increase productivity and reduce production costs, easy installation, and low maintenance costs. It can be seen that agricultural equipment plays a very important role in agricultural production, and bearings play a very critical role in the operation of machinery. Bearings for agricultural machinery such as corn harvesters, no-tillage planters, such as depth-limiting wheels, compaction wheels, disc cutters, grass-pull wheels, stubble cutters, etc. are all our focus applications.



The bearings we produce need to be adapted to the special scenarios of arable land equipment:

1. Very harsh environment: mud, water, dust and crop residues

2. Tilting force, impact load and stone impact

3. Higher machine speed (higher productivity)

4. Avoid downtime of the tillage machine during the season



Based on the needs of this special special farming equipment, we can provide targeted farming equipment bearings, Using ordinary bearings, it is easy to cause damage and early life failure, especially in the case of seal failure or irregular relubrication of grease, this situation will reduce productivity, increase maintenance costs and reduce overall profitability, and affect accuracy. This affects the work quality of farmers. Therefore, it is particularly important to select high-quality arable land bearings.



Primary tillage

Disc plough bearings



The initial main soil operation is to deep plow, reduce soil strength, cover plant material and rearrange aggregates, which is called Primary  tillage.

The main tool for farming is the disc plow, which can soften the ground and make the soil suitable for sowing.

There is a kind of plow called a Disc plough. It can cut through a large steel concave disc installed separately, turn, and in some cases break the plow blade. The Plough is designed to roll the bottom of the plow instead of sliding, thereby reducing Friction effectively improves the working condition of the Disc plough.



Secondary tillage

Independent tillage disc

Typical conditions for independent disc applications

• Disc speed: 90–350 r/min

• Tractor speed: up to 20 km/h



Solutions for independent disc applications Among the many products especially developed to handle harsh conditions for independent disc applications, EASIER offers both bearings and complete hub units One of the most robust solutions is the EASIER Agri Hub, consisting of angular contact ball bearings which are greased and sealed for-life, a cassette seal, stub shaft for the arm interface and flange for disc mounting The integrated nature of the hub facilitates mounting and prolongs its service life to maximize the yield and the availability of agricultural machines.



Gang disc

Typical conditions for gang disc applications

• Tractor speed up to 12 km/h

• Utilizes two to three support bearings on a common shaft with several discs spaced with spools

• Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings

• A great working depth places the bearings directly into the flow of soil and crop residue



The bearing arrangements best suited to seedbed finisher applications are China flanged insert bearing units They come in a variety of designs with both square flange and oval flange Common to all insert bearing solutions for agriculture applications though is that they are relubrication-free with a five-lip seal to withstand the tough operating conditions Benefits of insert bearing units

• OEMs

– Differentiated designs

– Reduced warranty, engineering, testing and assembly costs

• End-users

– Extend service life up to 30% to 50% when fitted with five-lip seal – Increase farm productivity

– Reduce maintenance and ownership costs

– Reduce environmental impact




Typical conditions for independent disc applications

• Disc speed: 90–350 r/min

• Tractor speed: up to 20 km/h

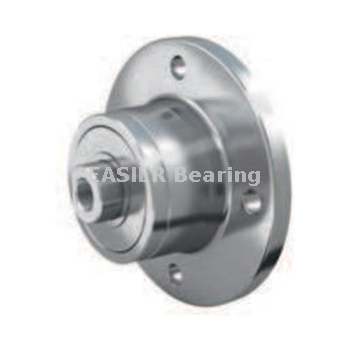

 The integrated nature of the hub facilitates mounting and

prolongs its service life to maximize the yield

and the availability of agricultural machines



Gang disc

Typical conditions for gang disc applications

• Tractor speed up to 12 km/h

• Utilizes two to three support bearings on a common shaft with several discs spaced with spools

• Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings

• A great working depth places the bearings directly into the flow of soil and crop residue



The bearing arrangements best suited to seedbed finisher applications are China flanged insert bearing units They come in a variety of designs with both square flange and oval flange Common to all insert bearing solutions for agriculture applications though is that they are relubrication-free with a five-lip seal to withstand the tough operating conditions Benefits of insert bearing units

• OEMs

– Differentiated designs

– Reduced warranty, engineering, testing and assembly costs

• End-users

– Extend service life up to 30% to 50% when fitted with five-lip seal – Increase farm productivity

– Reduce maintenance and ownership costs

– Reduce environmental impact



EASIER AGRICULTURAL BEARING
NO. Photo EASIER CODE Other CODE ALLICATION OEM CODE AND REFERENCE CODE

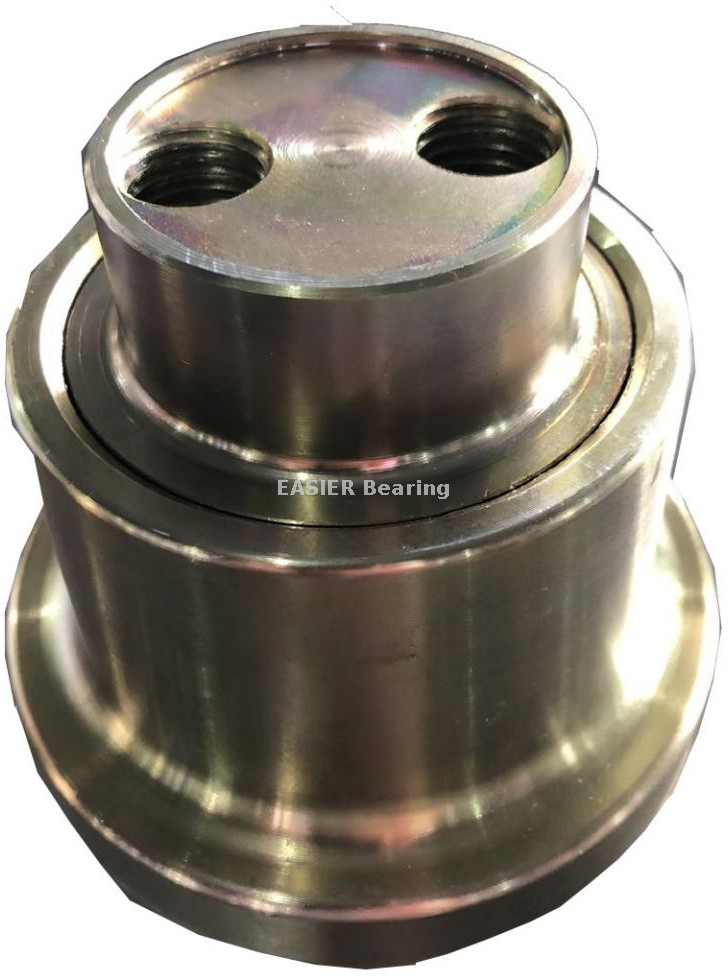

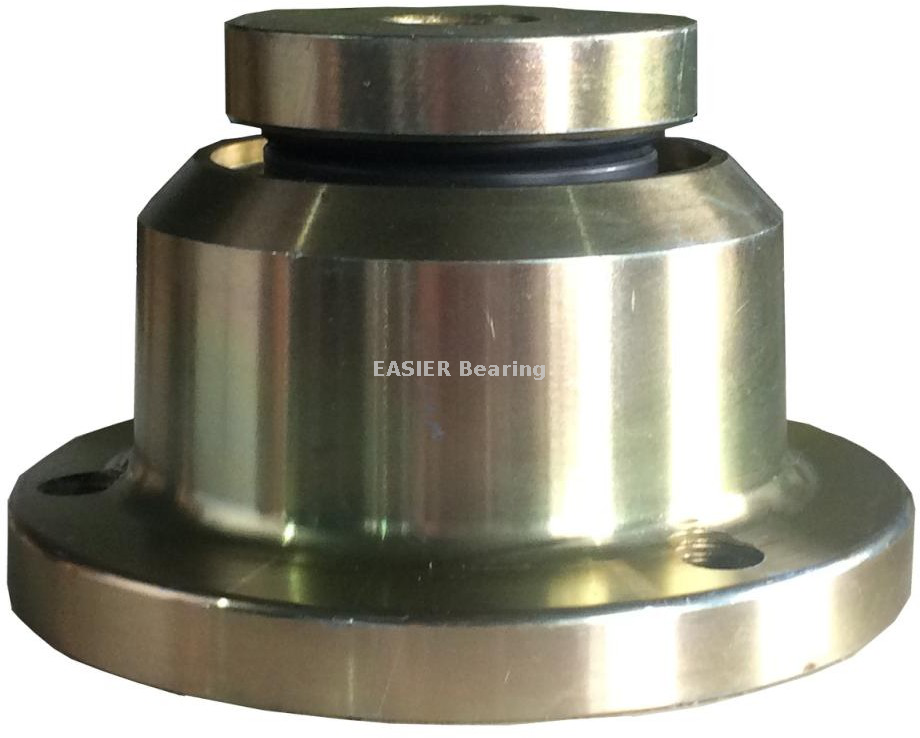

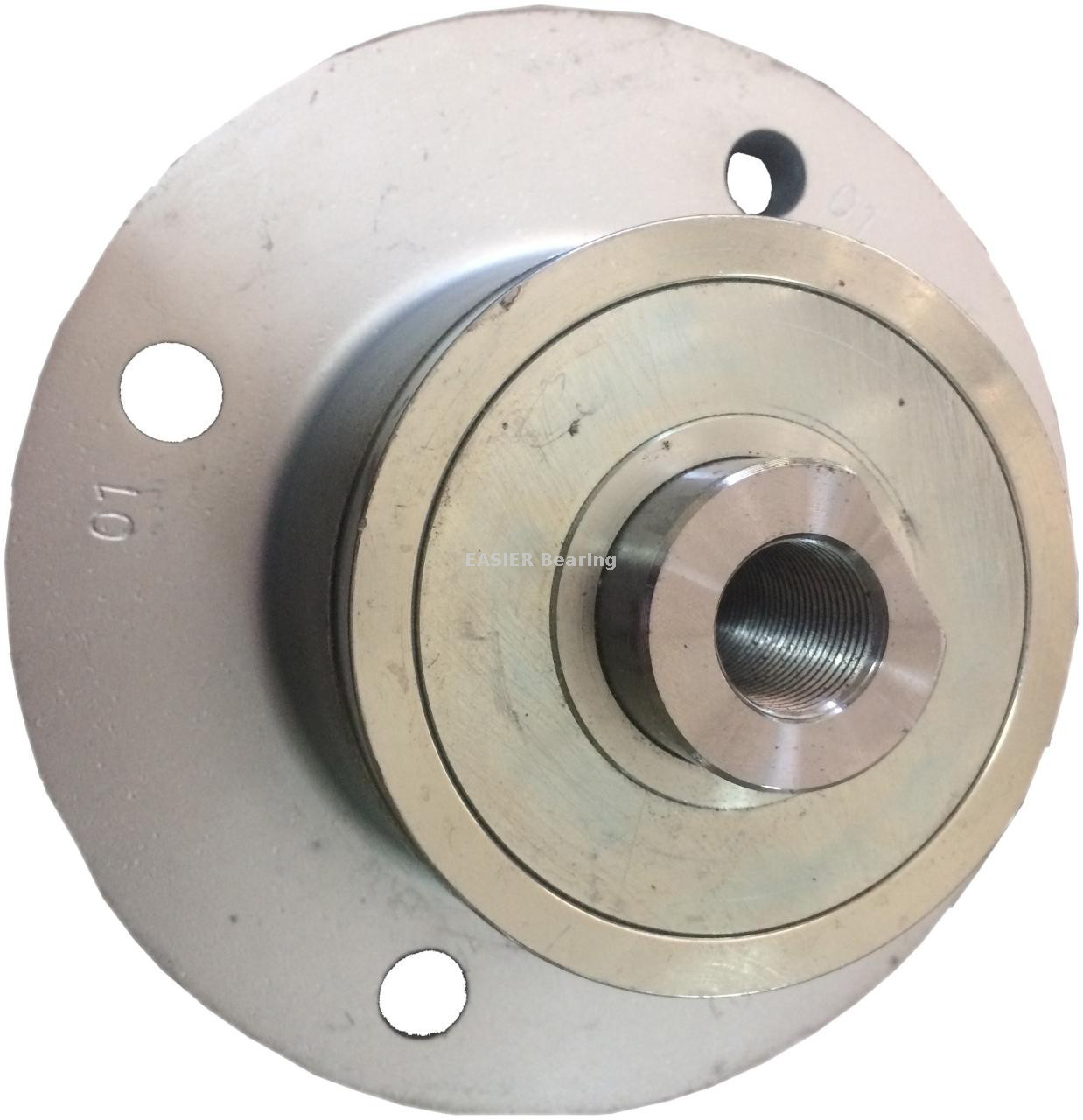

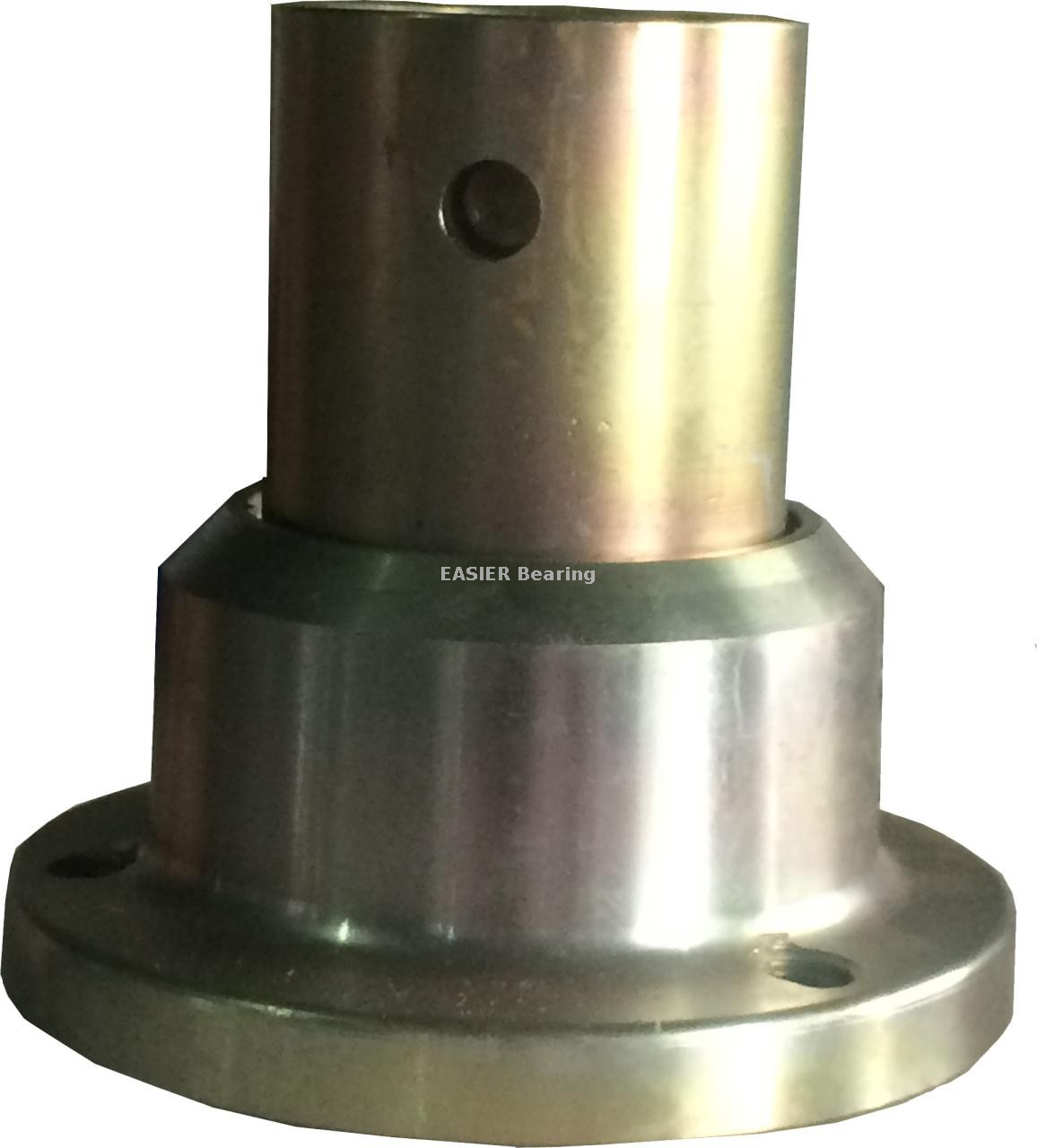

1 图片1


484430



152456
AGR001 BAA0003 DISC HARROW 441693
424908-1



IL2-117

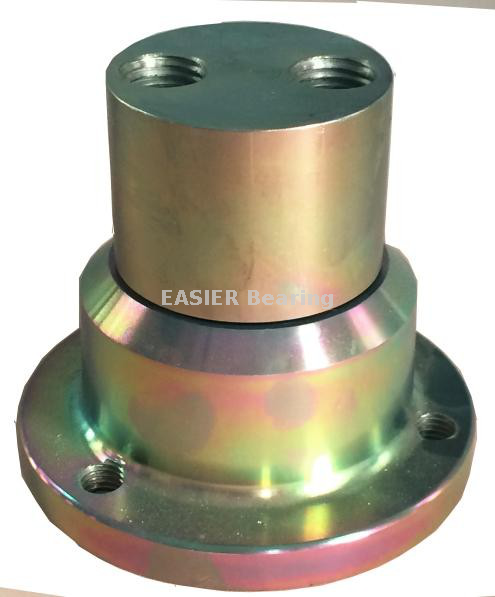

2 图片1 AGR002 BAA0003A DISC HARROW

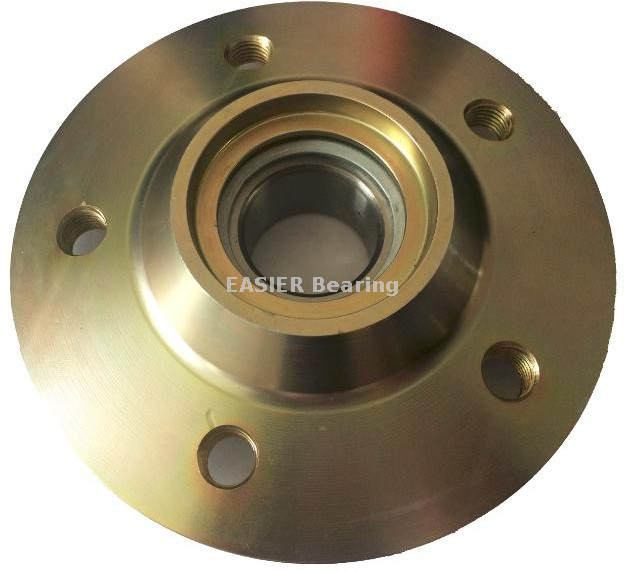

3 图片1 AGR003 BAA0004 Lemken Agrisem Einbock Farmet
Maschio Gaspardo Great Plains Kockerling
Madara Quivogne Rabe SMS
Techmagri Vage&Noot Horsch
IL-117-M22

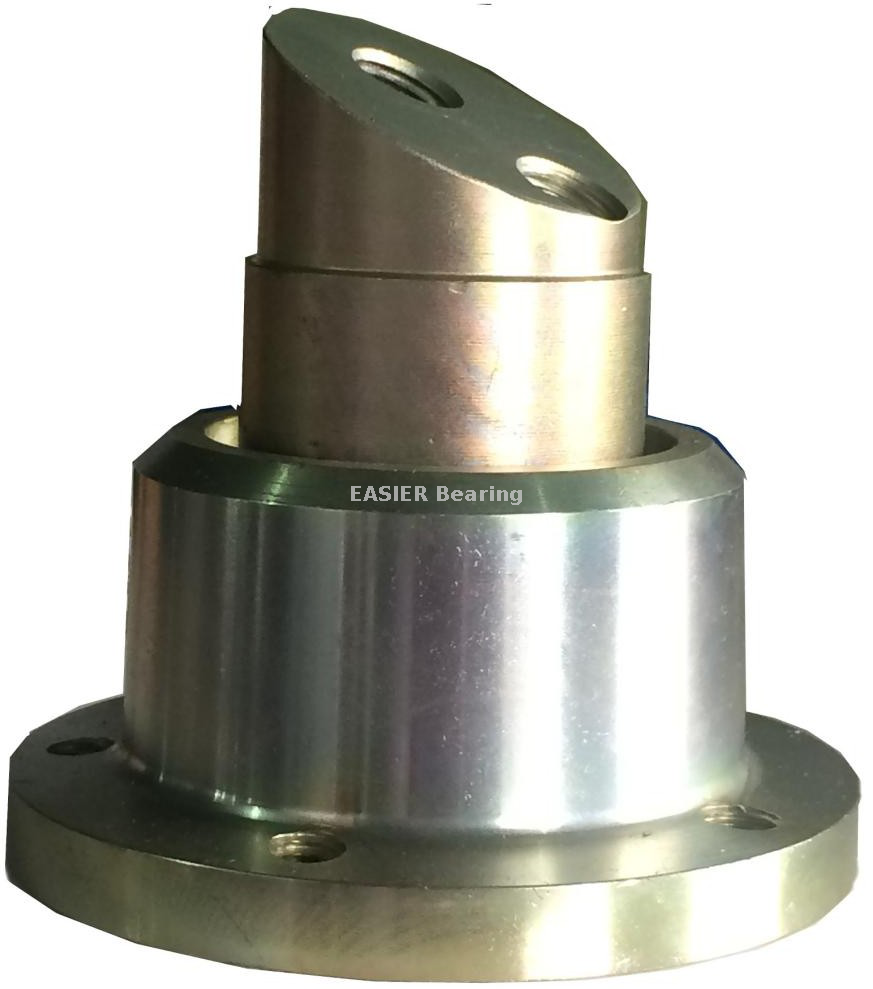

4 图片1 AGR004 BAA0005 DISC HARROW
5 图片1 AGR005 BAA00006 DISC HARROW
6 图片1 AGR006 BAA00009 DISC HARROW
7 图片1 AGR007 BAA0012 DISC HARROW
8 图片1 AGR008 BAA0013 DISC HARROW
9 图片1 AGR009 BAA0023 DISC HARROW
10 AGR010 BAA0025 DISC HARROW
11 AGR011 BAA0026 DISC HARROW
12 AGR012 BAA0029 DISC HARROW
13 AGR013 BAA0037 DISC HARROW
14 AGR014
VÄDERSTAD 420832 PL140 18007
420832
15 AGR015
Horsch Joker RT. Focus,Terrnao `PL127 28085600
28071300

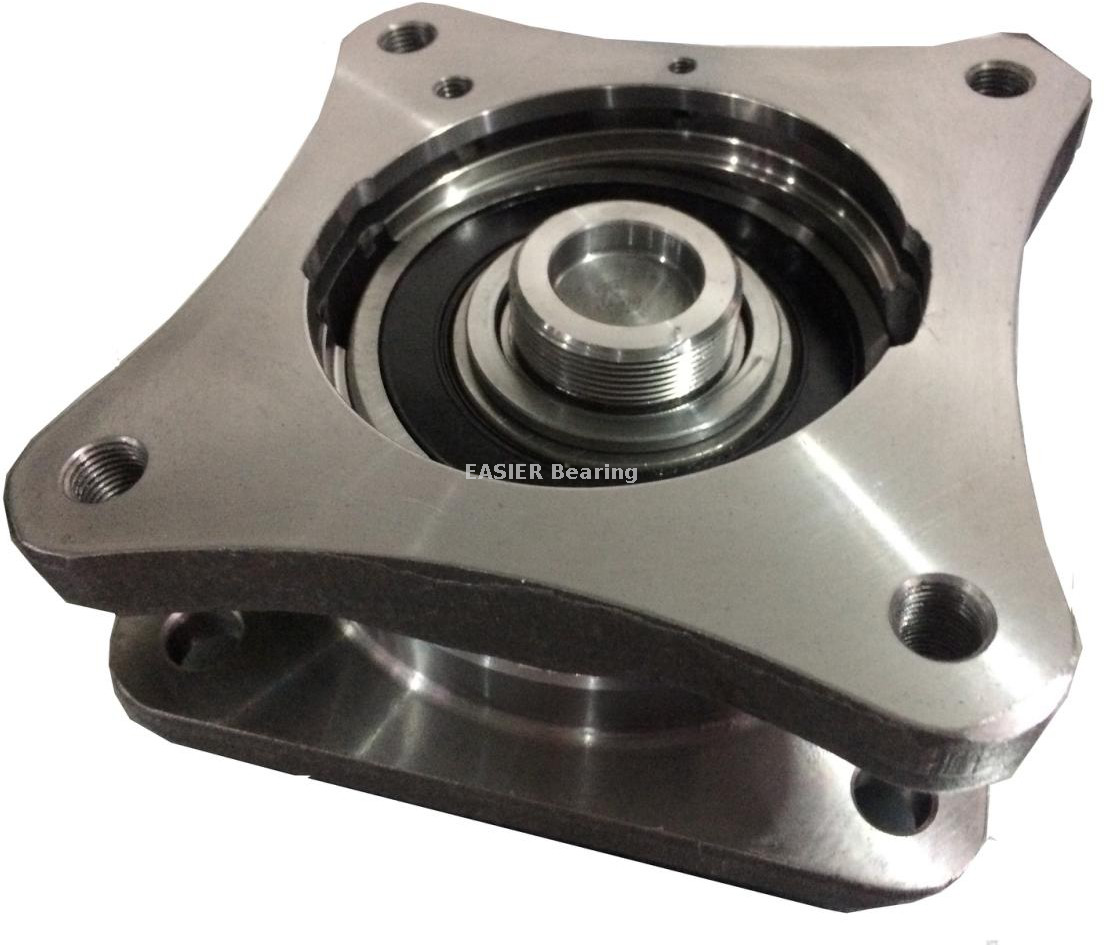

16 图片1 AGR016
Horsch 23246700
28042000
17 AGR017
Horsch 34189000
18 AGR018
Horsch 35115400
19 AGR019

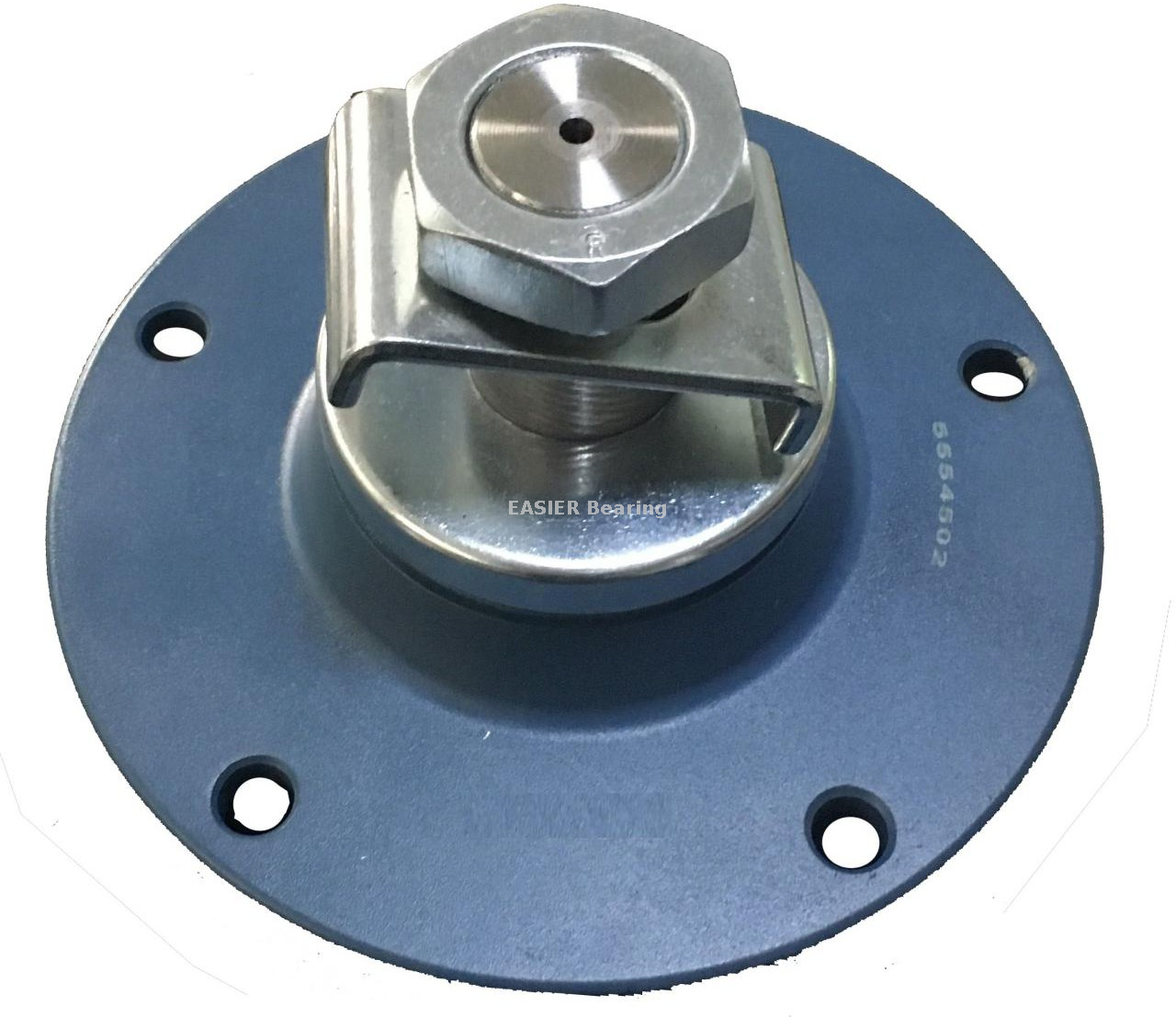

MASCHIO GASPARDO 8395.TDA.4.05.015-1R
5554502
5554503
PL-185-M30-L PL-185-M30-R
20 AGR020
Lemken
MASCHIO GASPARDO
Maschio
AQUILA RAPIDO Series, 4600, 5000, 6000, JUMBO
Series, 6000, 7000, 8000,
MEGA RAPIDO Series, 3000, 3500, 4000, 4500, 5000,
M43400468 MG-43400468 M43400467R
21 AGR021
Horsch


DesignationTypeBore / shaft diameterHousing materialPitch diameterHolesSeal typePerformanceDisc diameter

mmmmmm
Independent tillage disc – Agri Hub AGHU2890X5E-DSC128Steel90,05DST50up to 610
AGHU2898X4E-DSC 128Steel98,04DST50up to 610
AGHU2898X4E-DSCS 128Steel98,04DST50up to 610
AGHU2898X5E-DSCS128Steel98,05DST50up to 610
AGHU2898X6E-DSCS128Steel98,06DST50up to 610
HUB-30MM230Steel98,046-lipT50up to 550
HUB-30MM-X-ASSY-A615 230Steel98,047-lipT50up to 550
HUB-30MM-X-ASSY-A626 230Steel98,047-lipT50up to 550
HUB-30MM-X-ASSY-A603230Steel107,947-lipT50up to 550
HUB-30MM-X-ASSY-A549230Steel127,047-lipT50up to 550
HUB-30MM-ASSY-A528330Steel101,646-lipT50up to 550
BAA-0003330Steel98,04MBT100up to 610
BAA-0003 A330Steel98,04MBT100up to 610
BAA-0004430Steel98,04MBT100up to 610
BAA-0005430Steel98,04MBT100up to 610
BAA-0006430Steel98,06MBT100up to 610
BAA-0012430Steel98,05MBT100up to 610
BAA-0013430Steel98,06MBT100up to 610
BAA-0023 2)430Steel98,04MBT100up to 610
BAA-0044430Steel98,04MCT200up to 750
BAA-0047430Steel98,05MCT200up to 750
BAA-0048430Steel98,06MCT200up to 750









DesignationTypeBore/shaft diameterHousing materialPitch diameterHolesSeal typePerformanceDisc diameter

mmmmmm









Independent tillage disc – Agri Hub HUB-35MM








235Steel112,056-lipT50up to 610
HUB-35MM-ASSY-A519235Steel112,056-lipT50600-650
HUB-35MM-X-ASSY-A243 235Steel150,067-lipT50600-650
HUB-35MM-X-ASSY-A601 235Steel150,067-lipT50600-650
BAA-0026639Steel133,34MCT200up to 750
BAA-0037639Steel133,34MCT200up to 750
BAA-0045239Steel139,05MCT200up to 750
HUB-40MM-ASSY240Steel140,056-lipT50up to 700
HUB-40MM-ASSY-A554240Steel180,066-lipT50up to 700
HUB-40MM-X-ASSY-A548240Steel102,047-lipT50up to 700
HUB-40MM-X-ASSY-A614240Steel113,057-lipT50up to 700
HUB-40MM-X-ASSY-A438240Steel122,067-lipT50up to 700
HUB-40MM-X-ASSY-A628240Steel130,067-lipT50up to 700
HUB-40MM-X-ASSY-A575240Steel133,447-lipT50up to 700
HUB-40MM-X-ASSY-A439640Steel133,347-lipT50up to 700
HUB-40MM-X-ASSY-A436 240Steel140,057-lipT50up to 700
HUB-40MM-X-ASSY-A591 240Steel140,057-lipT50up to 700
DesignationTypeBore / shaft diameterBore typeOuter diameterSeal type

mmmm

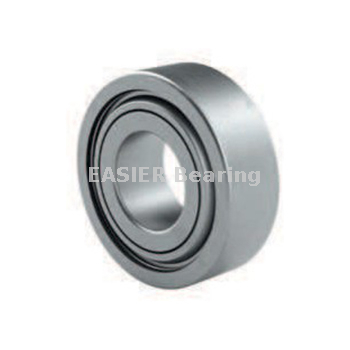

Independent tillage disc –Double row angular contact ball bearing (DRACBB)
3206 CETN9130Round621-lip RS1
3206 CE-2RSH1TN9130Round621-lip RS1
3206 CE-2RS1TN9130Round621-lip RS1
3306 CETN9130Round721-lip RS1
3306 CE-2RSH1TN9130Round721-lip RS1
3306 CE-2RS1TN9130Round721-lip RS1
3207 CETN9135Round721-lip RS1
3207 CE-2RSH1TN9135Round721-lip RS1
3207 CE-2RS1TN9135Round721-lip RS1
3307 CETN9135Round801-lip RS1
3307 CE-2RSH1TN9135Round801-lip RS1
3307 CE-2RS1TN9135Round801-lip RS1
Independent tillage disc – Hub bearing unit
BAHB 636187 C240Round80CS
BTH-1024 AE340Round73CS






DesignationTypeBore/shaft diameterBore typeOuter diameterSeal type

mmmm






Gang disc – Relubricatable bearings
GW208PPB5-GX 229,972Square80,0003-lip LS
GW208PPB8-GX 229,972Square80,0003-lip LS
GW208-PP17-S-GX-A16129,972Square85,7383-lip LS
GW210PPB4-GX429,413Square90,0003-lip LS
GW211PP17-GX 138,887Square100,0003-lip LS
GW211-PPB3-S-GX-A16 138,887Square100,0003-lip LS
GW211-PP3-S-GX-A181338,887Square100,0003-lip LS
GW212PP50-GX145,466Square110,0003-lip LS
GW214PPB4-GX452,200Square125,0003-lip LS
GW216PP2-GX158,738Square140,0003-lip LS
GW209PPB4-GX438,989Round85,0003-lip LS
GW211PP25-GX145,339Round100,0003-lip LS
GW211PPB13-GX245,339Round100,0003-lip LS
GW214PPB3-OX449,225Round125,0003-lip LS
GW211PP53-GX150,000Round100,0003-lip LS
GW211PPB14-GX251,181Round100,0003-lip LS
GW211PPB2455,575Round100,0003-lip LS
GW211PPB9-GX255,753Round100,0003-lip LS
GW214PPB6-GX268,278Round125,0003-lip LS
GW214PP2-GX370,000Round125,0003-lip LS
GW214PPB2-GX470,000Round125,0003-lip LS
GW315PPB11-OX-NCO470,000Round160,0003-lip LS
DesignationTypeBore / shaft diameterBore typeOuter diameterSeal type

mmmm






Gang disc – Non-relubricatable bearings
W208PP6126,162Square80,03-lip LS
W208PPB6226,162Square80,03-lip LS
W208PP5 129,972Square80,03-lip LS
W208PP8 129,972Square80,03-lip LS
W208PPB5229,972Square80,03-lip LS
W210PP4329,413Square90,03-lip LS
W211PP3338,887Square100,03-lip LS
W211PPB3438,887Square100,03-lip LS
W211PP5138,887Square101,63-lip LS
W208PPB7230,175Round80,03-lip LS
W208PPB23238,113Round80,03-lip LS
W208PP10138,113Round80,03-lip LS
W209PPB4438,989Round85,03-lip LS
W209PPB2445,000Round85,03-lip LS
W210PPB5445,339Round90,03-lip LS
W210PP2349,225Round90,03-lip LS
W210PPB2449,225Round90,03-lip LS
W211PP2355,575Round100,03-lip LS
W211PPB2455,575Round100,03-lip LS
DesignationTypeBore/shaft diameterHousing materialSeal type

mm






Gang disc – Tillage units




W214-K60-7L-DTTU-HANGER-A515141,350Ductile cast iron7-lip
W211K57-TPU245,339Ductile cast Iron6-lip
GW211PP25-HDT345,339Ductile cast iron3-lip LS
W211-K59-TTU438,887Ductile cast iron6-lip
W211-K56-7L-TTU445,339Ductile cast iron7-lip
W214-K54-7L-DTTU-A62450,000Ductile cast iron7-lip
W211-K58-TTU450,018Ductile cast iron6-lip
W214-K52-TTU457,912Ductile cast iron6-lip
W214-K51-TTU468,278Ductile cast iron6-lip
W214-K53-7L-TTU470,000Ductile cast iron7-lip
DesignationTypeBore/shaft diameterHousing materialHousing shapeSeal type

mm
Seedbed finisher-Flanged unit assembly




UCF208-40MM-MFTRL140,000Ductile cast ironSquared5-lip
XD-UCF208-40MM-XB-AP-TLSL-U435140,000Ductile cast ironSquared5-lip
XD-UCF208-40MM-XB-AP-TLSL-U31 140,000Ductile cast ironSquared5-lip
UCF308-40MM-AP-MF140,000Ductile cast ironSquared6-lip
XD-UCF209-45MM-AP-TLSL-U26145,000Ductile cast ironSquared5-lip
UCFS210-50MM-AP-BSLS-U265 150,000Ductile cast ironSquared6-lip
XD-UCF210-50MM-XB-AP-TLSL-U409 150,000Ductile cast ironSquared6-lip
XD-UCF210-50MM-XB-AP-TLSL-U117150,000Ductile cast ironSquared5-lip
XD-UCFS210-50MM-AP-BSLS-U448150,000Ductile cast ironSquared5 and 6-lip
UCXF11-32-OX-AP-U131150,800Ductile cast ironSquared1-lip G
XD-UCF212-60MM-XB-AP-TLSL-U26160,000Ductile cast ironSquared5-lip
UCXF12-38-OX-AP-U132160,325Ductile cast ironSquared1-lip G
XD-UCXF13-65MM-OB-AP-TRL165,000Ductile cast ironSquared3-lip LS
W210-50MM-MF-R-DF-A490250,000Ductile cast ironSquared6-lip
W212-60MM-MF-DF-A112260,000Ductile cast ironSquared6-lip
XD-UCFT206-30MM-XB-AP-TLSL-U236330,000Ductile cast ironOval5-lip
XD-UCFT206-30MM-XB-AP-TLSL-U469330,000Ductile cast ironOval6-lip
W207-35MM-FTDT-MF-AP335,000Ductile cast ironOval6-lip
XD-UCFT208-40MM-XB-AP-TLSL-U26340,000Ductile cast ironOval5-lip
XD-UCFT208-40MM-XB-AP-TLSL-NSS-U239340,000Ductile cast ironOval5-lip
W208-40MM-MF-R-DFT-A374340,000Ductile cast ironOval6-lip
KX-GRFT206-30MM-AP-TDSL-U429430,000Ductile cast ironOval4-lip
XD-UCFC214-70MM-XB-AP-TLSL570,000Ductile cast ironOval5-lip
DesignationTypeBore/shaft diameterHousing materialHousing shapeSeal type

mm
Seedbed finisher – Insert bearings




FY 35 TF435,000Grey cast ironSquared1-lip F
FY 40 TF440,000Grey cast ironSquared1-lip F
FY 45 TF445,000Grey cast ironSquared1-lip F
FY 50 TF450,000Grey cast ironSquared1-lip F
FY 50 TR450,000Grey cast ironSquared1-lip RF
FY 60 TF460,000Grey cast ironSquared1-lip F
FYC 40 TF540,000Grey cast ironRounded1-lip F
FYC 50 TF550,000Grey cast ironRounded1-lip F
Seedbed finisher –




W212-60MM-MF-R-P-A290660,000Ductile cast ironPillow6-lip






RFD209K50-1 1 / 8SQ 729,972Pressed steelRounded5-lip
RFD209K51-30MMSQ-SP2 731,000Pressed steelRounded5-lip
RFD211K51-40MMSQ-A371741,000Pressed steelRounded5-lip
DesignationTypeBore/shaft diameterHousing materialHousing shapeSeal type


mm
Seedbed finisher – Flanged disc




FD209K54-1-1/4RD832,258Pressed steelSquared5-lip
FD209K52-1-1/2RD838,989Pressed steelSquared5-lip
FD209K53-1-1/2RD838,989Pressed steelSquared6-lip
FD209K50-1-3/4RD844,958Pressed steelSquared5-lip
FD209K58-1-3/4RD-A326844,958Pressed steelSquared5-lip
FD211K52-1-3/4RD-A365845,212Pressed steelSquared5-lip
FD211K51-1-3/4RD-A366845,212Pressed steelSquared5-lip
FD211K65-1-15/16RDC-A326849,225Pressed steelSquared5-lip
FD211K61-2-3/16RD855,575Pressed steelSquared5-lip
FD212K51-60RD861,000Pressed steelSquared5-lip
FD209K57-1-1/8SQ-A366929,972Pressed steelSquared5-lip
FD209K51-1-1/4SQ-A342933,020Pressed steelSquared5-lip
FD211K53-1-1/2SQ-A366938,887Pressed steelSquared5-lip
ST491B1038,989Pressed steelSquared3-lip LS
ST491A1044,958Pressed steelSquared3-lip LS
ST491A-B-SP11044,958Pressed steelSquared3-lip LS
FD211-1-3/4RD1045,212Pressed steelSquared3-lip LS
FD211-1-15/16RDC1049,225Pressed steelSquared3-lip LS
FD211-2-3/16RD1055,575Pressed steelSquared3-lip LS
FD209-1-1/8SQ1129,972Pressed steelSquared3-lip LS
FD209-1-1/4SQ1133,020Pressed steelSquared3-lip LS
FD211-1-1/2SQ1138,887Pressed steelSquared3-lip LS
Roller support bearing unit




XD-UCTFU312-39-AP-TLTL-U32911261,912Ductile cast ironRounded6-lip


XRB Focuses On the Development and Manufacturing of General and Non-Standard Rolling bearings


Quick Links

Contact Us

 Yandian Industrial zone, Linqing City, Liaocheng,Shandong Province, China,
 +86-635-8509787 / +86-13280450757
 +86-13280450757
 +86-13280450757
Copyright © 2020 Liaocheng XRB Bearing manufacturing Co.,Ltd  Technical support :  leadong
