Item:
insocoat bearing
Price:
6313M/HC5C4HS0 Bearing price

Details

Keywords:6313M/HC5C4HS0 electrical insulated bearing,6313M/HC5C4HS0 insulated deep groove ball bearing

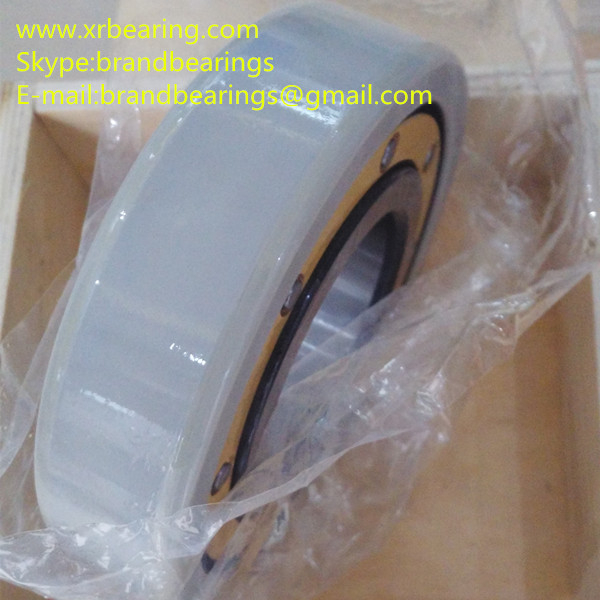

6313M/HC5C4HS0 bearing is insulated bearing and deep groove ball Bearings with a Ceramic Coating, the bearing have an electrically insulating coat on the outer ring(suffix VL0241) or on the inner ring(suffix VL2071), respectively. insulated bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated & insocoat bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

6313M/HC5C4HS0 bearing provide a bearing function and electrical insulation,virtually eliminates premature bearing failure caused by stray electric currents,electrical insulated bearing can reduce the number of failures and improve the machine uptime,reduce the cost of maintenace.

6313M/HC5C4HS0 electrically insulated bearings

High speed insulated deep groove ball bearing	6313M/HC5C4HS0 Bearing 65×140×33mm bearing
6313M/HC5C4HS0 Bearing type	Insulated deep groove ball bearing
inner diameter	65mm
outer diameter	140mm
width diameter	33mm
weight	2.2kg
insulated bearing are available from many design, variants, series and size, ► Insulated deep groove bearing with a coated inner ring or outer ring,with inch & metric size insocoat bearing ►6313M/HC5C4HS0 bearing with steel cage can accommodate very heavy radial loads and very high speeds,	Design: 6313M/HC5C4HS0
	►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:97.5kN ►static load rating:60kN ►Fatigue load limit:0kN ►Reference speed:0r/min ►limiting speed:9500r/min
6313M/HC5C4HS0 bearing are widely used in industry area:	►Power generation ►wheelsets and traction motors(rail vehicles) ►DC and AC motors (drivetrains) ►generators (wind power)

XRB is the 6313M/HC5C4HS0 China bearing exporter & supplier,it can supply 6313M/HC5C4HS0 bearing, Our large quantity insulated deep groove ball bearing Stock can meet your need with good quality and fast delivery, Also you can find EASIER 6313M/HC5C4HS0 Bearing, the other type and brand insulated deep groove ball bearing,insocoat tapered roller bearing,Current-Insulated Bearings

XRB bearings provide effective protection against AC and DC currents. The specifications for different design are:

VL0241 Electrical resistance:min.50MW,breakdown voltage:max.operating voltage 1000V DC.

VL0246 Electrical resistance: >150MW,breakdown voltage:max.operating voltage 3000 V DC.

VL2071 Electrical resistance: min.50 MW,breakdown voltage: max.operatingvoltage 1000 V DC.

VL2074 Electrical resistance: >150MW,breakdown voltage: max.operating voltage 2 000 V DC.

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality 6313M/HC5C4HS0 bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
