FAG NU216-E-M1-F1-J20B-C4 Bearing

Inquire Add to Basket

  • NU216-E-M1-F1-J20B-C4

  • Bearing NU216-E-M1-F1-J20B-C4 price

Keywords:FAG NU216-E-M1-F1-J20B-C4 bearing,NU216-E-M1-F1-J20B-C4  insulated bearing

FAG NU216-E-M1-F1-J20B-C4 bearing is insulated bearing   and cylindrical roller Bearings with a Ceramic Coating, The coatings are subjected to a 100% quality inspection and guarantee a dielectric strength of at least 1000 VDC (J20AA, J20C) or 500 VDC (J20B), respectively. this kind of bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

FAG NU216-E-M1-F1-J20B-C4 bearing suitable for high and middle high speed,but low cost maintenance.FAG as one of the biggest top quality bearing brand,Quality can be approved by the market.

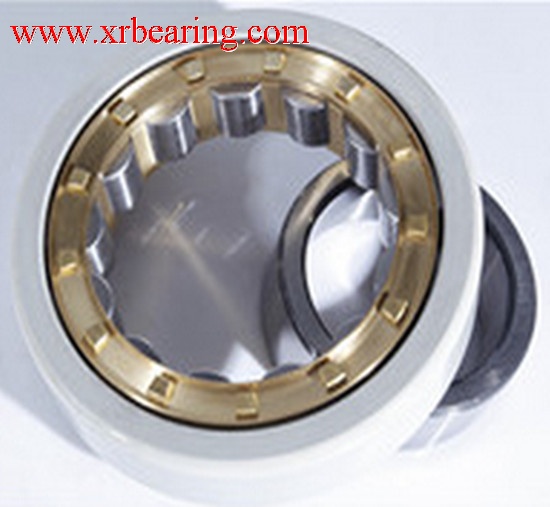

FAG NU216-E-M1-F1-J20B-C4 insulated cylindrical roller bearing
High speed NU216-E-M1-F1-J20B-C4 insulated bearing

FAG NU216-E-M1-F1-J20B-C4  Bearing
80×140×26mm bearing
        FAG NU216-E-M1-F1-J20B-C4 Bearing type Insulated cylindrical roller bearing
 inner diameter 80mm
outer diameter 140mm
width diameter 26mm
FAG NU216-E-M1-F1-J20B-C4 insulated cylindrical roller bearing weight 1.71kg
FAG insulated bearing are available from many design, variants, series and size,

►FAG insulated deep groove ball bearing with a coated inner ring or outer ring,with seals on both sides and radial clearance C4

►FAG NU216-E-M1-F1-J20B-C4 bearing with brass cage can accommodate very heavy radial loads and very high speeds,

 Design:
NU216-E-M1-F1-J20B-C4
►Metarial:High quality chrome steel
►Lubrication:Oil or grease
►dynamic load rating:165kN
►static load rating:167kN
►Fatigue load limit:22.6kN
►Reference speed:4500r/min
►limiting speed:4800r/min
FAG NU216-E-M1-F1-J20B-C4 bearing are widely used in industry area: ►Power generation
►wheelsets and traction motors(rail vehicles)
►DC and AC motors (drivetrains)
►generators (wind power)









































XRB is the FAG NU216-E-M1-F1-J20B-C4 bearing exporter & supplier,it can supply FAG NU216-E-M1-F1-J20B-C4 bearing, Our large quantity FAG insulated deep groove ball bearing Stock can meet your need with lowest price and fast delivery.

Also you can find EASIER NU216-E-M1-F1-J20B-C4 Bearing, the other type and brand insulated cylindrical roller bearing

insocoat deep groove ball bearing
FAG Current-Insulated Bearings

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality FAG NU216-E-M1-F1-J20B-C4 bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
