Item:
NU220-E-TVP2-J20AA-C3
Price:
Bearing NU220-E-TVP2-J20AA-C3 price

Details

Keywords:FAG NU220-E-TVP2-J20AA-C3 bearing,NU220-E-TVP2-J20AA-C3 insulated bearing

FAG NU220-E-TVP2-J20AA-C3 bearing is insulated bearing and cylindrical roller Bearings with a Ceramic Coating, The coatings are subjected to a 100% quality inspection and guarantee a dielectric strength of at least 1000 VDC (J20AA, J20C) or 500 VDC (J20B), respectively. this kind of bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

FAG NU220-E-TVP2-J20AA-C3 bearing suitable for high and middle high speed,but low cost maintenance.FAG as one of the biggest top quality bearing brand,Quality can be approved by the market.

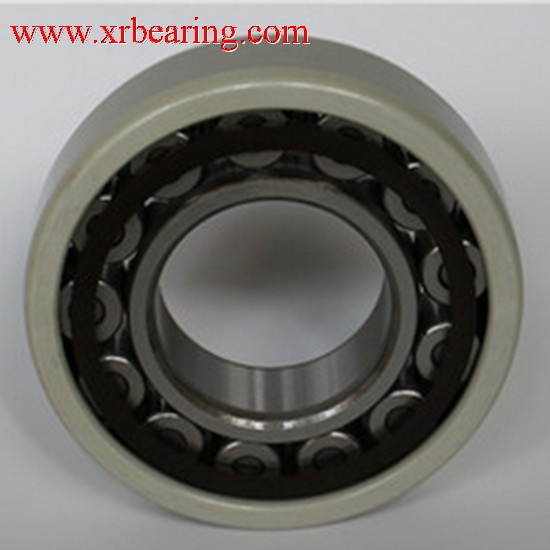

FAG NU220-E-TVP2-J20AA-C3 insulated cylindrical roller bearing

High speed NU220-E-TVP2-J20AA-C3 insulated bearing	FAG NU220-E-TVP2-J20AA-C3 Bearing 100×180×34mm bearing
FAG NU220-E-TVP2-J20AA-C3 Bearing type	Insulated cylindrical roller bearing
inner diameter	100mm
outer diameter	180mm
width diameter	34mm
FAG NU220-E-TVP2-J20AA-C3 insulated cylindrical roller bearing weight	3.49kg
FAG insulated bearing are available from many design, variants, series and size, ►FAG insulated deep groove ball bearing with a coated inner ring or outer ring,with seals on both sides and radial clearance C3 ►FAG NU220-E-TVP2-J20AA-C3 bearing with nylon cage can accommodate very heavy radial loads and very high speeds,	Design: NU220-E-TVP2-J20AA-C3
	►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:165kN ►static load rating:167kN ►Fatigue load limit:22.6kN ►Reference speed:4500r/min ►limiting speed:4800r/min
FAG NU220-E-TVP2-J20AA-C3 bearing are widely used in industry area:	►Power generation ►wheelsets and traction motors(rail vehicles) ►DC and AC motors (drivetrains) ►generators (wind power)

XRB is the FAG NU220-E-TVP2-J20AA-C3 bearing exporter & supplier,it can supply FAG NU220-E-TVP2-J20AA-C3 bearing, Our large quantity FAG insulated cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find EASIER NU220-E-TVP2-J20AA-C3 Bearing, the other type and brand insulated cylindrical roller bearing

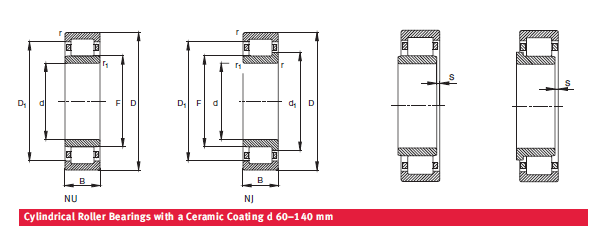

insocoat cylindrical roller bearing
FAG Current-Insulated Bearings

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality FAG NU220-E-TVP2-J20AA-C3 bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
