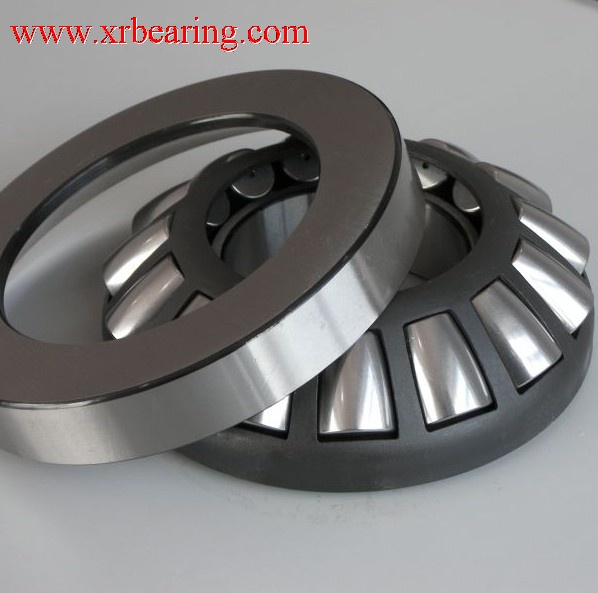

NSK 29428E spherical roller thrust bearing

Inquire Add to Basket

  • NSK 29428E china bearing manufacturer

  • NSK 29428E bearing price

Keywords:NSK 29428E bearing,NSK 29428E spherical roller thrust bearing

NSK 29428E bearing is Spherical roller thrust bearing and commonly type and widely used in many application, it contains inner ring, outer ring,and steel & brass bearing,spherical roller thrust bearing can carry radial and axial loads in both directions,NSK 29428E spherical roller thrust bearings are particularly versatile and are simple in design,separable,suitable for high and middle high capacity,low cost maintenance.
High precision NSK 29428E  spherical roller thrust bearing
High precision NSK spherical roller thrust bearing NSK 29428E Bearing,
140×280×85mm bearing
NSK 29428E bearing type spherical roller thrust bearing
roller bearing inner diameter 140mm
roller bearing outer diameter 280mm
roller bearing width diameter 85mm
NSK 29428E spherical roller thrust bearing weight 23kg
NSK 29428E bearing are available from many design, variants, series and size,

►NSK spherical roller thrust bearings 29428E have specially designed raceways and accommodate a large number of asymmetrical rollers.

►29428E spherical roller thrust bearings are designed to achieve a high thrust capacity with low friction and continuous roller alignment. This bearing type is ideal for operating conditions

►NSK 29428E Spherical roller thrust bearings are self-aligning and insensitive to static misalignment of the shaft relative to the housing.
 Design:
Spherical roller thrust roller bearing 29428E
►Metarial:High quality chrome steel
►Lubrication:Oil or grease
►sealed:Rubber sealed or press steel shielded
►dynamic load rating: 1630kN
►static load rating:4300kN
►Fatigue load limit:455kN
►Reference speed:1300r/min
►limiting speed:2400mm
NSK 29428E bearing are widely used in industry area:
 ►Metalworking
►Plastics Machinery
►Industrial gearboxes
►Pulp & papernes
►Material handling
►Fluid machinery
►Mining & construction





































XRB is the NSK 29428E China bearing manufacturer & factory & exporter & supplier ,it can supply NSK 29428E bearing, we have large quantity NSK 29428E bearing Stock can meet your need with lowest price and fast delivery.

Also you can find the other brand spherical roller thrust bearing you need ：

29428E/C3 bearing
FAG 29428-E1-C3 bearing
NTN 29428 bearing
KOYO 29428 RFY bearing
ZKL 29428 M bearing
SNR 29428 E bearing
NACHI 29428EX Bearing
GPZ 29428M bearing

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our NSK 29428E bearing to your office at the first time.
