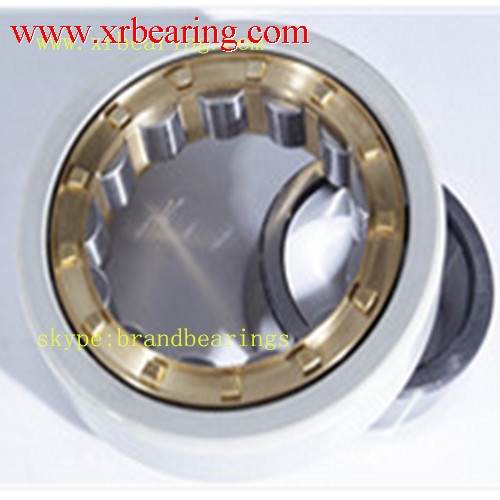

NU213ECM/C4VA3091 electric insulated bearing

PRODUCT

You are here: Home » Products » Electrically Insulated Bearing » Insulated Cylindrical Roller Bearings » NU213ECM/C4VA3091 electric insulated bearing

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Category

Contact Us

+86-635-8509787
+86-13280450757
sales@xrbearing.com
Yandian Industrial Zone, Liaocheng City, ShanDong Province. China
Skype: brandbearings



Inquire Add to Basket

Item:
insocoat bearing
Price:
NU213ECM/C4VA3091 Bearing price

Details

Keywords:NU213ECM/C4VA3091 bearing, NU213ECM/C4VA3091 insulated bearing

NU213ECM/C4VA3091 bearing is insulated bearing and cylindrical roller Bearings with a Ceramic Coating,it also named NU213ECM/C4VA3091 insocoat bearing, the bearing have an electrically insulating coat on the outer ring(suffix VL0241) or on the inner ring(suffix VL2071), respectively. insulated bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated & insocoat bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

NU213ECM/C4VA3091 bearing provide a bearing function and electrical insulation,virtually eliminates premature bearing failure caused by stray electric currents,electrical insulated bearing can reduce the number of failures and improve the machine uptime,reduce the cost of maintenace.

NU213ECM/C4VA3091 electrically insulated bearings

High speed insulated cylindrical roller bearing	NU213ECM/C4VA3091 Bearing 65×120×23mm bearing
NU213ECM/C4VA3091 Bearing type	Insulated cylindrical roller bearing
inner diameter	65mm
outer diameter	120mm
width diameter	23mm
NU213ECM/C4VA3091 insulated cylindrial roller bearing weight	1.23kg
insulated bearing are available from many design, variants, series and size, ► Insulated tapered roller bearing with a coated inner ring or outer ring,with inch & metric size insocoat bearing ►NU213ECM/C4VA3091 bearing with steel cage can accommodate very heavy radial loads and very high speeds,	Design: NU213ECM/C4VA3091
	►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:110kN ►static load rating:122kN ►Fatigue load limit:0kN ►Reference speed:0r/min ►limiting speed:6700r/min
NU213ECM/C4VA3091 bearing are widely used in industry area:	►Power generation ►wheelsets and traction motors(rail vehicles) ►DC and AC motors (drivetrains) ►generators (wind power)

XRB is the NU213ECM/C4VA3091 China bearing manufacturer & exporter & supplier,it can supply NU213ECM/C4VA3091 bearing, Our large quantity insulated cylindrical roller bearing Stock can meet your need with lowest price and fast delivery. Also you can find EASIER NU213ECM/C4VA3091 Bearing, the other type and brand insulated cylindrical roller bearing,insocoat tapered roller bearing,Current-Insulated Bearings,the quality can meet top brand like FAG Bearing.

XRB bearings provide effective protection against AC and DC currents. The specifications for different design are:

VL0241 Electrical resistance:min.50MW,breakdown voltage:max.operating voltage 1000V DC.

VL0246 Electrical resistance: >150MW,breakdown voltage:max.operating voltage 3000 V DC.

VL2071 Electrical resistance: min.50 MW,breakdown voltage: max.operatingvoltage 1000 V DC.

VL2074 Electrical resistance: >150MW,breakdown voltage: max.operating voltage 2 000 V DC.

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality NU213ECM/C4VA3091 bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
