Item:
electric Insulated rolling bearing
Price:
Bearing NU322 ECM/C3VL0241 price

Details

Keywords:NU322 ECM/C3VL0241 bearing,NU322 ECM/C3VL0241 insulated bearing

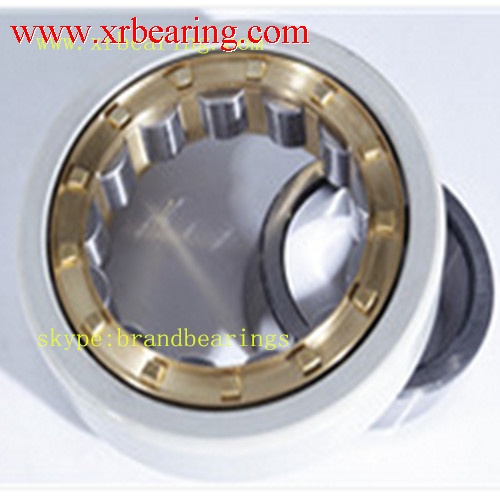

NU322 ECM/C3VL0241 bearing is insulated bearing and cylindrical roller Bearings with a Ceramic Coating, the bearing have an electrically insulating coat on the outer ring(suffix VL0241) or on the inner ring(suffix VL2071), respectively. insulated bearing are widely used in generator, Alternator ,there are 100μm thick coating on the surface of inner or outer ring, the insocoat bearing can bear voltages up to 1000V DC,insulated & insocoat bearing can keep away from moisture and humidity,it can carry radial and axial loads in both directions.

NU322 ECM/C3VL0241 bearing provide a bearing function and electrical insulation,virtually eliminates premature bearing failure caused by stray electric currents,electrical insulated bearing can reduce the number of failures and improve the machine uptime,reduce the cost of maintenace.

NU322 ECM/C3VL0241 electrically insulated bearings

High speed NU322 ECM/C3VL0241 insulated bearing	NU322ECM/C3VL0241 Bearing 110×240×50mm bearing
NU322 ECM/C3VL0241 Bearing type	Insulated cylindrical roller bearing
inner diameter	110mm
outer diameter	240mm
width diameter	50mm
NU322 ECM/C3VL0241 insulated cylindrial roller bearing weight	12kg
insulated bearing are available from many design, variants, series and size, ► Insulated tapered roller bearing with a coated inner ring or outer ring,with inch & metric size insocoat bearing ►NU322 ECM/C3VL0241 bearing with steel cage can accommodate very heavy radial loads and very high speeds,	Design: NU322 ECM/C3VL0241
	►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►dynamic load rating:265kN ►static load rating:280kN ►Fatigue load limit:50kN ►Reference speed:4500r/min ►limiting speed:5300r/min
NU322 ECM/C3VL0241 bearing are widely used in industry area:	►Power generation ►wheelsets and traction motors(rail vehicles) ►DC and AC motors (drivetrains) ►generators (wind power)

XRB is the NU322 ECM/C3VL0241 China bearing exporter & supplier,it can supply NU322 ECM/C3VL0241 bearing, Our large quantity insulated cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find EASIER NU322 ECM/C3VL0241 Bearing, the other type and brand insulated cylindrical roller bearing,insocoat tapered roller bearing,Current-Insulated Bearings

XRB bearings provide effective protection against AC and DC currents. The specifications for different design are:

VL0241 Electrical resistance:min.50MW,breakdown voltage:max.operating voltage 1000V DC.

VL0246 Electrical resistance: >150MW,breakdown voltage:max.operating voltage 3000 V DC.

VL2071 Electrical resistance: min.50 MW,breakdown voltage: max.operatingvoltage 1000 V DC.

VL2074 Electrical resistance: >150MW,breakdown voltage: max.operating voltage 2 000 V DC.

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality NU322 ECM/C3VL0241 bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.

NU322 ECM/C3VL0241 Bearing
