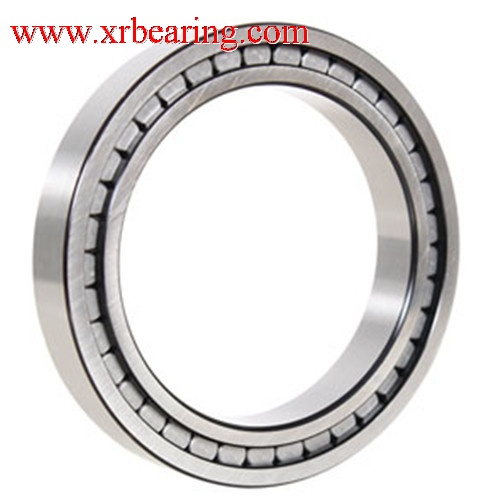

SKF NNCF5006 CV Bearing

  • NNCF5006 CV

  • Bearing NNCF5006 CV price

Keywords:SKF NNCF5006 CV bearing,NNCF5006 CV full-complement cylindrical roller bearing

SKF NNCF5006 CV bearing is single row full-complement
Cylindrical roller bearing   and commonly type and widely used in many application which need very high capacity and load, it contains inner ring, outer ring but without cage,so this special design   determine it can carry high capacity but low speed than the normal cylindrical roller bearing with cage,it can carry radial and axial loads in both directions.

SKF NNCF5006 CV bearing suitable for high and middle high capacity,but low cost maintenance.SKF as one of the biggest top quality bearing brand,Quality can be approved by the market.



Good price  SKF NNCF5006 CV  single row full-complement Cylindrical roller bearing

High capacity SKF full-complement Cylindrical roller bearing

SKF NNCF5006CV  Bearing
30×55×34mm bearing
                 SKF NNCF5006 CV Bearing type cylindrical roller bearing
 inner diameter 30mm
outer diameter 55mm
width diameter 34mm
   SKF NNCF5006 CV Cylindrical roller  bearing weight 0.35kg
SKF bearing are available from many design, variants, series and size,

►SKF full complement cylindrical roller bearings
have specially designed raceways and accommodate a large number of asymmetrical rollers.

►SKF NNCF5006 CV bearing with brass cage can accommodate very heavy radial loads and very high speeds,

►SKF NNCF5006 CV cylindrical roller bearing have two flange on either  the inner or outer ring to guide the rollers,this type of bearing have "open" flange, together with the roller end design and surface finish,so it can promote the formation of a lubricant film to reduce friction and frictional heat

►SKF cylindrical roller bearing have many kinds of design for inner ring and outer ring,with flange or without flange, with brass cage & steel cage & nylon cage, normal rollers or larger rollers.
SKF Full-complement cylindrical roller bearings.
Design:
full complement cylindrical roller bearing
NNCF5006 CV
Metarial:High quality chrome steel
Lubrication:Oil or grease
dynamic load rating:73.7kN
static load rating:88kN
Fatigue load limit:10kN
Reference speed:6000r/min
limiting speed: 7500r/min
SKF NNCF5006 CV bearing are widely used in industry area: ►Power generation
►Aggregate processing
Oil fields&Pumps
►Crop shears
Rolling mills
Gear drives &Hoists
Mining & construction










































XRB is the SKF
NNCF5006 CV bearing exporter & supplier,it can supply SKF NNCF5006 CV bearing, Our large quantity SKF single row full complement Cylindrical roller bearing Stock can meet your need with lowest price and fast delivery.

Also you can find NNCF5006 CV Bearing, the other type and brand cylindrical roller bearing :

SKF Full complement cylindrical roller bearing
NN double row cylindrical roller bearing
NNU double row cylindrical roller bearing
SL Full-complement cylindrical roller bearing

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By Air or By Sea,by Train are all avaiable.we asure we can ship high quality SKF NNCF5006 CV bearing to your office at the first time.more price and drawing of the bearings,please contact with our sales team.
