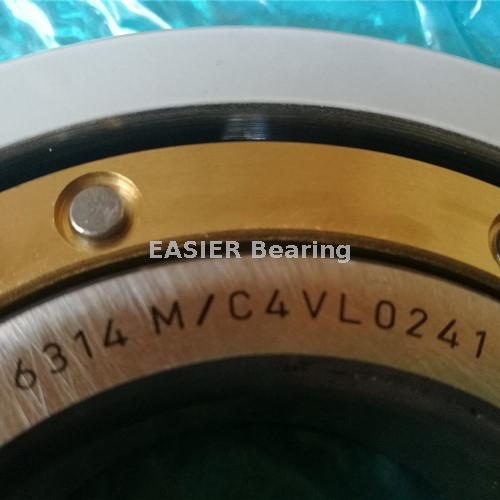

Electrically Insulated Bearing 6216-J20AA-C3 is Deep Groove Ball Bearing design. its dimension is 80×140×26mm, it has the same dimension and the same design with normal chrome steel 6216 bearing. but the most different is 6216-J20AA-C3 bearing with Aluminium Oxide Coating. the coating can Electrical Resistance Voltages up to 3000 V DC. This kind of bearing are widely used in high quality demand application like traction motor.
Features of 6216-J20AA-C3 insulated bearings
1. High insulation properties
To prevent electric corrosion in bearings, a highly productive aluminum ceramic coating material is used to coat the outer ring, and by combining optimized additives, insulation performance is improved by about tenfold.
2. Improved durability
· Optimizing bearing elements improves film impact resistance by a factor of 3x.
· Optimized ceramic coating materials makes for excellent heat dissipation.
Designation | Mass | Dimensions | R | Load Rating | Fatigue Limit Load | Limiting Speed | Reference Speed | ||||||
EASIER | (kg) | d | D | B | Min | D1 | D2 | d | dyn.Cr | stat.Cor | Cur | ||
6212-M-J20B-C4 | 0,98 | 60 | 110 | 22 | 1,5 | 95,6 | 76,1 | 52 | 36 | 2,24 | 14 000 | 6 800 | |
6213-J20B-C4 | 1 | 65 | 120 | 23 | 1,5 | 103,1 | 82,3 | 60 | 41,5 | 2,55 | 13 000 | 6 300 | |
6313-M-J20AA-C5 | 2,55 | 65 | 140 | 33 | 2,1 | 117,5 | 88,6 | 93 | 60 | 3,95 | 11 000 | 6 400 | |
6214-2RSR-J20AA-C3 | 1,11 | 70 | 125 | 24 | 1,5 | 110,7 | 86,8 | 62 | 44 | 2,9 | 12 000 | 6 100 | |
6215-M-J2B-C4 | 1,42 | 75 | 130 | 25 | 1,5 | 112,8 | 92,5 | 65,5 | 49 | 3,35 | 11 000 | 5 900 | |
6215-M-P6-J20AA-R85-105 | 1,42 | 75 | 130 | 25 | 1,5 | 112,8 | 92,5 | 65,5 | 49 | 3,35 | 11 000 | 5 900 | |
6315-M-J20AA-C3 | 3,74 | 75 | 160 | 37 | 2,1 | 133,2 | 101,8 | 114 | 76,5 | 4,65 | 9 500 | 5 800 | |
6016-M-J20AA | 0,997 | 80 | 125 | 22 | 1,1 | 111 | 94 | 47,5 | 40 | 2,34 | 12 000 | 6 500 | |
6216-J20AA-C3 | 1,46 | 80 | 140 | 26 | 2 | 121,3 | 98,8 | 72 | 54 | 3,45 | 11 000 | 5 500 | |
6316-J20AA-C3 | 3,75 | 80 | 170 | 39 | 2,1 | 141,8 | 108,6 | 122 | 86,5 | 5,2 | 9 000 | 5 500 | |
6316-M-J20B-C4 | 4,44 | 80 | 170 | 39 | 2,1 | 141,8 | 108,6 | 122 | 86,5 | 5,2 | 9 000 | 5 500 | |
F-808916.6316-J20AA | 3,69 | 80 | 170 | 39 | 2,1 | 141,8 | 108,6 | 122 | 86,5 | 5,2 | 9 000 | 5 500 | |
6317-M-J20AA-C3 | 5,05 | 85 | 180 | 41 | 3 | 151,6 | 114,4 | 132 | 96,5 | 5,8 | 8 000 | 5 300 | |
6218-J20AA-C3 | 2,21 | 90 | 160 | 30 | 2 | 139,4 | 112,3 | 96,5 | 72 | 4,2 | 9 000 | 5 100 | |
6318-M-J20AA-C3 | 6,14 | 90 | 190 | 43 | 3 | 157,1 | 123,8 | 134 | 102 | 5,8 | 8 000 | 5 100 | |
6319-M-J20AA-C4 | 7,05 | 95 | 200 | 45 | 3 | 166,9 | 129,1 | 146 | 114 | 6,4 | 7 500 | 4 950 | |
6220-J20C-C3 | 3,3 | 100 | 180 | 34 | 2,1 | 154,8 | 124,7 | 122 | 93 | 5,4 | 8 000 | 4 800 | |
6220-M-J20AA-R95-120 | 3,9 | 100 | 180 | 34 | 2,1 | 154,8 | 124,7 | 122 | 93 | 5,4 | 8 000 | 4 800 | |
6320-M-J20AA-C3 | 8,64 | 100 | 215 | 47 | 3 | 179 | 138,6 | 163 | 134 | 7,4 | 7 000 | 4 650 | |
16021-M-J20AA-C5 | 1,42 | 105 | 160 | 18 | 1 | 141,2 | 124,2 | 54 | 54 | 2,39 | 9 500 | 3 950 | |
6322-M-J20AA-C3 | 11,7 | 110 | 240 | 50 | 3 | 197,4 | 153,4 | 190 | 166 | 8,6 | 6 300 | 4 150 | |
6324-M-J20AA-C3 | 15 | 120 | 260 | 55 | 3 | 214,9 | 165,1 | 212 | 190 | 9 | 6 000 | 3 850 | |
6326-M-J20AA-C3 | 18,3 | 130 | 280 | 58 | 4 | 231,2 | 178,9 | 228 | 216 | 9,8 | 5 600 | 3 500 | |
6230-J20AA | 10,3 | 150 | 270 | 45 | 3 | 229,1 | 191,6 | 176 | 170 | 7,8 | 5 600 | 3 350 | |
6336-M-J20AA-C4 | 43 | 180 | 380 | 75 | 4 | 317 | 245,2 | 355 | 405 | 16,3 | 3 800 | 2 440 |
The ohmic resistance of the bearing. With higher-frequency AC voltage (often encountered in converters!), it depends on the capacitive reactance of the bearing. Basically, a current-insulated bearing acts like a resistor and capacitor connected in parallel. To ensure good
insulation, the ohmic resistance should be as high as possible, and the capacitance should be as low as possible.
Regardless of whether a bearing was exposed to direct current or alternating current (up to frequencies in the MHz range), the resulting changes to the surface are
always the same: Uniformly dull, gray marks in the raceways (Fig. 1) and on the rolling elements. These marks are not very specific and can also be caused by other factors (e. g. lubricating oil containing abrasives).
Type:
Deep groove ball bearing, cylindrical roller bearing
Inner diameter:
50 mm to 110 mm
Dimensional deviation:
Compatible with traditional bearings
Features of 6216-J20AA-C3 insulated bearings
1. High insulation properties
To prevent electric corrosion in bearings, a highly productive aluminum ceramic coating material is used to coat the outer ring, and by combining optimized additives, insulation performance is improved by about tenfold.
2. Improved durability
· Optimizing bearing elements improves film impact resistance by a factor of 3x.
· Optimized ceramic coating materials makes for excellent heat dissipation.
