6322 M/C3VL0241 Insulated Bearings for Vfd Motors

Current-Insulated Bearings is have many kinds of insulated ball and roller bearings design. it has the same dimension and the same design with normal chrome steel bearings. but the most different is this kind of bearing with Aluminium Oxide Coating. the coating can Electrical Resistance Voltages up to 3000 V DC.

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • 6322 M/C3VL0241
  • EASIER
  • Electrically Insulated Bearings
  • USD$180

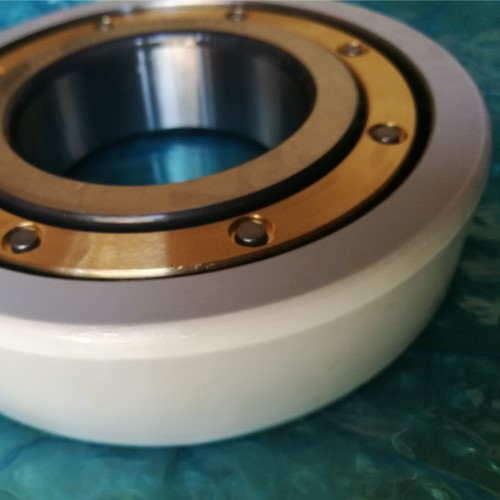

EASIER provides Electrically insulated bearings, to protect against damages caused by electric currents. These bearings have an electrically insulating coating on the outer ring (VL0241 execution), or on the inner ring (VL2071 execution). The inner ring coating can be made from bore diameters above and  including 70 mm. The coating consists of a nominal 100-µm thick aluminium oxide layer and is applied by a unique coa- ting process using plasma-spraying technology.


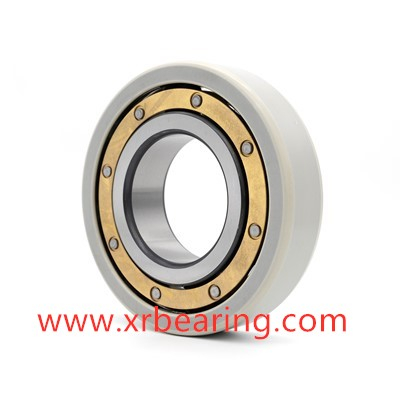

High Precision Electrically Insulated Bearing 6322 M/C3VL0241 is Deep Groove Ball Bearing design. its dimension is 110×240×50mm, it has the same dimension and the same design with normal chrome steel 6322 M/C3 bearing. but the most different is 6322-M-C3J20AA bearing with Aluminium Oxide Coating. the coating can Electrical Resistance Voltages up to 3000 V DC. This kind of bearing are widely used in high quality demand application like traction motor.


Designation Principal dimensions Basic load ratings Fatique load limit Speed ratings Weight
Deep groove ball bearing mm mm mm dynamic static
Reference speed Limiting speed kg

d D B C[kN] C0[kN]
[r/min] [r/min]
6322/C3VL0241 110 240 50 216 180 5.7 6000 3800 9.7
6322 M/C3VL0241 110 240 50 216 180 5.7 6000 5300 11
6224/C3VL0241 120 215 40 153 118 3.9 6300 4000 5.3
6324/C3VL2071 120 260 55 216 186 5.7 5600 3400 12.7
6324 M/C3VL2071 120 260 55 216 186 5.7 5600 5000 15
6226/C3VL2071 130 230 40 163 132 4.15 5600 3600 5.8
6326/C3VL2071 130 280 58 242 216 6.3 5000 3200 15.5
6326 M/C3VL2071 130 280 58 242 216 6.3 5000 4500 16.5
6228/C3VL2071 140 250 42 174 150 4.55 5300 3400 7.5
6328/C3VL2071 140 300 62 265 245 7.1 4800 3000 18.7
6328 M/C3VL2071 140 300 62 265 245 7.1 4800 4300 21.8
6230/C3VL2071 150 270 45 186 166 4.9 5000 3200 10


Electrically Insulated Bearing have outer ring coating, inner ring coating and ceramic material rolling elements. Because of the higher cost of using ceramic material rolling elements, in most cases, the inner ring or outer ring 50-200 μm is used. Thick ceramic coating. The first two coatings are plasma spraying method to coat ceramic material on the bearing surface. This coating still maintains its insulation performance in a humid environment. The ceramic material rolling element insulated bearing is the rolling element. Using ceramic materials, it has excellent current resistance capability.

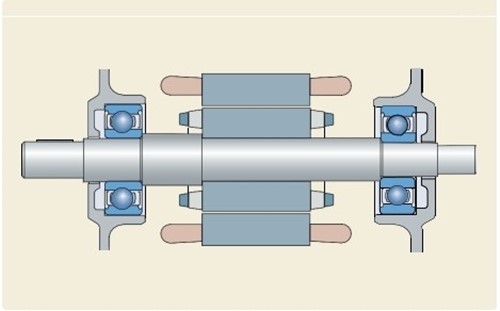

structure of insulated bearing in motor

China Insulated bearings

• provide two features in one solution:

– a bearing function;

– electrical insulation.

• reduce the number of failures and improve the machine uptime.

• reduce maintenance costs.

• are the most economical solution in comparison with other insulating solutions.

• have global availability thanks to SKF presence in more than 130 countries and at 7000 distribution locations world wide.
