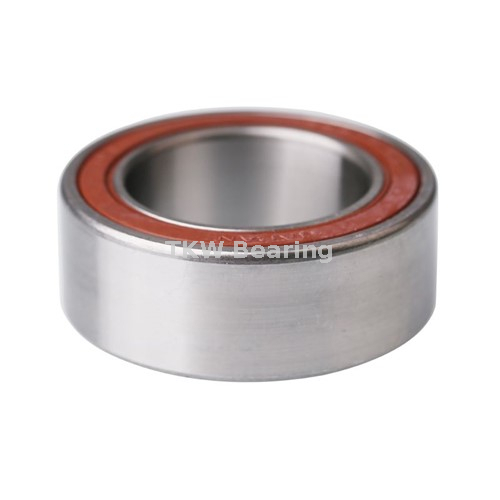

Air Conditioner Compressor Bearings

Air conditioner compressor bearing is a kind of double row angular contact ball bearing. Its inner ring and outer ring have two raceways, two rows of steel balls and two cages, with rubber seals on both sides.

Most of the Top bearing manufacturer in the world are all produce this kinds of bearings
Availability:
  • ACB 30x52x22
  • EASIER / TKW
  • DAC3052-32R
  • 30BD5222
  • Best Factory Price

QQ图片20220118234854


Air conditioner compressor bearing is a kind of double row angular contact ball bearing. Its inner ring and outer ring have two raceways, two rows of steel balls and two cages, with rubber seals on both sides. double row Ball bearings have stricter requirements in the production and processing process, and are more demanding than single-row ball bearings. It requires that the bearing raceways must be kept parallel to reduce the alignment error between the inner and outer rings during the operation of the bearing. In addition to bearing radial loads, air-conditioning compressor bearings can also withstand axial loads acting in two directions.


Air conditioner compressor bearing have very thin wall inner ring and outer ring, We use Gcr-15 bearing steel for this type of bearing material, with machining accuracy of P0 and P6 different level. Compared with single-row ball bearings, air-conditioning compressor bearings can have greater radial and axial loads, but the rotational speed is relatively low. The noise value is also not as good as that of single row ball bearings. Oil & lubrication Grease We use world and China top suppliers to ensure the stability and reliability of our products.


Other double-row ball bearings include double-row deep groove ball bearings, double-row angular contact ball bearings, double-row thrust ball bearings, double-row self-aligning ball bearings, double-row roller bearings mainly include double-row cylindrical roller bearings, self-aligning Roller bearing, double row tapered roller bearing.


QQ图片20220118235057

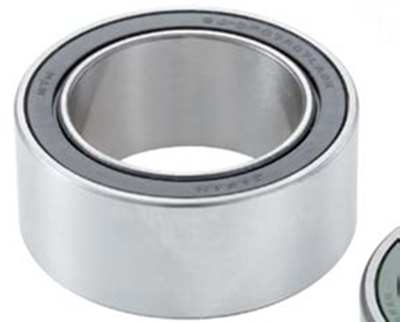

Air compressor bearings are a relatively specialized bearing field. TKW and EASIER can provide products with two different quality standards. We can provide quotations according to your needs. I believe that in our company, you can always find the bearing products you need.


Air conditioner compressor bearing

TKW / EASIER Dimension(mm) NTN NSK Koyo
ACB 30x52x22 30x52x22 30BG5222-2DSE 30BD5222 DAC3052-32R
ACB 30x55x23 30x55x23 30BG05S5G

ACB 35x50x20 35x50x20 2TS2-DF07R17LLA4#06 35BD5020DU DAC35500020
ACB 35x52x20 35x52x20 2TS2-DF07R21LLA4#02 35BD5220DF
ACB 35x55x20 35x55x20 2TS2-DF07A02LLX2#03 35BD219T12DDULG2 DAC3555RD3H

35BD219T12DDULG21

35BD219DUK



ACB 35x52x22 35x52x22 35BGS5S10G-2DST2 35BD5222DDUM18A DAC35520022
35BD5222DFX7
ACB 35x62x24 35x62x24 2TS2-DF07R12LLHA#01 35BD6224DDUK
35BD6224DV
ACB 40x62x20,625 40x62x20,625 712019-NBR-2 907257A 83A5518
ACB 40x62x24 40x62x24 2TS2-DF0865LLBCS#01 40BD219DU 83A551B4

Bearing NO. Boundary dimensions(mm) Applicatlon Car make
EASIER/ TKW NACHI  NSK KOYO d D B 16
30BD461816 336-2001

30 46 18 16
30BD4718 30BG04S8G-2DS
83A693 30 47 18
SUZUKI , DAIHATSU
30BD472118

83A693A 30 47 21 18 TOYOTA
30BD4722 30BG4S13-2DST2

30 47 22

30BD5220 30BGS10G-2DST(101.007)

30 52 20

30BD5222 30BGS10G-2DST2 30BD5222DU DAC3052-32RD 30 52 22
FORD , TOYOTA , HONDA


30BD5222DUUM6





30BD5523 30BG05S5G-2DS 30BD40DU
30 55 23
FORD

5006-2NSL 30BD219V






30BG05S2DS






30BD5526 30BGS1-2NSL DAC3055CRK
30 55 26

30BD6227 30BG05S1-2NSL W5206
30 62 27

32BD4718 32BG04S3G 32BD4718DUK
32 47 18
AKTI
32BD522015 320-2001
2TS2-DF0676LH 32 52 20 15 BENZ
32BD5523 32BG05S1 -2DSL 32BD45DU
32 55 23
MAZDA , XIALI
35BD5020 35BG05S7G-2NST 35BD5020DU DAC35500020 35 50 20
MITSUBISHI
35BD5220 35BD5220DF (101.011)

35 52 20

35BD5222 35BD5222DFX7 (101.006) 35BD522DFX7 DAC35520022 35 52 22

35BD5223 35BG05S6G

35 52 23

35BD5520 35BG05S10G-2DST2 35BD219DUK DAC35550020 35 55 20
GM , HONDA , NISSAN
35BD6221 35BG06G-2DS

35 62 21

35BD6224 DF0789(101.008) 35BD6224DV
35 62 24

35BD62277
35BD210DDU BD30-11A 35 62 27.7
CHRYSLER WHITE
38BD5417 38BG05S2G-2DS

38 54 17
SUZUKI , DAIHATSU
38BD6224 101.008

38 62 24

40BD5524 40BGS40G

40 55 24

40BD5724 40BG05S1DS 40BD45T12DDU
40 57 24
MITSUBISHI

40BG05S2G-2DS 907257A






712019-NBR-2






40BD572420 40BG05S1G-2DS

40 57 24 20 EUROPE , SANTANA , AUDI
40BD62206 65S7684/6559496 40BD49V/90527 83A5518 40 62 20.625
GM(90527)
40BD6224206 40BGS12G-2DS 40BD49AWT12DDU
40 62 24 20.625 FORD , CHRYSLER , TOYOTA
40BD6224 40BGS11G-2DS 40BD219T12DDU 83A551B4 40 62 24
FORD , CHRYSLER
40BD6624 40BGS39G 2TS2-DF08A06
40 66 24

40BD6830
40BD6830DUK





EASIER NSK NACHI d(mm) D(mm) B/C(mm) weight(KG) Applications
AC30450018 30BD4518
30 45 18 0.08 FORD、VFS
AC30470012
30BX04SIDST 30 47 12 0.07
AC30470018 30BD219V 30BG04S8G-2DS 30 47 18 0.09 SUZUKI、MAZAD
AC30470021/18
30BGO4S39G-2DL 30 47 21/18 0.1 TOYOTA
AC30470020 30BD4720
30 47 20 0.105 TOYOTA、ECHO
AC30470022
30BG04S13 30 47 22 0.1 TOYOTA、COROLLA
AC30520020
101.007 30 52 20 0.13 TOYOTA
AC30520022 30BD5222DU 30BG05S2G-2DS 30 52 22 0.15 HONDA
AC30550023 30BD40DF 30BG05S5G-2DS 30 55 23 0.19 FORD
AC30620027 W5206 30BGS1-2NSL 30 62 27 0.34 CHRYSLER
AC32470018 32BD4718 32BD4718DUK 32 47 18 0.08 ALTO
AC32520018/20
DF0676LH 32 52 18/20 0.12 BENZ
AC32550023 32BD45DU 32BG05S1-2DST 32 55 23 0.18 CHINA XIALI
AC35500020 35BD5020DU 35BGS05S7G 35 50 20 0.1 MITSUBISHI
AC35520012
35BX5212S1DST 35 52 12 0.08 CAMRY
AC35550020 35BD219V 35BG05S10G 35 55 20 0.14 TOYOTA
AC35520022 35BD5222 35BG5222DFX7 35 52 22 0.12 PASSAT
AC35620021
35BG06G 35 62 21 0.22
AC38540017 38BD5417 38BG05S2G-2DS 38 54 17 0.1 SUZUKI
AC40550024
40BGS40G 40 55 24 0.14 AUDI
AC40570024 40BD45DU 40BG05S2G-2DS 40 57 24 0.16 SANTANA(505)
AC406200206 40BD49V 6559469 40 62 20.6 0.19 V5
AC40620024 40BD219DU 40BGS11G-2DS 40 62 24 0.22 FORD/CHRYSLER(508)
AC40660024
40BGS39G 40 66 24 0.24 MITSUBISHI
AC406200206/24
40BGS12G 40 62 20.6/24 0.2 FORD/AUDI80
AC40570024/20
40BG05S1G-2DS 40 57 24/20 0.14 EUROPE/AUDI
AC40680030 40BD6830DUK 40BG06S30G 40 68 30 0.37 Midi-BUS
AC45750032
45BG07S5G-2DST 45 75 32 0.45 Big-BUS 30c
AC509000302
5210NS 50 90 30.2 0.69 Big-BUS
