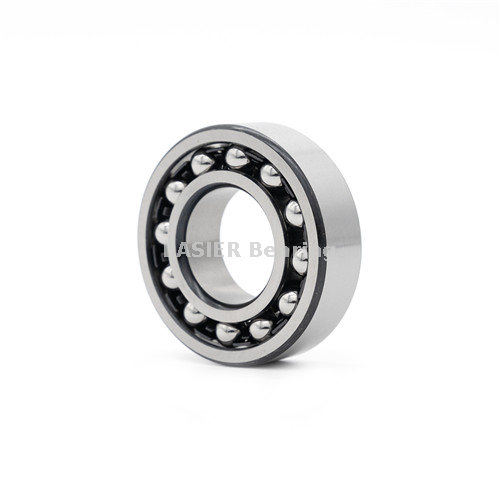

Self-aligning ball bearing have cylindrical bore and tapered bore design, the cages have pressed steel and Phenolic resin etc. Its characteristic is that the raceway of the outer ring is spherical and has self-aligning properties. so it can compensate for misalignment and shaft deflection errors, However, the relative inclination of the inner and outer rings must not exceed 3 degrees.

structure of self-aligning ball bearings

Self-aligning ball bearings have two rows of balls with a common sphered raceway in the outer ring. This gives the bearings their self-aligning property, permitting angular misalignment of the shaft relative to the housing. They are therefore particularly suitable for applications where misalignment can arise from errors in mounting or from shaft deflection. In addition, non-sealed self-aligning ball bearings have the lowest friction of any bearing type.

Bearing sizes having the E suffix have higher load ratings than the original standard design because of improvements in internal construction. They are supplied with a glass fiber reinforced, 6.6 polyamide cage as standard. Machined brass or pressed steel cages are supplied on other sizes.

Basic Design Self-aligning ball bearings of the basic design are available with both a cylindrical bore and a tapered bore with a 1:12 taper. Tapered bore bearings are furnished with adapter sleeves, including nut and lock washer, with which the bearings can be secured to smooth or stepped shafts. They are identified by suffix letter K. Sealed Bearings Self-aligning bearings with cylindrical and tapered bores are available with contact seals on both sides, identified by the suffix 2RS1. The seals are made of oil and wear resistant synthetic rubber reinforced by a steel insert. The operating temperature range for the seals, with a suitable grease, is -40˚C to 120˚C (-40˚F to 248˚F). Sealed bearings are supplied with a lithium base grease suitable for an operating temperature range of -30˚C to 110˚C (-22˚F to 230˚F). Sealed Self-aligning ball bearings bearings with a tapered bore require a special adapter sleeve and lock washer identified by the suffix letter C. The lock washers have a circular beading on the side facing the bearing to prevent interference with the seal.

EASIER can supply different kinds of Self-Aligning Ball Bearings

Self-aligning Ball Bearings with cylindrical bore

Self-aligning Ball Bearings with tapered bore

Self-aligning Ball Bearings with adapter sleeve

Sealed Self-aligning Ball Bearings

Sealed Self-aligning Ball Bearings Extended Inner Ring

The range of Self-aligning Ball Bearing we can supply

Bore diameter :25mm-1100mm

Outer diameter:52mm-1300mm

Overall Width :15mm-300mm

Basic Type & Series

1200: Metric, Self-Aligning, Extra Narrow

1300: Metric, Self-Aligning, Narrow

2200: Metric, Self-Aligning, Wide

2300: Metric, Self-Aligning, Extra Wide

NLJ: Inches, Self-Aligning, Light

NMJ: Inches, Self-Aligning, Medium

Description		Interchange
Description		NSK	CoatMaster	FAG	NTN
Part Number	Metric, Self-Aligning, Extra Narrow	12xx	12xx	12xx	12xx
	Metric, Self-Aligning, Narrow	13xx	13xx	13xx	13xx
	Metric, Self-Aligning, Wide	22xx	22xx	22xx	22xx
	Metric, Self-Aligning, Extra Wide	23xx	23xx	23xx	23xx
Part Number Suffix	Polyamide Cage	TNG	TN9	TV
	Steel Cage	Blank, J	Blank	Blank	Blank
	2 Contact Seals	2RS	2RS1	2RSR	LLU
	Tight Clearance	C2	C2	C2	C2
	Normal Clearance	Blank	Blank	Blank	Blank
	Greater than Normal Clearance	C3	C3	C3	C3
	Tapered Bore 1:12	K	K	K	K

Suffix of Self-aligning ball bearing

1. Internal Design

No suffix Standard internal design

E Reinforced ball set (increased capacity)

2. Variations

K Bearing with 1:12 tapered bore

2RS1 2 rubber seals with metal backing

3 . Cage Designations

TN9 Fibreglass reinforced Polyamide, ball centred

M Machined brass cage, ball centred

No symbol Steel, ball centred

3. Clearance

C2 Radial internal clearance < normal

CN Normal clearance not shown

C3 Radial internal clearance > normal

C4 Radial internal clearance > C3

E-mail: sales@xrbearing.com, brandbearings@gmail.com

Skype:brandbearings

Whatsapp: 0086-13280450757

www.xrbearing.com

Designation	Principal dimensions			Basic load ratings		Speed ratings
				dynamic	static	Reference speed	Limiting speed
	d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
135 TN9	5	19	6	2.51	0.48	70 000	45 000
126 TN9	6	19	6	2.47	0.48	70 000	45 000
127 TN9	7	22	7	2.65	0.56	63 000	40 000
108 TN9	8	22	7	2.65	0.56	63 000	40 000
129 TN9	9	26	8	3.9	0.815	60 000	38 000
1200 ETN9	10	30	9	5.53	1.18	56 000	36 000
2200 E-2RS1TN9	10	30	14	5.53	1.18		17 000
2200 ETN9	10	30	14	8.06	1.73	50 000	34 000
1201 ETN9	12	32	10	6.24	1.43	50 000	32 000
2201 E-2RS1TN9	12	32	14	6.24	1.43		16 000
2201 ETN9	12	32	14	8.52	1.9	45 000	30 000
1301 EM	12	37	12	9.36	2.16	40 000	28 000
1301 ETN9	12	37	12	9.36	2.16	40 000	28 000
2301	12	37	17	11.7	2.7	38 000	28 000
1202 ETN9	15	35	11	7.41	1.76	45 000	28 000
2202 E-2RS1TN9	15	35	14	7.41	1.76		14 000
2202 ETN9	15	35	14	8.71	2.04	38 000	26 000
1302 ETN9	15	42	13	10.8	2.6	34 000	24 000
2302 E-2RS1TN9	15	42	17	10.8	2.6		12 000
2302	15	42	17	11.9	2.9	32 000	24 000
1203 ETN9	17	40	12	8.84	2.2	38 000	24 000
2203 E-2RS1TN9	17	40	16	8.84	2.2		12 000
2203 ETN9	17	40	16	10.6	2.55	34 000	24 000
1303 EM	17	47	14	12.7	3.4	28 000	20 000
1303 ETN9	17	47	14	12.7	3.4	28 000	20 000
2303 E-2RS1TN9	17	47	19	12.7	3.4		10 000
2303	17	47	19	14.3	3.55	30 000	22 000
1204 EKTN9	20	47	14	12.7	3.4	32 000	20 000
1204 ETN9	20	47	14	12.7	3.4	32 000	20 000
2204 E-2RS1TN9	20	47	18	12.7	3.4		10 000
