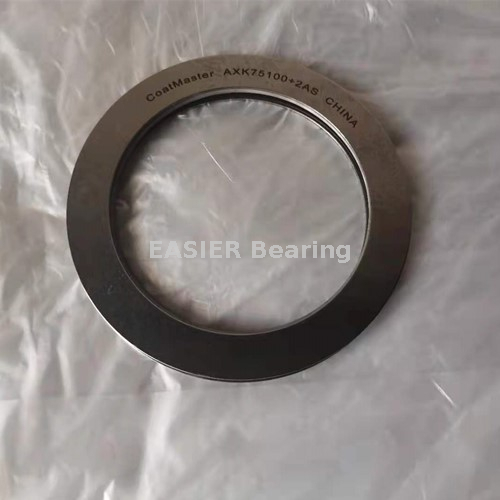

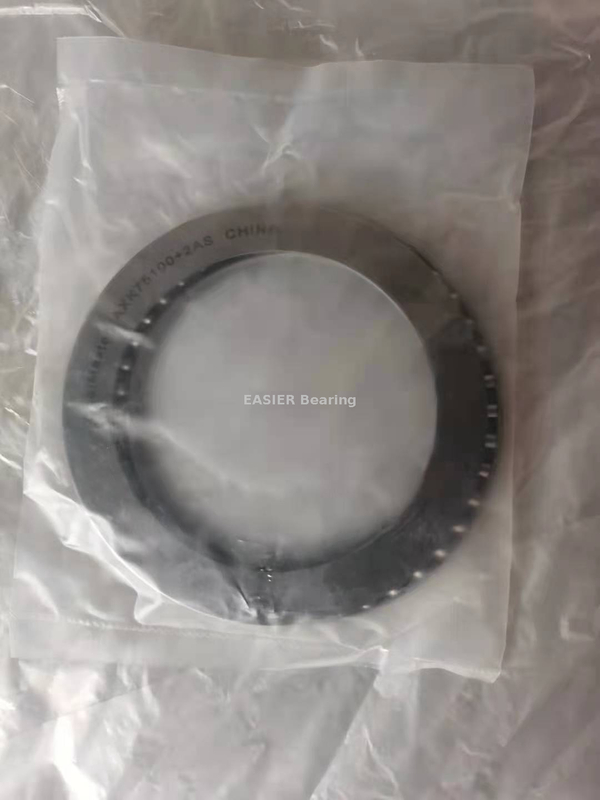

DIMENSIONS of AXK 75100+2AS Needle Roller Thrust Bearing
| d | 75 mm | Bore diameter |
| D | 100 mm | Outside diameter |
| Dw | 4 mm | Diameter roller |
| Ea | min. 79 mm | Raceway diameter (min.) roller and cage thrust assembly |
| Eb | max. 98 mm | Raceway diameter (max.) roller and cage thrust assembly |
Needle Roller Thrust Bearings are a kind of thrust bearings. Thrust bearings are divided into thrust roller bearings and thrust ball bearings. Thrust needle roller bearings are similar to thrust cylindrical roller bearings. The difference is that thrust needle roller bearings are suitable for more space. In order to make up for the shortcomings of thrust cylindrical roller bearings for the narrow installation space, thrust cylindrical roller bearings have stronger carrying capacity than thrust needle roller bearings.
Needle roller thrust bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers. Needle roller thrust bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer.
Needle Roller Thrust Bearings are used to bear combined axial and radial loads, which are mainly axial loads. Compared with other thrust roller bearings, this type of bearing has a lower friction factor, a low speed, a low bearing capacity, and a relatively small space.
Needle Roller Thrust Bearings
| Designation | Principal dimensions | Basic load ratings | Speed ratings |
| CoatMaster | Needle Roller Thrust Bearings | dynamic | static | Reference speed | Limiting speed |
| d[mm] | D[mm] | Dw[mm] | C[kN] | C0[kN] | [r/min] | [r/min] |
| AXK 0414 TN | 4 | 14 | 2 | 4.15 | 8.3 | 7 500 | 15 000 |
| AXK 0515 TN | 5 | 15 | 2 | 4.5 | 9.5 | 6 700 | 14 000 |
| AXK 0619 TN | 6 | 19 | 2 | 6.3 | 16 | 6 000 | 12 000 |
| AXK 0821 TN | 8 | 21 | 2 | 7.2 | 20 | 5 600 | 11 000 |
| AXK 1024 | 10 | 24 | 2 | 8.5 | 26 | 5 300 | 10 000 |
| AXW 10 | 10 | 24 | 2 | 8.5 | 26 | 5 300 | 10 000 |
| AXK 1226 | 12 | 26 | 2 | 9.15 | 30 | 5 000 | 10 000 |
| AXW 12 | 12 | 26 | 2 | 9.15 | 30 | 5 000 | 10 000 |
| AXK 1528 | 15 | 28 | 2 | 10.4 | 37.5 | 4 800 | 9 500 |
| AXW 15 | 15 | 28 | 2 | 10.4 | 37.5 | 4 800 | 9 500 |
| AXK 1730 | 17 | 30 | 2 | 11 | 40.5 | 4 500 | 9 500 |
| AXK 2035 | 20 | 35 | 2 | 12 | 47.5 | 4 300 | 8 500 |
| AXW 20 | 20 | 35 | 2 | 12 | 47.5 | 4 300 | 8 500 |
| AXK 2542 | 25 | 42 | 2 | 13.4 | 60 | 3 800 | 7 500 |
| AXW 25 | 25 | 42 | 2 | 13.4 | 60 | 3 800 | 7 500 |
| AXK 3047 | 30 | 47 | 2 | 15 | 72 | 3 600 | 7 000 |
| AXW 30 | 30 | 47 | 2 | 15 | 72 | 3 600 | 7 000 |
| AXK 3552 | 35 | 52 | 2 | 16.6 | 83 | 3 200 | 6 300 |
| AXW 35 | 35 | 52 | 2 | 16.6 | 83 | 3 200 | 6 300 |
| AXK 4060 | 40 | 60 | 3 | 25 | 114 | 2 800 | 5 600 |
| AXW 40 | 40 | 60 | 3 | 25 | 114 | 2 800 | 5 600 |
| AXK 4565 | 45 | 65 | 3 | 27 | 127 | 2 600 | 5 300 |
| AXW 45 | 45 | 65 | 3 | 27 | 127 | 2 600 | 5 300 |
| AXK 5070 | 50 | 70 | 3 | 28.5 | 143 | 2 400 | 5 000 |
| AXW 50 | 50 | 70 | 3 | 28.5 | 143 | 2 400 | 5 000 |
| AXK 5578 | 55 | 78 | 3 | 34.5 | 186 | 2 200 | 4 300 |
| AXK 6085 | 60 | 85 | 3 | 37.5 | 232 | 2 200 | 4 300 |
| AXK 6590 | 65 | 90 | 3 | 39 | 255 | 2 000 | 4 000 |
| AXK 7095 | 70 | 95 | 4 | 49 | 255 | 1 800 | 3 600 |
| AXK 75100 | 75 | 100 | 4 | 50 | 265 | 1 700 | 3 400 |
|
|
|
|
|
|
|
|
| Designation | Principal dimensions | Basic load ratings | Speed ratings |
| CoatMaster | Needle Roller Thrust Bearings | dynamic | static | Reference speed | Limiting speed |
| d[mm] | D[mm] | Dw[mm] | C[kN] | C0[kN] | [r/min] | [r/min] |
| AXK 80105 | 80 | 105 | 4 | 51 | 280 | 1 700 | 3 400 |
| AXK 85110 | 85 | 110 | 4 | 52 | 290 | 1 700 | 3 400 |
| AXK 90120 | 90 | 120 | 4 | 65.5 | 405 | 1 500 | 3 000 |
| AXK 100135 | 100 | 135 | 4 | 76.5 | 560 | 1 400 | 2 800 |
| AXK 110145 | 110 | 145 | 4 | 81.5 | 620 | 1 300 | 2 600 |
| AXK 120155 | 120 | 155 | 4 | 86.5 | 680 | 1 300 | 2 600 |
| AXK 130170 | 130 | 170 | 5 | 112 | 830 | 1 100 | 2 200 |
| AXK 140180 | 140 | 180 | 5 | 116 | 900 | 1 000 | 2 000 |
| AXK 150190 | 150 | 190 | 5 | 120 | 950 | 1 000 | 2 000 |
| AXK 160200 | 160 | 200 | 5 | 125 | 1 000 | 950 | 1 900 |
