Keywords:SY25TR bearing Plummer block housing unit,SY25TR bearings

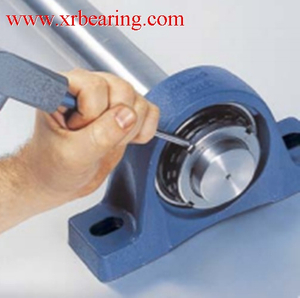

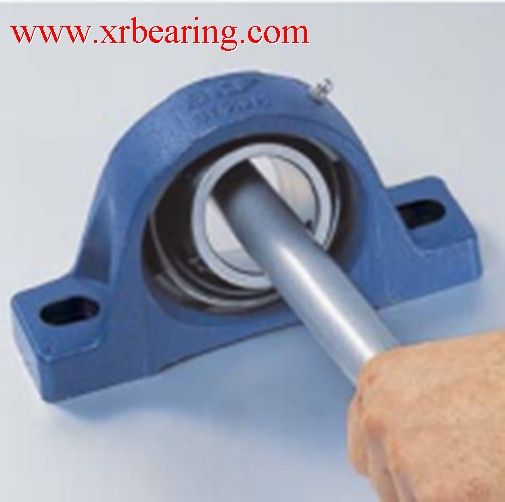

SY25TR bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY25TR plummer block unit consist of SY505M Housing and YAR205-2RF Bearing, SY25TR bearing plummer block unit can accommodate moderate initial misalignment,SY25TR bearings is widely used in many industrial application, the inner diameter is 25mm,the outer ring is 70.5mm, the height is 34.1mm, the weight of SY25TR bearings is 0.72kg.
SY25TR bearings with a standard inner ring are designed in according with a moduar concept, each SY25TR bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 25 mm |
| d1 |
| ≈ 33.74 mm |
| A |
| 36 mm |
| A1 |
| 22 mm |
| A5 |
| 20.5 mm |
| B |
| 34.1 mm |
| B4 |
| 5 mm |
| H |
| 36.5 mm |
| H1 |
| 16 mm |
| H2 |
| 70 mm |
| J |
| 102 mm |
| J |
| max. 110 mm |
| J |
| min. 94 mm |
| L |
| 130 mm |
| N |
| 11.5 mm |
| N1 |
| 19.5 mm |
| s1 |
| 19.8 mm
|
Although its basic performance is similar to that of deep groove ball bearing, most of the bearings are used in relatively rough machinery, the installation and positioning are not accurate enough, the axis of the shaft and the seat hole is neutral, or the shaft is long and the deflection is large, and the accuracy of the bearing itself is not high enough, and some structures are relatively rough, so the actual performance of the bearing is relatively the same specification Deep groove ball bearings are subject to considerable discount. For example, the insert ball bearing with jackscrew is applied to the through shaft with large rigidity difference and deflection. Both sides of the bearing are provided with sealing rings, which can prevent the invasion of dirt and have been filled before leaving the factory.
XRB as the experienced China bearing manufacturer & factory & exporter & supplier, it can supply Original SY25TR bearings, Our large quantity SY25TR bearings Stock can meet your need with lowest price and fast delivery.
We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SY25TR bearings to your office at the first time.More technical details,please contact with:
