China SYJ50TF Housing Bearing Units

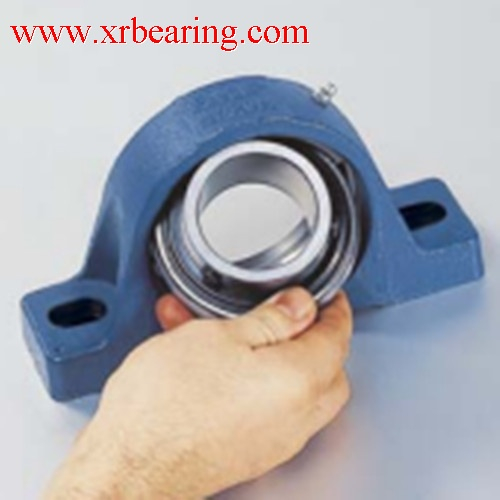

SYJ 50 TF Pillow block ball bearing units
SYJ 510 housing with YAR 210-2F bearing insert
Weight: 2.8kg/pcs

E-mail: sales@xrbearing.com, brandbearings@gmail.com
Skype:brandbearings
Whatsapp: 0086-13280450757
www.xrbearing.com
Availability:
  • SYJ 50 TF
  • EASIER
  • SYJ 510 housing
  • YAR 210-2F
  • Bearing SYJ50TF price
Keywords:SYJ50TF bearing Plummer block housing unit,SYJ50TF bearings


SYJ50TF bearing plummer block units with a cast housing and grub screws, with a standard inner ring,is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing,SYJ50TF plummer block unit consist of SYJ510 Housing and YAR210-2F Bearing, SYJ50TF bearing plummer block unit can accommodate moderate initial misalignment,SYJ50TF bearings is widely used in many industrial application, the inner diameter is 50mm,the outer ring is 114.5mm,the height is 51.6mm, the weight of SYJ50TF bearings is 2.95kg,SYJ50TF bearings with a standard inner ring are designed in according with a moduar concept.


Each SYJ50TF bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing.XRB as one of the biggest China bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.


Dimensions - SYJ 50 TF Dimensions - SYJ 50 TF Dimensions - SYJ 50 TF

DIMENSIONS

d
50 mm
d1
≈ 62.51 mm
A
58 mm
A1
38 mm
B
51.6 mm
B4
9 mm
H
57.2 mm
H1
22 mm
H2
114 mm
J
157.5 mm
J
max. 164 mm
J
min. 151 mm
L
206 mm
N
20 mm
N1
26.5 mm
s1
32.6 mm

Bearing insert / Radial insert ball bearing

  • with an inner ring extended on both sides and grub screws (pre-assembled) for fastening the inner ring on a shaft

  • smooth running and good behavior in case of tilting due to the extended inner ring

  • the compensation of static misalignments is possible up to an angle of 2° due to the spherical outer surface of the outer ring

  • two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter

  • lubricated for life; under normal operating conditions, relubrication is not necessary


XRB as the experienced China bearing manufacturer  & factory & exporter & supplier, it can supply Original SYJ50TF bearings, Our large quantity SYJ50TF bearings Stock can meet your need with lowest price and fast delivery.

We accepted DHL, FEDEX, TNT express for small order and samples order, also the transportation By AIR or By Sea, by Train are all avaiable. we are sure we can ship our SYJ50TF bearings to your office at the first time. More technical details,please contact with:
