Designation: T182 Bearings
Type: Thrust Roller Taper Bearings
Dimension: 46.279*82.956*23.812mm
Inch size: 1.822*3.276*0.9375 inch
Application: King Pin Thrust Bearings
Truck Steer Axles, Trailer Landing Gear
Weight: 0.6kg
Stock: 200pcs
Materials: Chrome Steel
Feature: Full Rollers
Brand: EASIER
Origin: China
TIMKEN Code: T182-904A1 Bearings
RBC Code: T182-12 Thrust Bearings
Suffix of RBC Tapered Thrust Bearings
T- Tapered Thrust Bearings
S- Sealed
W- Oil Holes in Retainer
C - Cylidrical Roller
GX - Greased
Indicates Bore Diameter of RBC Tapered Thrust Bearings
T182 =1.822" bore
T88 = .885" bore
T101 = 1.01" bore

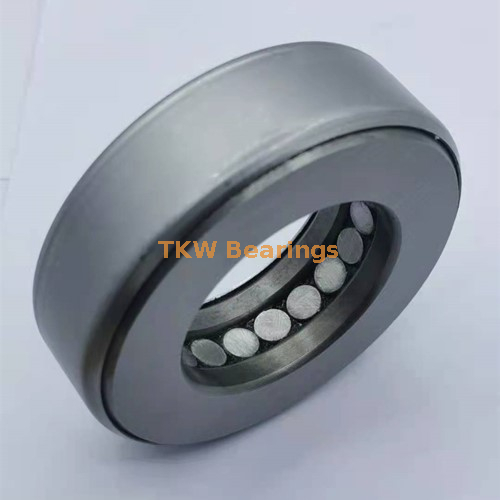

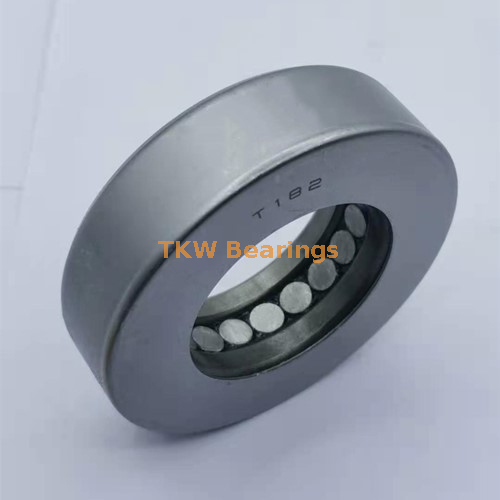

Thrust Tapered Roller Bearings T182 for King Pin
· Comprised of two thrust tapered races, rollers and an outside retainer which holds the components together during shipping and installation.
· Full complement design (cageless).
· These thrust bearings are specifically designed for oscillating applications.
· Types TTC, TTCS and TTCL are identical except for the outside retainer construction.
King Pin Bearing with Tapered Roller King Pin Bearing with Ball King Pin Bearing with Metal Shell
King Pin Bearings T182 also named King Pin Thrust Bearings, are consist of two pieces washer ( the bearing rings), steel ball or steel rollers,cages, rubber seals, metal shell (normally we use chrome steel materials). the same with thrust ball bearings or thrust roller bearings, the King Pin Bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.
The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately. What is the different is the thrust ball bearings or thrust roller bearings have no metal shell design. The materials we adopt chrome steel, and steel ball or steel rollers.
Applications of King Pin Bearings T182
-- Heavy Vehicles & other automobiles, -- Marine engines,Agricultural equipment's,
-- Steering,
-- Light Vehicles,
-- Industrial movers,
-- Fork lift trucks,
-- Conveyors,
-- Construction machinery,
| Bore Range | Common Applications |
1.750" - 16.000" 44.45 - 406.40mm | Oilfield Top Drives and Swivels, Extruders, Pulp and Paper Mill Equipment, Boring Mill Tables |
5.000" - 17.000" 127.00 - 431.80 mm | Oilfield Top Drives and Swivels, Extruders, Coal and Rock Crushers, Steel Mills |
0.885" - 3.010"
22.48 - 76.45 mm | Heavy Truck and Trailer Applications, Class 8 Trailer
Landing Gear, Construction Equipment, Kingpin
Assemblies, Steer Axles, Tractors |
0.885" - 3.010"
22.48 - 76.45 mm | Heavy Truck and Trailer Applications, Class 8 Trailer Landing Gear, Construction Equipment, Kingpin
Assemblies, Steer Axles, Tractors |
Top Bore
0.250" - 1.500"
6.35 - 38.10 mm | Bottom Bore
0.275" - 1.525"
6.99 - 38.74 mm | Small Crane Hooks, Handheld Pneumatic Tools,Scissor Jacks, Truck Landing Wheel Cranks,
Handheld Power Tools |
3.500" - 20.000"
88.90 - 508.00 mm | Crane Hooks, Gear Boxes, Pumps, Rolling Mills,Cone Crushers, Winch Systems, Heavy Duty Swivels |
EASIER is one of China Bearing manufacturers and exporter of King Pin Bearings with steel ball or steel rollers, also written as king-pin or king pin, is a very important component in any vehicle. It is the main pivot in the mechanism of steering in any vehicle. King Pins are also used as fifth wheel coupling apparatus in vehicles. King Pins have an important property of being able to carry heavier weights and therefore can be mostly seen in Large or Heavy Vehicles.
The Kingpin Bearing is capable of bearing thrust pressure in various industrial pump applications and possesses high resistivity and durability. These are constructed using high grade raw materials, which are tested under the supervision of experienced professionals. Kingpin bearing is the main pivot in the steering mechanism of a car or other vehicles.
EASIER/TKW as Top China Bearing manufacturer, it Can manufacture and supply complete series King Pin Bearings T182 & King Pin Thrust Bearings, Thrust Ball bearings and Thrust Roller Bearings. there are few bearing manufacturer in the world manufacturer this kinds of bearings like Fersa from Spain, RBC, TIMKEN from USA, TURBO,TKW from China etc. Our products are the same design and replace them for customers on the market.
