Designation: T252
Type: Thrust Roller Taper Bearings
Dimension: 63.754*111.379*25.8mm
Inch standard: 2.51*4.385*1.016 inch
Bore Diameter: 2.51 in
Bearing O.D.: 4.385 in
Bearing Width: 1.016 in
Application: King Pin Thrust Bearings
Weight: 1 kg
Stock: 200pcs
Materials: Chrome Steel
Feature: Full Rollers
Brand: EASIER
Origin: China
Why Thrust Tapered Bearings?
1. Thrust Washers and Rollers
2. Full Complement of Rollers
3. High Thrust Load and Moderate Speed Applications
4. Seals and Grease Styles Available
5. Excellent Engineering Support

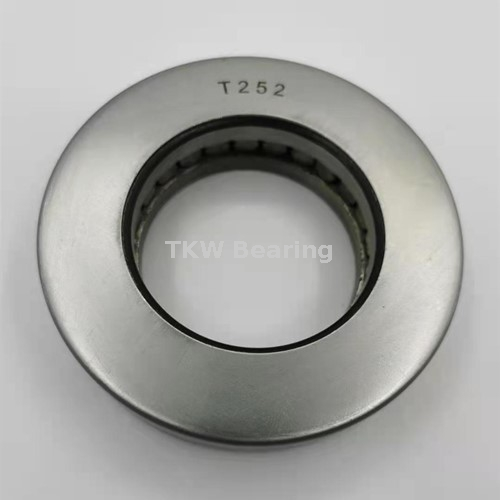

Thrust Tapered Roller Bearings T252 for King Pin
· Comprised of two thrust tapered races, rollers and an outside retainer which holds the components together during shipping and installation.
· Full complement design (cageless).
· These thrust bearings are specifically designed for oscillating applications.
· Types TTC, TTCS and TTCL are identical except for the outside retainer construction.
King Pin Bearing with Tapered Roller King Pin Bearing with Ball King Pin Bearing with Metal Shell
King Pin Bearings T252 also named King Pin Thrust Bearings, are consist of two pieces washer ( the bearing rings), steel ball or steel rollers,cages, rubber seals, metal shell (normally we use chrome steel materials). the same with thrust ball bearings or thrust roller bearings, the King Pin Bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.
The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately. What is the different is the thrust ball bearings or thrust roller bearings have no metal shell design. The materials we adopt chrome steel, and steel ball or steel rollers.
Thrust Roller Bearings mainly use for these bearings is heavy truck and trailer applications including steer axles and landing gears. Due to the tapered roller design these bearings can also be designed into a variety of other applications where high thrust load capacity is required. The rollers and thrust races are manufactured from high grade bearing steel and are case hardened for excellent wear life and fracture toughness. The EASIER designs utilize a full complement of rollers to maximize load capacity and minimize roller skewing.
China King pin Bearings for Man Truck Bearings, IVECO Truck Bearings, DAF Truck bearings, Renault Truck Bearings, Scania Truck bearings, SAF Truck Bearings, Volvo Truck Bearings, Mercedes Benz truck bearings, truck wheel hub bearing, bearing set without spacer, bearing set with spacer, and tapered roller bearing.
Features of Thrust Tapered Roller Bearings
-- Excellent prevention from overrunning & backstopping
-- Self-Aligned ,
-- High load sustaining capacity
-- Seal excludes contamination with a separator and bore liner,
-- Prevent rotational damage,
-- Get automatically locked when rolled in opposite direction
Applications of King Pin Bearings T252
-- Heavy Vehicles & other automobiles,
-- Marine engines,Agricultural equipment’s,
-- Steering,
-- Light Vehicles,
-- Industrial movers,
-- Fork lift trucks,
-- Conveyors,
-- Construction machinery,
-- Presses & machine tools
The Kingpin Bearing is capable of bearing thrust pressure in various industrial pump applications and possesses high resistivity and durability. These are constructed using high grade raw materials, which are tested under the supervision of experienced professionals. Kingpin bearing is the main pivot in the steering mechanism of a car or other vehicles.
EASIER/TKW as Top China Bearing manufacturer, it Can manufacture and supply complete series King Pin Bearings & King Pin Thrust Bearings, Thrust Ball bearings and Thrust Roller Bearings. there are few bearing manufacturer in the world manufacturer this kinds of bearings like Fersa from Spain, RBC, TIMKEN from USA, TURBO,TKW from China etc. Our products are the same design and replace them for customers on the market.
