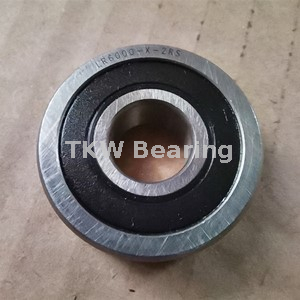

LR6000-X-2RS
EASIER / TKW
LR 6000 NPPU
LR 6000 NPP
Best Factory Price

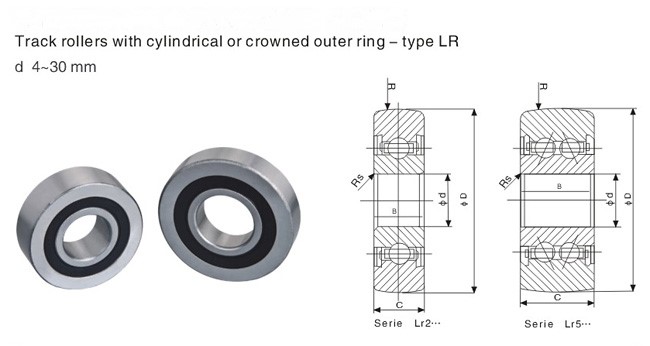

LR Series Track Roller Bearings are special design of deep groove ball bearings or angular contact ball bearings, thick-walled rings with spherical or cylindrical outer surface design, the materials we adopt high quality chrome steel, and stainless steel LR series track roller bearings are also available. it have the same raceway design with normal deep groove ball bearings or angular contact ball bearings. It’s one kind of track roller bearings also.
Type | Characteristics of LR Series track roller bearings |
LR 2..NPP | With single row balls, outer cylindrical ring, bilateral sliding seals (2RS type) |
LR 2.. 6.. 60.. NPPU | With single row balls, outer barrel ring (spherical), bilateral sliding seals (2RS type) |

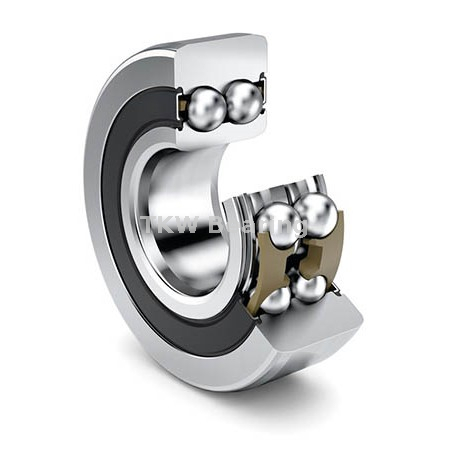

LR 50.. 52.. 53.. NPPU | With double row balls, outer barrel ring (spherical), bilateral sliding seals (2RS type) |
LR 52.. KDD | With double row balls, outer cylindrical ring, shielded (ZZ type) |
LR 52.. 53.. KDDU | With double row balls, outer barrel ring (spherical), shielded (ZZ type) |
Yoke type ball bearing track rollers are ready-to-fit, single or double row rolling bearings based on deep groove or angular contact ball bearings.
They have particularly thick-walled outer rings with a crowned outside surface (also available with a cylindrical outside surface on request), can support high radial loads and tolerate axial loads which are due to small misalignments, skewed running or temporary contact running impacts.
Yoke type ball bearing track rollers are mounted on a shaft or stud with a stationary inner ring. They are not mounted in a housing bore but supported on a flat raceway (mating track).
Yoke type ball bearing track rollers are sealed with a lip seal or a sealing shield on both sides.
Advatange of LR Series Track Roller Bearings
1. Low resistance, long life, wide application
When the support roller with LR series track roller bearings arc surface is working, the force between the roller and the guide rail is uniform, stress concentration is avoided, friction resistance is small, and the working life of the product is greatly increased. Most of the double row support rollers can also be repeatedly lubricated through the grease hole on the inner ring to adapt to the harsh working environment.
2. Simple and convenient installation
After the roller bearing is equipped with an eccentric shaft and a concentric shaft, the installation is very convenient, and the eccentric amount of the eccentric roller can be adjusted to obtain a suitable preload.
3. Smooth operation and small error
In addition to the production of LR series support rollers according to rolling bearing standards, EASIER adopts a special processing technology to suit the special working methods of fixing the inner ring and rotating the outer ring.
Application of Track Roller Bearings
Track rollers find application in a wide range of use cases, such as robotic welders, assembly and paint line conveying systems, automated storage and retrieval systems, and fracking equipment. Some of the typical industries which employ track rollers include:
* Architectural
* Automotive assembly
* Cement and concrete plants
* Fiberglass manufacturing
* Food and beverage production
* Foundries and mills
* Medical
* Metal processing
* Mining
* Pharmaceutical
* Pulp and paper
* Sand and gravel
* Scientific research
* Ship building
* Wood machinery
LR Series Track Roller Bearings are special design of deep groove ball bearings or angular contact ball bearings, thick-walled rings with spherical or cylindrical outer surface design, the materials we adopt high quality chrome steel, and stainless steel LR series track roller bearings are also available. it have the same raceway design with normal deep groove ball bearings or angular contact ball bearings. It’s one kind of track roller bearings also.
Type | Characteristics of LR Series track roller bearings |
LR 2..NPP | With single row balls, outer cylindrical ring, bilateral sliding seals (2RS type) |
LR 2.. 6.. 60.. NPPU | With single row balls, outer barrel ring (spherical), bilateral sliding seals (2RS type) |
LR 50.. 52.. 53.. NPPU | With double row balls, outer barrel ring (spherical), bilateral sliding seals (2RS type) |
LR 52.. KDD | With double row balls, outer cylindrical ring, shielded (ZZ type) |
LR 52.. 53.. KDDU | With double row balls, outer barrel ring (spherical), shielded (ZZ type) |
Yoke type ball bearing track rollers are ready-to-fit, single or double row rolling bearings based on deep groove or angular contact ball bearings.
They have particularly thick-walled outer rings with a crowned outside surface (also available with a cylindrical outside surface on request), can support high radial loads and tolerate axial loads which are due to small misalignments, skewed running or temporary contact running impacts.
Yoke type ball bearing track rollers are mounted on a shaft or stud with a stationary inner ring. They are not mounted in a housing bore but supported on a flat raceway (mating track).
Yoke type ball bearing track rollers are sealed with a lip seal or a sealing shield on both sides.
Advatange of LR Series Track Roller Bearings
1. Low resistance, long life, wide application
When the support roller with LR series track roller bearings arc surface is working, the force between the roller and the guide rail is uniform, stress concentration is avoided, friction resistance is small, and the working life of the product is greatly increased. Most of the double row support rollers can also be repeatedly lubricated through the grease hole on the inner ring to adapt to the harsh working environment.
2. Simple and convenient installation
After the roller bearing is equipped with an eccentric shaft and a concentric shaft, the installation is very convenient, and the eccentric amount of the eccentric roller can be adjusted to obtain a suitable preload.
3. Smooth operation and small error
In addition to the production of LR series support rollers according to rolling bearing standards, EASIER adopts a special processing technology to suit the special working methods of fixing the inner ring and rotating the outer ring.
Application of Track Roller Bearings
Track rollers find application in a wide range of use cases, such as robotic welders, assembly and paint line conveying systems, automated storage and retrieval systems, and fracking equipment. Some of the typical industries which employ track rollers include:
* Architectural
* Automotive assembly
* Cement and concrete plants
* Fiberglass manufacturing
* Food and beverage production
* Foundries and mills
* Medical
* Metal processing
* Mining
* Pharmaceutical
* Pulp and paper
* Sand and gravel
* Scientific research
* Ship building
* Wood machinery
Sigla | Corrispondente INA | Corrispondente | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | |||||
Designation | Equivalent INA | SKF | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | |||||
EASIER/TKW | Equivalent SKF | d | D | B | F | rs/min | Dinamico Dynamic Cw | Statico Static Cow | ||
LR 200 NPP | LR 200 - X- 2RS | - | 10 | 32 | 9 | 15.4 | 0.6 | 50 | 4 200 | 2 050 |
LR 201 NPP | LR 201 - X- 2RS | - | 12 | 35 | 10 | 18.3 | 0.6 | 50 | 5 300 | 2 550 |
LR 202 NPP | LR 202 - X- 2RS | - | 15 | 40 | 11 | 21 | 0.6 | 70 | 6 250 | 3 200 |
LR 203 NPP | LR 203 - X- 2RS | - | 17 | 47 | 12 | 24 | 0.6 | 110 | 8 100 | 4 200 |
LR 204 NPP | LR 204 - X- 2RS | - | 20 | 52 | 14 | 29 | 1 | 150 | 10 000 | 5 400 |
LR 205 NPP | LR 205 - X- 2RS | - | 25 | 62 | 15 | 33.5 | 1 | 230 | 11 900 | 6 700 |
LR 206 NPP | LR 206 - X- 2RS | - | 30 | 72 | 16 | 37.4 | 1 | 330 | 15 800 | 9 200 |
LR 207 NPP | LR 207 - X- 2RS | - | 35 | 80 | 17 | 42.4 | 1.1 | 400 | 19 500 | 11 500 |
LR 208 NPP | LR 208 - X- 2RS | - | 40 | 85 | 18 | 48.4 | 1.1 | 450 | 20 400 | 12 200 |
LR 209 NPP | LR 209 - X- 2RS | - | 45 | 90 | 19 | 53.2 | 1.1 | 500 | 21 300 | 13 000 |
LR 200 NPPU | LR 200 2RS | 361200 | 10 | 32 | 9 | 15.4 | 0.6 | 50 | 4 200 | 2 050 |
LR 201 NPPU | LR 201 2RS | 361201 | 12 | 35 | 10 | 18.3 | 0.6 | 50 | 5 300 | 2 550 |
LR 202 NPPU | LR 202 2RS | 361202 | 15 | 40 | 11 | 21 | 0.6 | 70 | 6 250 | 3 200 |
LR 203 NPPU | LR 203 2RS | 361203 | 17 | 47 | 12 | 24 | 0.6 | 110 | 8 100 | 4 200 |
LR 204 NPPU | LR 204 2RS | 361204 | 20 | 52 | 14 | 29 | 1 | 150 | 10 000 | 5 400 |
LR 205 NPPU | LR 205 2RS | 361205 | 25 | 62 | 15 | 33.5 | 1 | 230 | 11 900 | 6 700 |
LR 206 NPPU | LR 206 2RS | 361206 | 30 | 72 | 16 | 37.4 | 1 | 330 | 15 800 | 9 200 |
LR 207 NPPU | LR 207 2RS | 361207 | 35 | 80 | 17 | 42.4 | 1.1 | 400 | 19 500 | 11 500 |
LR 208 NPPU | LR 208 2RS | - | 40 | 85 | 18 | 48.4 | 1.1 | 450 | 20 400 | 12 200 |
LR 209 NPPU | LR 209 2RS | - | 45 | 90 | 19 | 53.2 | 1.1 | 500 | 21 300 | 13 000 |
EASIER/TKW | Corrispondente INA | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | Velocità limite | |||||
Designation | Equivalent INA | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | Limiting speed | |||||
d | D | B | F | rs/min | Dinamico Dynamic Cw | Statico Static Cow | Grease | |||
LR 604 NPPU | LR 604 2RSR | 4 | 13 | 4 | 6.1 | 0.2 | 10 | 860 | 350 | 22 800 |
LR 605 NPPU | LR 605 2RSR | 5 | 16 | 5 | 7.5 | 0.2 | 10 | 1 190 | 490 | 20 900 |
LR 606 NPPU | LR 606 2RSR | 6 | 19 | 6 | 8.7 | 0.3 | 10 | 1 740 | 700 | 19 000 |
LR 607 NPPU | LR 607 2RSR | 7 | 22 | 6 | 9 | 0.3 | 10 | 2 130 | 870 | 19 000 |
LR 608 NPPU | LR 608 2RSR | 8 | 24 | 7 | 10 | 0.3 | 20 | 2 750 | 1 250 | 18 000 |
LR 6000 NPPU | LR 6000 2RSR | 10 | 28 | 8 | 14.6 | 0.3 | 20 | 3 450 | 2 350 | 16 500 |
LR 6001 NPPU | LR 6001 2RSR | 12 | 30 | 8 | 16.6 | 0.3 | 30 | 3 650 | 2 600 | 15 400 |
LR 6002 NPPU | LR 6002 2RSR | 15 | 35 | 9 | 20.1 | 0.3 | 50 | 4 000 | 3 050 | 14 200 |
LR 6003 NPPU | LR 6003 2RSR | 17 | 40 | 10 | 22.6 | 0.3 | 70 | 4 550 | 3 450 | 12 800 |
LR 6004 NPPU | LR 6004 2RSR | 20 | 47 | 12 | 27.6 | 0.6 | 110 | 5 200 | 3 900 | 11 300 |
Sigla | Corrispondente INA | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | Carichi radiali (N) | ||||||
Designation | Equivalent INA | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | Radial loads (N) | ||||||
EASIER/TKW | d | D | B | F | rs/min | Peso (g) | Dinamico Dynamic Cw | Statico Static Cow | Framm | Foramm | |
LR 50/5 NPPU | LR 50/5 2RSR | 5 | 17 | 7 | 8.2 | 0.2 | 10 | 1 660 | 950 | 1 900 | 1 900 |
LR 50/6 NPPU | LR 50/6 2RSR | 6 | 19 | 9 | 9.3 | 0.3 | 20 | 2 650 | 1 310 | 2 210 | 2 720 |
LR 50/7 NPPU | LR 50/7 2RSR | 7 | 22 | 10 | 10.5 | 0.3 | 20 | 3 300 | 1 690 | 3 380 | 3 380 |
LR 50/8 NPPU | LR 50/8 2RSR | 8 | 24 | 11 | 10.5 | 0.3 | 30 | 4 200 | 2 360 | 3 500 | 4 720 |
LR 5000 NPPU | LR 5000 2RSR | 10 | 28 | 12 | 13.5 | 0.3 | 30 | 4 750 | 2 850 | 5 300 | 5 700 |
LR 5001 NPPU | LR 5001 2RSR | 12 | 30 | 12 | 15.5 | 0.3 | 30 | 4 950 | 3 100 | 5 400 | 6 200 |
LR 5002 NPPU | LR 5002 2RSR | 15 | 35 | 13 | 20.4 | 0.3 | 50 | 6 500 | 4 100 | 5 300 | 8 200 |
LR 5003 NPPU | LR 5003 2RSR | 17 | 40 | 14 | 21.6 | 0.3 | 70 | 7 700 | 5 200 | 10 200 | 10 400 |
LR 5004 NPPU | LR 5004 2RSR | 20 | 47 | 16 | 25.2 | 0.6 | 120 | 11 500 | 7 700 | 11 000 | 15 400 |
LR 5005 NPPU | LR 5005 2RSR | 25 | 52 | 16 | 29.8 | 0.6 | 150 | 11 600 | 8 100 | 10 900 | 16 200 |
LR 5006 NPPU | LR 5006 2RSR | 30 | 62 | 19 | 35.5 | 1 | 250 | 15 800 | 11 800 | 18 200 | 23 600 |
LR 5007 NPPU | LR 5007 2RSR | 35 | 68 | 20 | 41.7 | 1 | 300 | 17 600 | 13 100 | 14 100 | 26 200 |
LR 5008 NPPU | LR 5008 2RSR | 40 | 75 | 21.9 | 46.7 | 1 | 370 | 18 400 | 14 600 | 20 300 | 29 200 |
Sigla | Corrispondente INA | Corrispondente | Dimensions (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | |||||
Designation | Equivalent INA | Equivalent SKF | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | |||||
EASIER/TKW | d | D | B | F | rs/min | Weight (g) | Dinamico Dynamic Cw | Statico Static Cow | ||
LR 5200 NPPU | LR 5200 2RSR | 3058 00 | 10 | 32 | 14 | 15.4 | 0.6 | 70 | 6 800 | 4 050 |
LR 5201 NPPU | LR 5201 2RSR | 3058 01 | 12 | 35 | 15.9 | 17.1 | 0.6 | 80 | 8 600 | 5 100 |
LR 5202 NPPU | LR 5202 2RSR | 3058 02 | 15 | 40 | 15.9 | 20 | 0.6 | 110 | 9 800 | 6 200 |
LR 5203 NPPU | LR 5203 2RSR | 3058 03 | 17 | 47 | 17.5 | 22.5 | 0.6 | 170 | 12 600 | 8 200 |
LR 5204 NPPU | LR 5204 2RSR | 3058 04 | 20 | 52 | 20.6 | 26.5 | 1 | 230 | 15 800 | 10 500 |
LR 5205 NPPU | LR 5205 2RSR | 3058 05 | 25 | 62 | 20.6 | 30.3 | 1 | 340 | 18 500 | 13 000 |
LR 5206 NPPU | LR 5206 2RSR | 3058 06 | 30 | 72 | 23.8 | 37.4 | 1 | 510 | 24 600 | 21 400 |
LR 5207 NPPU | LR 5207 2RSR | 3058 07 | 35 | 80 | 27 | 42.4 | 1.1 | 660 | 30 500 | 22 400 |
LR 5208 NPPU | LR 5208 2RSR | - | 40 | 85 | 30.2 | 48.4 | 1.1 | 750 | 34 500 | 25 500 |
LR 5302 NPPU | LR 5302 2RSR | - | 15 | 47 | 19 | 21.7 | 1 | 150 | 14 600 | 9 200 |
LR 5303 NPPU | LR 5303 2RSR | - | 17 | 52 | 22.2 | 23.5 | 1 | 210 | 17 200 | 11 100 |
LR 5304 NPPU | LR 5304 2RSR | - | 20 | 62 | 22.2 | 29 | 1.1 | 340 | 21 100 | 14 500 |
LR 5305 NPPU | LR 5305 2RSR | - | 25 | 72 | 25.4 | 34.4 | 1.1 | 500 | 27 500 | 19 500 |
LR 5306 NPPU | LR 5306 2RSR | - | 30 | 80 | 30.2 | 41.4 | 1.1 | 670 | 36 500 | 26 500 |
LR 5307 NPPU | LR 5307 2RSR | - | 35 | 90 | 34.9 | 47.7 | 1.5 | 970 | 44 500 | 33 000 |
LR 5308 NPPU | LR 5308 2RSR | - | 40 | 100 | 36.5 | 52.4 | 1.5 | 1 200 | 56 000 | 42 000 |
EASIER | Corrispondente INA | Corrispondente | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | |||||
Designation | Equivalent INA | SKF | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | |||||
EASIER/TKW | Equivalent SKF | d | D | B | F | rs/min | Dinamico Dynamic Cw | Statico Static Cow | ||
LR 5201 KDD | LR 5200 - X- 2Z | - | 10 | 32 | 14 | 15.4 | 0.6 | 70 | 6 800 | 4 050 |
LR 5201 KDD | LR 5201 - X- 2Z | 305701 | 12 | 35 | 15.9 | 17.1 | 0.6 | 80 | 8 600 | 5 100 |
LR 5202 KDD | LR 5202 - X- 2Z | 305702 | 15 | 40 | 15.9 | 20 | 0.6 | 110 | 9 800 | 6 200 |
LR 5203 KDD | LR 5203 - X- 2Z | 305703 | 17 | 47 | 17.5 | 22.5 | 0.6 | 170 | 12 600 | 8 200 |
LR 5204 KDD | LR 5204 - X- 2Z | 305704 | 20 | 52 | 20.6 | 26.5 | 1 | 230 | 15 800 | 10 500 |
LR 5205 KDD | LR 5205 - X- 2Z | 305705 | 25 | 62 | 20.6 | 30.3 | 1 | 340 | 18 500 | 13 000 |
LR 5206 KDD | LR 5206 - X- 2Z | 305706 | 30 | 72 | 23.8 | 37.4 | 1 | 510 | 24 600 | 2 400 |
LR 5207 KDD | LR 5207 - X- 2Z | 305707 | 35 | 80 | 27 | 42.4 | 1.1 | 660 | 30500 | 22 400 |
LR 5208 KDD | LR 5208 - X- 2Z | - | 40 | 85 | 30.2 | 48.4 | 1.1 | 750 | 34 500 | 25 500 |
LR 5200 KDDU | LR 5200 2Z | 305800 | 10 | 32 | 14 | 15.4 | 0.6 | 70 | 6 800 | 4 050 |
LR 5201 KDDU | LR 5201 2Z | 305801 | 12 | 35 | 15.9 | 17.1 | 0.6 | 80 | 8 600 | 5 100 |
LR 5202 KDDU | LR 5202 2Z | 305802 | 15 | 40 | 15.9 | 20 | 0.6 | 110 | 9 800 | 6 200 |
LR 5203 KDDU | LR 5203 2Z | 305803 | 17 | 47 | 17.5 | 22.5 | 0.6 | 170 | 12 600 | 8 200 |
LR 5204 KDDU | LR 5204 2Z | 305804 | 20 | 52 | 20.6 | 26.5 | 1 | 230 | 15 800 | 10 500 |
LR 5205 KDDU | LR 5205 2Z | 305805 | 25 | 62 | 20.6 | 30.3 | 1 | 340 | 18 500 | 13 000 |
LR 5206 KDDU | LR 5206 2Z | 305806 | 30 | 72 | 23.8 | 37.4 | 1 | 510 | 24 600 | 2 400 |
LR 5207 KDDU | LR 5207 2Z | 305807 | 35 | 80 | 27 | 42.4 | 1.1 | 660 | 30 500 | 22 400 |
LR 5208 KDDU | LR 5208 2Z | - | 40 | 85 | 30.2 | 48.4 | 1.1 | 750 | 34 500 | 25 500 |
Sigla | Corrispondente INA | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | Carichi radiali (N) | ||||||
Designation | Equivalent INA | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | Radial loads (N) | ||||||
EASIER/TKW | d | D | B | F | rs/min | Dinamico Dynamic Cw | Statico Static Cow | Framm | Foramm | ||
LR 5304 KDDU | LR 5304 2Z | 20 | 62 | 22.2 | 29 | 1.1 | 340 | 21 100 | 14 500 | 27 000 | 29 000 |
LR 5305 KDDU | LR 5305 2Z | 25 | 72 | 25.4 | 34.4 | 1.1 | 500 | 27 500 | 19 500 | 34 500 | 39 000 |
LR 5306 KDDU | LR 5306 2Z | 30 | 80 | 30.2 | 41.4 | 1.1 | 670 | 36 500 | 26 500 | 43 500 | 53 000 |
LR 5307 KDDU | LR 5307 2Z | 35 | 90 | 34.9 | 47.7 | 1.5 | 970 | 44 500 | 33 000 | 39 500 | 66 000 |
LR 5308 KDDU | LR 5308 2Z | 40 | 100 | 36.5 | 52.4 | 1.5 | 1 200 | 56 000 | 42 000 | 70 000 | 84 000 |
Sigla | Corrispondente INA | Corrispondente | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | |||||
Designation | Equivalent INA | SKF | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | |||||
EASIER/TKW | Equivalent SKF | d | D | B | F | rs/min | Dinamico Dynamic Cw | Statico Static Cow | ||
LR 200 NPP | LR 200 - X- 2RS | - | 10 | 32 | 9 | 15.4 | 0.6 | 50 | 4 200 | 2 050 |
LR 201 NPP | LR 201 - X- 2RS | - | 12 | 35 | 10 | 18.3 | 0.6 | 50 | 5 300 | 2 550 |
LR 202 NPP | LR 202 - X- 2RS | - | 15 | 40 | 11 | 21 | 0.6 | 70 | 6 250 | 3 200 |
LR 203 NPP | LR 203 - X- 2RS | - | 17 | 47 | 12 | 24 | 0.6 | 110 | 8 100 | 4 200 |
LR 204 NPP | LR 204 - X- 2RS | - | 20 | 52 | 14 | 29 | 1 | 150 | 10 000 | 5 400 |
LR 205 NPP | LR 205 - X- 2RS | - | 25 | 62 | 15 | 33.5 | 1 | 230 | 11 900 | 6 700 |
LR 206 NPP | LR 206 - X- 2RS | - | 30 | 72 | 16 | 37.4 | 1 | 330 | 15 800 | 9 200 |
LR 207 NPP | LR 207 - X- 2RS | - | 35 | 80 | 17 | 42.4 | 1.1 | 400 | 19 500 | 11 500 |
LR 208 NPP | LR 208 - X- 2RS | - | 40 | 85 | 18 | 48.4 | 1.1 | 450 | 20 400 | 12 200 |
LR 209 NPP | LR 209 - X- 2RS | - | 45 | 90 | 19 | 53.2 | 1.1 | 500 | 21 300 | 13 000 |
LR 200 NPPU | LR 200 2RS | 361200 | 10 | 32 | 9 | 15.4 | 0.6 | 50 | 4 200 | 2 050 |
LR 201 NPPU | LR 201 2RS | 361201 | 12 | 35 | 10 | 18.3 | 0.6 | 50 | 5 300 | 2 550 |
LR 202 NPPU | LR 202 2RS | 361202 | 15 | 40 | 11 | 21 | 0.6 | 70 | 6 250 | 3 200 |
LR 203 NPPU | LR 203 2RS | 361203 | 17 | 47 | 12 | 24 | 0.6 | 110 | 8 100 | 4 200 |
LR 204 NPPU | LR 204 2RS | 361204 | 20 | 52 | 14 | 29 | 1 | 150 | 10 000 | 5 400 |
LR 205 NPPU | LR 205 2RS | 361205 | 25 | 62 | 15 | 33.5 | 1 | 230 | 11 900 | 6 700 |
LR 206 NPPU | LR 206 2RS | 361206 | 30 | 72 | 16 | 37.4 | 1 | 330 | 15 800 | 9 200 |
LR 207 NPPU | LR 207 2RS | 361207 | 35 | 80 | 17 | 42.4 | 1.1 | 400 | 19 500 | 11 500 |
LR 208 NPPU | LR 208 2RS | - | 40 | 85 | 18 | 48.4 | 1.1 | 450 | 20 400 | 12 200 |
LR 209 NPPU | LR 209 2RS | - | 45 | 90 | 19 | 53.2 | 1.1 | 500 | 21 300 | 13 000 |
EASIER/TKW | Corrispondente INA | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | Velocità limite | |||||
Designation | Equivalent INA | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | Limiting speed | |||||
d | D | B | F | rs/min | Dinamico Dynamic Cw | Statico Static Cow | Grease | |||
LR 604 NPPU | LR 604 2RSR | 4 | 13 | 4 | 6.1 | 0.2 | 10 | 860 | 350 | 22 800 |
LR 605 NPPU | LR 605 2RSR | 5 | 16 | 5 | 7.5 | 0.2 | 10 | 1 190 | 490 | 20 900 |
LR 606 NPPU | LR 606 2RSR | 6 | 19 | 6 | 8.7 | 0.3 | 10 | 1 740 | 700 | 19 000 |
LR 607 NPPU | LR 607 2RSR | 7 | 22 | 6 | 9 | 0.3 | 10 | 2 130 | 870 | 19 000 |
LR 608 NPPU | LR 608 2RSR | 8 | 24 | 7 | 10 | 0.3 | 20 | 2 750 | 1 250 | 18 000 |
LR 6000 NPPU | LR 6000 2RSR | 10 | 28 | 8 | 14.6 | 0.3 | 20 | 3 450 | 2 350 | 16 500 |
LR 6001 NPPU | LR 6001 2RSR | 12 | 30 | 8 | 16.6 | 0.3 | 30 | 3 650 | 2 600 | 15 400 |
LR 6002 NPPU | LR 6002 2RSR | 15 | 35 | 9 | 20.1 | 0.3 | 50 | 4 000 | 3 050 | 14 200 |
LR 6003 NPPU | LR 6003 2RSR | 17 | 40 | 10 | 22.6 | 0.3 | 70 | 4 550 | 3 450 | 12 800 |
LR 6004 NPPU | LR 6004 2RSR | 20 | 47 | 12 | 27.6 | 0.6 | 110 | 5 200 | 3 900 | 11 300 |
Sigla | Corrispondente INA | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | Carichi radiali (N) | ||||||
Designation | Equivalent INA | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | Radial loads (N) | ||||||
EASIER/TKW | d | D | B | F | rs/min | Peso (g) | Dinamico Dynamic Cw | Statico Static Cow | Framm | Foramm | |
LR 50/5 NPPU | LR 50/5 2RSR | 5 | 17 | 7 | 8.2 | 0.2 | 10 | 1 660 | 950 | 1 900 | 1 900 |
LR 50/6 NPPU | LR 50/6 2RSR | 6 | 19 | 9 | 9.3 | 0.3 | 20 | 2 650 | 1 310 | 2 210 | 2 720 |
LR 50/7 NPPU | LR 50/7 2RSR | 7 | 22 | 10 | 10.5 | 0.3 | 20 | 3 300 | 1 690 | 3 380 | 3 380 |
LR 50/8 NPPU | LR 50/8 2RSR | 8 | 24 | 11 | 10.5 | 0.3 | 30 | 4 200 | 2 360 | 3 500 | 4 720 |
LR 5000 NPPU | LR 5000 2RSR | 10 | 28 | 12 | 13.5 | 0.3 | 30 | 4 750 | 2 850 | 5 300 | 5 700 |
LR 5001 NPPU | LR 5001 2RSR | 12 | 30 | 12 | 15.5 | 0.3 | 30 | 4 950 | 3 100 | 5 400 | 6 200 |
LR 5002 NPPU | LR 5002 2RSR | 15 | 35 | 13 | 20.4 | 0.3 | 50 | 6 500 | 4 100 | 5 300 | 8 200 |
LR 5003 NPPU | LR 5003 2RSR | 17 | 40 | 14 | 21.6 | 0.3 | 70 | 7 700 | 5 200 | 10 200 | 10 400 |
LR 5004 NPPU | LR 5004 2RSR | 20 | 47 | 16 | 25.2 | 0.6 | 120 | 11 500 | 7 700 | 11 000 | 15 400 |
LR 5005 NPPU | LR 5005 2RSR | 25 | 52 | 16 | 29.8 | 0.6 | 150 | 11 600 | 8 100 | 10 900 | 16 200 |
LR 5006 NPPU | LR 5006 2RSR | 30 | 62 | 19 | 35.5 | 1 | 250 | 15 800 | 11 800 | 18 200 | 23 600 |
LR 5007 NPPU | LR 5007 2RSR | 35 | 68 | 20 | 41.7 | 1 | 300 | 17 600 | 13 100 | 14 100 | 26 200 |
LR 5008 NPPU | LR 5008 2RSR | 40 | 75 | 21.9 | 46.7 | 1 | 370 | 18 400 | 14 600 | 20 300 | 29 200 |
Sigla | Corrispondente INA | Corrispondente | Dimensions (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | |||||
Designation | Equivalent INA | Equivalent SKF | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | |||||
EASIER/TKW | d | D | B | F | rs/min | Weight (g) | Dinamico Dynamic Cw | Statico Static Cow | ||
LR 5200 NPPU | LR 5200 2RSR | 3058 00 | 10 | 32 | 14 | 15.4 | 0.6 | 70 | 6 800 | 4 050 |
LR 5201 NPPU | LR 5201 2RSR | 3058 01 | 12 | 35 | 15.9 | 17.1 | 0.6 | 80 | 8 600 | 5 100 |
LR 5202 NPPU | LR 5202 2RSR | 3058 02 | 15 | 40 | 15.9 | 20 | 0.6 | 110 | 9 800 | 6 200 |
LR 5203 NPPU | LR 5203 2RSR | 3058 03 | 17 | 47 | 17.5 | 22.5 | 0.6 | 170 | 12 600 | 8 200 |
LR 5204 NPPU | LR 5204 2RSR | 3058 04 | 20 | 52 | 20.6 | 26.5 | 1 | 230 | 15 800 | 10 500 |
LR 5205 NPPU | LR 5205 2RSR | 3058 05 | 25 | 62 | 20.6 | 30.3 | 1 | 340 | 18 500 | 13 000 |
LR 5206 NPPU | LR 5206 2RSR | 3058 06 | 30 | 72 | 23.8 | 37.4 | 1 | 510 | 24 600 | 21 400 |
LR 5207 NPPU | LR 5207 2RSR | 3058 07 | 35 | 80 | 27 | 42.4 | 1.1 | 660 | 30 500 | 22 400 |
LR 5208 NPPU | LR 5208 2RSR | - | 40 | 85 | 30.2 | 48.4 | 1.1 | 750 | 34 500 | 25 500 |
LR 5302 NPPU | LR 5302 2RSR | - | 15 | 47 | 19 | 21.7 | 1 | 150 | 14 600 | 9 200 |
LR 5303 NPPU | LR 5303 2RSR | - | 17 | 52 | 22.2 | 23.5 | 1 | 210 | 17 200 | 11 100 |
LR 5304 NPPU | LR 5304 2RSR | - | 20 | 62 | 22.2 | 29 | 1.1 | 340 | 21 100 | 14 500 |
LR 5305 NPPU | LR 5305 2RSR | - | 25 | 72 | 25.4 | 34.4 | 1.1 | 500 | 27 500 | 19 500 |
LR 5306 NPPU | LR 5306 2RSR | - | 30 | 80 | 30.2 | 41.4 | 1.1 | 670 | 36 500 | 26 500 |
LR 5307 NPPU | LR 5307 2RSR | - | 35 | 90 | 34.9 | 47.7 | 1.5 | 970 | 44 500 | 33 000 |
LR 5308 NPPU | LR 5308 2RSR | - | 40 | 100 | 36.5 | 52.4 | 1.5 | 1 200 | 56 000 | 42 000 |
EASIER | Corrispondente INA | Corrispondente | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | |||||
Designation | Equivalent INA | SKF | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | |||||
EASIER/TKW | Equivalent SKF | d | D | B | F | rs/min | Dinamico Dynamic Cw | Statico Static Cow | ||
LR 5201 KDD | LR 5200 - X- 2Z | - | 10 | 32 | 14 | 15.4 | 0.6 | 70 | 6 800 | 4 050 |
LR 5201 KDD | LR 5201 - X- 2Z | 305701 | 12 | 35 | 15.9 | 17.1 | 0.6 | 80 | 8 600 | 5 100 |
LR 5202 KDD | LR 5202 - X- 2Z | 305702 | 15 | 40 | 15.9 | 20 | 0.6 | 110 | 9 800 | 6 200 |
LR 5203 KDD | LR 5203 - X- 2Z | 305703 | 17 | 47 | 17.5 | 22.5 | 0.6 | 170 | 12 600 | 8 200 |
LR 5204 KDD | LR 5204 - X- 2Z | 305704 | 20 | 52 | 20.6 | 26.5 | 1 | 230 | 15 800 | 10 500 |
LR 5205 KDD | LR 5205 - X- 2Z | 305705 | 25 | 62 | 20.6 | 30.3 | 1 | 340 | 18 500 | 13 000 |
LR 5206 KDD | LR 5206 - X- 2Z | 305706 | 30 | 72 | 23.8 | 37.4 | 1 | 510 | 24 600 | 2 400 |
LR 5207 KDD | LR 5207 - X- 2Z | 305707 | 35 | 80 | 27 | 42.4 | 1.1 | 660 | 30500 | 22 400 |
LR 5208 KDD | LR 5208 - X- 2Z | - | 40 | 85 | 30.2 | 48.4 | 1.1 | 750 | 34 500 | 25 500 |
LR 5200 KDDU | LR 5200 2Z | 305800 | 10 | 32 | 14 | 15.4 | 0.6 | 70 | 6 800 | 4 050 |
LR 5201 KDDU | LR 5201 2Z | 305801 | 12 | 35 | 15.9 | 17.1 | 0.6 | 80 | 8 600 | 5 100 |
LR 5202 KDDU | LR 5202 2Z | 305802 | 15 | 40 | 15.9 | 20 | 0.6 | 110 | 9 800 | 6 200 |
LR 5203 KDDU | LR 5203 2Z | 305803 | 17 | 47 | 17.5 | 22.5 | 0.6 | 170 | 12 600 | 8 200 |
LR 5204 KDDU | LR 5204 2Z | 305804 | 20 | 52 | 20.6 | 26.5 | 1 | 230 | 15 800 | 10 500 |
LR 5205 KDDU | LR 5205 2Z | 305805 | 25 | 62 | 20.6 | 30.3 | 1 | 340 | 18 500 | 13 000 |
LR 5206 KDDU | LR 5206 2Z | 305806 | 30 | 72 | 23.8 | 37.4 | 1 | 510 | 24 600 | 2 400 |
LR 5207 KDDU | LR 5207 2Z | 305807 | 35 | 80 | 27 | 42.4 | 1.1 | 660 | 30 500 | 22 400 |
LR 5208 KDDU | LR 5208 2Z | - | 40 | 85 | 30.2 | 48.4 | 1.1 | 750 | 34 500 | 25 500 |
Sigla | Corrispondente INA | Dimensioni (mm) | Peso (g) | Coefficienti di carico effettivi (N) 1) | Carichi radiali (N) | ||||||
Designation | Equivalent INA | Dimensions (mm) | Weight (g) | Real Basic load rating (N) 1) | Radial loads (N) | ||||||
EASIER/TKW | d | D | B | F | rs/min | Dinamico Dynamic Cw | Statico Static Cow | Framm | Foramm | ||
LR 5304 KDDU | LR 5304 2Z | 20 | 62 | 22.2 | 29 | 1.1 | 340 | 21 100 | 14 500 | 27 000 | 29 000 |
LR 5305 KDDU | LR 5305 2Z | 25 | 72 | 25.4 | 34.4 | 1.1 | 500 | 27 500 | 19 500 | 34 500 | 39 000 |
LR 5306 KDDU | LR 5306 2Z | 30 | 80 | 30.2 | 41.4 | 1.1 | 670 | 36 500 | 26 500 | 43 500 | 53 000 |
LR 5307 KDDU | LR 5307 2Z | 35 | 90 | 34.9 | 47.7 | 1.5 | 970 | 44 500 | 33 000 | 39 500 | 66 000 |
LR 5308 KDDU | LR 5308 2Z | 40 | 100 | 36.5 | 52.4 | 1.5 | 1 200 | 56 000 | 42 000 | 70 000 | 84 000 |
