Track Roller Bearings

Track rollers—also referred to as idler rollers—are motion transmission components designed to work with all varieties of tracks. They see use in conveyor systems, cam drives, and a wide range of similar material handling systems. Regardless of the material or machine, these components play a critical role in track and rail operations. When selected, employed, and maintained properly, they facilitate system operations, allowing for greater speed and efficiency.

Track rollers are available with outer ring running surfaces or cylindrical (or flat) outer ring running surfaces. While the ideal variety of track roller varies depending on intended use and application, the outer ring running surface is widely considered the gold standard.

-- Track rollers
-- Stud-type track rollers
-- Backup rollers
-- Cam rollers
Availability:
Inquire Add to Basket


track-rollers


Track Roller Bearings

Track Roller Bearings also named track runner bearings or Ball bearing track rollers, they are self-retaining, single or double-row ball bearings with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.

yoke-type-track-rollers


Yoke-type track rollers

Yoke-type track rollers are single or double-row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full-complement rolling element sets.


stud-type-track-rollers


Cam rollers

Cam rollers are similar in their construction to single and double-row support rollers, except that the raceway is formed by a heavy-section roller stud with a fixing thread and lubrication hole.


Proven application areas for these products include cam mechanisms, guideways, conveying systems and linear guidance systems.

Cam Followers are essentially needle or cylindrical rollers or ball bearings，which have a thick-walled outer race. The outside (runner) surface of the outer ring is crowned which serves to preventing edge stress if the cam follower runs in a titled or inclined position. Cam followers are ready-to-mount units which are filled with grease. They are suitable for all types of cam drives, tracks, conveyor system and etc.


Bearing Designation
IKO IKO Mc.GILL
Mass
Ml
CF03B

KRV10PP 5.0 KR10PP 4.5
CF04B CF4VBUUR MCFR12SBX KRV12PP 8.8 KR12PP 7.5
CF 05 B CF5VBUUR MCFR13SBX KRV13PP 12 KR13PP 10.5
CF06B CF 6 VBUUR MCFR16SBX KRV16PP 20 KR16PP 18
CF08B CF 8 VBUUR MCFR19SBX KRV19PP 32 KR19PP 28
CF10B CF10VBUUR MCFR22SBX KRV22PP 45 KR22PP 44
CF10-1B CF10-1 VBUUR MCFR26SBX KRV26PP 61 KR26PP 58
CF12B CF12VBUUR MCFR30SBX KRV30PP 89 KR30PP 87
CF12-1B CF 12-1 VBUUR MCFR32SBX KRV32PP 100 KR32PP 98
CF16B CF16VBUUR MCFR35SBX KRV35PP 171 KR35PP 169
CF18B CF18VBUUR MCFR40SBX KRV40PP 249 KR40PP 247
CF 20-1 B CF20-1 VBUUR MCFR47SBX KRV47PP 409 KR47PP 386
CF20B CF20VBUUR MCFR52SBX KRV52PP 484 KR52PP 461
CF24B CF24 VBUUR MCFR62SBX KRV62PP 802 KR62PP 790
CF24-1B CF24-1 VBUUR MCFR72SBX KRV72PP 1,045 KR72PP 1,040
CF30B CF30VBUUR MCFR80SBX KRV80PP 1,561 KR80PP 1,550
CF 30-1B CF 30-1 VBUUR MCFR85SBX KRV85PP 1,766 KR85PP 1,750
CF 30-2B CF 30-2 VBUUR MCFR90SBX KRV90PP 1,970 KR90PP 1,950



Instead of an inner race, cam followers have a solid stud which is threaded, so they can be quickly and easily attached to appropriate machine components by means of a hexagonal nut. Axial guidance for the outer race is provided by an integral flange at the head of the stud and a side washer pressed on to the stud, or by the roller complement.

EASIER cam followers are available in different designs which have the same dimensions and differ only in their internal designs. Generally, the cam followers have a concentric seating on the stud, but some are also available with an eccentric collar which is shrunk on to the stud. Cam followers with eccentric collar enable an optimum interaction with the cam to be obtained and also allow less stringent manufacturing tolerance to be used for the associated components.

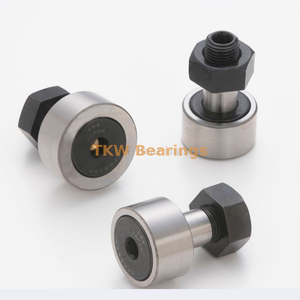

Cam Follower(Stud Type Track Roller Bearing)


 IKO INA Mc.GILL
With cage Hex hole Cylindrical Roller Dia. UNSEALED CF..B
MCFR..BX
SEALED CF..BUU
MCFR..SBX
Crowned Roller Dia. UNSEALED CF..BR
MCFR..B
SEALED CF..BUUR KR..PP MCFR..SB
Slotted Hole Cylindrical Roller Dia. UNSEALED CF KR..X MCFR..X
SEALED CF..UU KR..PPX MCFR..SX
Crowned Roller Dia. UNSEALED CF..R KR MCFR..
SEALED CF..UUR KR..PP MCFR..S
Full-complement roller Hex hole Cylindrical Roller Dia. UNSEALED CF..VB
MCFR..BX
SEALED CF..VBUU
MCFR..SBX
Crowned Roller Dia. UNSEALED CF..VBR
MCFR..B
SEALED CF..VBUUR KRV..PP MCFR..SB
Slotted Hole Cylindrical Roller Dia. UNSEALED CF..V KRV..X MCFR..X
SEALED CF..VUU KRV..PPX MCFR..SX
Crowned Roller Dia. UNSEALED CF..VR KRV MCFR..
SEALED CF..VUUR KRV..PP MCFR..S



Cam rollers (yoke-type track rollers based on ball bearings) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. The outer ring running surface is crowned as standard. Double row cam rollers are also available with a cylindrical (flat) outer ring running surface. EASIER supplies cam rollers greased, sealed and ready-to-mount. They are available in two main designs and also as variants of these:


Single row cam rollers based on deep groove ball bearings in the 62 series

Double row cam rollers based on double row angular contact ball bearings in the 32 dimension series



Support rollers

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.. They are based on needle or cylindrical roller bearings. EASIER supplies them ready-to-mount. They are available in several designs and variants.



Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on either needle or cylindrical roller bearings. Instead of an inner ring, they have a threaded solid stud (pin). EASIER supplies them ready-to-mount. They are available in several designs and variants:



-- with or without a cage

-- with different stud designs:

a concentric seat

an eccentric collar

-- with several sealing solutions

-- with the outer ring running surface profile:

crowned as standard

cylindrical (flat)




combined bearing

Combined Bearing


-- Stardard combined bearings

-- Eccentric Adjustable Combined Bearings

-- Adjustable Combined Bearings with shims

-- Adjustable Combined Bearings with Screw

-- Precision Radial Bearings

-- Heavy Duty Combined Bearing

-- Adjustable Combined Bearing Unit



Contact: Mr Landry

E-mail: sales@xrbearing.com   /   brandbearings@gmail.com

Whatsapp: +86-13280450757

Tel: +86-635-8509787

www.xrbearing.com

Cam followers Bearing

DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]B[mm]C[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
KR 1616628113.143.22.94.15
KR 16 PPA16628113.143.22.94.15
KR 16 PPSKA16628113.143.22.94.15
KR 16 PPXA16628113.143.22.94.15
KR 16 X16628113.143.22.94.15
KRV 1616628114.736.554.055.7
KRV 16 PPA16628114.736.554.055.7
KRV 16 PPXA16628114.736.554.055.7
KRE 16 PPA16928113.143.22.94.15
KRVE 16 PPA16928114.736.554.055.7
KR 1919832113.473.83.85.5
KR 19 PPA19832113.473.83.85.5
KR 19 PPSKA19832113.473.83.85.5
KR 19 PPXA19832113.473.83.85.5
KR 19 X19832113.473.83.85.5
KRV 1919832115.2885.17.35
KRV 19 PPA19832115.2885.17.35
KRV 19 PPXA19832115.2885.17.35
KRE 19 PPA191132113.473.83.85.5
KRVE 19 PPA191132115.2885.17.35
KR 22 B221036124.454.256
KR 22 PPA221036124.454.256
KR 22 PPXA221036124.454.256
KR 22 XB221036124.454.256
KRV 22 B221036126.059.155.78.15
KRV 22 PPA221036126.059.155.78.15
KRV 22 PPXA221036126.059.155.78.15
KRE 22 PPA221336124.454.256
KRVE 22 PPA221336126.059.155.78.15
KR 26 B261036124.8469.313.2


DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]B[mm]C[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
KR 26 PPA261036124.8469.313.2
KR 26 PPXA261036124.8469.313.2
KR 26 XB261036124.8469.313.2
KRV 26 B261036126.821111.416.3
KRV 26 PPA261036126.821111.416.3
KRV 26 PPXA261036126.821111.416.3
KRE 26 PPA261336124.8469.313.2
KRVE 26 PPA261336126.821111.416.3
KR 30 B301240146.4487.811.2
KR 30 PPA301240146.4487.811.2
KR 30 PPXA301240146.4487.811.2
KR 30 XB301240146.4487.811.2
KRV 30 B301240148.9714.61115.6
KRV 30 PPA301240148.9714.61115.6
KRV 30 PPXA301240148.9714.61115.6
KRE 30 PPA301540146.4487.811.2
KRVE 30 PPA301540148.9714.61115.6
KR 32 B321240146.718.510.615
KR 32 PPA321240146.718.510.615
KRV 32 B321240149.3515.314.320.4
KRV 32 PPA321240149.3515.314.320.4
KRV 32 PPXA321240149.3515.314.320.4
KRE 32 PPA321540146.718.510.615
KRVE 32 PPA321540149.3515.314.320.4
KR 35 B351652189.5213.711.416.3
KR 35 PPA351652189.5213.711.416.3
PWKR 35.2RS3516521811.911.48.6512.5
KRV 35 PPA3516521812.323.214.620.8
KRV 35 PPXA3516521812.323.214.620.8
NUKR 35 A3516521816.817.68.6512.2
DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]B[mm]C[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
NUKR 35 XA3516521816.817.68.6512.2
KRE 35 PPA352052189.5213.711.416.3
PWKRE 35.2RS3520521811.911.48.6512.5
KRVE 35 PPA3520521812.323.214.620.8
NUKRE 35 A3520521816.817.68.6512.2
KR 40 B4018582010.514.612.518
KR 40 PPA4018582010.514.612.518
KR 40 PPXA4018582010.514.612.518
KR 40 XB4018582010.514.612.518
PWKR 40.2RS4018582013.814.313.719.6
KRV 40 PPA4018582014.226.51724.5
KRV 40 PPXA4018582014.226.51724.5
NUKR 40 A4018582019221420
NUKR 40 XA4018582019221420
KRE 40 PPA4022582010.514.612.518
PWKRE 40.2RS4022582013.814.313.719.6
KRVE 40 PPA4022582014.226.51724.5
NUKRE 40 A4022582019221420
KR 47 B4720662414.724.523.633.5
KR 47 PPA4720662414.724.523.633.5
KR 47 PPXA4720662414.724.523.633.5
KRV 47 PPA4720662419.441.530.543
KRV 47 PPXA4720662419.441.530.543
PWKR 47.2RS4720662422.924.518.326
NUKR 47 A4720662428.633.517.625
NUKR 47 XA4720662428.633.517.625
KRE 47 PPA4724662414.724.523.633.5
KRVE 47 PPA4724662419.441.530.543
PWKRE 47.2RS4724662422.924.518.326
NUKRE 47 A4724662428.633.517.625
DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]B[mm]C[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
KR 52 B5220662415.7273651
KR 52 PPA5220662415.7273651
KR 52 PPXA5220662415.7273651
KRV 52 PPA5220662420.946.54564
KRV 52 PPXA5220662420.946.54564
PWKR 52.2RS5220662423.826.518.626.5
NUKR 52 A5220662429.7361825.5
NUKR 52 XA5220662429.7361825.5
KRE 52 PPA5224662415.7273651
KRVE 52 PPA5224662420.946.54564
PWKRE 52.2RS5224662423.826.518.626.5
NUKRE 52 A5224662429.7361825.5
PWKR 62.2RS6224802831.932.520.429
NUKR 62 A6224802841.3482536
NUKR 62 XA6224802841.3482536
KR 62 B6224802924.64458.585
KR 62 PPA6224802924.64458.585
KR 62 PPXA6224802924.64458.585
KR 62 XB6224802924.64458.585
KRV 62 PPA6224802931.47272102
KRV 62 PPXA6224802931.47272102
PWKRE 62.2RS6228802831.932.520.429
NUKRE 62 A6228802841.3482536
KRE 62 PPA6228802924.64458.585
KRVE 62 PPA6228802931.47272102
PWKR 72.2RS7224802839.64547.568
NUKR 72 A7224802845.758.534.550
NUKR 72 XA7224802845.758.534.550
KR 72 B722480292648100143
KR 72 PPA722480292648100143
DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]B[mm]C[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
KR 72 PPXA722480292648100143
KRV 72 PPA722480293380118170
PWKRE 72.2RS7228802839.64547.568
NUKRE 72 A7228802845.758.534.550
KRE 72 PPA722880292648100143
KRVE 72 PPA722880293380118170
KR 80 B80301003536.972106150
KR 80 PPA80301003536.972106150
KRV 80 PPA80301003545.7114122176
KRV 80 PPXA80301003545.7114122176
PWKR 80.2RS80301003557.273.56491.5
NUKR 80 A80301003569.386.54869.5
NUKR 80 XA80301003569.386.54869.5
KRE 80 PPA80351003536.972106150
KRVE 80 PPA80351003545.7114122176
PWKRE 80.2RS80351003557.273.56491.5
NUKRE 80 A80351003569.386.54869.5
KR 90 PPA9030100353876.5160228
KRV 90 PPA90301003547.3122183260
KRV 90 PPXA90301003547.3122183260
PWKR 90.2RS90301003562.785108153
NUKR 90 A90301003578.110286.5125
NUKR 90 XA90301003578.110286.5125
KRE 90 PPA9035100353876.5160228
KRVE 90 PPA90351003547.3122183260
PWKRE 90.2RS90351003562.785108153
NUKRE 90 A90351003578.110286.5125


Support rollers Bearing

Support rollers without flange rings, without an inner ring

DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]Fw[mm]C[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
RSTO 5 TN1677.82.512.53.555
RSTO 6 TN19109.83.744.54.256.1
RNA 22/6.2RS191011.84.023.652.553.6
RSTO 8 TN24129.84.135.47.510.8
RNA 22/8.2RS241211.84.684.555.37.5
RSTO 10301411.88.258.88.512.2
RNA 2200.2RS301413.86.67.51217.3
RSTO 12321611.88.89.88.312
RNA 2201.2RS321613.87.048.511.616.6
RSTO 15352011.89.1310.67.110
RNA 2202.2RS352013.87.489.39.513.7
RNA 2203.2RS402215.89.5213.215.322
RSTO 17402215.814.217.61217.3
RSTO 20472515.816.121.218.626.5
RNA 2204.2RS472517.816.11817.625.5
RSTO 25523015.816.522.81826
RNA 2205.2RS523017.816.82017.324.5
RNA 2206.2RS623519.817.925.528.540.5
RSTO 30623819.822.934.523.633.5
RNA 2207.2RS724222.722.435.53854


Support rollers without flange rings, with an inner ring

DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]C[mm]B[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
STO 6 TN1969.8103.744.54.256.1
STO 6 XTN1969.8103.744.54.256.1
NA 22/6.2RS19611.8124.023.652.553.6
NA 22/6.2RSX19611.8124.023.652.553.6
STO 8 TN2489.8104.135.47.510.8
STO 8 XTN2489.8104.135.47.510.8
NA 22/8.2RS24811.8124.684.555.37.5
NA 22/8.2RSX24811.8124.684.555.37.5
STO 10301011.8128.258.88.512.2
STO 10 X301011.8128.258.88.512.2
NA 2200.2RS301013.8146.67.51217.3
NA 2200.2RSX301013.8146.67.51217.3
STO 12321211.8128.89.88.312
STO 12 X321211.8128.89.88.312
NA 2201.2RS321213.8147.048.511.616.6
NA 2201.2RSX321213.8147.048.511.616.6
STO 15351511.8129.1310.67.110
STO 15 X351511.8129.1310.67.110
NA 2202.2RS351513.8147.489.39.513.7
NA 2202.2RSX351513.8147.489.39.513.7
NA 2203.2RS401715.8169.5213.215.322
NA 2203.2RSX401715.8169.5213.215.322
STO 17401715.81614.217.61217.3
STO 17 X401715.81614.217.61217.3
STO 20472015.81616.121.218.626.5
STO 20 X472015.81616.121.218.626.5
NA 2204.2RS472017.81816.11817.625.5
NA 2204.2RSX472017.81816.11817.625.5
STO 25522515.81616.522.81826
STO 25 X522515.81616.522.81826
DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]C[mm]B[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
NA 2205.2RS522517.81816.82017.324.5
NA 2205.2RSX522517.81816.82017.324.5
NA 2206.2RS623019.82017.925.528.540.5
NA 2206.2RSX623019.82017.925.528.540.5
STO 30623019.82022.934.523.633.5
STO 30 X623019.82022.934.523.633.5
STO 35723519.82024.6393651
STO 35 X723519.82024.6393651
NA 2207.2RS723522.72322.435.53854
NA 2207.2RSX723522.72322.435.53854
STO 40804019.82023.83934.549
STO 40 X804019.82023.83934.549
NA 2208.2RS804022.72327.540.535.551
NA 2208.2RSX804022.72327.540.535.551
NA 2210.2RS905022.72328.14334.550


Support rollers with flange rings, with an inner ring

DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]C[mm]B[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
NATR 516511123.143.22.94.15
NATR 5 PPA16511123.143.22.94.15
NATR 5 PPXA16511123.143.22.94.15
NATR 5 X16511123.143.22.94.15
NATV 516511124.736.554.055.7
NATV 5 PPA16511124.736.554.055.7
NATV 5 PPXA16511124.736.554.055.7
NATR 619611123.473.83.85.5
NATR 6 PPA19611123.473.83.85.5
NATR 6 PPXA19611123.473.83.85.5
NATR 6 X19611123.473.83.85.5
NATV 619611125.2885.17.35
NATV 6 PPA19611125.2885.17.35
NATV 6 PPXA19611125.2885.17.35
NATR 824814155.286.15.27.35
NATR 8 PPA24814155.286.15.27.35
NATR 8 PPXA24814155.286.15.27.35
NATR 8 X24814155.286.15.27.35
NATV 824814157.4811.47.3510.4
NATV 8 PPA24814157.4811.47.3510.4
NATV 8 PPXA24814157.4811.47.3510.4
NATR 10301014156.4487.811.2
NATR 10 PPA301014156.4487.811.2
NATR 10 PPXA301014156.4487.811.2
NATR 10 X301014156.4487.811.2
NATV 10301014158.9714.61115.6
NATV 10 PPA301014158.9714.61115.6
NATV 10 PPXA301014158.9714.61115.6
NATR 12321214156.68.57.6510.8
NATR 12 PPA321214156.68.57.6510.8
DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]C[mm]B[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
NATR 12 PPXA321214156.68.57.6510.8
NATR 12 X321214156.68.57.6510.8
NATV 12321214159.3515.310.615
NATV 12 PPA321214159.3515.310.615
NATV 12 PPXA321214159.3515.310.615
NATR 15351518199.5213.711.416.3
NATR 15 PPA351518199.5213.711.416.3
NATR 15 PPXA351518199.5213.711.416.3
NATR 15 X351518199.5213.711.416.3
PWTR 15.2RS3515181911.911.48.6512.5
NATV 153515181912.323.214.620.8
NATV 15 PPA3515181912.323.214.620.8
NATV 15 PPXA3515181912.323.214.620.8
NUTR 15 A3515181916.817.68.6512.2
NUTR 15 X3515181916.817.68.6512.2
NATR 174017202110.514.612.518
NATR 17 PPA4017202110.514.612.518
NATR 17 PPXA4017202110.514.612.518
NATR 17 X4017202110.514.612.518
PWTR 17.2RS4017202113.814.313.719.6
NATV 174017202114.226.51724.5
NATV 17 PPA4017202114.226.51724.5
NATV 17 PPXA4017202114.226.51724.5
NUTR 17 A4017202119221420
NUTR 17 X4017202119221420
PWTR 1542.2RS4215181914.2152231.5
NUTR 1542 A4215181920.123.221.631
NUTR 1542 X4215181920.123.221.631
PWTR 1747.2RS4717202115.717.63042.5
NUTR 1747 A4717202122273043
DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]C[mm]B[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
NUTR 1747 X4717202122273043
NATR 204720242514.724.523.633.5
NATR 20 PPA4720242514.724.523.633.5
NATR 20 PPXA4720242514.724.523.633.5
NATV 204720242519.441.530.543
NATV 20 PPA4720242519.441.530.543
NATV 20 PPXA4720242519.441.530.543
PWTR 20.2RS4720242522.924.518.326
NUTR 20 A4720242528.633.517.625
NUTR 20 X4720242528.633.517.625
PWTR 2052.2RS5220242525.52930.544
NUTR 2052 A5220242531.9393042.5
NUTR 2052 X5220242531.9393042.5
NATR 255225242514.725.521.631
NATR 25 PPA5225242514.725.521.631
NATR 25 PPXA5225242514.725.521.631
NATR 25 X5225242514.725.521.631
NATV 255225242519.84428.540.5
NATV 25 PPA5225242519.84428.540.5
NATV 25 PPXA5225242519.84428.540.5
PWTR 25.2RS5225242523.826.518.626.5
NUTR 25 A5225242529.7361825.5
NUTR 25 X5225242529.7361825.5
PWTR 2562.2RS6225242529.2364564
NUTR 2562 A6225242535.8484463
NUTR 2562 X6225242535.8484463
NATR 306230282922.937.526.538
NATR 30 PPA6230282922.937.526.538
NATR 30 PPXA6230282922.937.526.538
NATV 306230282929.26234.549
DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]C[mm]B[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
NATV 30 PPA6230282929.26234.549
NATV 30 PPXA6230282929.26234.549
PWTR 30.2RS6230282931.932.520.429
NUTR 30 A6230282941.347.52434.5
NUTR 30 X6230282941.347.52434.5
PWTR 3072.2RS7230282939.64547.568
NUTR 3072 A7230282948.4615376.5
NUTR 3072 X7230282948.4615376.5
NATR 35 PPA7235282924.64333.548
NATR 35 PPXA7235282924.64333.548
NATV 35 PPA7235282931.9724362
PWTR 35.2RS7235282935.840.52840
NUTR 35 A7235282945.75733.547.5
NUTR 35 X7235282945.75733.547.5
PWTR 3580.2RS8035282941.8505172
NUTR 3580 A8035282951.2685781.5
NUTR 3580 X8035282951.2685781.5
NATR 40 PPA8040303231.95741.558.5
NATR 40 PPXA8040303231.95741.558.5
NATV 40 PPA8040303239.1885173.5
NATV 40 PPXA8040303239.1885173.5
PWTR 40.2RS8040303241.84933.548
NUTR 40 A8040303257.2723245.5
NUTR 40 X8040303257.2723245.5
PWTR 45.2RS8545303242.9503448
NUTR 45 A8545303258.37532.546.5
NUTR 45 X8545303258.37532.546.5
PWTR 4090.2RS9040303249.5626491.5
NUTR 4090 A9040303268.291.56390
NUTR 4090 X9040303268.291.56390

DesignationPrincipal dimensionsBasic load ratingsMaximum radial loads
EASIER Bearing
dynamicstaticdynamicstatic

D[mm]d[mm]C[mm]B[mm]C[kN]C0[kN]Frmax.[kN]F0rmax.[kN]
NATR 50 PPA9050303230.858.54057
NATV 50 PPA9050303239.1935072
PWTR 50.2RS9050303242.95234.549
NUTR 50 A9050303258.37832.547.5
NUTR 50 X9050303258.37832.547.5
PWTR 45100.2RS10045303253.969.581.5116
NUTR 45100 A10045303273.710480114
NUTR 45100 X10045303273.710480114
PWTR 50110.2RS11050303257.278100143
NUTR 50110 A11050303278.111698140
NUTR 50110 X11050303278.111698140
NNTR 50x130x65.2ZL130506365179232224320
NNTR 55x140x70.2ZL140556870209275224320
NNTR 60x150x75.2ZL150607375238320265375
NNTR 65x160x75.2ZL160657375255345285405
NNTR 70x180x85.2ZL180708385330455375540
NNTR 80x200x90.2ZL200808890391540455640
NNTR 90x220x100.2ZL2209098100468670480680
NNTR 100x240x105.2ZL240100103105528780550780
NNTR 110x260x115.2ZL260110113115627930655950
NNTR 120x290x135.2ZL2901201331358251 2709001 290
NNTR 130x310x146.2ZL3101301441469521 4601 0401 500


SealedSealedSealedSealedSealedSealedSealedSealedSealedSealed
CRS...CRHS...S...LH...LCR..SCFH...SCR...XHR...XCE..PPNA
TORRINGTON®RBCMcGILLSMITH®IM
UNSEALEDSEALEDUNSEALEDSEALEDUNSEALEDSEALEDUNSEALEDSEALEDUNSEALEDSEALED
YCR-12YCRS-12Y-24Y-24-LCYR-3/4CYR-3/4-SYR-3/4YR-3/4XRF-12RF-12-PP
YCR-14YCRS-14Y-28Y-28-LCYR-7/8CYR-7/8-SYR-7/8YR-7/8XRF-14RF-14-PP
YCR-16YCRS-16Y-32Y-32-LCYR-1CYR-1-SYR-1YR-1XRF-16RF-16-PP
YCR-18YCRS-18Y-36Y-36-LCYR-1 1/8CYR-1 1/8-SYR-1 1/8YR-1 1/8XRF-18RF-18-PP
YCR-20YCRS-20Y-40Y-40-LCYR-1 1/4CYR-1 1/4-SYR-1 1/4YR-1 1/4XRF-20RF-20-PP
YCR-22YCRS-22Y-44Y-44-LCYR-1 3/8CYR-1 3/8-SYR-1 3/8YR-1 3/8XRF-22RF-22-PP
YCR-24YCRS-24Y-48Y-48-LCYR-1 1/2CYR-1 1/2-SYR-1 1/2YR-1 1/2XRF-24RF-24-PP
YCR-26YCRS-26Y-52Y-52-LCYR-1 5/8CYR-1 5/8-SYR-1 5/8YR-1 5/8XRF-26RF-26-PP
YCR-28YCRS-28Y-56Y-56-LCYR-1 3/4CYR-1 3/4-SYR-1 3/4YR-1 3/4XRF-28RF-28-PP
YCR-30YCRS-30Y-60Y-60-LCYR-1 7/8CYR-1 7/8-SYR-1 7/8YR-1 7/8XRF-30RF-30-PP
YCR-32YCRS-32Y-64Y-64-LCYR-2CYR-2-SYR-2YR-2XRF-32RF-32-PP
YCR-36YCRS-36Y-72Y-72-LCYR-2 1/4CYR-2 1/4-SYR-2 1/4YR-2 1/4XRF-36RF-36-PP
YCR-40YCRS-40Y-80Y-80-LCYR-2 1/2CYR-2 1/2-SYR-2 1/2YR-2 1/2XRF-40RF-40-PP
YCR-44YCRS-44Y-88Y-88-LCYR-2 3/4CYR-2 3/4-SYR-2 3/4YR-2 3/4XRF-44RF-44-PP
YCR-48YCRS-48Y-96Y-96-LCYR-3CYR-3-SYR-3YR-3XRF-48RF-48-PP
YCR-52YCRS-52Y-104Y-104-LCYR-3 1/4CYR-3 1/4-SYR-3 1/4YR-3 1/4XRF-52RF-52-PP
YCR-56YCRS-56Y-112Y-112-LCYR-3 1/2CYR-3 1/2-SYR-3 1/2YR-3 1/2XRF-56RF-56-PP
YCR-64YCRS-64Y-128Y-128-LCYR-4CYR-4-SYR 4YR-4XRF-64RF-64-PP


Stud Type Track Rollers Inch System

外径 mm型号 Bearing Designation外径 ROLLER DIA. (RD) ♦.000 -.001宽度 ROLLER WIDTH (W) ♦.000 -.005轴径 STUD DIA. (SD) *.001 -.000轴长 STUD UGTH. (SL)最小螺 纹长度 MIN. THR'D L'GTH. (TL)螺距 FINE THR'DS.
12.700CF-1/2-N-SB0.5000.3440.1901/21/410-32
12.700CF-1/2-SB0.5000.3750.1905/81/410-32
14.287CF-9/16-SB,56250.3750.1905/81/410-32
15.875CF-5/8-N-SB0.6250.4060.2505/85/161/4-28
15.875CF-5/8-SB0.625.43750.2503/45/161/4-28
17.462CF-11/16-SB.6875.43750.2503/45/161/4-28
19.050CF-3/4-SB0.7500.5000.3757/83/83/8-24
22.225CF-7/8-SB0.8750.5000.3757/83/83/8-24
25.400CF-1-SB1.0000.625.437511/27/16-20
28.575CF-1 1/8-SB1.1250.625.437511/27/16-20
31.750CF-1 1/4-SB1.2500.7500.5001 1/45/81/2-20
34.925CF-1 3/8-SB1.3750.7500.5001 1/45/81/2-20
38.100CF-1 1/2-SB1.5000.8750.6251 1/23/45/8-18
41.275CF-1 5/8-SB1.6250.8750.6251 1/23/45/8-18
44.450CF-1 3/4-SB1.7501.0000.7501 3/47/83/4-16
47.625CF-1 7/8-SB1.8751.0000.7501 3/47/83/4-16
50.800CF-2-SB2.0001.2500.875217/8-14
57.150CF-2 1/4-SB2.2501.2500.875217/8-14
63.500CF-2 1/2-SB2.5001.5001.0002 1/41 1/81-14
69.850CF-2 3/4-SB2.7501.5001.0002 1/41 1/81-14
76.200CF-3-SB3.0001.7501.2502 1/21 1/41 1/4-12
82.550CF-3 1/4-SB3.2501.7501.2502 1/21 1/41 1/4-12
88.900CF-3 1/2-SB3.5002.0001.3752 3/41 3/81 3/8-12
101.600CF-4-SB4.0002.2501.5003 1/21 1/21 1/2-12


Stud Type Track Rollers Inch System (Bushing)

外径 mm型号 Bearing Designation外径 ROLLER DI A. (RD) +.000 -.001宽度 ROLLER WIDTH (W) +.000 -.005雑套 BUSH. UGTH (G) +.000 -.010偏心套 外径 BUSH.轴长 STUD fGTH. (SL)最小螺 纹长度 MIN. THR'D UGTH. (TL)螺距 FINE THR'DS.
12.700CFE-1/2-N-SB0.5000.3440.2500.2501/21/410-32
12.700CFE-1/2-SB0.5000.3750.3750.2505/81/410-32
14.287CFE-9/16-SB.56250.3750.3750.2505/81/410-32
15.875CFE-5/8-SB0.625.43750.4373753/45/161/4-28
17.462CFE-11/16-SB.6875.43750.4373753/45/161/4-28
19.050CFE-3/4-SB0.7500.5000.5000.5007/83/83/8-24
22.225CFE-7/8-SB0.8750.5000.5000.5007/83/83/8-24
25.400CFE-1-SB1.0000.6250.5000.62511/27/16-20
28.575CFE-1 1/8-SB1.1250.6250.5000.62511/27/16-20
31.750CFE-1 1/4-SB1.2500.7500.6250.6871 1/45/81/2-20
34.925CFE-1 3/8-SB1.3750.7500.6250.6871 1/45/81/2-20
38.100CFE-1 1/2-SB1.5000.8750.7500.8751 1/23/45/8-18
41.275CFE-1 5/8-SB1.6250.8750.7508751 1/23/45/8-18
44.450CFE-1 3/4-SB1.7501.0000.8751.0001 3/47/83/4-16
47.625CFE-1 7/8-SB1.8751.0000.8751.0001 3/47/83/4-16
50.800CFE-2-SB2.0001.2501.0001.187217/8-14
57.150CFE-2 1/4-SB2.2501.2501.0001.187217/8-14
63.500CFE-2 1/2-SB2.5001.5001.1251.3752 1/41 1/81-14
69.850CFE-2 3/4-SB2.7501.5001.1251.3752 1/41 1/81-14
76.200CFE-3-SB3.0001.7501.2501.7502 1/21 1/41 1/4-12
82.550CFE-3 1/4-SB3.2501.7501.2501.7502 1/21 1/41 1/4-12
88.900CFE-3 1/2-SB3.5002.0001.3751.8122 3/41 3/81 3/8-12
101.600CFE-4-SB4.0002.2502.0002.0003 1/21 1/21 1/2-12


外径 mmBearing Designation外径 ROLLER DIA. (RD) +.000 -.001宽度 ROLLER WIDTH (W) +.000 -.005轴径 STUD DIA. (SD) +.001 -.000轴长 STUD UGTH. (SL)最小螺 纹长度 MIN. THR'D L'GTH. (TL)螺距 FINE THR'DS.
12.700CFH-1/2-SB0.5000.3750.2505/81/41/4-28
14.287CFH-9/16-SB.56250.3750.2505/81/41/4-28
15.875CFH-5/8-SB0.625.4375.31253/45/165/16-24
17.462CFH-11/16-SB.6875.4375.31253/45/165/16-24
19.050CFH-3/4-SB0.7500.500.43757/83/87/16-20
22.225CFH-7/8-SB0.8750.500.43757/83/87/16-20
25.400CFH-1-SB1.0000.62562511/25/8-18
28.575CFH-1 1/8-SB1.1250.6250.62511/25/8-18
31.750CFH-1 1/4-SB1.2500.7507501 1/45/83/4-16
34.925CFH-1 3/8-SB1.3750.7500.7501 1/45/83/4-16
38.100CFH-1 1/2-SB1.5000.8750.8751 1/23/47/8-14
41.275CFH-1 5/8-SB1.6250.8750.8751 1/23/47/8-14
44.450CFH-1 3/4-SB1.7501.0001.0001 3/47/81-14
47.625CFH-1 7/8-SB1.8751.0001.0001 3/47/81-14
50.800CFH-2-SB2.0001.2501.125211 1/8-12
57.150CFH-2 1/4-SB2.2501.2501.125211 1/8-12
63.500CFH-2 1/2-SB2.5001.5001.2502 1/41 1/81 1/4-12
69.850CFH-2 3/4-SB2.7501.5001.2502 1/41 1/81 1/4-12
76.200CFH-3-SB3.0001.7501.5002 1/21 1/41 1/2-12
82.550CFH-3 1/4-SB3.2501.7501.5002 1/21 1/41 1/2-12
88.900CFH-3 1/2-SB3.5002.0001.7502 3/41 3/81 3/4-12
101.600CFH-4-SB4.0002.2502.0003 1/21 1/22-12


Yoke Type Track Rollers Inch System

Shaft diameter mmBearing DesignationBoundary Dimensions inch mm Mass

DBc-kg
6.350CYR 3/4SYCRS-12CRY 12VUU6.35019.05014.28812.7000.027
CYR 7/8SYCRS-14CRY 14VUU6.35022.22514.28812.7000.036
7.938CYR1SYCRS-16CRY 16VUU7.93825.40017.46315.8750.068
CYR1 1/8SYCRS-18CRY 18VUU7.93828.57517.46315.8750.077
9.525CYR1 1/4SYCRS-20CRY 20VUU9.52531.75020.63819.0500.11
CYR1 3/8SYCRS-22CRY 22VUU9.52534.92520.63819.0500.136
11.112CYR1 1/2SYCRS-24CRY24VUU11.11238.10023.81322.2250.186
CYR1 5/8SYCRS-26CRY 26VUU11.11241.27523.81322.2250.227
12.700CYR1 3/4SYCRS-28CRY28VUU12.70044.45026.98825.4000.29
CYR1 7/8SYCRS-30CRY 30VUU12.70047.62526.98825.4000.36
15.875CYR2SYCRS-32CRY 32VUU15.87550.80033.33831.7500.476
CYR2 1/4SYCRS-36CRY 36VUU15.87557.15033.33831.7500.6
19.050CYR2 1/2SYCRS-40CRY 40VUU19.05063.50039.68838.1000.82
CYR2 3/4SYCRS-44CRY44VUU19.05069.85039.68838.1001.02
25.4CYR3SYCRS-48CRY 48VUU25.40076.20046.04044.4501.4
CYR3 1/4SYCRS-52CRY 52VUU25.40082.55046.04044.4501.64
28.575CYR3 1/2SYCRS-56CRY 56VUU28.57588.90052.39050.8002.245
31.75CYR4SYCRS-64CRY 64VUU31.750101.60058.74057.1503.2
44.45CYR5SYCRS-80CRY 80VUU44.450127.00073.02569.8505.99
57.15CYR6SYCRS-96CRY 96VUU57.150152.40085.72582.5509.93


Combined Bearing

DesignationMass KgDesignationMass KgDimensions
dDHH2
ZARN1545TN0.34ZARN1545LTN0.3715454053
ZARN1747TN0.37ZARN1747LTN0.4117474357
ZARN2052TN0.41ZARN2052LTN0.4620524660
ZARN2062TN0.87ZARN2062LTN0.9920626075
ZARN2557TN0.53ZARN2557LTN0.5925575065
ZARN2572TN1.17ZARN2572LTN1.3225726075
ZARN3062TN0.6ZARN3062LTN0.7530625065
ZARN3080TN1.5ZARN3080LTN1.730806682
ZARN3570TN800ZARN3570LTN0.9335705470
ZARN3585TN1.65ZARN3585LTN1.835856682
ZARN4075TN0.9ZARN4075LTN140755470
ZARN4090TN2.09ZARN4090LTN2.3940907593
ZARN4580TN1.12ZARN4580LTN1.2745806075
ZARN45105TN3.02ZARN45105LTN3.424510582103
ZARN5090TN1.43ZARN5090LTN1.7850906078
ZARN50110TN3.3ZARN50110LTN3.755011082103
ZARN55115TN3.5ZARN55115LTN45511582103
ZARN60120TN3.7ZARN60120LTN4.856012082103
ZARN65125TN4ZARN65125LTN4.66512582103
ZARN70130TN4.1ZARN70130LTN4.857013082103
ZARN75155TN7.9ZARN75155LTN9.175155100125
ZARN90180TN11.8ZARN90180LTN13.290180110135
DesignationMass KgDesignation Mass Kg Dimensions
dDHH2
ZARF1560TN0.42ZARF1560LTN0.4515604053
ZARF1762TN0.49ZARF1762LTN0.5217624357
ZARF2068TN0.56ZARF2068LTN0.6120684660
ZARF2080TN1.1ZARF2080LTN1.2220806075
ZARF2575TN0.78ZARF2575LTN0.8425755065
ZARF2590TN1.6ZARF2590LTN1遊25906075
ZARF3080TN0.85ZARF3080LTN0.930805065
ZARF30105TN1.95ZARF30105LTN2.15301056682
ZARF3590TN1.12ZARF3590LTN1.2535905470
ZARF35110TN1.6ZARF35110LTN1.85351106682
ZARF40100TN1.35ZARF40100LTN1.45401005470
ZARF40115TN2.7ZARF40115LTN3401157593
ZARF45105TN1.7ZARF45105LTN1.85451056075
ZARF45130TN3.9ZARF45130LTN4.34513082103
ZARF50115TN2.1ZARF50115LTN2.45501156078
ZARF50140TN4.2ZARF50140LTN4.655014082103
ZARF55145TN4.5ZARF55145LTN55514582103
ZARF60150TN4.7ZARF60150LTN5.356015082103
ZARF65155TN5.12ZARF65155LTN5.726515582103
ZARF70160TN5.2ZARF70160LTN67016082103
ZARF75185TN9.4ZARF75185LTN10.6175185100125
ZARF90210TN13.7ZARF90210LTN15.190210110135


DesignationMass gNumber
Mass gDimensions
FwDD1 maxD2 maxC -0.25C1 -0.2C2dw E8
NKX10TN34NKX10ZTN36101924.125.22396.510
NKX1238NKX12Z40122126.127.22396.512
NKX1544NKX15Z47152428.129.22396.515
NKX1753NKX17Z55172630.131.2259817
NKX2083NKX20Z90203035.136.2301010.520
NKX25125NKX25Z132253742.143.230119.525
NKX30141NKX30Z148304247.148.230119.530
NKX35163NKX35Z168354752.153.23012935
NKX40200NKX40Z208405260.161.232131040
NKX45252NKX45Z265455865.266.53214945
NKX50280NKX50Z300506270.271.535141050
NKX60360NKX60Z380607285.286.540171260
NKX70500NKX70Z520708595.296.540181170


Standard composite roller bearing

ItalyChinaGermanyEASIERD (mm)T (mm)d (mm)H (mm)h (mm)Weight (Kg)



MR07064.053CRA52.5-152.5403033270.46
MR0021CRF62ZGN306230EMR00014.054CRA62-162423037.530.50.53
MR0022CRF70.1ZGN357036EMR00024.055CRA70.1-170.1483544360.8
MR0023CRF77.7ZGN407736EMR00034.056CRA77.7-177.754404836.51.0
MR0024

MR00044.057CRA77.7-277.7544040.7290.87
MR0025CRF88.4ZGN458844EMR00054.058CRA88.4-188.4594557441.62




4.059CRA101.2-1101.2675046331.74




4.060CRA107.7-1107.7715553392.27
MR0027CRF107.7ZGN6010755EMR00074.061CRA107.7-2107.7716069552.82
MR0029CRF123ZGN6012356EMR00094.062CRA123-1123806072.3563.89
MR0030CRF149ZGN6014958EMR00104.063CRA149-11491086078.558.56.52


Previous:
Next:
ball bearing roller track track roller bearing suppliers Cam follower linear roller bearing track v groove track roller bearings stud type track roller bearing yoke type track roller bearing u groove track roller bearing miniature track rollers crowned track roller

Related Products

Support Rollers NAST8ZZUUR Yoke-type Track Rollers
Support Rollers NAST8ZZUUR Yoke-type Track Rollers
China LR Series Track Roller Bearings Manufacturer
China LR Series Track Roller Bearings Manufacturer
Yoke Type Track Roller Bearings NUKR 80
Yoke Type Track Roller Bearings NUKR 80
TKW Focuses On the Development and Manufacturing of General and Non-Standard Rolling bearings


Quick Links

Product Category

Contact Us

 Yandian Industrial zone, Linqing City, Liaocheng,Shandong Province, China,
 +86-635-8509787 / +86-13280450757
 +86-13280450757
 +86-13280450757
Copyright © 2008-2021 TKW BEARINGS  Technical support :  leadong
