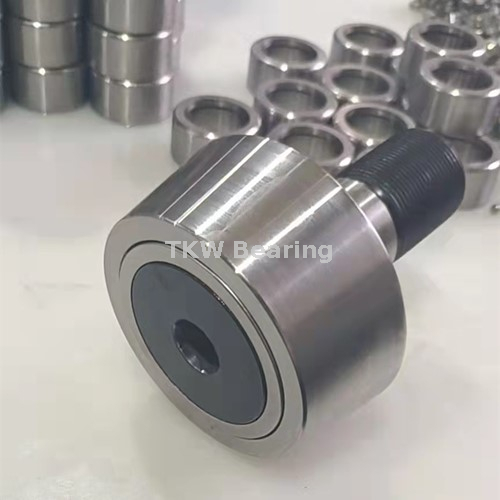

Yoke Type Track Roller Bearings NUKR 80
Dimension: 30*80*100*35mm
Weight: 1.8kg
Cam followers
D | 80 mm | Outside diameter |
---|---|---|
d | 30 mm | Attachment diameter |
B | 100 mm | Total length |
C | 35 mm | Width outer ring |
B1 | 63 mm | Length shank on stud |
B2 | 15 mm | Distance lubrication hole to flange ring |
C1 | 1 mm | Distance face outer ring to face side washer |
d1 | 47 mm | Outside diameter flange ring |
G | M 30x1.5 | Thread stud |
G1 | 32 mm | Length thread |
M | 8 mm | Seat diameter for lubrication accessories |
M1 | 4 mm | Diameter of lubrication hole (shank) |
EASIER cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on either needle or cylindrical roller bearings. Instead of an inner ring, they have a threaded solid stud (pin). EASIER supplies them ready-to-mount. They are available in several designs and variants:
-- with or without a cage
-- with different stud designs:
a concentric seat
an eccentric collar
-- with several sealing solutions
with the outer ring running surface profile:
crowned as standard
cylindrical (flat)
Cam rollers
Cam rollers are similar in their construction to single and double-row support rollers, except that the raceway is formed by a heavy-section roller stud with a fixing thread and lubrication hole.
Proven application areas for these products include cam mechanisms, guideways, conveying systems and linear guidance systems.
Cam Followers are essentially needle or cylindrical rollers or ball bearings,which have a thick-walled outer race. The outside (runner) surface of the outer ring is crowned which serves to preventing edge stress if the cam follower runs in a titled or inclined position. Cam followers are ready-to-mount units which are filled with grease. They are suitable for all types of cam drives, tracks, conveyor system and etc.
Instead of an inner race, cam followers have a solid stud which is threaded, so they can be quickly and easily attached to appropriate machine components by means of a hexagonal nut. Axial guidance for the outer race is provided by an integral flange at the head of the stud and a side washer pressed on to the stud, or by the roller complement.
EASIER cam followers are available in different designs which have the same dimensions and differ only in their internal designs. Generally, the cam followers have a concentric seating on the stud, but some are also available with an eccentric collar which is shrunk on to the stud. Cam followers with eccentric collar enable an optimum interaction with the cam to be obtained and also allow less stringent manufacturing tolerance to be used for the associated components.
Cam Follower(Stud Type Track Roller Bearing)
IKO | INA | Mc.GILL | ||||
With cage | Hex hole | Cylindrical Roller Dia. | UNSEALED | CF..B | MCFR..BX | |
SEALED | CF..BUU | MCFR..SBX | ||||
Crowned Roller Dia. | UNSEALED | CF..BR | MCFR..B | |||
SEALED | CF..BUUR | KR..PP | MCFR..SB | |||
Slotted Hole | Cylindrical Roller Dia. | UNSEALED | CF | KR..X | MCFR..X | |
SEALED | CF..UU | KR..PPX | MCFR..SX | |||
Crowned Roller Dia. | UNSEALED | CF..R | KR | MCFR.. | ||
SEALED | CF..UUR | KR..PP | MCFR..S | |||
Full-complement roller | Hex hole | Cylindrical Roller Dia. | UNSEALED | CF..VB | MCFR..BX | |
SEALED | CF..VBUU | MCFR..SBX | ||||
Crowned Roller Dia. | UNSEALED | CF..VBR | MCFR..B | |||
SEALED | CF..VBUUR | KRV..PP | MCFR..SB | |||
Slotted Hole | Cylindrical Roller Dia. | UNSEALED | CF..V | KRV..X | MCFR..X | |
SEALED | CF..VUU | KRV..PPX | MCFR..SX | |||
Crowned Roller Dia. | UNSEALED | CF..VR | KRV | MCFR.. | ||
SEALED | CF..VUUR | KRV..PP | MCFR..S |
Cam rollers (yoke-type track rollers based on ball bearings) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. The outer ring running surface is crowned as standard. Double row cam rollers are also available with a cylindrical (flat) outer ring running surface. EASIER supplies cam rollers greased, sealed and ready-to-mount. They are available in two main designs and also as variants of these:
Single row cam rollers based on deep groove ball bearings in the 62 series
Double row cam rollers based on double row angular contact ball bearings in the 32 dimension series
Support rollers
Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.. They are based on needle or cylindrical roller bearings. EASIER supplies them ready-to-mount. They are available in several designs and variants.
Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on either needle or cylindrical roller bearings. Instead of an inner ring, they have a threaded solid stud (pin). EASIER supplies them ready-to-mount. They are available in several designs and variants:
-- with or without a cage
-- with different stud designs:
a concentric seat
an eccentric collar
-- with several sealing solutions
-- with the outer ring running surface profile:
crowned as standard
cylindrical (flat)
