Availability: | |
---|---|
NATV 8 PPX/NAST8ZZUUR
EASIER / TKW
Needle Roller Bearings
USD$2/pcs
Type: Roller Follower Bearings,Crowned outer ring
Designation: NAST 8 ZZUUR
Interchange:
SKF NATV 8 PPX Bearings, INA NATR 8 Bearings,
FAG NATR 8 Bearings, MCGILL: MCYRR-8 Bearings
IKO: NAST 8 ZZUUR
Dimension: 8*24*14mm
Weight: 0.04kg

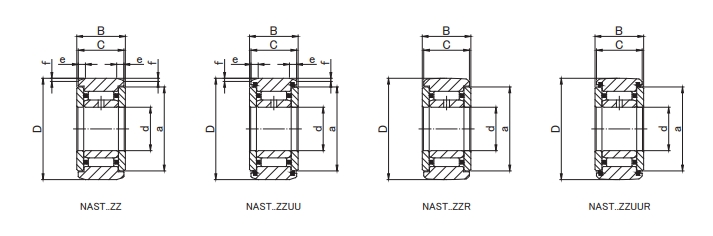

Separable Roller Followers, Shield Type
Roller Followers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick walled outer ring. Roller Followers include separable and non-separable types. These bearings are available in a variety of types to suit almost any kind of application. They are widely used for cam mechanisms and for linear motions of conveying equipment.
Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a cylindrical running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.
High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature
TKW Bearings (China Bearing manufacturer) can manufacturer the complete needle roller bearings, cam rollers (yoke-type track rollers based on ball bearings), support rollers (yoke-type track rollers), cam followers (stud-type track rollers), we alway supply best bearing solutions for the applications, no MOQ Limited, most of order can be shipment within 24hours.
Type: Roller Follower Bearings,Crowned outer ring
Designation: NAST 8 ZZUUR
Interchange:
SKF NATV 8 PPX Bearings, INA NATR 8 Bearings,
FAG NATR 8 Bearings, MCGILL: MCYRR-8 Bearings
IKO: NAST 8 ZZUUR
Dimension: 8*24*14mm
Weight: 0.04kg
Separable Roller Followers, Shield Type
Roller Followers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick walled outer ring. Roller Followers include separable and non-separable types. These bearings are available in a variety of types to suit almost any kind of application. They are widely used for cam mechanisms and for linear motions of conveying equipment.
Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a cylindrical running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.
High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature
TKW Bearings (China Bearing manufacturer) can manufacturer the complete needle roller bearings, cam rollers (yoke-type track rollers based on ball bearings), support rollers (yoke-type track rollers), cam followers (stud-type track rollers), we alway supply best bearing solutions for the applications, no MOQ Limited, most of order can be shipment within 24hours.
