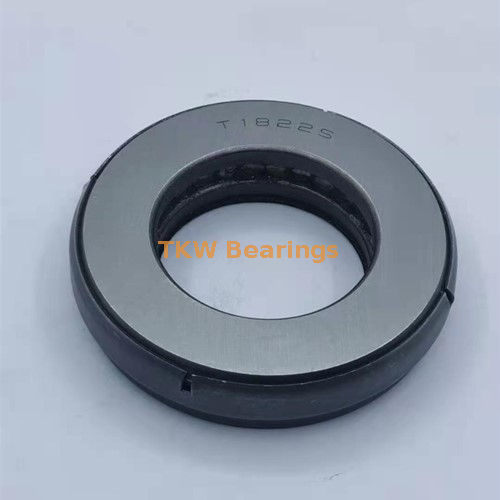

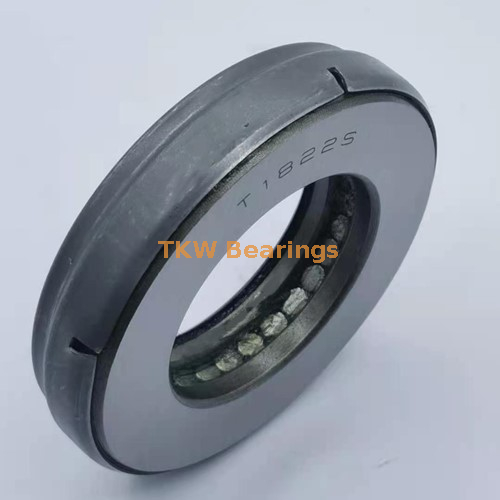

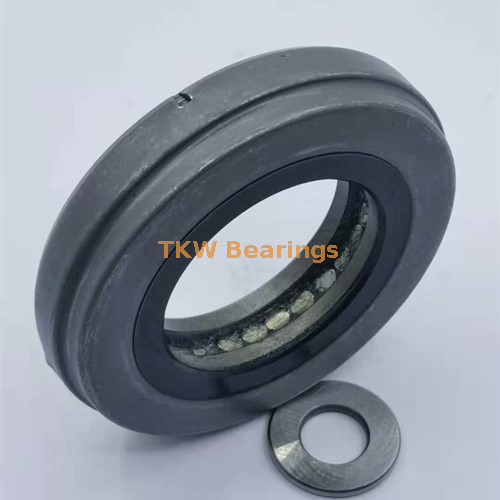

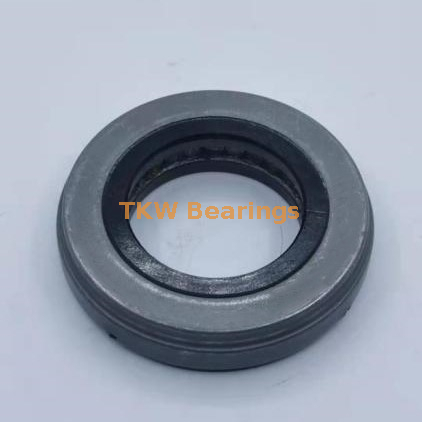

Heavy Duty T1822S Sealed Thrust Tapered Bearings For Class 8 Trailer Landing Gear

Designation: T1822S Bearings

Type: Thrust Roller Taper Bearings

Dimension: 46.279*83.82*17.374mm

Inch size: 1.822*3.3*0.684inch

Application: King Pin Thrust Bearings

Truck Steer Axles, Trailer Landing Gear

Weight: 0.3kg

Stock: 200pcs

Materials: Chrome Steel

Feature: Full Rollers

Brand: EASIER

Origin: China

TIMKEN Code: T1822-904A3 Bearings

RBC Code: T1822S-12 Thrust Bearings

Suffix of RBC Tapered Thrust Bearings

T- Tapered Thrust Bearings

S- Sealed

W- Oil Holes in Retainer

C - Cylidrical Roller

GX - Greased

Indicates Bore Diameter of RBC Tapered Thrust Bearings

T1822S =1.822" bore

T88 = .885" bore

T101 = 1.01" bore

Thrust Tapered Roller Bearings T1822S for King Pin

· Comprised of two thrust tapered races, rollers and an outside retainer which holds the components together during shipping and installation.

· Full complement design (cageless).

· These thrust bearings are specifically designed for oscillating applications.

· Types TTC, TTCS and TTCL are identical except for the outside retainer construction.

               King Pin Bearing with Tapered Roller                       King Pin Bearing with Ball             King Pin Bearing with Metal Shell

King Pin Bearings T1822S also named King Pin Thrust Bearings, are consist of two pieces washer ( the bearing rings), steel ball or steel rollers,cages, rubber seals, metal shell (normally we use chrome steel materials). the same with thrust ball bearings or thrust roller bearings, the King Pin Bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.

The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately. What is the different is the thrust ball bearings or thrust roller bearings have no metal shell design. The materials we adopt chrome steel, and steel ball or steel rollers.

Applications of King Pin Bearings T189S

-- Heavy Vehicles & other automobiles,

-- Marine engines,Agricultural equipment's,

-- Steering,

-- Light Vehicles,

-- Industrial movers,

-- Fork lift trucks,

-- Conveyors,

-- Construction machinery,

Thrust Roller Bearings mainly use for these bearings is heavy truck and trailer applications including steer axles and landing gears.  Due to the tapered roller design these bearings can also be designed into a variety of other applications where high thrust load capacity is required. The rollers and thrust races are manufactured from high grade bearing steel and are case hardened for excellent wear life and fracture toughness. The EASIER designs utilize a full complement of rollers to maximize load capacity and minimize roller skewing.

King Pin Thrust Bearings including Thrust ball bearings, thrust roller cylindrical bearings, thrust tapered roller bearings, most of them are with shelled, rubber seals or metal shelled. with cage or without cage.

EASIER is one of China Bearing manufacturers and exporter of King Pin Bearings with steel ball or steel rollers, also written as king-pin or king pin, is a very important component in any vehicle. It is the main pivot in the mechanism of steering in any vehicle. King Pins are also used as fifth wheel coupling apparatus in vehicles. King Pins have an important property of being able to carry heavier weights and therefore can be mostly seen in Large or Heavy Vehicles.

EASIER/TKW as Top China Bearing manufacturer, it Can manufacture and supply complete series King Pin Bearings T1822S & King Pin Thrust Bearings, Thrust Ball bearings and Thrust Roller Bearings. there are few bearing manufacturer in the world manufacturer this kinds of bearings like Fersa from Spain, RBC, TIMKEN from USA, TURBO,TKW from China etc. Our products are the same design and replace them for customers on the market.
