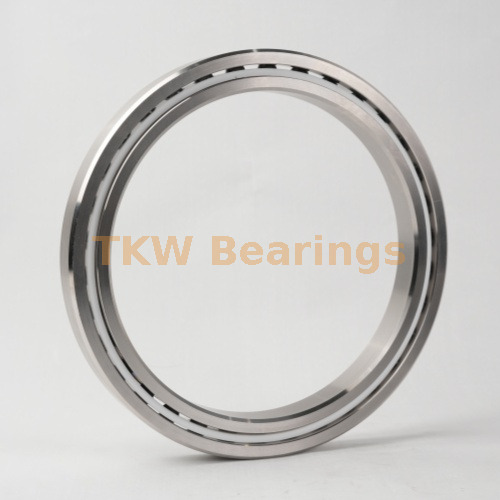

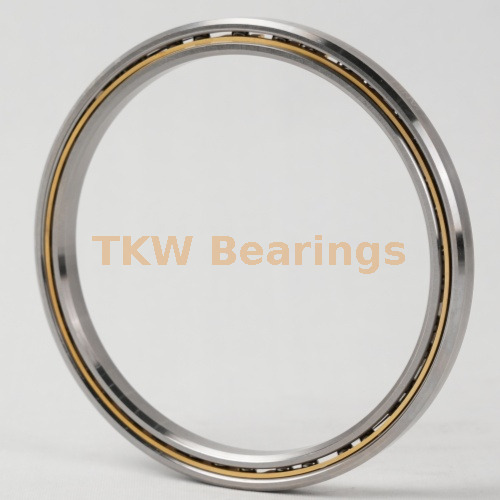

KC180AR0 Brass Cage Low-Speed High-Precision Single-Row Angular Contact Thin-Section Bearing - Buy Chinese bearing manufacturers, High precision bearing manufacturer, Single-row angular contact ball bearings Product on TKW Bearings

PRODUCT

You are here: Home » Products » Thin Section Bearings » KC180AR0 Brass Cage High-Precision Single-Row Angular Contact Thin-Section Bearings

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Category

Contact Us

+86-635-8509787
+86-13280450757
sales@xrbearing.com
Yandian Industrial Zone, Liaocheng City, ShanDong Province. China
Skype: brandbearings

Model:
KC180AR0
Brand:
TKW
Item:
thin section bearing

Product Description

KC180AR0

If you have any questions, please feel free to email us!

Overview
Bearing Model	KC180ARO
Brand: TKW ®	Interchangeable With:KAYDON
Characteristics
System of Measurement	Inch
Bearing Type	Ball
Seal Type	Open
Thin Section Bearings Type	Reali-Slim Open Bearings
For Load Direction	Angular Contact
Construction	Single Row
Tolerance Class	ABEC-3/ABEC-5/ABEC-7/ABEC-9
Series	KC 3/8"x3/8"
Dimensions
Bore Dia	18"
Bore Dia Tolerance	-0.0016"-0"
Outer Dia	18.75"
Outer Dia Tolerance	-0.0016"-0"
Width	0.375"
Width Tolerance	-.0010"-0"
Contact Angle	30°
External Diameter On Inner Ring	18.277"
Internal Diameter On Outer Ring (Small Side Face)	18.473"
Internal Diameter On Outer Ring (Large Side Face)	18.523"
Radial Clearance	0.0000-0.0005"
Material
Ring Material	Chrome Steel/440C stainless steel
Ball Material	Chrome Steel/440C stainless steel
Cage Material	Copper retainer/PEEK/PTFE
Temperature Range	-30℃ to 110℃
Weight	1.83lbs

The TKW Bearing part series KC180AR0 is a potential replacement for these common bearing part numbers.

TKW	KAYDON	RBC	INA	SSB	SILVER	NSK
KC180AR0	KC180AR0	KC180AR0*RBC	CSEC180	RC180AR0	SC180AR0	-

TKW is a manufacturer specializing in high-precision bearings. Its product portfolio includes high-precision hybrid ceramic ball bearings, ultra-thin-section bearings, servo motor bearings, high-precision stainless steel bearings, vacuum pump bearings, magnetic levitation bearings, thin-section crossed roller bearings, reactor bearings, full ceramic bearings, bearings for the food and beverage industry, new energy vehicle bearings, excavator bearings, construction machinery bearings, and custom-engineered bearings. The products meet P5, P4, and P2 precision standards, and customized services are available to meet specific customer requirements.
