Model:
KC250AR0
Brand:
TKW
Item:
thin section bearing

Product Description

KC250AR0

KC250AR0(1).pdf

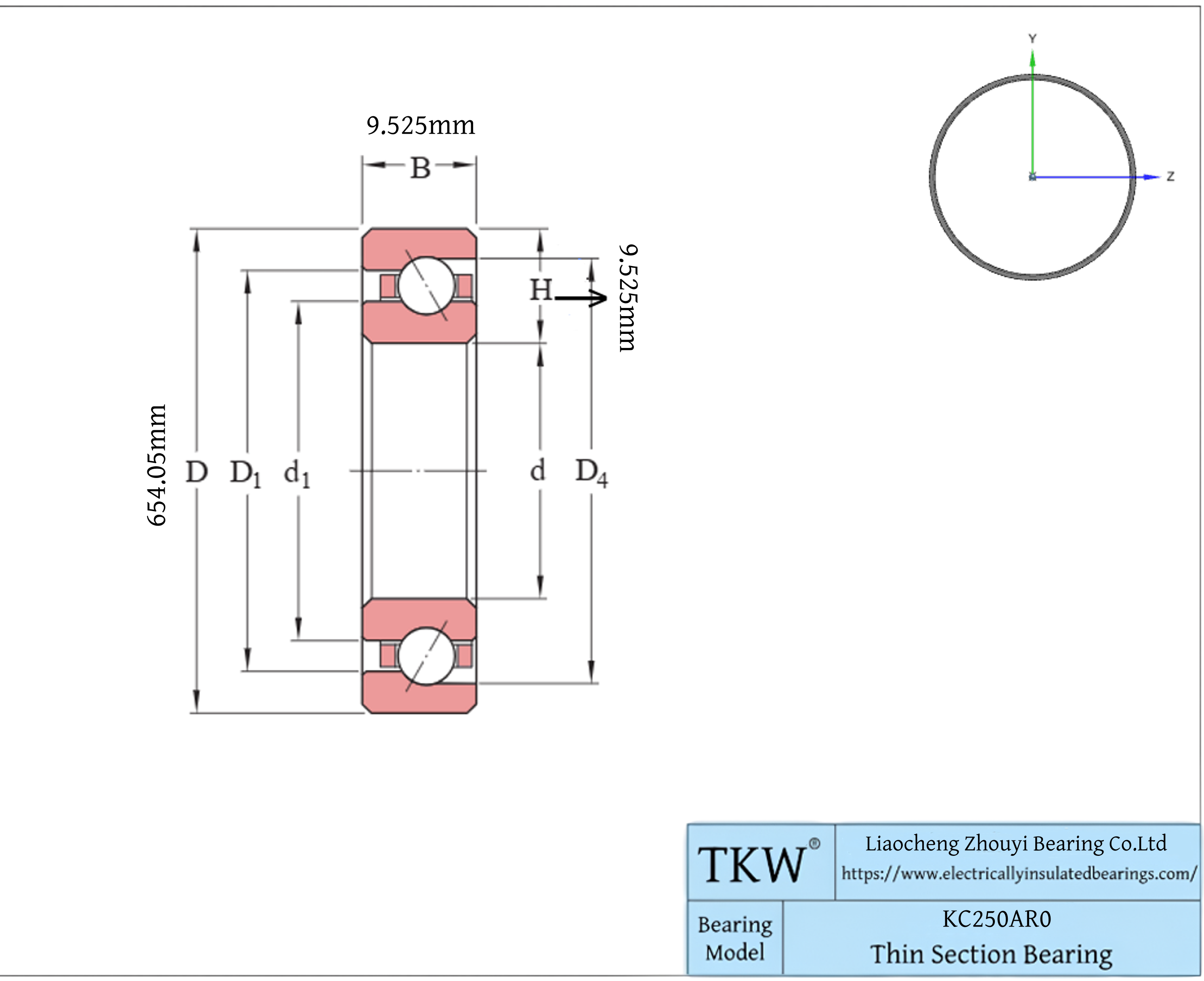

KC250AR0 Thin Section Bearings
d	635mm	aperture
D	654.05mm	outer diameter
H	9.525mm	Radial cross-section
B	9.525mm	width
d1	≈642.036mm	Inner ring rib diameter
D1	≈647.014mm	Outer ring rib diameter
	4.763mm	Ball diameter
	1.016mm	Maximum chamfer radius of shaft or bearing

If you have any questions, please feel free to email us!

The TKW Bearing part series KC250AR0 is a potential replacement for these common bearing part numbers.

TKW	KAYDON	RBC	INA	SSB	SILVER	NSK
KC250AR0	KC250AR0	KC250AR0*RBC	CSEC250	RC250AR0	SC250AR0	-
