Model:
KC300AR0
Brand:
TKW
Item:
thin section bearing

Product Description

KC300AR0

KC300AR0(1).pdf

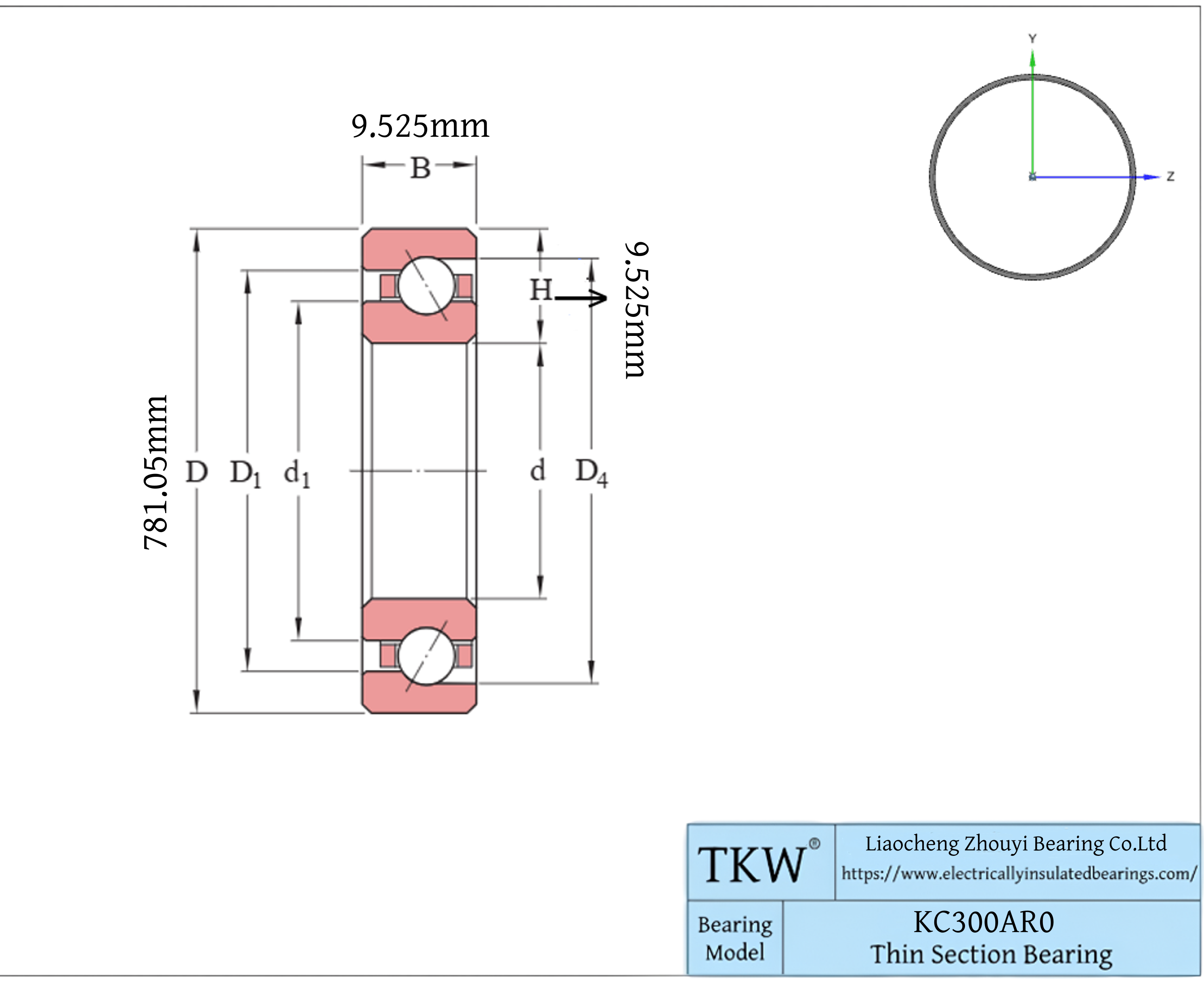

size
d	762.00mm	aperture
D	781.05mm	outer diameter
H	9.525mm	Radial cross-section
B	9.525mm	width
d1	≈769.036mm	Inner ring rib diameter
D1	≈774.014mm	Outer ring rib diameter
D4	≈774.294mm	Outer ring groove diameter
	4.7625mm	Ball diameter
	0.9525mm	Maximum chamfer radius of shaft or bearing

If you have any questions, please feel free to email us!

The TKW Bearing part series KC250AR0 is a potential replacement for these common bearing part numbers.

TKW	KAYDON	RBC	INA	SSB	SILVER	NSK
KC300AR0	KC300AR0	KC300AR0*RBC	CSEC300	RC300AR0	SC300AR0	-
