Model:
KF060AR0
Brand:
TKW
Item:
thin section bearing

Product Description

KF060AR0

KF060AR0.pdf

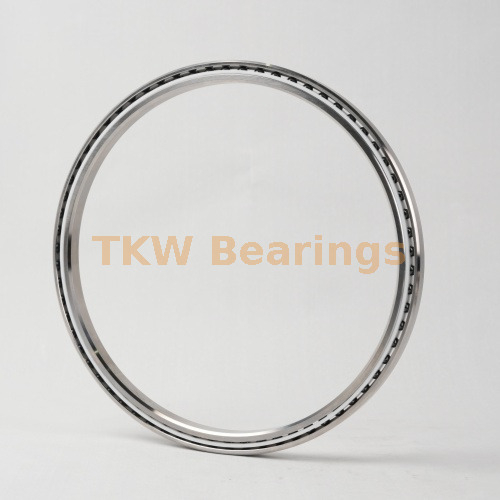

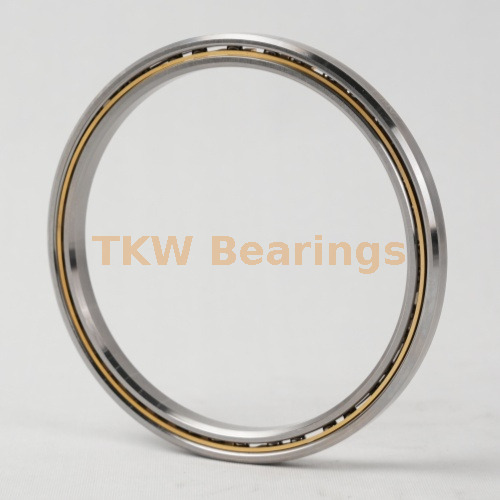

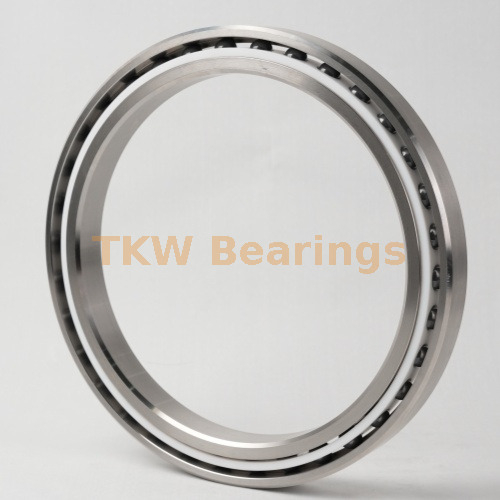

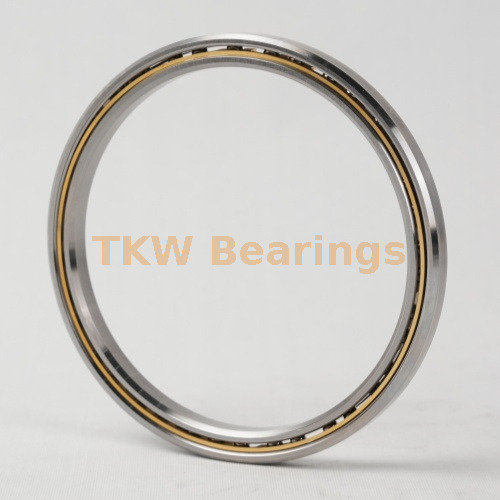

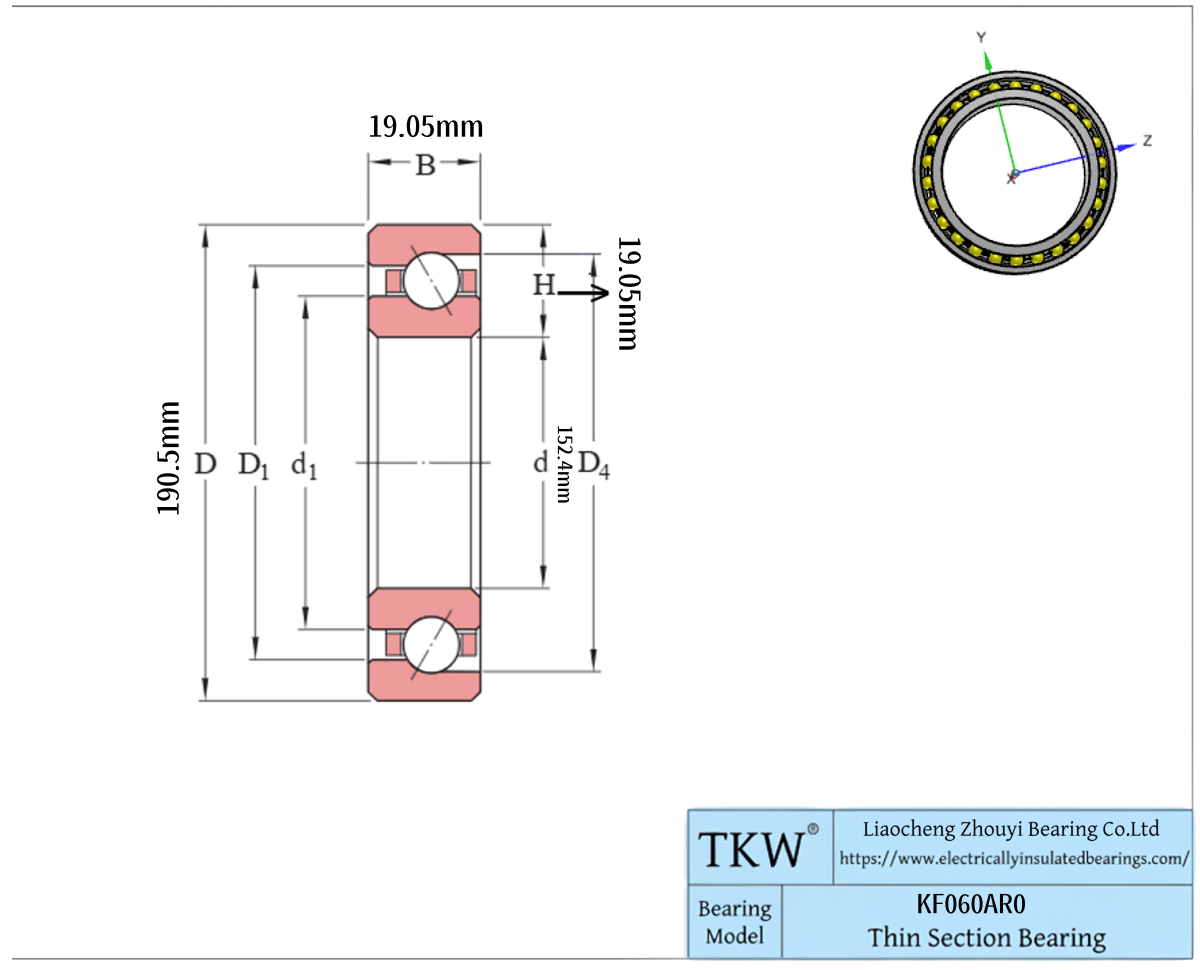

KF060ARO Thin Section Bearings
d	152.4mm	aperture
D	190.5mm	outer diameter
H	19.05mm	Radial cross-section
B	19.05mm	width
d1	≈166.497mm	Inner ring rib diameter
D1	≈176.403mm	Outer ring rib diameter
D4	≈180.67mm	Outer ring groove diameter
	9.525mm	Ball diameter
	2.032mm	Maximum chamfer radius of shaft or bearing

If you have any questions, please feel free to email us!

The TKW Bearing part series KF060AR0 is a potential replacement for these common bearing part numbers.

KAYDON	RBC	INA	SSB	SILVER	NSK
KF060AR0	KF060AR0*RBC	CSEF060	RF060AR0	SF060AR0	NBA15219

TKW is a manufacturer specializing in high-precision bearings. Its product portfolio includes high-precision hybrid ceramic ball bearings, ultra-thin-section bearings, servo motor bearings, high-precision stainless steel bearings, vacuum pump bearings, magnetic levitation bearings, thin-section crossed roller bearings, reactor bearings, full ceramic bearings, bearings for the food and beverage industry, new energy vehicle bearings, excavator bearings, construction machinery bearings, and custom-engineered bearings. The products meet P5, P4, and P2 precision standards, and customized services are available to meet specific customer requirements.
