Model:
KF070AR0
Brand:
TKW
Item:
thin section bearing

Product Description

KF070AR0

KF070AR0.pdf

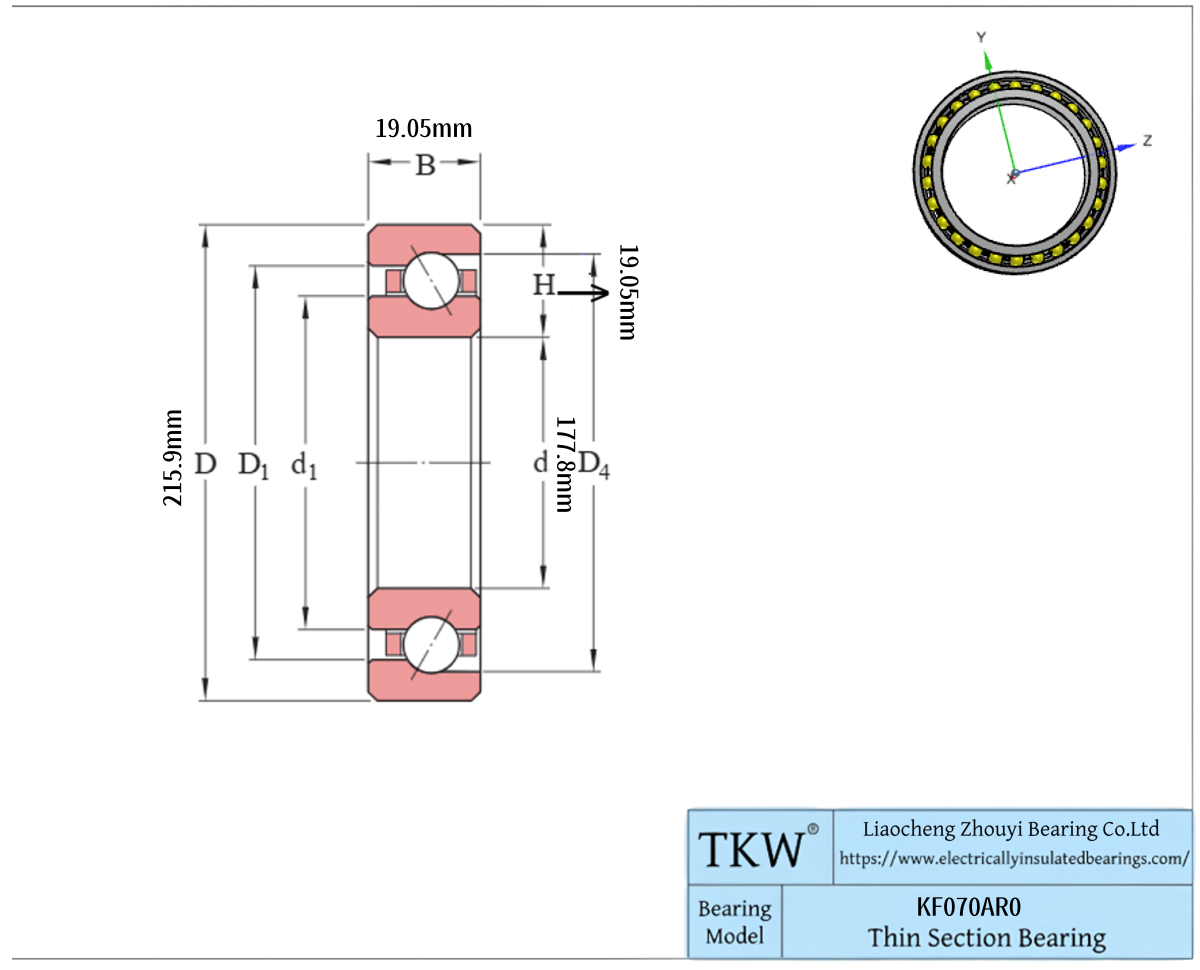

size
d	177.8mm	aperture
D	215.9mm	outer diameter
H	19.05mm	Radial cross-section
B	19.05mm	width
d1	≈191.897mm	Inner ring rib diameter
D1	≈201.803mm	Outer ring rib diameter
D4	≈206.07mm	Outer ring groove diameter
	9.525mm	Ball diameter
	2.032mm	Maximum chamfer radius of shaft or bearing

If you have any questions, please feel free to email us!

The TKW Bearing part series KF070AR0 is a potential replacement for these common bearing part numbers.

KAYDON	RBC	INA	SSB	SILVER	NSK
KF070AR0	KF070AR0*RBC	CSEF070	RF070AR0	SF070AR0	NBA17719

TKW is a manufacturer specializing in high-precision bearings. Its product portfolio includes high-precision hybrid ceramic ball bearings, ultra-thin-section bearings, servo motor bearings, high-precision stainless steel bearings, vacuum pump bearings, magnetic levitation bearings, thin-section crossed roller bearings, reactor bearings, full ceramic bearings, bearings for the food and beverage industry, new energy vehicle bearings, excavator bearings, construction machinery bearings, and custom-engineered bearings. The products meet P5, P4, and P2 precision standards, and customized services are available to meet specific customer requirements.
