Linear Guideways

PMI Linear Guideway
Hiwin Linear Guideways
THK Linear Guideways
ABBA Linear Guideways
CPC LINEAR Guideway
IKO Linear Motion Rolling Guides
INA Linear guidance systems
NSK Linear Guides
Availability:
Inquire Add to Basket

A groove or ridge made of metal or other materials that can bear, fix, guide moving devices or equipment and reduce friction. The longitudinal grooves or ridges on the surface of the guide rail are used to guide and fix machine parts, special equipment, instruments, etc. Guide rails, also known as slide rails, linear guide rails, linear slide rails, are used in linear reciprocating motion applications. They have a higher rated load than linear bearings and can bear a certain torque at the same time to achieve high-precision linear motion under high load.

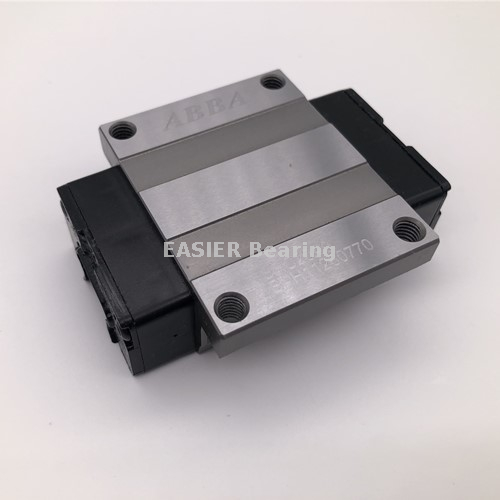

Linear Guideway


The application of guide rails in our daily life is also very common. For example, the sliding grooves of sliding doors, the chute on the upper part of curtains and the rails of trains are all specific applications of guide rails. The guide rail can also be used on any machine or equipment that requires sliding sliding.


1. Environmental protection and self-lubricating design, low friction;

2. Four-direction equal load design;

3. High precision, saving maintenance;

4. High speed and low noise;

5. The interchangeability of the slider;

6. International standard specifications;

7. Fully sealed oil seal;

8. High rigidity design of four rows of steel balls;

9. Smooth operation.


linear_guideway_dust_proof_options_large



Linear guideways provides linear motion by re-circulating rolling elements between a profiled rail and a bearing block. The coefficient of friction on a linear guideway is only 1/50 compared to a traditional slide and they are able to take loads in all directions. With these features, a linear guideway can achieve high precision and greatly enhanced moving accuracy.  EASIER Bearing offers multiple linear guideway series, each featuring different options for sizes, loading capabilities, accuracies, and more.


MSA Series Heavy Load Type Linear Guideway


MSA_LA


Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 T T1 N G K d1 Grease Nipple
H W L
MSA 15A 24 47 56.3 16 4.2 38 30 M5 × 11 39.3 7 11 4.3 7 3.2 3.3 G-M4
MSA 20A 30 63 72.9 21.5 5 53 40 M6 × 10 51.3 7 10 5 12 5.8 3.3 G-M6
MSA20LA 88.8 67.2
MSA 25A 36 70 81.6 23.5 6.5 57 45 M8 × 16 59 11 16 6 12 5.8 3.3 G-M6
MSA25LA 100.6 78
MSA30A 42 90 97 31 8 72 52 M10 × 18 71.4 11 18 7 12 6.8 3.3 G-M6
MSA30LA 119.2 93.6
MSA 35A 48 100 111.2 33 9.5 82 62 M10 × 21 81 13 21 8 11.5 8.6 3.3 G-M6
MSA35LA 136.6 106.4
MSA 45A 60 120 137.7 37.5 10 100 80 M12 × 25 102.5 13 25 10 13.5 10.6 3.3 G-PT1/8
MSA45LA 169.5 134.3


Model No. Rail dimension Basic load rating Weight
Width Height Pitch E D × h × d Dynamic C Static Carriage Rail
W1 H1 P std. kN Co kg kg/m





kN

MSA 15A 15 15 60 20 7.5 × 5.3 × 4.5 11.8 18.9 0.18 1.5
MSA 20A 20 18 60 20 9.5 × 8.5 × 6 19.2 29.5 0.4 2.4
MSA 20LA 23.3 39.3 0.52
MSA 25A 23 22 60 20 11 × 9 × 7 28.1 42.4 0.62 3.4
MSA 25LA 34.4 56.6 0.82
MSA 30A 28 26 80 20 14 × 12 × 9 39.2 57.8 1.09 4.8
MSA 30LA 47.9 77 1.43
MSA 35A 34 29 80 20 14 × 12 × 9 52 75.5 1.61 6.6
MSA 35LA 63.6 100.6 2.11
MSA 45A 45 38 105 22.5 20 × 17 × 14 83.8 117.9 2.98 11.5
MSA 45LA 102.4 157.3 3.9


Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 T T1 T2 N d1 Grease Nipple
H W L
MSA 15E 24 47 56.3 16 4.2 38 30 M5 × 7 39.3 7 11 7 4.3 3.3 G-M4
MSA 20E 30 63 72.9 21.5 5 53 40 M6 × 10 51.3 7 10 10 5 3.3 G-M6
MSA 20LE 88.8 67.2
MSA 25E 36 70 81.6 23.5 6.5 57 45 M8 × 10 59 11 16 10 6 3.3 G-M6
MSA 25LE 100.6 78
MSA 30E 42 90 97 31 8 72 52 M10 × 10 71.4 11 18 10 7 3.3 G-M6
MSA 30LE 119.2 93.6
MSA 35E 48 100 111.2 33 9.5 82 62 M10 × 13 81 13 21 13 8 3.3 G-M6
MSA 35LE 136.6 106.4
MSA 45E 60 120 137.7 37.5 10 100 80 M12 × 15 102.5 13 25 15 10 3.3 G-PT 1/8
MSA 45LE 169.5 134.3
MSA 55E 70 140 161.5 43.5 13 116 95 M14 × 17 119.5 19 32 17 11 3.3 G-PT 1/8
MSA 55LE 199.5 157.5
MSA 65E 90 170 199 53.5 15 142 110 M16 × 23 149 21.5 37 23 19 3.3 G-PT 1/8
MSA 65LE 253 203
Model No.                         Rail dimension Basic load rating Weight
Width Height Pitch E D × h × d Dynamic C StaticCo Carriage Rail
W1 H1 P std. kN kN kg kg/m








MSA 15E 15 15 60 20 7.5 × 5.3 × 4.5 11.8 18.9 0.18 1.5
MSA 20E 20 18 60 20 9.5 × 8.5 × 6 19.2 29.5 0.4 2.4
MSA 20LE 23.3 39.3 0.52
MSA 25E 23 22 60 20 11 × 9 × 7 28.1 42.4 0.62 3.4
MSA 25LE 34.4 56.6 0.82
MSA 30E 28 26 80 20 14 × 12 × 9 39.2 57.8 1.09 4.8
MSA 30LE 47.9 77 1.43
MSA 35E 34 29 80 20 14 × 12 × 9 52 75.5 1.61 6.6
MSA 35LE 63.6 100.6 2.11
MSA 45E 45 38 105 22.5 20 × 17 × 14 83.8 117.9 2.98 11.5
MSA 45LE 102.4 157.3 3.9
MSA 55E 53 44 120 30 23 × 20 × 16 123.6 169.8 4.17 15.5
MSA 55LE 151.1 226.4 5.49
MSA 65E 63 53 150 35 26 × 22 × 18 198.8 265.3 8.73 21.9
MSA 65LE 253.5 375.9 11.89
Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 T N G K d1 Grease Nipple
H W L
MSA 15S 28 34 56.3 9.5 4.2 26 26 M4 x 5 39.3 7.2 8.3 7 3.2 3.3 G-M4
MSA 20S 30 44 72.9 12 5 32 36 M5 x 6 51.3 8 5 12 5.8 3.3 G-M6
MSA 20LS 88.8 50 67.2
MSA 25S 40 48 81.6 12.5 6.5 35 35 M6 x 8 59 10 10 12 5.8 3.3 G-M6
MSA 25LS 100.6 50 78
MSA 30S 45 60 97 16 8 40 40 M8 x 10 71.4 11.7 10 12 6.8 3.3 G-M6
MSA 30LS 119.2 60 93.6
MSA 35S 55 70 111.2 18 9.5 50 50 M8 x 12 81 12.7 15 11.5 8.6 3.3 G-M6
MSA 35LS 136.6 72 106.4
MSA 45S 70 86 137.7 20.5 10 60 60 M10 x 17 102.5 16 20 13.5 10.6 3.3 G-PT1/8
MSA 45LS 169.5 80 134.3
MSA 55S 80 100 161.5 23.5 13 75 75 M12 x 18 119.5 18 21 13.5 8.9 3.3 G-PT1/8
MSA 55LS 199.5 95 157.5
MSA 65S 90 126 199 31.5 15 76 70 M16 x 20 149 23 19 13.5 8.9 3.3 G-PT1/8
MSA 65LS 253 120 203
Model No. Rail dimension Basic load rating Weight
Width Height Pitch E D × h × d Dynamic C StaticCo Carriage Rail
W1 H1 P std. kN kN kg kg/m








MSA 15S 15 15 60 20 7.5 x 5.3 x 4.5 11.8 18.9 0.18 1.5
MSA 20S 20 18 60 20 9.5 x 8.5 x 6 19.2 29.5 0.3 2.4
MSA 20LS 23.3 39.3 0.39
MSA 25S 23 22 60 20 11 x 9 x7 28.1 42.4 0.52 3.4
MSA 25LS 34.4 56.6 0.68
MSA 30S 28 26 80 20 14 x 12 x 9 39.2 57.8 0.86 4.8
MSA 30LS 47.9 77 1.12
MSA 35S 34 29 80 20 14 x 12 x 9 52 75.5 1.45 6.6
MSA 35LS 63.6 100.6 1.9
MSA 45S 45 38 105 22.5 20 x 17 x 14 83.8 117.9 2.83 11.5
MSA 45LS 102.4 157.3 3.7
MSA 55S 53 44 120 30 23 x 20 x 16 123.6 169.8 4.12 15.5
MSA 55LS 151.1 226.4 4.91
MSA 65S 63 53 150 35 26 x 22 x 18 198.8 265.3 6.43 21.9
MSA 65LS 253.5 375.9 8.76


Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 T T1 N G K d1 Grease Nipple
H W L
MSB 15TE 24 52 40.2 18.5 4.5 41 - M5 x 7 23.5 5 7 5.5 5.5 5.1 3.3 G-M4
MSB 15E 57.2 26 40.5
MSB 20TE 28 59 48 19.5 6 49 - M6 x 9 29 5 9 5.5 12 5.9 3.3 G-M6
MSB 20E 67 32 48
MSB 25TE 33 73 60.2 25 7 60 - M8 x 10 38.7 7 10 6 12 6.2 3.3 G-M6
MSB 25E 82 35 60.5
MSB 30TE 42 90 68 31 9.5 72 - M10 x 10 43.3 7 10 8 12 6.3 3.3 G-M6
MSB 30E 96.7 40 72
MSB 35TE 48 100 78 33 9.5 82 - M10 x 13 46 9 13 8.5 12 9.8 3.3 G-M6
MSB 35E 112 50 80
MSB 35LE 137.5 72 105.5
Model No. Rail dimension Static moment rating Weight
Width Height Pitch E D × h × d Mp MY MR Carriage Rail
W1 H1 P std. kN-m kN-m kN-m kg kg/m




Single* Double* Single* Double*


MSB 15TE 15 12.5 60 20 6 x 4.5 x 3.5 0.04 0.26 0.04 0.26 0.07 0.12 1.2
MSB 15E (7.5 x 5.3 x 4.5) 0.1 0.61 0.1 0.61 0.13 0.21
MSB 20TE 20 15 60 20 9.5 x 8.5 x 6 0.07 0.44 0.07 0.44 0.14 0.2 2
MSB 20E 0.18 0.97 0.18 0.97 0.24 0.34
MSB 25TE 23 18 60 20 11 x 9 x 7 0.13 0.91 0.13 0.91 0.26 0.39 3
MSB 25E 0.35 1.87 0.35 1.87 0.43 0.6
MSB 30TE 28 23 80 20 11 x 9 x 7 0.23 1.39 0.23 1.39 0.45 0.65 4.4
MSB 30E 0.6 3.15 0.6 3.15 0.74 1.08
MSB 35TE 34 27.5 80 20 14 x 12 x 9 0.34 2.81 0.34 2.81 0.75 0.91 6.2
MSB 35E 0.93 5.47 0.93 5.47 1.28 1.61
MSB 35LE 1.6 8.67 1.6 8.67 1.67 1.8 6.6
Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 T N G K d1 Grease Nipple
H W L
MSB 15TS 24 34 40.2 9.5 4.5 26 - M4 x 6 23.5 6 5.5 5.5 5.1 3.3 G-M4
MSB 15S 57.2 26 40.5
MSB 20TS 28 42 48 11 6 32 - M5 x 7 29 6 5.5 12 5.9 3.3 G-M6
MSB 20S 67 32 48
MSB 25TS 33 48 60.2 12.5 7 35 - M6 x 9 38.7 8 6 12 6.2 3.3 G-M6
MSB 25S 82 35 60.5
MSB 30TS 42 60 68 16 9.5 40 - M8 x 12 43.3 8 8 12 6.3 3.3 G-M6
MSB 30S 96.7 40 72
MSB 35TS 48 70 78 18 9.5 50 - M8 x 12 46 12.5 8.5 11.5 9.8 3.3 G-M6
MSB 35S 112 50 80
MSB 35LS 137.5 72 105.5
Model No. Rail dimension Static moment rating Weight
Width Height Pitch E D × h × d Mp MY MR Carriage Rail
W1 H1 P std. kN-m kN-m kN-m kg kg/m




Single* Double* Single* Double*


MSB 15TS 15 12.5 60 20 6 x 4.5 x 3.5 0.04 0.26 0.04 0.26 0.07 0.09 1.2
MSB 15S (7.5 x 5.3 x 4.5) 0.1 0.61 0.1 0.61 0.13 0.16
MSB 20TS 20 15 60 20 9.5 x 8.5 x 6 0.07 0.44 0.07 0.44 0.14 0.16 2
MSB 20S 0.18 0.97 0.18 0.97 0.24 0.26
MSB 25TS 23 18 60 20 11 x 9 x 7 0.13 0.91 0.13 0.91 0.26 0.29 3
MSB 25S 0.35 1.87 0.35 1.87 0.43 0.45
MSB 30TS 28 23 80 20 11 x 9 x 7 0.23 1.39 0.23 1.39 0.45 0.52 4.4
MSB 30S 0.6 3.15 0.6 3.15 0.74 0.86
MSB 35TS 34 27.5 80 20 14 x 12 x 9 0.34 2.81 0.34 2.81 0.75 0.81 6.2
MSB 35S 0.93 5.47 0.93 5.47 1.28 1.13
MSB 35LS 1.6 8.67 1.6 8.67 1.67 1.49
Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C d1 Grease Nipple
H W L
MSG21 E 21 68 59 15.5 3 60 29 2.5 G-M6
MSG27 E 27 80 72.2 19 3 70 40 3.3 G-M6
MSG35 E 35 120 105.2 25.5 4 107 60 3.3 G-M6










Model No. Rail dimension Basic load rating Weight
Width Height Pitch E D × h × d Dynamic C StaticCo Carriage Rail
W1 H1 P std. kN kN kg kg/m








MSG21 E 37 11 50 15 7.5×5.3×4.5 7 12.1 0.25 2.86
MSG27 E 42 15 60 20 7.5×5.3×4.5 12.4 20.2 0.31 4.49
MSG35 E 69 19 80 20 11×9×7 30.7 48.6 0.99 9.4
Model No. External dimension Carriage dimension
Height Width Length W2 H2 F S×l L1 T N d1 Grease Nipple
H W L
MSG21 S 21 54 59 8.5 3 22 M5×6 40 8 5 2.5 G-M6
MSG27 S 27 62 72.2 10 3 24 M6×6 51.8 10 6 3.3 G-M6
MSG35 S 35 100 105.2 15.5 4 40 M8×8 77.6 10 7 3.3 G-M6













Model No. Rail dimension Static moment rating Weight
Width Height Pitch E D × h × d Mp MY MR Carriage Rail
W1 H1 P std. kN-m kN-m kN-m kg kg/m




Single* Double* Single* Double*


MSG21 S 37 11 50 15 7.5×5.3×4.5 0.08 0.46 0.08 0.46 0.22 0.25 2.86
MSG27 S 42 15 60 20 7.5×5.3×4.5 0.15 0.87 0.15 0.87 0.42 0.31 4.49
MSG35 S 69 19 80 20 11×9×7 0.65 3.6 0.65 3.6 1.67 0.99 9.4


Unit:mm










Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 T G
H W L
MSC 7M 8 17 23.6 5 1.5 12 8 M2 × 2.5 13.5 6.5 0.8
MSC 7LM 33 13 22.9
MSC 9M 10 20 31.1 5.5 2.2 15 10 M3 × 3 19.9 7.8 1
MSC 9LM 41.3 16 30.1
MSC 12M 13 27 34.6 7.5 3 20 15 M3 × 3.6 20.5 10 1.5
MSC 12LM 47.5 20 33.4
MSC 15M 16 32 43.5 8.5 4 25 20 M3 × 4.2 26.9 12 G-M3
MSC 15LM 60.6 25 44
Model No. Rail dimension Basic load rating Weight
Width Height Pitch E D × h × d Dynamic C Static Carriage Rail
W1 H1 P std. kN Co g kg/m





kN

MSC 7M 7 0 4.7 15 5 4.2 x 2.3 x 2.4 0.94 1.28 7 0.22
MSC 7LM -0.05 1.36 2.24 13
MSC 9M 9 0 5.5 20 7.5 6 x 3.3 3.5 1.71 2.24 15 0.33
MSC 9LM -0.05 2.52 3.92 24
MSC 12M 12 0 7.5 25 10 6 x 4.5 x 3.5 2.62 3.52 40 0.63
MSC 12LM -0.05 3.77 5.72 60
MSC 15M 15 0 9.5 40 15 6 x 4.5 x 3.5 4.52 5.7 71 1.02
MSC 15LM -0.05 6.47 9.26 100
Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 T G
H W L
MSD 7M 9 25 30.8 5.5 2 19 10 M3 × 3 20.6 3.9 1.5
MSD 7LM 40.5 19 30.3
MSD 9M 12 30 38.7 6 3.7 21 12 M3 × 3 27.1 5 1.5
MSD 9LM 50.7 23 24 39.1
MSD 12M 14 40 44.5 8 4 28 15 M3 × 4 31 10 1.5
MSD 12LM 60 28 46.5 10
MSD 15M 16 60 55.5 9 4 45 20 M4 × 4.5 40.3 12 1.5
MSD 15LM 74.5 35 59.3 12
Model No. Rail dimension Static moment rating Weight
Width Height Pitch E D × h × d Mp MY MR Carriage Rail
W1 H1 P std. N-m N-m N-m g kg/m




Single* Double* Single* Double*


MSD 7M 14 0 5.2 30 10 6 x 3.2 x 3.5 6.6 39 6.6 39 17.7 23 0.55
MSD 7LM -0.05 17.5 84 17.5 84 27.3 31
MSD 9M 18 0 7 30 10 6 x 4.5 x 3.5 15.6 90.3 15.6 90.3 40.7 41 0.96
MSD 9LM -0.05 33.8 175.2 33.8 175.2 59.5 57
MSD 12M 24 0 8.5 40 15 8 x 4.5 x 4.5 26.3 151.5 26.3 151.5 76.3 70 1.55
MSD 12LM -0.05 57 294.4 57 294.4 116.6 101
MSD 15M 42 0 9.5 40 15 8 x 4.5 x 4.5 62.5 301.4 62.5 301.4 216.9 150 2.99
MSD 15LM -0.05 135.2 616.1 135.2 616.1 325.3 126
Model No. External dimension Carriage dimension
Height Width Length B1 B3 B4 B S×l W H2 N G Grease Nipple
H L1 L
MSH20 LS 57 78 88.8 13 9.1 37 24 M5×8 42.7 5 25 12 G-M6
MSH30 LS 82 93.6 119.2 21 11 53 32 M6×10 57 8 35 12 G-M6














Model No. Rail dimension Static moment rating Weight

Width Width Height Pitch E D × h × d Max Mp MY Carriage Rail

W1 W2 H1 P std. Length kN-m kN-m kg kg/m













MSH20 LS 20 49 18 60 20 9.5×8.5×6 3000 0.38 0.39 1.55 2.4

MSH30 LS 28 60.8 26 80 20 14×12×9 3000 1.05 1.07 5.6 4.8


MSR_E linear guideway


MSR series Full Roller Type Linear Guideway

Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C C2 S L1 T T1 T2 T3 G1 Grease Nipple
H W L
MSR 20E 30 63 89.8 21.5 4.6 53 40 35 M6 57.8 10 25.4 10 7.95 M4 G-M4
MSR 25E 36 70 97.5 23.5 4.8 57 45 40 M8 65.5 9.5 20.2 10 5.8 M6 G-M6
MSR 25LE 115.5 83.5
MSR 30E 42 90 112.4 31 6 72 52 44 M10 75.9 10 21.6 13 6.7 M6 G-M6
MSR 30LE 135.2 98.7
MSR 35E 48 100 125.3 33 6.5 82 62 52 M10 82.3 12 27.5 15 9.5 M6 G-M6
MSR 35LE 153.5 110.5
MSR 45E 60 120 154.2 37.5 8 100 80 60 M12 106.5 14.5 35.5 15 12.5 M6 G-PT 1/8
MSR 45LE 189.4 141.7
MSR 55E 70 140 185.4 43.5 10 116 95 70 M14 129.5 17.5 41 18 15.5 M6 G-PT 1/8
MSR 55LE 235.4 179.5
MSR 65LE 90 170 300.4 53.5 12 142 110 82 M16 230 19.5 56 20 26 M6 G-PT 1/8
Unit:mm















Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S l L1 T N G K G1 Grease Nipple
H W L
MSR 20S 30 44 89.8 12 4.6 32 36 M5 7 57.8 8 5 5.15 4 M4 G-M4
MSR 25S 40 48 97.5 12.5 4.8 35 35 M6 9 65.5 9.5 10 12 6.6 M6 G-M6
MSR 25LS 115.5 50 83.5
MSR 30S 45 60 112.4 16 6 40 40 M8 12 75.9 10 10 12 8 M6 G-M6
MSR 30LS 135.2 60 98.7
MSR 35S 55 70 125.3 18 6.5 50 50 M8 14 82.3 12 15 12 8 M6 G-M6
MSR 35LS 153.5 72 110.5
MSR 45S 70 86 154.2 20.5 8 60 60 M10 19 106.5 17 20 13.5 10 M6 G-PT1/8
MSR 45LS 189.4 80 141.7
MSR 55S 80 100 185.4 23.5 10 75 75 M12 19 129.5 18 21 13.5 12 M6 G-PT1/8
MSR 55LS 235.4 95 179.5
MSR 65LS 90 126 300.4 31.5 12 76 120 M16 20 230 19.5 16.5 13.5 12 M6 G-PT1/8
Model No. Rail dimension Basic load rating Weight
Width Height Pitch E D × h × d Dynamic C Static Carriage Rail
W1 H1 P std. kN Co kg kg/m





kN

MSR 20S 20 20 30 20 9.5 × 8.5 × 6 22.8 60.8 0.34 2.6
MSR 25S 23 23.5 30 20 11 × 9 × 7 29.6 63.8 0.65 3.5
MSR 25LS 36.3 82.9 0.85
MSR 30S 28 27.5 40 20 14 × 12 × 9 42.8 91.9 1 5
MSR 30LS 54 124 1.22
MSR 35S 34 30.5 40 20 14 × 12 × 9 57.9 123.5 1.65 7
MSR 35LS 73.9 169 2.15
MSR 45S 45 37 52.5 22.5 20 × 17 × 14 92.8 193.8 3.2 11.2
MSR 45LS 117.2 261.6 4.1
MSR 55S 53 43 60 30 23 × 20 × 16 132.8 270 5.1 15.6
MSR 55LS 172.8 378 7
MSR 65LS 63 52 75 35 26 × 22 × 18 277 624 13.3 22.4


SMR Series Roller Chain Type Linear Guideway

Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C C2 S L1 T T1 T2 T3 Grease Nipple
H W L
SMR 25E 36 70 97.5 23.5 4.8 57 45 40 M8 65.5 9.5 20.2 10 5.8 G-M6
SMR 25LE 115.5 83.5
SMR 30E 42 90 112.4 31 6 72 52 44 M10 75.9 10 21.6 13 6.7 G-M6
SMR 30LE 135.2 98.7
SMR 35E 48 100 125.3 33 6.5 82 62 52 M10 82.3 12 27.5 15 9.5 G-M6
SMR 35LE 153.5 110.5
SMR 45E 60 120 154.2 37.5 8 100 80 60 M12 106.5 14.5 35.5 15 12.5 G-PT 1/8
SMR 45LE 189.4 141.7
SMR 55E 70 140 185.4 43.5 10 116 95 70 M14 129.5 17.5 41 18 15.5 G-PT 1/8
SMR 55LE 235.4 179.5
SMR 65LE 90 170 300.4 53.5 12 142 110 82 M16 230 19.5 56 20 26 G-PT 1/8

Model No. Rail dimension Static moment rating Weight
Width Height Pitch E D × h × d Mp MY MR Carriage Rail
W1 H1 P std. kN-m kN-m kN-m kg kg/m




Single* Double* Single* Double*


SMR 25E 23 23.5 30 20 11 × 9 × 7 0.63 3.63 0.63 3.63 0.66 0.75 3.5
SMR 25LE 1.01 5.49 1.01 5.49 0.84 0.95
SMR 30E 28 27.5 40 20 14 × 12 × 9 1.01 5.9 1.01 5.9 1.15 1.4 5
SMR 30LE 1.78 9.6 1.78 9.6 1.53 1.72
SMR 35E 34 30.5 40 20 14 × 12 × 9 1.63 9.59 1.63 9.59 1.98 1.95 7
SMR 35LE 2.86 15.57 2.86 15.27 2.63 2.45
SMR 45E 45 37 52.5 22.5 20 × 17 × 14 3.27 18.48 3.27 18.48 4.18 3.9 11.2
SMR 45LE 5.6 29.56 5.6 29.56 5.5 4.5
SMR 55E 53 43 60 30 23 × 20 × 16 5.51 30.89 5.51 30.89 6.96 6 15.6
SMR 55LE 10,16 53.02 10,16 53.02 9.52 7.9
SMR 65LE 63 52 75 35 26 × 22 × 18 21.49 111.99 21.49 111.99 18.73 17.6 22.4


SME series,Ball Chain Type, Linear Guideway

Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 T T1 G1 Grease Nipple
H W L
SME 15EA 24 47 64.4 16 3.5 38 30 M5 × 8 48 5.5 8 M4 G-M4
SME 15LEA 79.4 63
SME 20EA 30 63 78.5 21.5 4.7 53 40 M6 × 10 58.3 7 10 M4 G-M6
SME 20LEA 97.5 77.3
SME 25EA 36 70 92 23.5 5.8 57 45 M8 × 13 71 7 13 M4 G-M6
SME 25LEA 109 88
SME 30EA 42 90 107.6 31 7.5 72 52 M10 × 15 80 12 15 M6 G-M6
SME 30LEA 132.6 105
SME 35EA 48 100 120.6 33 8 82 62 M10 × 15 90 12 15 M6 G-M6
SME 35LEA 150.6 120
SME 45EA 60 120 140 37.5 10 100 80 M12 × 18 106 12 18 M6 G-PT 1/8
SME 45LEA 174.5 140.5

Model No. Rail dimension Basic load rating Weight
Width Height Pitch E D × h × d Dynamic C Static Carriage Rail
W1 H1 P std. kN Co kg kg/m





kN

SME 15EA 15 13 60 20 7.5 × 5.8 × 4.5 12.5 20.2 0.22 1.4
SME 15LEA 15.4 27.5 0.29
SME 20EA 20 15.5 60 20 9.5 × 8.5 × 6 20.4 32.1 0.42 2.3
SME 20LEA 25.3 43.6 0.62
SME 25EA 23 18 60 20 11 × 9 × 7 28.3 44.3 0.67 3.2
SME 25LEA 33 56.1 0.89
SME 30EA 28 23 80 20 14 × 12 × 9 39.4 59.5 1.18 4.5
SME 30LEA 47 76.5 1.54
SME 35EA 34 26 80 20 14 × 12 × 9 54.7 81 1.74 6.2
SME 35LEA 67.6 109.9 2.28
SME 45EA 45 32 105 22.5 20 × 17 × 14 72.7 105.8 3.22 10.5
SME 45LEA 90 143.6 4.21
Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 T T1 N Grease Nipple
H W L
SME 15EB 24 52 64.4 18.5 3.5 41 26 M5 × 8 48 5.5 8 5 G-M4
SME 15LEB 79.4 36 63
SME 20EB 28 59 78.5 19.5 4.7 49 32 M6 × 8 58.3 7 8 6 G-M6
SME 20LEB 97.5 45 77.3
SME 25EB 33 73 92 25 5.8 60 35 M8 × 10 71 7 10 7 G-M6
SME 25LEB 109 50 88
Model No. Rail dimension Basic load rating Weight
Width Height Pitch E D × h × d Dynamic C StaticCo Carriage Rail
W1 H1 P std. kN kN kg kg/m








SME 15EB 15 13 60 20 7.5 × 5.8 × 4.5 12.5 20.2 0.21 1.4
SME 15LEB 15.4 27.5 0.27
SME 20EB 20 15.5 60 20 9.5 × 8.5 × 6 20.4 32.1 0.39 2.3
SME 20LEB 25.3 43.6 0.55
SME 25EB 23 18 60 20 11 × 9 × 7 28.3 44.3 0.42 3.2
SME 25LEB 33 56.1 0.65
Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 G1 Grease Nipple
H W L
SME 15SA 28 34 64.4 9.5 3.5 26 26 M4 × 7.5 48 M4 G-M4
SME 15LSA 79.4 63
SME 20SA 30 44 78.5 12 4.7 32 36 M5 × 7 58.3 M4 G-M6
SME 20LSA 97.5 50 77.3
SME 25SA 40 48 92 12.5 5.8 35 35 M6 × 12 71 M4 G-M6
SME 25LSA 109 50 88
SME 30SA 45 60 107.6 16 7.5 40 40 M8 × 12 80 M6 G-M6
SME 30LSA 132.6 60 105
SME 35SA 55 70 120.6 18 8 50 50 M8 × 14 90 M6 G-M6
SME 35LSA 150.6 72 120
SME 45SA 70 86 140 20.5 10 60 60 M10 × 20 106 M6 G-PT 1/8
SME 45LSA 174.5 80 140.5
Model No. Rail dimension Basic load rating Weight
Width Height Pitch E D × h × d Dynamic C Static Carriage Rail
W1 H1 P std. kN Co kg kg/m





kN

SME 15SA 15 13 60 20 7.5 x 5.8 x 4.5 12.5 20.2 0.22 1.4
SME 15LSA 15.4 27.5 0.25
SME 20SA 20 15.5 60 20 9.5 x 8.5 x 6 20.4 32.1 0.3 2.3
SME 20LSA 25.3 43.6 0.39
SME 25SA 23 18 60 20 11 x 9 x 7 28.3 44.3 0.56 3.2
SME 25LSA 33 56.1 0.73
SME 30SA 28 23 80 20 14 x 12 x 9 39.4 59.5 0.93 4.5
SME 30LSA 47 76.5 1.21
SME 35SA 34 26 80 20 14 x 12 x 9 54.7 81 1.57 6.2
SME 35LSA 67.6 109.9 2.05
SME 45SA 45 32 105 22.5 20 x 17 x 14 72.7 105.8 3.06 10.5
SME 45LSA 90 143.6 4
Model No. External dimension Carriage dimension
Height Width Length W2 H2 B C S × l L1 e1 G1 Grease Nipple
H W L
SME 15SB 24 34 64.4 9.5 3.5 26 26 M4 x 5 48 - M4 G-M4
SME 15LSB 79.4 34 63
SME 20SB 28 42 78.5 11 4.7 32 32 M5 x 5.5 58.3 - M4 G-M6
SME 20LSB 97.5 45 77.3
SME 25SB 33 48 92 12.5 5.8 35 35 M6 x 7 71 - M4 G-M6
SME 25LSB 109 50 88
SME 25SV 36 48 92 12.5 5.8 35 35 M6 x 9 71 - M4 G-M6
SME 25LSV 109 50 88
SME 30SB 42 60 107.6 16 7.5 40 40 M8 x 10 80 5.4 M6 G-M6
SME 30LSB 132.6 60 105
SME 35SB 48 70 120.6 18 8 50 50 M8 x 11 90 6 M6 G-M6
SME 35LSB 150.6 72 120
SME 45SB 60 86 140 20.5 10 60 60 M10 x 16 106 6.1 M6 G-PT 1/8
SME 45LSB 174.5 80 140.5
Model No. Rail dimension Static moment rating Weight
Width Height Pitch E D × h × d Mp MY MR Carriage Rail
W1 H1 P std. kN-m kN-m kN-m kg kg/m




Single* Double* Single* Double*


SME 15SB 15 13 60 20 7.5 x 5.8 x 4.5 0.14 0.69 0.14 0.69 0.16 0.19 1.4
SME 15LSB 0.25 1.15 0.25 1.15 0.21 0.22
SME 20SB 20 15.5 60 20 9.5 x 8.5 x 6 0.27 1.34 0.27 1.34 0.33 0.26 2.3
SME 20LSB 0.49 2.24 0.49 2.24 0.44 0.35
SME 25SB 23 18 60 20 11 x 9 x 7 0.45 2.14 0.45 2.14 0.52 0.31 3.2
SME 25LSB 0.71 3.2 0.71 3.2 0.66 0.49
SME 25SV 23 18 60 20 11 x 9 x 7 0.45 2.14 0.45 2.14 0.52 0.44 3.2
SME 25LSV 0.71 3.2 0.71 3.2 66 0.62
SME 30SB 28 23 80 20 14 x 12 x 9 0.68 3.37 0.68 3.37 0.83 0.85 4.5
SME 30LSB 1.11 5.32 1.11 5.32 1.07 1.1
SME 35SB 34 26 80 20 14 x 12 x 9 1.07 5.25 1.07 5.25 1.41 1.22 6.2
SME 35LSB 1.92 8.75 1.92 8.75 1.91 1.61
SME 45SB 45 32 105 22.5 20 x 17 x 14 1.61 7.82 1.61 7.82 2.41 2.86 10.5
SME 45LSB 2.88 13.08 2.88 13.08 3.27 3.57


SMH Series Ball Chain Type Cross Linear Guideway

SMH_LS linear guideways

Model No. External dimension Carriage dimension
Height Width Length B1 B3 B4 B C C1 H2 Grease Nipple
H L1 L
SMH45 LS 118 140.5 174.5 30 16.6 75 45 110 15.25 10 G-PT1/8












Model No. Rail dimension Basic load rating Weight
Width Width Height Pitch E D × h × d Max Dynamic Static Carriage Rail
W1 W2 H1 P std. Length C Co kg kg/m






kN kN

SMH45 LS 45 92.75 32 105 22.5 20×17×14 3000 90 143.6 16.5 10.5


Previous:
Next:
Linear Guideway M and V guideways linear motion guideways Linear Motion Guide linear guide unit Linear Roller Guides Linear Ball Guides linear guides and rails pmi Precision rail guides Linear guideways System

Related Products

Track Roller Bearings
Track Roller Bearings
TKW Focuses On the Development and Manufacturing of General and Non-Standard Rolling bearings


Quick Links

Product Category

Contact Us

 Yandian Industrial zone, Linqing City, Liaocheng,Shandong Province, China,
 +86-635-8509787 / +86-13280450757
 +86-13280450757
 +86-13280450757
Copyright © 2008-2021 TKW BEARINGS  Technical support :  leadong
