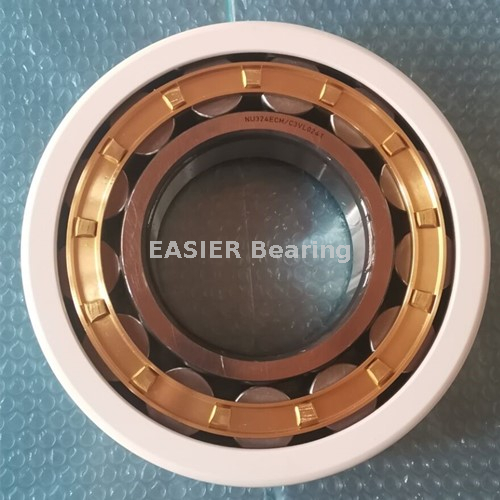

NU 324 ECM/C3VL0241
EASIER / TKW
NU 324 ECM
NU 324 ECM/C3VL0241
Dimension: 120*260*55mm
Weight: 15kg
Type: Cylindrical roller bearings
Feature: Outer ring with Ceramic coating design
DIMENSIONS
d | 120 mm | Bore diameter |
---|---|---|
D | 260 mm | Outside diameter |
B | 55 mm | Width |
D1 | ≈ 219 mm | Shoulder diameter outer ring |
F | 154 mm | Raceway diameter inner ring |
Electrically Insulated Bearing are not only Electrically Insulated deep groove ball Bearing, but also Electrically Insulated Cylindrical Roller Bearing, Electrically Insulated Tapered Roller Bearing, Electrically Thrust Roller Bearing and the other type Normal or Non-Standard Electrically Insulated Rolling Bearings. they are the same dimension, same cage, same elements and the other data with normal chrome steel rolling bearing, just the different coating on the surface of the inner ring or outer ring of the Rolling Bearing.
A much more economical solution is to provide for the use of Electrically Insulated Bearing during the planning stage. This reduces maintenance and repair costs, and increases machine availability – all of which means greater value for the customer.
Principle bearing types for traction motor applications
• cylindrical roller bearings
• electrically insulated cylindrical roller bearings
• electrically insulated deep groove ball bearings
• hybrid cylindrical roller bearings with ceramic rollers
• hybrid deep groove ball bearings with ceramic balls
• traction motor bearing units based on cylindrical roller bearings and
deep groove ball bearings
• Sensorised traction motor bearing unit
• Regreasable traction motor bearing unit
