The housing bearing unit UCP210 as a set includes the housing P210 and the single row radial insert ball bearing UC210 (shaft: 50 mm). The set components are coordinated with each other so that they can be mounted directly. The set is suitable for high radial loads. The set UCP210 is comparable with: SY 50 TF, RASEY50 (INA) or NP50 (RHP).

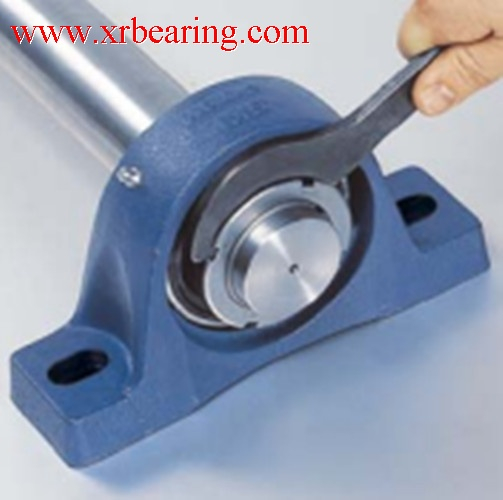

SY50TR Pillow Block Bearing Units with a cast housing and grub screws, with a standard inner ring, is an insert single deep groove ball bearings with a convex sphered outside diameter and working together with a housing, SY50TR plummer block unit consist of SY510M Housing and YAR210-2RF Bearing, SY50TR bearing plummer block unit can accommodate moderate initial misalignment, SY50TR bearings is widely used in many industrial application, the inner diameter is 50mm, the outer ring is 114.5mm, the height is 51.6mm, the weight of SY50TR bearings is 2.7kg, SY50TR bearings with a standard inner ring are designed in according with a moduar concept.
Each SY50TR bearing can be fitted with pillow block housing of various diameter and width series if they have correct outside diameter for the housing. XRB as one of the biggest China Pillow Block Bearing manufacturer can supply the best solution for our Y-housing customers according to their specific applications.
DIMENSIONS
| d |
| 50 mm |
| d1 |
| ≈ 62.51 mm |
| A |
| 54 mm |
| A1 |
| 34 mm |
| A5 |
| 33 mm |
| B |
| 51.6 mm |
| B4 |
| 9 mm |
| H |
| 57.2 mm |
| H1 |
| 22 mm |
| H2 |
| 114 mm |
| J |
| 157 mm |
| J |
| max. 165 mm |
| J |
| min. 149 mm |
| L |
| 203 mm |
| N |
| 18 mm |
| N1 |
| 26 mm |
| s1 |
| 32.6 mm
|
Pillow block housing
housing with long base for mounting on flat surfaces
extremely robust cast iron housing
with integrated lubrication nipple, if difficult operating conditions make relubrication necessary
the housing is painted to protect against corrosion; the bearing insert and the mounting surface are treated with anti-corrosion oil
