Item:
20TP103 bearing
Price:
Bearing 20TP103 price

Details

Keywords:20TP103 bearing,20TP103 cylindrical roller thrust bearing

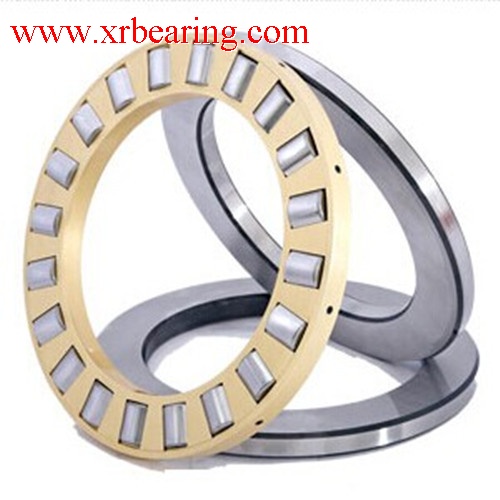

20TP103 bearing is Cylindrical roller thrust bearing and commonly type and widely used in many application, the inner diameter is 50.8mm,outer size is 152.4mm,the width is 34.925mm,the thickness of washer is 9.52mm, the weight of 20TP103 bearing is 3.7kg, it contains cylidrical rollers,brass cage assembly,and bearing washers,cylindrical roller thrust bearing can carry radial and axial loads in both directions,but mainly take the axial presure,20TP103 cylindrical roller thrust bearings are particularly versatile and are simple in design,separable,suitable for high and middle high capacity,low cost maintenance.

High precision 20TP103 cylindrical roller thrust bearing

High precision cylindrical roller thrust bearing	20TP103 Bearing, 50.8×152.4×34.925mm bearing
20TP103 bearing type	spherical roller thrust bearing
roller bearing inner diameter	50.8mm
roller bearing outer diameter	152.4mm
roller bearing width diameter	34.925mm
20TP103 bearing weight	3.7kg
20TP103 bearing are available from many design, variants, series and size, ►20TP103 cylindrical roller thrust bearings have specially designed raceways and accommodate a large number of cylindrical rollers. ►20TP103 bearings are designed to achieve a high thrust capacity with low friction and continuous roller alignment. This bearing type is ideal for operating conditions ►cylindrical roller thrust bearings contain cylindrical rollers,they can subtain only axial loads,but they are suitable for heavy loads,and high axial rigidity.	Design: cylindrical roller thrust roller bearing 20TP103
	►Metarial:High quality chrome steel ►Lubrication:Oil or grease ►sealed:Rubber sealed or press steel shielded ►dynamic load rating: 331kN ►static load rating:814kN ►Fatigue load limit:0kN ►Reference speed:0r/min ►limiting speed:0
20TP103 bearing are widely used in industry area:	►Gear box ►Crane Hooks ►Industrial gearboxes ►Pulp & papernes ►Material handling ►Fluid machinery ►Mining & construction

XRB is the 20TP103 China bearing manufacturer & factory & exporter & supplier ,it can supply 20TP103 bearing, Our large quantity 20TP103 bearing Stock can meet your need with lowest price and fast delivery

Also you can find the OEM brand cylindrical roller thrust bearing you need ï¼

We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our 20TP103 bearing to your office at the first time.
