Model:
89456 M
Brand:
EASIER / TKW

微信截图_20230416201506 微信截图_20230416201517

89456 M - Cylindrical roller thrust bearings

Designation: 89456 M

Dimension: 280*520*145mm

Weight: 143kg

Type: Cylindrical Roller Thrust Bearings

Grade: ABEC-1

Materials: High Quality Chrome Steel

Stock: 200pcs

Brand: EASIER

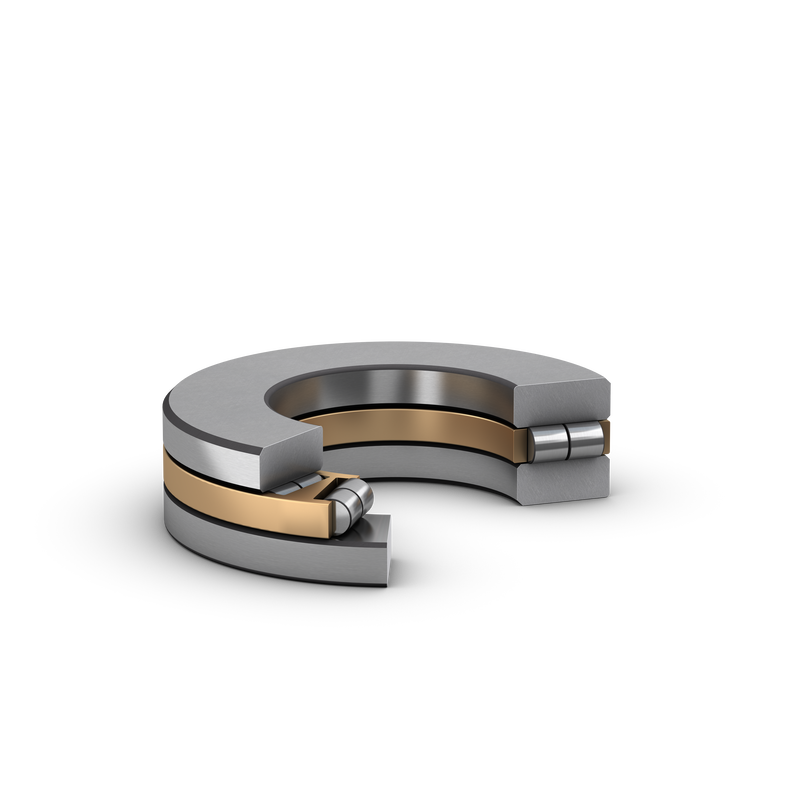

Double row cylindrical roller thrust bearing 89456 M

Double row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High axial load carrying capacity
High stiffness
Long service life
Require little axial space
Separable design

Dimensions of 89456 M

d	280 mm	Bore diameter
D	520 mm	Outside diameter
H	145 mm	Height
d1	517 mm	Outside diameter shaft washer
D1	285 mm	Bore diameter housing washer
B	48.5 mm	Height shaft washer
r1,2	min.6 mm	Chamfer dimension housing washer

Thrust roller bearings are used to bear the combined axial and radial load with the main axial load, but the radial load shall not exceed 55% of the axial load. The design of this type of bearing with the main axial load coincides with that The main bearings are complementary and use the same type of roller design.

Included products of Cylindrical Roller Thrust Bearings 89456 M

Shaft washer IW-89456

Housing washer OW-89456

Cylindrical roller bearings, thrust cylindrical roller bearings

Cylindrical roller thrust bearings are designed to accommodate heavy axial loads and impact loads. They must not be subjected to any radial load. The bearings are very stiff and require little axial space.

EASIER supplies cylindrical roller thrust bearings in different series:

-- 811 and 812 series bearings with one row of rollers

They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity.

-- 893 and 894 series bearings with two rows of rollers

Application of Thrust Roller Bearing

· Machine tools

· Mill stands

· Oil well swivels

· Plastic extruders

· Pulp refiners

· Blowout preventers

· Classifiers

· Gearboxes

· Metal mill work/back-up rolls

· Pre-heater fans

· Pumps

· Screw conveyors

Spherical Roller Thrust Bearing

Please note that Complete Thrust Spherical Roller Bearing can supply Brass cage

Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing				dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
29412 E	60	130	42	390	915	114	2 800	5 000
29413 E	65	140	45	455	1 080	137	2 600	4 800
29414 E	70	150	48	520	1 250	153	2 400	4 300
29415 E	75	160	51	600	1 430	173	2 400	4 000
29416 E	80	170	54	670	1 630	193	2 200	3 800
29317 E	85	150	39	380	1 060	129	2 400	4 000
29417 E	85	180	58	735	1 800	212	2 000	3 600
29318 E	90	155	39	400	1 080	132	2 400	4 000
29418 E	90	190	60	815	2 000	232	1 900	3 400
29320 E	100	170	42	465	1 290	156	2 200	3 600
29420 E	100	210	67	980	2 500	275	1 700	3 000
29322 E	110	190	48	610	1 730	204	1 900	3 200
29422 E	110	230	73	1 180	3 000	325	1 600	2 800
29324 E	120	210	54	765	2 120	245	1 700	2 800
29424 E	120	250	78	1 370	3 450	375	1 500	2 600
29326 E	130	225	58	865	2 500	280	1 600	2 600
29426 E	130	270	85	1 560	4 050	430	1 300	2 400
29328 E	140	240	60	980	2 850	315	1 500	2 600
29428 E	140	280	85	1 630	4 300	455	1 300	2 400
29230 E	150	215	39	408	1 600	180	1 800	2 800
29330 E	150	250	60	1 000	2 850	315	1 500	2 400
29430 E	150	300	90	1 860	5 100	520	1 200	2 200
29332 E	160	270	67	1 180	3 450	375	1 300	2 200
29432 E	160	320	95	2 080	5 600	570	1 100	2 000
29334 E	170	280	67	1 200	3 550	365	1 300	2 200
29434 E	170	340	103	2 360	6 550	640	1 100	1 900
29236 E	180	250	42	495	2 040	212	1 600	2 600
29336 E	180	300	73	1 430	4 300	440	1 200	2 000
29436 E	180	360	109	2 600	7 350	710	1 000	1 800
29338 E	190	320	78	1 630	4 750	490	1 100	1 900

Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing				dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
29438 E	190	380	115	2 850	8 000	765	950	1 700
29240 E	200	280	48	656	2 650	285	1 400	2 200
29340 E	200	340	85	1 860	5 500	550	1 000	1 700
29440 E	200	400	122	3 200	9 000	850	850	1 600
29244 E	220	300	48	690	3 000	310	1 300	2 200
29344 E	220	360	85	2 000	6 300	610	1 000	1 700
29444 E	220	420	122	3 350	9 650	900	850	1 500
29248	240	340	60	799	3 450	335	1 100	1 800
29348 E	240	380	85	2 040	6 550	630	1 000	1 600
29448 E	240	440	122	3 400	10 200	930	850	1 500
29252	260	360	60	817	3 650	345	1 100	1 700
29352 E	260	420	95	2 550	8 300	780	850	1 400
29452 E	260	480	132	4 050	12 900	1 080	750	1 300
29256	280	380	60	863	4 000	375	1 000	1 700
29356 E	280	440	95	2 550	8 650	800	850	1 400
29456 E	280	520	145	4 900	15 300	1 320	670	1 200
29260	300	420	73	1 070	4 800	465	900	1 400
29360 E	300	480	109	3 100	10 600	930	750	1 200
29460 E	300	540	145	5 000	16 600	1 340	670	1 200
29264	320	440	73	1 110	5 100	465	850	1 400
29364 E	320	500	109	3 350	11 200	1 000	750	1 200
29464 E	320	580	155	5 700	19 000	1 530	600	1 100
29268	340	460	73	1 130	5 400	480	850	1 300
29368	340	540	122	2 710	11 000	950	600	1 100
29468 E	340	620	170	6 700	22 400	1 760	560	1 000
29272	360	500	85	1 460	6 800	585	750	1 200
29372	360	560	122	2 760	11 600	980	600	1 100
29472 EM	360	640	170	6 200	21 200	1 630	560	950
29276	380	520	85	1 580	7 650	655	700	1 100
29376	380	600	132	3 340	14 000	1 160	530	1 000

Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing				dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
29476 EM	380	670	175	6 800	24 000	1 860	530	900
29280	400	540	85	1 610	8 000	695	700	1 100
29380	400	620	132	3 450	14 600	1 200	530	950
29480 E	400	710	185	7 650	26 500	1 960	480	850
29480 EM	400	710	185	7 650	26 500	1 960	480	850
29284	420	580	95	1 990	9 800	815	630	1 000
29384	420	650	140	3 740	16 000	1 290	500	900
29484 EM	420	730	185	7 800	27 500	2 080	480	850
29288	440	600	95	2 070	10 400	850	630	1 000
29388 EM	440	680	145	5 200	19 300	1 560	530	850
29488 EM	440	780	206	9 000	32 000	2 320	430	750
29292	460	620	95	2 070	10 600	865	600	950
29392	460	710	150	4 310	19 000	1 500	450	800
29492 EM	460	800	206	9 300	33 500	2 450	430	750
29296	480	650	103	2 350	11 800	950	560	900
29496 EM	480	850	224	9 550	39 000	2 800	340	670
292/500	500	670	103	2 390	12 500	1 000	560	900
293/500	500	750	150	4 490	20 400	1 560	430	800
294/500 EM	500	870	224	9 370	40 000	2 850	340	670
292/530 EM	530	710	109	3 110	15 300	1 220	530	850
293/530 EM	530	800	160	5 870	26 500	2 080	400	750
294/530 EM	530	920	236	10 500	44 000	3 100	320	630
292/560	560	750	115	2 990	16 000	1 220	480	800
294/560 EM	560	980	250	12 000	51 000	3 550	300	560
292/600 EM	600	800	122	3 740	18 600	1 460	450	700
294/600 EM	600	1 030	258	13 100	56 000	4 000	280	530
292/630 EM	630	850	132	4 770	23 600	1 800	400	670
293/630 EM	630	950	190	8 450	38 000	2 900	320	600
294/630 EM	630	1 090	280	14 400	62 000	4 150	260	500
294/670 EM	670	1 150	290	15 400	68 000	4 500	240	450

Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing				dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
293/710 EM	710	1 060	212	9 950	45 500	3 400	280	500
294/710 EF	710	1 220	308	17 600	76 500	5 000	220	430
294/750 EF	750	1 280	315	18 700	85 000	5 500	200	400
292/800 EM	800	1 060	155	6 560	34 500	2 550	320	530
293/800 EM	800	1 180	230	11 300	55 000	3 900	240	450
294/800 EF	800	1 360	335	20 200	93 000	5 850	190	360
294/850 EF	850	1 440	354	23 900	108 000	7 100	170	340
294/900 EF	900	1 520	372	26 700	122 000	7 200	160	300
294/950 EF	950	1 600	390	28 200	132 000	7 800	140	280
294/1000 EF	1 000	1 670	402	31 100	140 000	8 650	130	260
294/1060 EF	1 060	1 770	426	33 400	156 000	8 500	120	240

Cylindrical Roller Thrust Bearing

Designation	Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing					dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
81102 TN	15	28	9		11.2	27	2.45	4 300	8 500
K 81102 TN	15	28		3.5	11.2	27	2.45	4 300	8 500
81103 TN	17	30	9		12.2	31.5	2.85	4 300	8 500
K 81103 TN	17	30		3.5	12.2	31.5	2.85	4 300	8 500
81104 TN	20	35	10		18.6	48	4.65	3 800	7 500
K 81104 TN	20	35		4.5	18.6	48	4.65	3 800	7 500
81105 TN	25	42	11		25	69.5	6.8	3 200	6 300
K 81105 TN	25	42		5	25	69.5	6.8	3 200	6 300
81106 TN	30	47	11		27	78	7.65	3 000	6 000
K 81106 TN	30	47		5	27	78	7.65	3 000	6 000
81206 TN	30	52	16		50	134	13.4	2 400	4 800
K 81206 TN	30	52		7.5	50	134	13.4	2 400	4 800
89306 TN	30	60	18		52	183	18.3	2 600	5 300
K 89306 TN	30	60		5.5	52	183	18.3	2 600	5 300
81107 TN	35	52	12		29	93	9.15	2 800	5 600
K 81107 TN	35	52		5	29	93	9.15	2 800	5 600
81207 TN	35	62	18		62	190	19.3	2 000	4 000
K 81207 TN	35	62		7.5	62	190	19.3	2 000	4 000
K 89307 TN	35	68		6	62	220	22	2 400	4 800
81108 TN	40	60	13		43	137	13.7	2 400	5 000
K 81108 TN	40	60		6	43	137	13.7	2 400	5 000
81208 TN	40	68	19		83	255	26.5	1 900	3 800
K 81208 TN	40	68		9	83	255	26.5	1 900	3 800
89308 TN	40	78	22		95	365	36.5	2 000	4 000
81109 TN	45	65	14		45	153	15.3	2 200	4 500
K 81109 TN	45	65		6	45	153	15.3	2 200	4 500
81209 TN	45	73	20		83	255	26.5	1 800	3 600
K 81209 TN	45	73		9	83	255	26.5	1 800	3 600
89309 TN	45	85	24		108	425	43	1 800	3 600
K 89309 TN	45	85		7.5	108	425	43	1 800	3 600

Designation	Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing					dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
81110 TN	50	70	14		47.5	166	16.6	2 200	4 300
K 81110 TN	50	70		6	47.5	166	16.6	2 200	4 300
81210 TN	50	78	22		91.5	300	31	1 700	3 400
K 81210 TN	50	78		9	91.5	300	31	1 700	3 400
K 89310 TN	50	95		8	132	530	54	1 600	3 200
81111 TN	55	78	16		69.5	285	29	1 900	3 800
K 81111 TN	55	78		6	69.5	285	29	1 900	3 800
81211 TN	55	90	25		122	390	40	1 400	2 800
K 81211 TN	55	90		11	122	390	40	1 400	2 800
89311 TN	55	105	30		143	570	58.5	1 500	3 000
K 89311 TN	55	105		9	143	570	58.5	1 500	3 000
81112 TN	60	85	17		80	300	30.5	1 800	3 600
K 81112 TN	60	85		7.5	80	300	30.5	1 800	3 600
81212 TN	60	95	26		137	465	47.5	1 400	2 800
K 81212 TN	60	95		11	137	465	47.5	1 400	2 800
89312 TN	60	110	30		153	640	65.5	1 400	2 800
K 89312 TN	60	110		9	153	640	65.5	1 400	2 800
89412 TN	60	130	42		310	1 180	125	1 200	2 400
K 89412 TN	60	130		14	310	1 180	125	1 200	2 400
81113 TN	65	90	18		83	320	32.5	1 700	3 400
K 81113 TN	65	90		7.5	83	320	32.5	1 700	3 400
81213 TN	65	100	27		140	490	50	1 300	2 600
K 81213 TN	65	100		11	140	490	50	1 300	2 600
89313 TN	65	115	30		153	640	65.5	1 400	2 800
K 89313 TN	65	115		9	153	640	65.5	1 400	2 800
89413 TN	65	140	45		355	1 370	143	1 100	2 200
K 89413 TN	65	140		15	355	1 370	143	1 100	2 200
81114 TN	70	95	18		86.5	345	34.5	1 700	3 400
K 81114 TN	70	95		7.5	86.5	345	34.5	1 700	3 400
81214 TN	70	105	27		146	530	55	1 300	2 600

Designation	Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing					dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
K 81214 TN	70	105		11	146	530	55	1 300	2 600
89314 TN	70	125	34		186	800	81.5	1 300	2 600
K 89314 TN	70	125		10	186	800	81.5	1 300	2 600
89414 TN	70	150	48		380	1 460	150	1 000	2 000
K 89414 TN	70	150		16	380	1 460	150	1 000	2 000
81115 TN	75	100	19		83	335	34	1 600	3 200
K 81115 TN	75	100		7.5	83	335	34	1 600	3 200
81215 TN	75	110	27		137	490	50	1 200	2 400
K 81215 TN	75	110		11	137	490	50	1 200	2 400
89315 TN	75	135	36		228	965	98	1 200	2 400
K 89315 TN	75	135		11	228	965	98	1 200	2 400
89415 M	75	160	51		400	1 530	156	950	1 900
K 89415 M	75	160		17	400	1 530	156	950	1 900
81116 TN	80	105	19		81.5	335	34	1 500	3 000
K 81116 TN	80	105		7.5	81.5	335	34	1 500	3 000
81216 TN	80	115	28		160	610	63	1 200	2 400
K 81216 TN	80	115		11	160	610	63	1 200	2 400
89316 TN	80	140	36		240	1 060	108	1 200	2 400
K 89316 TN	80	140		11	240	1 060	108	1 200	2 400
89416 M	80	170	54		440	1 730	173	900	1 800
K 89416 M	80	170		18	440	1 730	173	900	1 800
81117 TN	85	110	19		88	365	37.5	1 500	3 000
K 81117 TN	85	110		7.5	88	365	37.5	1 500	3 000
81217 TN	85	125	31		170	640	67	1 100	2 200
K 81217 TN	85	125		12	170	640	67	1 100	2 200
89317 M	85	150	39		255	1 100	110	1 100	2 200
K 89317 M	85	150		12	255	1 100	110	1 100	2 200
89417 M	85	180	58		490	1 930	190	850	1 700
K 89417 M	85	180		19	490	1 930	190	850	1 700
81118 TN	90	120	22		110	450	45.5	1 300	2 600

Designation	Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing					dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
K 81118 TN	90	120		9	110	450	45.5	1 300	2 600
81218 TN	90	135	35		232	865	90	1 000	2 000
K 81218 TN	90	135		14	232	865	90	1 000	2 000
89318 M	90	155	39		265	1 160	114	1 000	2 000
K 89318 M	90	155		12	265	1 160	114	1 000	2 000
89418 M	90	190	60		540	2 120	208	800	1 600
K 89418 M	90	190		20	540	2 120	208	800	1 600
81120 TN	100	135	25		156	630	62	1 200	2 400
K 81120 TN	100	135		11	156	630	62	1 200	2 400
81220 TN	100	150	38		270	1 060	104	900	1 800
K 89320 M	100	170		13	300	1 370	132	950	1 900
89420 M	100	210	67		680	2 800	265	700	1 400
K 89420 M	100	210		22	680	2 800	265	700	1 400
81122 TN	110	145	25		163	680	65.5	1 100	2 200
K 81122 TN	110	145		11	163	680	65.5	1 100	2 200
81222 TN	110	160	38		260	1 000	98	850	1 700
89322 M	110	190	48		400	1 830	173	850	1 700
K 89322 M	110	190		15	400	1 830	173	850	1 700
89422 M	110	230	73		800	3 350	310	630	1 300
K 89422 M	110	230		24	800	3 350	310	630	1 300
81124 TN	120	155	25		170	735	68	1 100	2 200
K 81124 TN	120	155		11	170	735	68	1 100	2 200
81224 TN	120	170	39		255	1 000	96.5	800	1 600
K 89324 M	120	210		17	510	2 360	216	750	1 500
89424 M	120	250	78		930	3 900	355	600	1 200
K 89424 M	120	250		26	930	3 900	355	600	1 200
81126 TN	130	170	30		200	880	81.5	950	1 900
81226 TN	130	190	45		380	1 460	137	700	1 400
89326 M	130	225	58		560	2 650	240	700	1 400
K 89326 M	130	225		18	560	2 650	240	700	1 400

Designation	Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing					dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
89426 M	130	270	85		1 060	4 500	400	530	1 100
K 89426 M	130	270		28	1 060	4 500	400	530	1 100
81128 TN	140	180	31		208	930	85	900	1 800
K 81128 TN	140	180		12	208	930	85	900	1 800
81228 M	140	200	46		360	1 400	129	700	1 400
K 81228 M	140	200		19	360	1 400	129	700	1 400
89328 M	140	240	60		640	3 100	275	670	1 300
K 89328 M	140	240		19	640	3 100	275	670	1 300
89428 M	140	280	85		1 100	4 800	425	530	1 100
K 89428 M	140	280		28	1 100	4 800	425	530	1 100
81130 TN	150	190	31		212	1 000	88	850	1 700
K 81130 TN	150	190		12	212	1 000	88	850	1 700
81230 M	150	215	50		465	1 900	170	630	1 300
K 81230 M	150	215		21	465	1 900	170	630	1 300
89330 M	150	250	60		670	3 250	285	630	1 300
K 89330 M	150	250		19	670	3 250	285	630	1 300
89430 M	150	300	90		1 250	5 600	480	500	1 000
K 89430 M	150	300		30	1 250	5 600	480	500	1 000
81132 TN	160	200	31		216	1 020	90	850	1 700
K 81132 TN	160	200		12	216	1 020	90	850	1 700
81232 M	160	225	51		480	2 000	176	600	1 200
K 81232 M	160	225		21	480	2 000	176	600	1 200
89432 M	160	320	95		1 430	6 400	540	480	950
K 89432 M	160	320		32	1 430	6 400	540	480	950
81134 TN	170	215	34		285	1 340	118	800	1 600
K 81134 TN	170	215		14	285	1 340	118	800	1 600
81234 M	170	240	55		540	2 280	200	560	1 100
K 81234 M	170	240		22	540	2 280	200	560	1 100
89434 M	170	340	103		1 600	7 200	600	430	850
K 89434 M	170	340		34	1 600	7 200	600	430	850

Designation	Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing					dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
81136 M	180	225	34		270	1 270	110	750	1 500
K 81136 M	180	225		14	270	1 270	110	750	1 500
81236 M	180	250	56		550	2 400	204	560	1 100
K 81236 M	180	250		22	550	2 400	204	560	1 100
89436 M	180	360	109		1 760	8 000	655	400	800
K 89436 M	180	360		36	1 760	8 000	655	400	800
81138 M	190	240	37		310	1 460	125	700	1 400
K 81138 M	190	240		15	310	1 460	125	700	1 400
81238 M	190	270	62		695	2 900	250	500	1 000
K 81238 M	190	270		26	695	2 900	250	500	1 000
89438 M	190	380	115		1 960	9 000	720	380	750
K 89438 M	190	380		38	1 960	9 000	720	380	750
81140 M	200	250	37		310	1 500	125	700	1 400
K 81140 M	200	250		15	310	1 500	125	700	1 400
81240 M	200	280	62		720	3 100	255	500	1 000
K 81240 M	200	280		26	720	3 100	255	500	1 000
89440 M	200	400	122		2 160	10 000	800	360	700
K 89440 M	200	400		40	2 160	10 000	800	360	700
81144 M	220	270	37		335	1 700	137	670	1 300
K 81144 M	220	270		15	335	1 700	137	670	1 300
81244 M	220	300	63		750	3 350	275	480	950
K 81244 M	220	300		26	750	3 350	275	480	950
89444 M	220	420	122		2 320	11 200	880	340	700
K 89444 M	220	420		40	2 320	11 200	880	340	700
81148 M	240	300	45		475	2 450	196	560	1 100
K 81148 M	240	300		18	475	2 450	196	560	1 100
81248 M	240	340	78		1 100	4 900	390	400	800
89448 M	240	440	122		2 400	12 000	915	340	670
81152 M	260	320	45		490	2 600	200	530	1 100
K 81152 M	260	320		18	490	2 600	200	530	1 100

Designation	Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing					dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
81252 M	260	360	79		1 140	5 300	415	380	750
K 81252 M	260	360		32	1 140	5 300	415	380	750
89452 M	260	480	132		2 850	14 300	1 080	300	630
81156 M	280	350	53		680	3 550	275	480	950
K 81156 M	280	350		22	680	3 550	275	480	950
K 81256 M	280	380		32	1 160	5 500	425	360	750
89456 M	280	520	145		3 550	15 300	1 120	280	560
81160 M	300	380	62		850	4 400	335	430	850
K 81160 M	300	380		25	850	4 400	335	430	850
K 81260 M	300	420		38	1 530	7 200	540	320	630
89460 M	300	540	145		3 450	18 000	1 320	280	530
81164 M	320	400	63		880	4 650	345	400	800
81264 M	320	440	95		1 530	7 200	530	300	600
81168 M	340	420	64		900	4 900	355	380	800
K 81168 M	340	420		25	900	4 900	355	380	800
81268 M	340	460	96		1 600	7 800	570	300	600
89172 M	360	440	48		680	4 150	290	400	800
81172 M	360	440	65		900	4 900	355	380	750
81272 M	360	500	110		2 040	9 650	695	260	530
89176 M	380	460	48		710	4 400	305	400	800
81176 M	380	460	65		900	5 000	355	360	750
81276 M	380	520	112		2 080	10 000	720	260	500
89180 M	400	480	48		735	4 650	320	400	800
81280 M	400	540	112		2 120	10 400	735	240	500
89184 M	420	500	48		765	4 900	335	380	750
81184 M	420	500	65		980	5 850	400	340	700
89188 M	440	540	60		1 040	6 400	440	320	630
81188 M	440	540	80		1 430	8 000	550	300	600
81288 M	440	600	130		2 900	14 600	980	220	430
89192 M	460	560	60		1 080	6 700	450	320	630

Designation	Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing					dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
81192 M	460	560	80		1 460	8 500	570	300	600
81292 M	460	620	130		2 700	13 400	900	200	430
89196 M	480	580	60		1 100	6 950	465	320	630
81196 M	480	580	80		1 460	8 500	560	280	560
81296 M	480	650	135		3 350	17 000	1 100	200	400
891/500 M	500	600	60		1 220	8 150	540	300	600
811/500 M	500	600	80		1 560	9 300	620	280	560
812/500 M	500	670	135		3 200	16 300	1 060	190	380
BGSB 358371	508	762	139.7		4 900	26 500	1 660	220	430
891/530 M	530	640	67		1 370	8 800	570	280	560
811/530 M	530	640	85		1 730	10 600	680	260	530
358060	530	710	120		3 650	18 600	1 180	200	400
812/530 M	530	710	140		3 650	18 600	1 180	180	360
891/560 M	560	670	67		1 370	9 150	585	280	530
811/560 M	560	670	85		1 760	11 000	710	260	500
812/560 M	560	750	150		3 800	20 000	1 270	170	340
891/600 M	600	710	67		1 430	9 650	610	260	530
811/600 M/HB1	600	710	85		1 800	11 600	720	240	500
812/600 M	600	800	160		4 400	24 000	1 460	160	320
891/630 M	630	750	73		1 630	11 200	695	240	480
811/630 M	630	750	95		2 160	13 700	865	220	450
812/630 M	630	850	175		4 800	26 000	1 560	140	280
891/670 M	670	800	78		2 000	13 400	815	220	450
811/670 M	670	800	105		2 550	16 300	980	200	400
812/670 M	670	900	180		5 700	30 500	1 800	140	280
891/710 M	710	850	85		2 200	15 000	900	200	400
812/710 M	710	950	190		5 850	32 000	1 830	130	260
891/750 M	750	900	90		2 400	16 600	1 000	190	380
811/750 M	750	900	120		3 250	21 200	1 250	170	340
812/750 M	750	1 000	195		6 550	36 000	2 080	120	240

Designation	Principal dimensions				Basic load ratings		Fatigue load limit	Speed ratings
EASIER Bearing					dynamic	static		Reference speed	Limiting speed
	d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
891/800 M	800	950	90		2 500	18 000	1 040	190	380
811/800 M	800	950	120		3 450	22 000	1 290	170	340
812/800 M	800	1 060	205		7 350	40 500	2 280	110	220
891/850 M	850	1 000	90		2 600	19 000	1 100	180	360
811/850 M	850	1 000	120		3 450	23 200	1 340	160	320
812/850 M	850	1 120	212		8 150	45 500	2 550	110	220
891/900 M	900	1 060	95		3 050	22 000	1 250	170	340
811/900 M	900	1 060	130		4 000	27 000	1 500	150	300
812/900 M	900	1 180	220		8 500	49 000	2 650	100	200
891/950 M	950	1 120	103		3 450	25 000	1 400	160	300
811/950 M	950	1 120	135		4 400	30 000	1 630	140	280
812/950 M	950	1 250	236		10 000	58 500	3 150	90	180
891/1000 M	1 000	1 180	109		3 900	28 500	1 560	150	280
811/1000 M	1 000	1 180	140		4 750	32 500	1 760	130	260
812/1000 M	1 000	1 320	250		10 200	60 000	3 200	85	170
891/1060 M	1 060	1 250	115		4 150	31 000	1 630	140	260
811/1060 M	1 060	1 250	150		5 300	37 500	1 960	120	240
812/1060 M	1 060	1 400	265		12 000	71 000	3 650	75	150
891/1120 M	1 120	1 320	122		4 900	36 500	1 900	130	260
811/1120 M	1 120	1 320	160		6 000	41 500	2 160	110	220

Tapered Roller Thrust Bearing

Designation	Industry reference	Principal dimensions			Basic load ratings		Comparative load ratings
					dynamic	static	dynamic		API
		d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	C90[kN]	C1[kN]	WS[ton (US)]
BFS-8026	T711	177.8	368.3	82.55	2 700	9 150	943	3 637	215
BFS-8054	T811	203.2	419.1	92.075	3 450	12 500	1 200	4 627	273
BFS-8028	T911	228.6	482.6	104.775	4 400	16 000	1 553	5 989	354
BFS-8040 B	T921	234.95	546.1	127	6 400	25 500	2 230	8 603	508
BFS-8023 A	T921	234.95	546.1	127	6 550	26 000	2 294	8 850	522
BFS-8023 B	T921	234.95	546.1	127	7 100	29 000	2 470	9 527	562
BFS-8055	T1120	279.4	603.25	136.525	7 650	30 500	2 680	10 338	610
BFS-8055 A	T1120	279.4	603.25	136.525	8 300	33 500	2 885	11 129	657
BFS-8033	T1120	279.4	603.25	136.53	6 800	25 500	2 418	9 326	551
BFS-8033 A	T1120	279.4	603.25	136.53	7 500	28 500	2 614	10 081	595
BFS-8056	T11500	292.1	660.4	127	8 150	35 500	2 851	10 995	649
BFS-8052 B	T11500	292.1	660.4	127	8 500	36 500	2 962	11 425	675
BFS-8052	T11500	292.1	660.4	127	9 300	42 500	3 267	12 599	744
