China King Pin Bearings T208 Thrust Roller Tapered Bearings QC brand

Designation: T208

Type: Thrust Roller Taper Bearings

Dimension: 52.629*93.269*26.975mm

Weight: 0.8kg

Stock: 5000pcs

Materials: Chrome Steel

Brand: QC

Origin: China

Application: King Pin Thrust Bearings

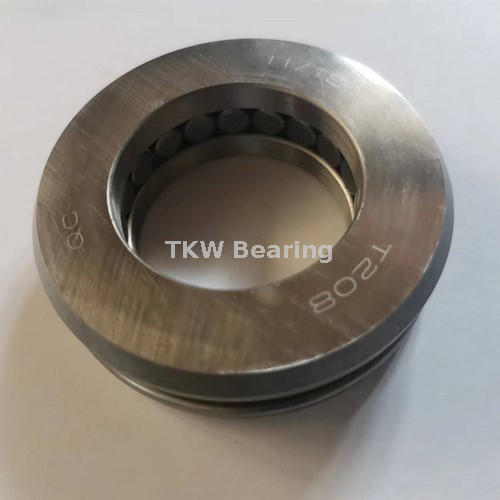

Thrust Tapered Roller Bearings T208 for King Pin

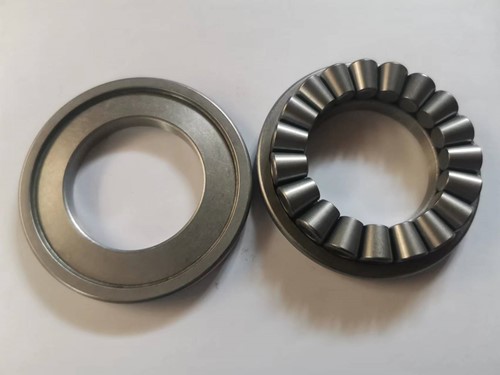

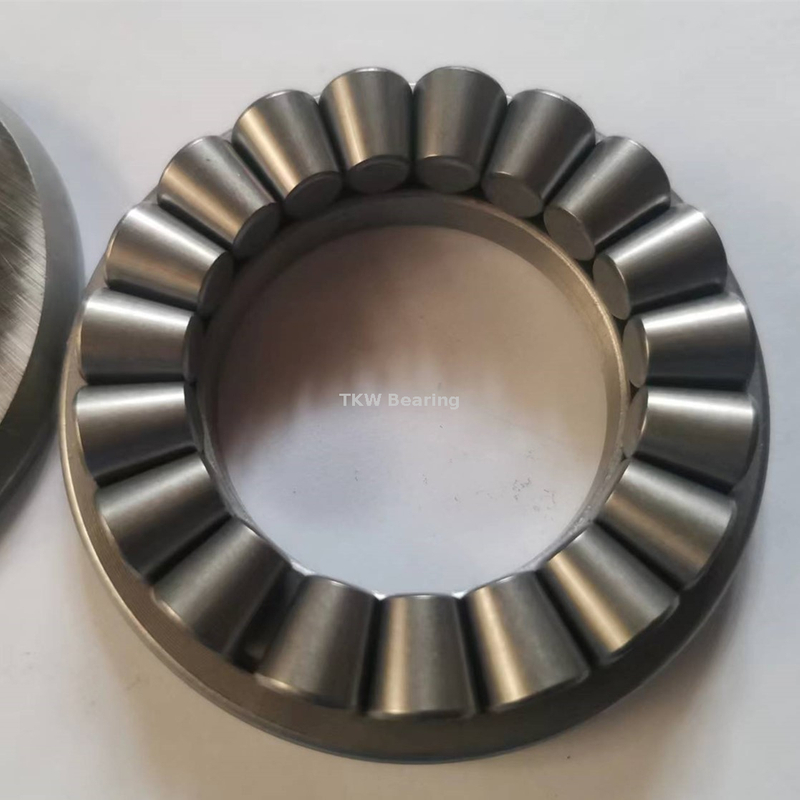

· Comprised of two thrust tapered races, rollers and an outside retainer which holds the components together during shipping and installation.

· Full complement design (cageless).

· These thrust bearings are specifically designed for oscillating applications.

· Types TTC, TTCS and TTCL are identical except for the outside retainer construction.

               King Pin Bearing with Tapered Roller                       King Pin Bearing with Ball             King Pin Bearing with Metal Shell

King Pin Bearings T208 also named King Pin Thrust Bearings, are consist of two pieces washer ( the bearing rings), steel ball or steel rollers,cages, rubber seals, metal shell (normally we use chrome steel materials). the same with thrust ball bearings or thrust roller bearings, the King Pin Bearings can support large axial loads in one direction, requiring a minimum axial load for optimum performance.

The bearings are detachable so that the assembly is simple since the washer, the ball, and the cage can be mounted separately. What is the different is the thrust ball bearings or thrust roller bearings have no metal shell design. The materials we adopt chrome steel, and steel ball or steel rollers.

China King pin Bearings for Man Truck Bearings, IVECO Truck Bearings, DAF Truck bearings, Renault Truck Bearings, Scania Truck bearings, SAF Truck Bearings, Volvo Truck Bearings, Mercedes Benz truck bearings, truck wheel hub bearing, bearing set without spacer, bearing set with spacer, and tapered roller bearing.

Features of Thrust Tapered Roller Bearings T208

-- Excellent prevention from overrunning & backstopping

-- Self-Aligned ,

-- High load sustaining capacity

-- Seal excludes contamination with a separator and bore liner,

-- Prevent rotational damage,

-- Get automatically locked when rolled in opposite direction

Applications of King Pin Bearings T208

-- Heavy Vehicles & other automobiles,

-- Marine engines,Agricultural equipment’s,

-- Steering,

-- Light Vehicles,

-- Industrial movers,

-- Fork lift trucks,

-- Conveyors,

-- Construction machinery,

-- Presses & machine tools

EASIER is one of China Bearing manufacturers and exporter of King Pin Bearings with steel ball or steel rollers, also written as king-pin or king pin, is a very important component in any vehicle. It is the main pivot in the mechanism of steering in any vehicle. King Pins are also used as fifth wheel coupling apparatus in vehicles. King Pins have an important property of being able to carry heavier weights and therefore can be mostly seen in Large or Heavy Vehicles.

The Kingpin Bearing is capable of bearing thrust pressure in various industrial pump applications and possesses high resistivity and durability. These are constructed using high grade raw materials, which are tested under the supervision of experienced professionals. Kingpin bearing is the main pivot in the steering mechanism of a car or other vehicles.

EASIER/TKW as Top China Bearing manufacturer, it Can manufacture and supply complete series King Pin Bearings & King Pin Thrust Bearings, there are few bearing manufacturer in the world manufacturer this kinds of bearings like Fersa from Spain, TIMKEN from USA, TURBO,TKW from China etc. Our products are the same design and replace them for customers on the market.
