Availability: | |
---|---|

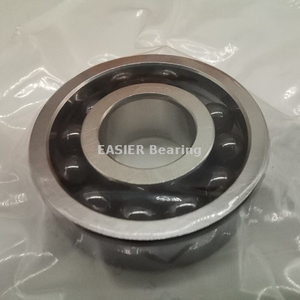

BS2-2208-2RS/VT143
EASIER / TKW
BS2-2208
Spherical Roller Bearing
Best Factory Price
Sealed spherical roller bearing is an upgraded design of the spherical roller bearing. Like ordinary open spherical roller bearings, it has two rows of drum rollers, one spherical raceway on the outer ring and two rollers on the inner ring. The raceway is inclined at an angle relative to the bearing axis. The raceway has a certain radian. According to the different designs of the rollers and cages, there are different processing methods. In addition, there is a sealing design at both ends of the bearing (the sealing cover is made of nitrile rubber), which can prevent the entry of dust, particles, and dust, and can keep lubricating oil or grease in a sealed environment to lubricate the raceway and reduce The temperature of the bearing during operation), so as to ensure the normal operation between the raceway and the roller of the bearing, and ensure the service life of the bearing.
The radian design of the raceway makes it have self-aligning performance, so it is not easily affected by the angle between the shaft and the bearing housing on the error or shaft bending, and is suitable for the occasions where the installation error or the shaft disturbance causes the angle error. In addition to radial loads, the bearings can also withstand axial loads acting in both directions.
The inner bore of the sealed spherical roller bearing has two types: cylindrical bore and tapered bore. The taper of the conical taper hole is 1:30 and 1:12. This conical inner hole bearing is equipped with an adapter sleeve or a withdrawal sleeve. , the tapered inner hole self-aligning ball bearing can be easily and quickly assembled on the optical shaft or stepped shaft.
By design, Sealed spherical roller bearings can accommodate very heavy radial and heavy axial loads in applications prone to misalignment or shaft deflections. Sealed spherical roller bearings have the same features and internal design as basic design spherical roller bearings, but are equipped with contact seals fitted in recesses in the outer ring.
The bearings are supplied lubricated with a high-performance TKW grease. For many application conditions, the bearings do not require relubrication and can be considered maintenance-free.
The effective contact seals keep lubricant in and contaminants out and of the bearing, providing significantly increased service life in many applications where there are high levels of contamination.
Product features
• Made of super-clean and tough upgraded steel
• Highly effective double-lip seals
• Can accomodate up to 0.5° of misalignment
Common applications of TKW Sealed Spherical Roller Bearings

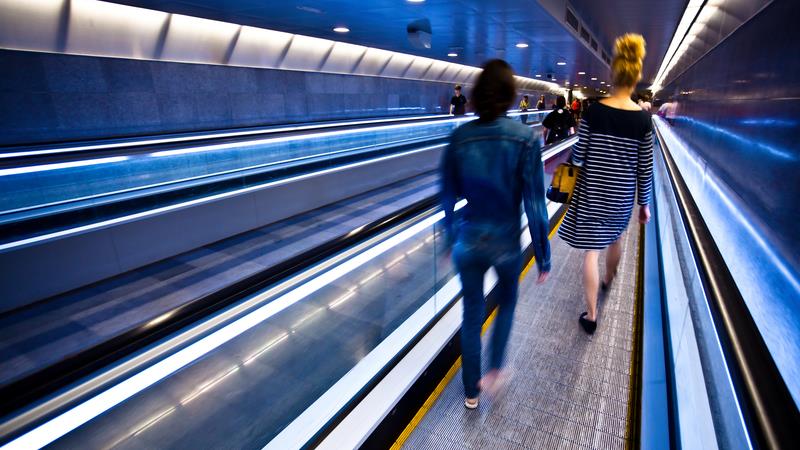

• Elevators, escalators
• Electric motors
• Mining and construction equipment
• Fluid machinery
• Marine industry machinery
• Food processing machinery
• Steel manufacturing equipment

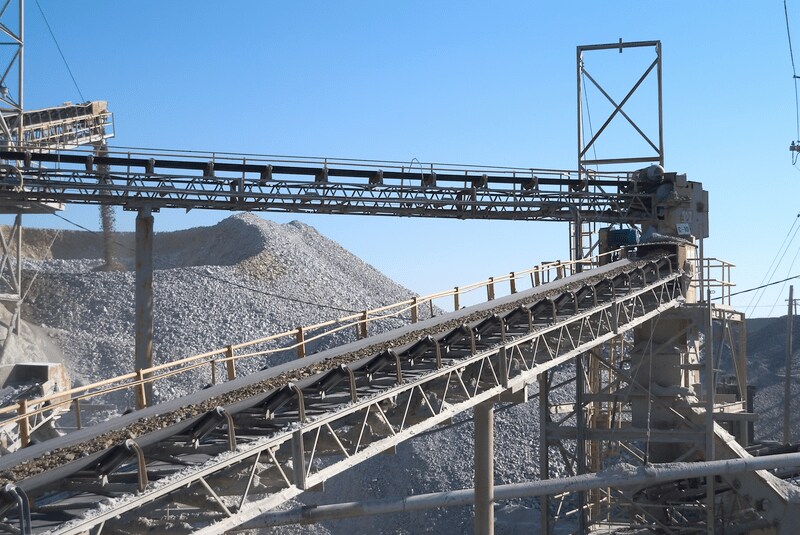

• Conveyors

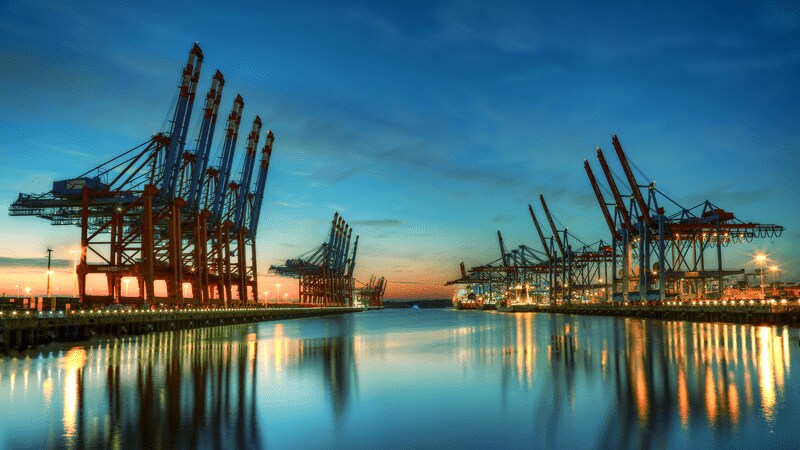

• Cranes
User benefits Of TKW Sealed Spherical Roller Bearings
• Increased service life in contaminated environments
• Grease and seal simplify assembly
• Minimum lubricant consumption
• Reduced maintenance and operating costs
• Reduced noise and vibration levels
• Space saving
• Reduced environmental impact
Sealed spherical roller bearing is an upgraded design of the spherical roller bearing. Like ordinary open spherical roller bearings, it has two rows of drum rollers, one spherical raceway on the outer ring and two rollers on the inner ring. The raceway is inclined at an angle relative to the bearing axis. The raceway has a certain radian. According to the different designs of the rollers and cages, there are different processing methods. In addition, there is a sealing design at both ends of the bearing (the sealing cover is made of nitrile rubber), which can prevent the entry of dust, particles, and dust, and can keep lubricating oil or grease in a sealed environment to lubricate the raceway and reduce The temperature of the bearing during operation), so as to ensure the normal operation between the raceway and the roller of the bearing, and ensure the service life of the bearing.
The radian design of the raceway makes it have self-aligning performance, so it is not easily affected by the angle between the shaft and the bearing housing on the error or shaft bending, and is suitable for the occasions where the installation error or the shaft disturbance causes the angle error. In addition to radial loads, the bearings can also withstand axial loads acting in both directions.
The inner bore of the sealed spherical roller bearing has two types: cylindrical bore and tapered bore. The taper of the conical taper hole is 1:30 and 1:12. This conical inner hole bearing is equipped with an adapter sleeve or a withdrawal sleeve. , the tapered inner hole self-aligning ball bearing can be easily and quickly assembled on the optical shaft or stepped shaft.
By design, Sealed spherical roller bearings can accommodate very heavy radial and heavy axial loads in applications prone to misalignment or shaft deflections. Sealed spherical roller bearings have the same features and internal design as basic design spherical roller bearings, but are equipped with contact seals fitted in recesses in the outer ring.
The bearings are supplied lubricated with a high-performance TKW grease. For many application conditions, the bearings do not require relubrication and can be considered maintenance-free.
The effective contact seals keep lubricant in and contaminants out and of the bearing, providing significantly increased service life in many applications where there are high levels of contamination.
Product features
• Made of super-clean and tough upgraded steel
• Highly effective double-lip seals
• Can accomodate up to 0.5° of misalignment
Common applications of TKW Sealed Spherical Roller Bearings
• Elevators, escalators
• Electric motors
• Mining and construction equipment
• Fluid machinery
• Marine industry machinery
• Food processing machinery
• Steel manufacturing equipment
• Conveyors
• Cranes
User benefits Of TKW Sealed Spherical Roller Bearings
• Increased service life in contaminated environments
• Grease and seal simplify assembly
• Minimum lubricant consumption
• Reduced maintenance and operating costs
• Reduced noise and vibration levels
• Space saving
• Reduced environmental impact
Designation (Bore diameter 20mm-45mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B [mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
BS2-2205-2RS/VT143 | WS22205-E1-XL-2RSR | 25 | 52 | 23 | 49.9 | 44 | 6 100 | |||
BS2-2206-2RS/VT143 | WS22206-E1-XL-2RSR | 30 | 62 | 25 | 66.1 | 60 | 5 100 | |||
BS2-2207-2RS/VT143 | WS22207-E1-XL-2RSR | 35 | 72 | 28 | 88.8 | 85 | 4 300 | |||
BS2-2208-2RS/VT143 | WS22208-E1-XL-2RSR | 40 | 80 | 28 | 98.5 | 90 | 3 900 | |||
BS2-2208-2RSK/VT143 | WS22208-E1-XL-K-2RSR | 40 | 80 | 28 | 98.5 | 90 | 3 900 | |||
BS2-2308-2RS/VT143 | WS22308-E1-XL-2RSR | 40 | 90 | 38 | 155 | 140 | 3 900 | |||
BS2-2209-2RS/VT143 | WS22209-E1-XL-2RSR | 45 | 85 | 28 | 104 | 98 | 3 500 | |||
BS2-2209-2RSK/VT143 | WS22209-E1-XL-K-2RSR | 45 | 85 | 28 | 104 | 98 | 3 500 | |||
BS2-2309-2RS/VT143 | WS22309-E1-XL-2RSR | 45 | 100 | 42 | 190 | 183 | 3 400 | |||
BS2-2210-2RS/VT143 | WS22210-E1-XL-2RSR | 50 | 90 | 28 | 107 | 108 | 3 200 | |||
BS2-2210-2RSK/VT143 | WS22210-E1-XL-K-2RSR | 50 | 90 | 28 | 107 | 108 | 3 200 | |||
BS2-2310-2RS/VT143 | WS22310-E1-XL-2RSR | 50 | 110 | 45 | 228 | 224 | 3 000 | |||
BS2-2211-2RS/VT143 | WS22211-E1-XL-2RSR | 55 | 100 | 31 | 129 | 127 | 2 900 | |||
BS2-2211-2RSK/VT143 | WS22211-E1-XL-K-2RSR | 55 | 100 | 31 | 129 | 127 | 2 900 | |||
BS2-2311-2RS/VT143 | WS22311-E1-XL-2RSR | 55 | 120 | 49 | 280 | 280 | 2 800 | |||
BS2-2212-2RS/VT143 | WS22212-E1-XL-2RSR | 60 | 110 | 34 | 159 | 166 | 2 700 | |||
BS2-2212-2RSK/VT143 | WS22212-E1-XL-K-2RSR | 60 | 110 | 34 | 159 | 166 | 2 700 | |||
BS2-2312-2RS/VT143 | WS22312-E1-XL-2RSR | 60 | 130 | 53 | 325 | 335 | 2 500 | |||
24013-2RS5W/VT143 | 65 | 100 | 35 | 137 | 173 | 2 600 | ||||
BS2-2213-2RS/VT143 | WS22213-E1-XL-2RSR | 65 | 120 | 38 | 198 | 216 | 2 400 | |||
BS2-2213-2RSK/VT143 | WS22213-E1-XL-K-2RSR | 65 | 120 | 38 | 198 | 216 | 2 400 | |||
BS2-2313-2RS/VT143 | WS22313-E1-XL-2RSR | 65 | 140 | 56 | 357 | 360 | 2 400 | |||
BS2-2214-2RS/VT143 | WS22214-E1-XL-2RSR | 70 | 125 | 38 | 213 | 228 | 2 300 | |||
BS2-2214-2RSK/VT143 | WS22214-E1-XL-K-2RSR | 70 | 125 | 38 | 213 | 228 | 2 300 | |||
BS2-2314-2RS/VT143 | WS22314-E1-XL-2RSR | 70 | 150 | 60 | 413 | 430 | 2 100 | |||
24015-2RS5/VT143 | 75 | 115 | 40 | 181 | 232 | 2 300 | ||||
BS2-2215-2RS/VT143 | WS22215-E1-XL-2RSR | 75 | 130 | 38 | 217 | 240 | 2 200 | |||
BS2-2215-2RSK/VT143 | WS22215-E1-XL-K-2RSR | 75 | 130 | 38 | 217 | 240 | 2 200 | |||
BS2-2315-2RS/VT143 | WS22315-E1-XL-2RSR | 75 | 160 | 64 | 462 | 475 | 2 100 | |||
BS2-2315-2RSK/VT143 | WS22315-E1-XL-K-2RSR | 75 | 160 | 64 | 462 | 475 | 2 100 | |||
BS2-2216-2RS/VT143 | WS22216-E1-XL-2RSR | 80 | 140 | 40 | 243 | 270 | 2 000 | |||
BS2-2216-2RSK/VT143 | WS22216-E1-XL-K-2RSR | 80 | 140 | 40 | 243 | 270 | 2 000 | |||
BS2-2316-2RS/VT143 | WS22316-E1-XL-2RSR | 80 | 170 | 67 | 516 | 530 | 2 000 | |||
BS2-2316-2RSK/VT143 | WS22316-E1-XL-K-2RSR | 80 | 170 | 67 | 516 | 530 | 2 000 | |||
BS2-2217-2RS/VT143 | WS22217-E1-XL-2RSR | 85 | 150 | 44 | 291 | 325 | 1 900 | |||
Designation (Bore diameter 85mm-95mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
BS2-2217-2RSK/VT143 | WS22217-E1-XL-K-2RSR | 85 | 150 | 44 | 291 | 325 | 1 900 | |||
BS2-2218-2RS/VT143 | WS22218-E1-XL-2RSR | 90 | 160 | 48 | 331 | 375 | 1 800 | |||
BS2-2218-2RSK/VT143 | WS22218-E1-XL-K-2RSR | 90 | 160 | 48 | 331 | 375 | 1 800 | |||
BS2-2318-2RS5/VT143 | WS22318-E1-XL-2RSR | 90 | 190 | 73 | 637 | 695 | 1 700 | |||
BS2-2318-2RS5K/VT143 | WS22318-E1-XL-K-2RSR | 90 | 190 | 73 | 637 | 695 | 1 700 | |||
BS2-2219-2RS/VT143 | WS22219-E1-XL-2RSR | 95 | 170 | 51 | 393 | 450 | 1 700 | |||
24020-2RS5/VT143 | 100 | 150 | 50 | 296 | 415 | 1 700 | ||||
24120-2RS5/VT143 | 100 | 165 | 65 | 470 | 640 | 1 700 | ||||
BS2-2220-2RS5/VT143 | WS22220-E1-XL-2RSR | 100 | 180 | 55 | 433 | 490 | 1 600 | |||
BS2-2220-2RS5K/VT143 | WS22220-E1-XL-K-2RSR | 100 | 180 | 55 | 433 | 490 | 1 600 | |||
23220-2RS/VT143 | 100 | 180 | 60.3 | 499 | 600 | 1 600 | ||||
23220-2RS5/VT143 | 100 | 180 | 60.3 | 499 | 600 | 1 600 | ||||
BS2-2320-2CS5/VT143 | WS22320-E1-XL-2RSR | 100 | 215 | 82 | 847 | 950 | 600 | |||
BS2-2320-2CS5K/VT143 | WS22320-E1-XL-K-2RSR | 100 | 215 | 82 | 847 | 950 | 600 | |||
23022-2RS/VT143 | 110 | 170 | 45 | 326 | 440 | 1 500 | ||||
24022-2RS5/VT143 | 110 | 170 | 60 | 438 | 620 | 1 600 | ||||
23122-2CS5/VT143 | 110 | 180 | 56 | 451 | 585 | 800 | ||||
23122-2CS5K/VT143 | 110 | 180 | 56 | 451 | 585 | 800 | ||||
24122-2CS5/VT143 | 24122-BE-XL-2VSR | 110 | 180 | 69 | 540 | 750 | 630 | |||
BS2-2222-2RS5/VT143 | WS22222-E1-XL-2RSR | 110 | 200 | 63 | 572 | 640 | 1 500 | |||
BS2-2222-2RS5K/VT143 | WS22222-E1-XL-K-2RSR | 110 | 200 | 63 | 572 | 640 | 1 500 | |||
23222-2CS5/VT143 | 110 | 200 | 69.8 | 627 | 765 | 640 | ||||
23222-2CS5K/VT143 | 110 | 200 | 69.8 | 627 | 765 | 640 | ||||
23024-2RS5/VT143 | 120 | 180 | 46 | 367 | 500 | 1 400 | ||||
24024-2CS5/VT143 | 24024-BE-XL-2VSR | 120 | 180 | 60 | 457 | 670 | 670 | |||
23124-2CS5/VT143 | 120 | 200 | 62 | 535 | 695 | 720 | ||||
24124-2CS5/VT143 | 24124-BE-XL-2VSR | 120 | 200 | 80 | 680 | 950 | 560 | |||
BS2-2224-2RS5/VT143 | WS22224-E1-XL-2RSR | 120 | 215 | 69 | 652 | 765 | 1 400 | |||
BS2-2224-2RS5K/VT143 | WS22224-E1-XL-K-2RSR | 120 | 215 | 69 | 652 | 765 | 1 400 | |||
23224-2CS5/VT143 | 120 | 215 | 76 | 734 | 930 | 600 | ||||
23224-2CS5K/VT143 | 120 | 215 | 76 | 734 | 930 | 600 | ||||
22324-2CS5/VT143 | 120 | 260 | 86 | 1 022 | 1 120 | 600 | ||||
22324-2CS5K/VT143 | 120 | 260 | 86 | 1 022 | 1 120 | 600 | ||||
23026-2CS5/VT143 | 130 | 200 | 52 | 452 | 610 | 800 | ||||
23026-2CS5K/VT143 | 130 | 200 | 52 | 452 | 610 | 800 | ||||
24026-2CS5/VT143 | 24026-BE-XL-2VSR | 130 | 200 | 69 | 570 | 830 | 600 | |||
Designation (Bore diameter 130mm-140mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
24126-2CS5/VT143 | 24126-BE-XL-2VSR | 130 | 210 | 80 | 701 | 1 000 | 530 | |||
229750 J/C3R505 | 130 | 220 | 73 | 640 | 930 | 1 600 | 2 400 | |||
BS2-2226-2CS5/VT143 | WS22226-E1-XL-2RSR | 130 | 230 | 75 | 758 | 930 | 700 | |||
BS2-2226-2CS5K/VT143 | WS22226-E1-XL-K-2RSR | 130 | 230 | 75 | 758 | 930 | 700 | |||
23226-2CS5/VT143 | 130 | 230 | 80 | 828 | 1 060 | 530 | ||||
23226-2CS5K/VT143 | 130 | 230 | 80 | 828 | 1 060 | 530 | ||||
22326-2CS5/VT143 | 130 | 280 | 93 | 1 178 | 1 320 | 500 | ||||
22326-2CS5K/VT143 | 130 | 280 | 93 | 1 178 | 1 320 | 500 | ||||
23028-2CS5/VT143 | 140 | 210 | 53 | 485 | 680 | 700 | ||||
23028-2CS5K/VT143 | 140 | 210 | 53 | 485 | 680 | 700 | ||||
24028-2CS5/VT143 | 24028-BE-XL-2VSR | 140 | 210 | 69 | 601 | 900 | 560 | |||
24128-2CS5/VT143 | 24128-BE-XL-2VSR | 140 | 225 | 85 | 797 | 1 160 | 450 | |||
24128-2CS5K30/VT143 | 24128-BE-XL-K-2VSR | 140 | 225 | 85 | 797 | 1 160 | 450 | |||
22228-2CS5/VT143 | 22228-E1A-XL-2RSR-M | 140 | 250 | 68 | 744 | 900 | 670 | |||
22228-2CS5K/VT143 | 22228-E1A-XL-K-2RSR-M | 140 | 250 | 68 | 744 | 900 | 670 | |||
23228-2CS5/VT143 | 140 | 250 | 88 | 963 | 1 250 | 480 | ||||
23228-2CS5K/VT143 | 140 | 250 | 88 | 963 | 1 250 | 480 | ||||
22328-2CS5/VT143 | 140 | 300 | 102 | 1 359 | 1 560 | 430 | ||||
22328-2CS5K/VT143 | 140 | 300 | 102 | 1 359 | 1 560 | 430 | ||||
23030-2CS5/VT143 | 150 | 225 | 56 | 532 | 750 | 670 | ||||
23030-2CS5K/VT143 | 150 | 225 | 56 | 532 | 750 | 670 | ||||
24030-2CS5/VT143 | 24030-BE-XL-2VSR | 150 | 225 | 75 | 681 | 1 040 | 530 | |||
23130-2CS5/VT143 | 150 | 250 | 80 | 884 | 1 200 | 560 | ||||
23130-2CS5K/VT143 | 150 | 250 | 80 | 884 | 1 200 | 560 | ||||
Designation (Bore diameter 150mm-160mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
24130-2CS5/VT143 | 24130-BE-XL-2VSR | 150 | 250 | 100 | 1 056 | 1 530 | 400 | |||
24130-2CS5K30/VT143 | 24130-BE-XL-K-2VSR | 150 | 250 | 100 | 1 056 | 1 530 | 400 | |||
22230-2CS5/VT143 | 150 | 270 | 73 | 899 | 1 080 | 630 | ||||
22230-2CS5K/VT143 | 150 | 270 | 73 | 899 | 1 080 | 630 | ||||
23230-2CS5/VT143 | 150 | 270 | 96 | 1 132 | 1 460 | 430 | ||||
23230-2CS5K/VT143 | 150 | 270 | 96 | 1 132 | 1 460 | 430 | ||||
22330-2CS5/VT143 | 150 | 320 | 108 | 1 541 | 1 760 | 400 | ||||
22330-2CS5K/VT143 | 150 | 320 | 108 | 1 541 | 1 760 | 400 | ||||
23032-2CS5/VT143 | 160 | 240 | 60 | 615 | 880 | 670 | ||||
23032-2CS5K/VT143 | 160 | 240 | 60 | 615 | 880 | 670 | ||||
24032-2CS5/VT143 | 24032-BE-XL-2VSR | 160 | 240 | 80 | 784 | 1 200 | 450 | |||
23132-2CS5/VT143 | 160 | 270 | 86 | 1 030 | 1 400 | 530 | ||||
23132-2CS5K/VT143 | 160 | 270 | 86 | 1 030 | 1 400 | 530 | ||||
24132-2CS5/VT143 | 24132-BE-XL-2VSR | 160 | 270 | 109 | 1 229 | 1 760 | 380 | |||
22232-2CS5/VT143 | 22232-E1A-XL-2RSR-M | 160 | 290 | 80 | 1 044 | 1 290 | 600 | |||
22232-2CS5K/VT143 | 22232-E1A-XL-K-2RSR-M | 160 | 290 | 80 | 1 044 | 1 290 | 600 | |||
22332-2CS5/VT143 | 160 | 340 | 114 | 1 683 | 1 960 | 380 | ||||
22332-2CS5K/VT143 | 160 | 340 | 114 | 1 683 | 1 960 | 380 | ||||
23034-2CS5/VT143 | 170 | 260 | 67 | 746 | 1 080 | 630 | ||||
23034-2CS5K/VT143 | 170 | 260 | 67 | 746 | 1 080 | 630 | ||||
24034-2CS5/VT143 | 24034-BE-XL-2VSR | 170 | 260 | 90 | 966 | 1 500 | 400 | |||
23134-2CS5/VT143 | 170 | 280 | 88 | 1 088 | 1 500 | 480 | ||||
23134-2CS5K/VT143 | 170 | 280 | 88 | 1 088 | 1 500 | 480 | ||||
Designation (Bore diameter 170mm-180mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
24134-2CS5/VT143 | 24134-BE-XL-2VSR | 170 | 280 | 109 | 1 273 | 1 860 | 360 | |||
22234-2CS5/VT143 | 170 | 310 | 86 | 1 185 | 1 460 | 500 | ||||
22234-2CS5K/VT143 | 170 | 310 | 86 | 1 185 | 1 460 | 500 | ||||
23036-2CS5/VT143 | 180 | 280 | 74 | 884 | 1 270 | 560 | ||||
23036-2CS5K/VT143 | 180 | 280 | 74 | 884 | 1 270 | 560 | ||||
24036-2CS5/VT143 | 24036-BE-XL-2VSR | 180 | 280 | 100 | 1 136 | 1 730 | 380 | |||
23136-2CS5/VT143 | 180 | 300 | 96 | 1 264 | 1 800 | 430 | ||||
23136-2CS5K/VT143 | 180 | 300 | 96 | 1 264 | 1 800 | 430 | ||||
24136-2CS5/VT143 | 24136-BE-XL-2VSR | 180 | 300 | 118 | 1 452 | 2 160 | 360 | |||
22236-2CS5/VT143 | 180 | 320 | 86 | 1 239 | 1 560 | 530 | ||||
22236-2CS5K/VT143 | 180 | 320 | 86 | 1 239 | 1 560 | 530 | ||||
23236-2CS5/VT143 | 180 | 320 | 112 | 1 560 | 2 120 | 360 | ||||
23138-2CS5/VT143 | 190 | 320 | 104 | 1 458 | 2 080 | 400 | ||||
23138-2CS5K/VT143 | 190 | 320 | 104 | 1 458 | 2 080 | 400 | ||||
24138-2CS5/VT143 | 24138-BE-XL-2VSR | 190 | 320 | 128 | 1 655 | 2 500 | 340 | |||
Designation (Bore diameter 190mm-200mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
22238-2CS5/VT143 | 190 | 340 | 92 | 1 345 | 1 700 | 480 | ||||
22238-2CS5K/VT143 | 190 | 340 | 92 | 1 345 | 1 700 | 480 | ||||
23238-2CS5/VT143 | 190 | 340 | 120 | 1 762 | 2 400 | 340 | ||||
22338-2CS5/VT143 | 190 | 400 | 132 | 2 236 | 2 650 | 340 | ||||
23040-2CS5/VT143 | 200 | 310 | 82 | 1 059 | 1 530 | 480 | ||||
23040-2CS5K/VT143 | 200 | 310 | 82 | 1 059 | 1 530 | 480 | ||||
23140-2CS5/VT143 | 23140-BE-XL-2RSR | 200 | 340 | 112 | 1 668 | 2 360 | 380 | |||
23140-2CS5K/VT143 | 23140-BE-XL-K-2RSR | 200 | 340 | 112 | 1 668 | 2 360 | 380 | |||
24140-2CS5/VT143 | 24140-BE-XL-2VSR | 200 | 340 | 140 | 1 871 | 2 800 | 320 | |||
22240-2CS5/VT143 | 200 | 360 | 98 | 1 529 | 1 930 | 430 | ||||
22240-2CS5K/VT143 | 200 | 360 | 98 | 1 529 | 1 930 | 430 | ||||
23240-2CS5/VT143 | 200 | 360 | 128 | 1 950 | 2 700 | 340 | ||||
23240-2CS5K/VT143 | 200 | 360 | 128 | 1 950 | 2 700 | 340 | ||||
23944-2CS/VT143 | 220 | 300 | 60 | 662 | 1 080 | 600 | ||||
23044-2CS5/VT143 | 220 | 340 | 90 | 1 262 | 1 860 | 430 | ||||
23044-2CS5K/VT143 | 220 | 340 | 90 | 1 262 | 1 860 | 430 | ||||
23144-2CS5/VT143 | 23144-BE-XL-2RSR | 220 | 370 | 120 | 1 891 | 2 750 | 360 | |||
23144-2CS5K/VT143 | 23144-BE-XL-K-2RSR | 220 | 370 | 120 | 1 891 | 2 750 | 360 | |||
Designation (Bore diameter 220mm-240mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
22244-2CS5/VT143 | 220 | 400 | 108 | 1 839 | 2 360 | 380 | ||||
22244-2CS5K/VT143 | 220 | 400 | 108 | 1 839 | 2 360 | 380 | ||||
22344-2CS5/VT143 | 220 | 460 | 145 | 2 844 | 3 450 | 300 | ||||
22344-2CS5K/VT143 | 220 | 460 | 145 | 2 844 | 3 450 | 300 | ||||
23048-2CS5/VT143 | 240 | 360 | 92 | 1 341 | 2 080 | 400 | ||||
23048-2CS5K/VT143 | 240 | 360 | 92 | 1 341 | 2 080 | 400 | ||||
23148-2CS5/VT143 | 23148-BE-XL-2RSR | 240 | 400 | 128 | 2 191 | 3 200 | 340 | |||
23148-2CS5K/VT143 | 23148-BE-XL-K-2RSR | 240 | 400 | 128 | 2 191 | 3 200 | 340 | |||
23052-2CS5/VT143 | 260 | 400 | 104 | 1 677 | 2 550 | 360 | ||||
23052-2CS5K/VT143 | 260 | 400 | 104 | 1 677 | 2 550 | 360 | ||||
23152-2CS5/VT143 | 23152-BE-XL-2RSR | 260 | 440 | 144 | 2 668 | 3 900 | 320 | |||
23152-2CS5K/VT143 | 23152-BE-XL-K-2RSR | 260 | 440 | 144 | 2 668 | 3 900 | 320 | |||
24152-2CS5/VT143 | 260 | 440 | 180 | 3 092 | 4 900 | 240 | ||||
Designation (Bore diameter 260mm-280mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
23156-2CS5/VT143 | 23156-BE-XL-2RSR | 280 | 460 | 146 | 2 788 | 4 250 | 300 | |||
23156-2CS5K/VT143 | 23156-BE-XL-K-2RSR | 280 | 460 | 146 | 2 788 | 4 250 | 300 | |||
24156 CC/W33 | 24156-E1 | 24156CAE4 | 280 | 460 | 180 | 3 183 | 5 100 | 630 | 900 | |
24156 CCK30/W33 | 24156-E1-K30 | 24156CAKE4 | 280 | 460 | 180 | 3 183 | 5 100 | 630 | 900 | |
24156 CC/C4W33VA991 | 280 | 460 | 180 | 3 183 | 5 100 | 630 | 1 300 | |||
24156-2CS5/VT143 | 280 | 460 | 180 | 3 190 | 5 100 | 220 | ||||
24156-2CS5K30/VT143 | 280 | 460 | 180 | 3 190 | 5 100 | 220 | ||||
23060-2CS5/VT143 | 300 | 460 | 118 | 2 222 | 3 450 | 320 | ||||
23060-2CS5K/VT143 | 300 | 460 | 118 | 2 222 | 3 450 | 320 | ||||
24060-2CS5/VT143 | 300 | 460 | 160 | 2 827 | 4 750 | 240 | ||||
23160-2CS5/VT143 | 23160-BEA-XL-2RSR-MB1 | 300 | 500 | 160 | 3 373 | 5 100 | 260 | |||
Designation (Bore diameter 300mm-320mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
23160-2CS5K/VT143 | 23160-BEA-XL-K-2RSR-MB1 | 300 | 500 | 160 | 3 373 | 5 100 | 260 | |||
24160-2CS5/VT143 | 300 | 500 | 200 | 3 881 | 6 300 | 212 | ||||
24160-2CS5K30/VT143 | 300 | 500 | 200 | 3 881 | 6 300 | 212 | ||||
23064-2CS5/VT143 | 320 | 480 | 121 | 2 348 | 3 800 | 320 | ||||
23064-2CS5K/VT143 | 320 | 480 | 121 | 2 348 | 3 800 | 320 | ||||
23164-2CS5/VT143 | 23164-BEA-XL-2RSR-MB1 | 320 | 540 | 176 | 3 929 | 6 100 | 260 | |||
23164-2CS5K/VT143 | 23164-BEA-XL-2RSR-K-MB1 | 320 | 540 | 176 | 3 929 | 6 100 | 260 | |||
23168-2CS5/VT143 | 23168-BEA-XL-2RSR-MB1 | 340 | 580 | 190 | 4 452 | 6 800 | 240 | |||
23168-2CS5K/VT143 | 23168-BEA-XL-2RSR-K-MB1 | 340 | 580 | 190 | 4 453 | 6 800 | 240 | |||
23172-2CS5/VT143 | 23172-BEA-XL-2RSR-MB1 | 360 | 600 | 192 | 4 521 | 6 950 | 220 | |||
23172-2CS5K/VT143 | 23172-BEA-XL-2RSR-K-MB1 | 360 | 600 | 192 | 4 521 | 6 950 | 220 | |||
23272-2CS5/VT143 | 360 | 650 | 232 | 5 669 | 8 300 | 160 | ||||
23272-2CS5K/VT143 | 360 | 650 | 232 | 5 669 | 8 300 | 160 | ||||
23076-2CS5/VT143 | 380 | 560 | 135 | 2 987 | 5 000 | 260 | ||||
23176-2CS5/VT143 | 23176-BEA-XL-2RSR-MB1 | 380 | 620 | 194 | 4 561 | 7 100 | 160 | |||
23176-2CS5K/VT143 | 23176-BEA-XL-K-2RSR-MB1 | 380 | 620 | 194 | 4 561 | 7 100 | 160 | |||
23080-2CS5/VT143 | 400 | 600 | 148 | 3 515 | 5 850 | 240 | ||||
23080-2CS5K/VT143 | 400 | 600 | 148 | 3 515 | 5 850 | 240 | ||||
23180-2CS5/VT143 | 23180-BEA-XL-2RSR-MB1 | 400 | 650 | 200 | 4 864 | 7 650 | 150 | |||
23180-2CS5K/VT143 | 23180-BEA-XL-K-2RSR-MB1 | 400 | 650 | 200 | 4 864 | 7 650 | 150 | |||
23184-2CS5/VT143 | 420 | 700 | 224 | 5 919 | 9 300 | 190 | ||||
23184-2CS5K/VT143 | 420 | 700 | 224 | 5 919 | 9 300 | 190 | ||||
23284-2CS5/VT143 | 420 | 760 | 272 | 7 683 | 11 600 | 128 | ||||
23284-2CS5K/VT143 | 420 | 760 | 272 | 7 683 | 11 600 | 128 | ||||
23088-2CS5/VT143 | 440 | 650 | 157 | 3 834 | 6 550 | 190 | ||||
23188-2CS5/VT143 | 440 | 720 | 226 | 6 220 | 10 000 | 180 | ||||
23188-2CS5K/VT143 | 440 | 720 | 226 | 6 220 | 10 000 | 180 | ||||
23192-2CS5/VT143 | 460 | 760 | 240 | 6 765 | 10 800 | 128 | ||||
23192-2CS5K/VT143 | 460 | 760 | 240 | 6 765 | 10 800 | 128 | ||||
23196-2CS5/VT143 | 480 | 790 | 248 | 7 367 | 12 000 | 170 | ||||
23196-2CS5K/VT143 | 480 | 790 | 248 | 7 367 | 12 000 | 170 |
Designation (Bore diameter 20mm-45mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B [mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
BS2-2205-2RS/VT143 | WS22205-E1-XL-2RSR | 25 | 52 | 23 | 49.9 | 44 | 6 100 | |||
BS2-2206-2RS/VT143 | WS22206-E1-XL-2RSR | 30 | 62 | 25 | 66.1 | 60 | 5 100 | |||
BS2-2207-2RS/VT143 | WS22207-E1-XL-2RSR | 35 | 72 | 28 | 88.8 | 85 | 4 300 | |||
BS2-2208-2RS/VT143 | WS22208-E1-XL-2RSR | 40 | 80 | 28 | 98.5 | 90 | 3 900 | |||
BS2-2208-2RSK/VT143 | WS22208-E1-XL-K-2RSR | 40 | 80 | 28 | 98.5 | 90 | 3 900 | |||
BS2-2308-2RS/VT143 | WS22308-E1-XL-2RSR | 40 | 90 | 38 | 155 | 140 | 3 900 | |||
BS2-2209-2RS/VT143 | WS22209-E1-XL-2RSR | 45 | 85 | 28 | 104 | 98 | 3 500 | |||
BS2-2209-2RSK/VT143 | WS22209-E1-XL-K-2RSR | 45 | 85 | 28 | 104 | 98 | 3 500 | |||
BS2-2309-2RS/VT143 | WS22309-E1-XL-2RSR | 45 | 100 | 42 | 190 | 183 | 3 400 | |||
BS2-2210-2RS/VT143 | WS22210-E1-XL-2RSR | 50 | 90 | 28 | 107 | 108 | 3 200 | |||
BS2-2210-2RSK/VT143 | WS22210-E1-XL-K-2RSR | 50 | 90 | 28 | 107 | 108 | 3 200 | |||
BS2-2310-2RS/VT143 | WS22310-E1-XL-2RSR | 50 | 110 | 45 | 228 | 224 | 3 000 | |||
BS2-2211-2RS/VT143 | WS22211-E1-XL-2RSR | 55 | 100 | 31 | 129 | 127 | 2 900 | |||
BS2-2211-2RSK/VT143 | WS22211-E1-XL-K-2RSR | 55 | 100 | 31 | 129 | 127 | 2 900 | |||
BS2-2311-2RS/VT143 | WS22311-E1-XL-2RSR | 55 | 120 | 49 | 280 | 280 | 2 800 | |||
BS2-2212-2RS/VT143 | WS22212-E1-XL-2RSR | 60 | 110 | 34 | 159 | 166 | 2 700 | |||
BS2-2212-2RSK/VT143 | WS22212-E1-XL-K-2RSR | 60 | 110 | 34 | 159 | 166 | 2 700 | |||
BS2-2312-2RS/VT143 | WS22312-E1-XL-2RSR | 60 | 130 | 53 | 325 | 335 | 2 500 | |||
24013-2RS5W/VT143 | 65 | 100 | 35 | 137 | 173 | 2 600 | ||||
BS2-2213-2RS/VT143 | WS22213-E1-XL-2RSR | 65 | 120 | 38 | 198 | 216 | 2 400 | |||
BS2-2213-2RSK/VT143 | WS22213-E1-XL-K-2RSR | 65 | 120 | 38 | 198 | 216 | 2 400 | |||
BS2-2313-2RS/VT143 | WS22313-E1-XL-2RSR | 65 | 140 | 56 | 357 | 360 | 2 400 | |||
BS2-2214-2RS/VT143 | WS22214-E1-XL-2RSR | 70 | 125 | 38 | 213 | 228 | 2 300 | |||
BS2-2214-2RSK/VT143 | WS22214-E1-XL-K-2RSR | 70 | 125 | 38 | 213 | 228 | 2 300 | |||
BS2-2314-2RS/VT143 | WS22314-E1-XL-2RSR | 70 | 150 | 60 | 413 | 430 | 2 100 | |||
24015-2RS5/VT143 | 75 | 115 | 40 | 181 | 232 | 2 300 | ||||
BS2-2215-2RS/VT143 | WS22215-E1-XL-2RSR | 75 | 130 | 38 | 217 | 240 | 2 200 | |||
BS2-2215-2RSK/VT143 | WS22215-E1-XL-K-2RSR | 75 | 130 | 38 | 217 | 240 | 2 200 | |||
BS2-2315-2RS/VT143 | WS22315-E1-XL-2RSR | 75 | 160 | 64 | 462 | 475 | 2 100 | |||
BS2-2315-2RSK/VT143 | WS22315-E1-XL-K-2RSR | 75 | 160 | 64 | 462 | 475 | 2 100 | |||
BS2-2216-2RS/VT143 | WS22216-E1-XL-2RSR | 80 | 140 | 40 | 243 | 270 | 2 000 | |||
BS2-2216-2RSK/VT143 | WS22216-E1-XL-K-2RSR | 80 | 140 | 40 | 243 | 270 | 2 000 | |||
BS2-2316-2RS/VT143 | WS22316-E1-XL-2RSR | 80 | 170 | 67 | 516 | 530 | 2 000 | |||
BS2-2316-2RSK/VT143 | WS22316-E1-XL-K-2RSR | 80 | 170 | 67 | 516 | 530 | 2 000 | |||
BS2-2217-2RS/VT143 | WS22217-E1-XL-2RSR | 85 | 150 | 44 | 291 | 325 | 1 900 | |||
Designation (Bore diameter 85mm-95mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
BS2-2217-2RSK/VT143 | WS22217-E1-XL-K-2RSR | 85 | 150 | 44 | 291 | 325 | 1 900 | |||
BS2-2218-2RS/VT143 | WS22218-E1-XL-2RSR | 90 | 160 | 48 | 331 | 375 | 1 800 | |||
BS2-2218-2RSK/VT143 | WS22218-E1-XL-K-2RSR | 90 | 160 | 48 | 331 | 375 | 1 800 | |||
BS2-2318-2RS5/VT143 | WS22318-E1-XL-2RSR | 90 | 190 | 73 | 637 | 695 | 1 700 | |||
BS2-2318-2RS5K/VT143 | WS22318-E1-XL-K-2RSR | 90 | 190 | 73 | 637 | 695 | 1 700 | |||
BS2-2219-2RS/VT143 | WS22219-E1-XL-2RSR | 95 | 170 | 51 | 393 | 450 | 1 700 | |||
24020-2RS5/VT143 | 100 | 150 | 50 | 296 | 415 | 1 700 | ||||
24120-2RS5/VT143 | 100 | 165 | 65 | 470 | 640 | 1 700 | ||||
BS2-2220-2RS5/VT143 | WS22220-E1-XL-2RSR | 100 | 180 | 55 | 433 | 490 | 1 600 | |||
BS2-2220-2RS5K/VT143 | WS22220-E1-XL-K-2RSR | 100 | 180 | 55 | 433 | 490 | 1 600 | |||
23220-2RS/VT143 | 100 | 180 | 60.3 | 499 | 600 | 1 600 | ||||
23220-2RS5/VT143 | 100 | 180 | 60.3 | 499 | 600 | 1 600 | ||||
BS2-2320-2CS5/VT143 | WS22320-E1-XL-2RSR | 100 | 215 | 82 | 847 | 950 | 600 | |||
BS2-2320-2CS5K/VT143 | WS22320-E1-XL-K-2RSR | 100 | 215 | 82 | 847 | 950 | 600 | |||
23022-2RS/VT143 | 110 | 170 | 45 | 326 | 440 | 1 500 | ||||
24022-2RS5/VT143 | 110 | 170 | 60 | 438 | 620 | 1 600 | ||||
23122-2CS5/VT143 | 110 | 180 | 56 | 451 | 585 | 800 | ||||
23122-2CS5K/VT143 | 110 | 180 | 56 | 451 | 585 | 800 | ||||
24122-2CS5/VT143 | 24122-BE-XL-2VSR | 110 | 180 | 69 | 540 | 750 | 630 | |||
BS2-2222-2RS5/VT143 | WS22222-E1-XL-2RSR | 110 | 200 | 63 | 572 | 640 | 1 500 | |||
BS2-2222-2RS5K/VT143 | WS22222-E1-XL-K-2RSR | 110 | 200 | 63 | 572 | 640 | 1 500 | |||
23222-2CS5/VT143 | 110 | 200 | 69.8 | 627 | 765 | 640 | ||||
23222-2CS5K/VT143 | 110 | 200 | 69.8 | 627 | 765 | 640 | ||||
23024-2RS5/VT143 | 120 | 180 | 46 | 367 | 500 | 1 400 | ||||
24024-2CS5/VT143 | 24024-BE-XL-2VSR | 120 | 180 | 60 | 457 | 670 | 670 | |||
23124-2CS5/VT143 | 120 | 200 | 62 | 535 | 695 | 720 | ||||
24124-2CS5/VT143 | 24124-BE-XL-2VSR | 120 | 200 | 80 | 680 | 950 | 560 | |||
BS2-2224-2RS5/VT143 | WS22224-E1-XL-2RSR | 120 | 215 | 69 | 652 | 765 | 1 400 | |||
BS2-2224-2RS5K/VT143 | WS22224-E1-XL-K-2RSR | 120 | 215 | 69 | 652 | 765 | 1 400 | |||
23224-2CS5/VT143 | 120 | 215 | 76 | 734 | 930 | 600 | ||||
23224-2CS5K/VT143 | 120 | 215 | 76 | 734 | 930 | 600 | ||||
22324-2CS5/VT143 | 120 | 260 | 86 | 1 022 | 1 120 | 600 | ||||
22324-2CS5K/VT143 | 120 | 260 | 86 | 1 022 | 1 120 | 600 | ||||
23026-2CS5/VT143 | 130 | 200 | 52 | 452 | 610 | 800 | ||||
23026-2CS5K/VT143 | 130 | 200 | 52 | 452 | 610 | 800 | ||||
24026-2CS5/VT143 | 24026-BE-XL-2VSR | 130 | 200 | 69 | 570 | 830 | 600 | |||
Designation (Bore diameter 130mm-140mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
24126-2CS5/VT143 | 24126-BE-XL-2VSR | 130 | 210 | 80 | 701 | 1 000 | 530 | |||
229750 J/C3R505 | 130 | 220 | 73 | 640 | 930 | 1 600 | 2 400 | |||
BS2-2226-2CS5/VT143 | WS22226-E1-XL-2RSR | 130 | 230 | 75 | 758 | 930 | 700 | |||
BS2-2226-2CS5K/VT143 | WS22226-E1-XL-K-2RSR | 130 | 230 | 75 | 758 | 930 | 700 | |||
23226-2CS5/VT143 | 130 | 230 | 80 | 828 | 1 060 | 530 | ||||
23226-2CS5K/VT143 | 130 | 230 | 80 | 828 | 1 060 | 530 | ||||
22326-2CS5/VT143 | 130 | 280 | 93 | 1 178 | 1 320 | 500 | ||||
22326-2CS5K/VT143 | 130 | 280 | 93 | 1 178 | 1 320 | 500 | ||||
23028-2CS5/VT143 | 140 | 210 | 53 | 485 | 680 | 700 | ||||
23028-2CS5K/VT143 | 140 | 210 | 53 | 485 | 680 | 700 | ||||
24028-2CS5/VT143 | 24028-BE-XL-2VSR | 140 | 210 | 69 | 601 | 900 | 560 | |||
24128-2CS5/VT143 | 24128-BE-XL-2VSR | 140 | 225 | 85 | 797 | 1 160 | 450 | |||
24128-2CS5K30/VT143 | 24128-BE-XL-K-2VSR | 140 | 225 | 85 | 797 | 1 160 | 450 | |||
22228-2CS5/VT143 | 22228-E1A-XL-2RSR-M | 140 | 250 | 68 | 744 | 900 | 670 | |||
22228-2CS5K/VT143 | 22228-E1A-XL-K-2RSR-M | 140 | 250 | 68 | 744 | 900 | 670 | |||
23228-2CS5/VT143 | 140 | 250 | 88 | 963 | 1 250 | 480 | ||||
23228-2CS5K/VT143 | 140 | 250 | 88 | 963 | 1 250 | 480 | ||||
22328-2CS5/VT143 | 140 | 300 | 102 | 1 359 | 1 560 | 430 | ||||
22328-2CS5K/VT143 | 140 | 300 | 102 | 1 359 | 1 560 | 430 | ||||
23030-2CS5/VT143 | 150 | 225 | 56 | 532 | 750 | 670 | ||||
23030-2CS5K/VT143 | 150 | 225 | 56 | 532 | 750 | 670 | ||||
24030-2CS5/VT143 | 24030-BE-XL-2VSR | 150 | 225 | 75 | 681 | 1 040 | 530 | |||
23130-2CS5/VT143 | 150 | 250 | 80 | 884 | 1 200 | 560 | ||||
23130-2CS5K/VT143 | 150 | 250 | 80 | 884 | 1 200 | 560 | ||||
Designation (Bore diameter 150mm-160mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
24130-2CS5/VT143 | 24130-BE-XL-2VSR | 150 | 250 | 100 | 1 056 | 1 530 | 400 | |||
24130-2CS5K30/VT143 | 24130-BE-XL-K-2VSR | 150 | 250 | 100 | 1 056 | 1 530 | 400 | |||
22230-2CS5/VT143 | 150 | 270 | 73 | 899 | 1 080 | 630 | ||||
22230-2CS5K/VT143 | 150 | 270 | 73 | 899 | 1 080 | 630 | ||||
23230-2CS5/VT143 | 150 | 270 | 96 | 1 132 | 1 460 | 430 | ||||
23230-2CS5K/VT143 | 150 | 270 | 96 | 1 132 | 1 460 | 430 | ||||
22330-2CS5/VT143 | 150 | 320 | 108 | 1 541 | 1 760 | 400 | ||||
22330-2CS5K/VT143 | 150 | 320 | 108 | 1 541 | 1 760 | 400 | ||||
23032-2CS5/VT143 | 160 | 240 | 60 | 615 | 880 | 670 | ||||
23032-2CS5K/VT143 | 160 | 240 | 60 | 615 | 880 | 670 | ||||
24032-2CS5/VT143 | 24032-BE-XL-2VSR | 160 | 240 | 80 | 784 | 1 200 | 450 | |||
23132-2CS5/VT143 | 160 | 270 | 86 | 1 030 | 1 400 | 530 | ||||
23132-2CS5K/VT143 | 160 | 270 | 86 | 1 030 | 1 400 | 530 | ||||
24132-2CS5/VT143 | 24132-BE-XL-2VSR | 160 | 270 | 109 | 1 229 | 1 760 | 380 | |||
22232-2CS5/VT143 | 22232-E1A-XL-2RSR-M | 160 | 290 | 80 | 1 044 | 1 290 | 600 | |||
22232-2CS5K/VT143 | 22232-E1A-XL-K-2RSR-M | 160 | 290 | 80 | 1 044 | 1 290 | 600 | |||
22332-2CS5/VT143 | 160 | 340 | 114 | 1 683 | 1 960 | 380 | ||||
22332-2CS5K/VT143 | 160 | 340 | 114 | 1 683 | 1 960 | 380 | ||||
23034-2CS5/VT143 | 170 | 260 | 67 | 746 | 1 080 | 630 | ||||
23034-2CS5K/VT143 | 170 | 260 | 67 | 746 | 1 080 | 630 | ||||
24034-2CS5/VT143 | 24034-BE-XL-2VSR | 170 | 260 | 90 | 966 | 1 500 | 400 | |||
23134-2CS5/VT143 | 170 | 280 | 88 | 1 088 | 1 500 | 480 | ||||
23134-2CS5K/VT143 | 170 | 280 | 88 | 1 088 | 1 500 | 480 | ||||
Designation (Bore diameter 170mm-180mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
24134-2CS5/VT143 | 24134-BE-XL-2VSR | 170 | 280 | 109 | 1 273 | 1 860 | 360 | |||
22234-2CS5/VT143 | 170 | 310 | 86 | 1 185 | 1 460 | 500 | ||||
22234-2CS5K/VT143 | 170 | 310 | 86 | 1 185 | 1 460 | 500 | ||||
23036-2CS5/VT143 | 180 | 280 | 74 | 884 | 1 270 | 560 | ||||
23036-2CS5K/VT143 | 180 | 280 | 74 | 884 | 1 270 | 560 | ||||
24036-2CS5/VT143 | 24036-BE-XL-2VSR | 180 | 280 | 100 | 1 136 | 1 730 | 380 | |||
23136-2CS5/VT143 | 180 | 300 | 96 | 1 264 | 1 800 | 430 | ||||
23136-2CS5K/VT143 | 180 | 300 | 96 | 1 264 | 1 800 | 430 | ||||
24136-2CS5/VT143 | 24136-BE-XL-2VSR | 180 | 300 | 118 | 1 452 | 2 160 | 360 | |||
22236-2CS5/VT143 | 180 | 320 | 86 | 1 239 | 1 560 | 530 | ||||
22236-2CS5K/VT143 | 180 | 320 | 86 | 1 239 | 1 560 | 530 | ||||
23236-2CS5/VT143 | 180 | 320 | 112 | 1 560 | 2 120 | 360 | ||||
23138-2CS5/VT143 | 190 | 320 | 104 | 1 458 | 2 080 | 400 | ||||
23138-2CS5K/VT143 | 190 | 320 | 104 | 1 458 | 2 080 | 400 | ||||
24138-2CS5/VT143 | 24138-BE-XL-2VSR | 190 | 320 | 128 | 1 655 | 2 500 | 340 | |||
Designation (Bore diameter 190mm-200mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
22238-2CS5/VT143 | 190 | 340 | 92 | 1 345 | 1 700 | 480 | ||||
22238-2CS5K/VT143 | 190 | 340 | 92 | 1 345 | 1 700 | 480 | ||||
23238-2CS5/VT143 | 190 | 340 | 120 | 1 762 | 2 400 | 340 | ||||
22338-2CS5/VT143 | 190 | 400 | 132 | 2 236 | 2 650 | 340 | ||||
23040-2CS5/VT143 | 200 | 310 | 82 | 1 059 | 1 530 | 480 | ||||
23040-2CS5K/VT143 | 200 | 310 | 82 | 1 059 | 1 530 | 480 | ||||
23140-2CS5/VT143 | 23140-BE-XL-2RSR | 200 | 340 | 112 | 1 668 | 2 360 | 380 | |||
23140-2CS5K/VT143 | 23140-BE-XL-K-2RSR | 200 | 340 | 112 | 1 668 | 2 360 | 380 | |||
24140-2CS5/VT143 | 24140-BE-XL-2VSR | 200 | 340 | 140 | 1 871 | 2 800 | 320 | |||
22240-2CS5/VT143 | 200 | 360 | 98 | 1 529 | 1 930 | 430 | ||||
22240-2CS5K/VT143 | 200 | 360 | 98 | 1 529 | 1 930 | 430 | ||||
23240-2CS5/VT143 | 200 | 360 | 128 | 1 950 | 2 700 | 340 | ||||
23240-2CS5K/VT143 | 200 | 360 | 128 | 1 950 | 2 700 | 340 | ||||
23944-2CS/VT143 | 220 | 300 | 60 | 662 | 1 080 | 600 | ||||
23044-2CS5/VT143 | 220 | 340 | 90 | 1 262 | 1 860 | 430 | ||||
23044-2CS5K/VT143 | 220 | 340 | 90 | 1 262 | 1 860 | 430 | ||||
23144-2CS5/VT143 | 23144-BE-XL-2RSR | 220 | 370 | 120 | 1 891 | 2 750 | 360 | |||
23144-2CS5K/VT143 | 23144-BE-XL-K-2RSR | 220 | 370 | 120 | 1 891 | 2 750 | 360 | |||
Designation (Bore diameter 220mm-240mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
22244-2CS5/VT143 | 220 | 400 | 108 | 1 839 | 2 360 | 380 | ||||
22244-2CS5K/VT143 | 220 | 400 | 108 | 1 839 | 2 360 | 380 | ||||
22344-2CS5/VT143 | 220 | 460 | 145 | 2 844 | 3 450 | 300 | ||||
22344-2CS5K/VT143 | 220 | 460 | 145 | 2 844 | 3 450 | 300 | ||||
23048-2CS5/VT143 | 240 | 360 | 92 | 1 341 | 2 080 | 400 | ||||
23048-2CS5K/VT143 | 240 | 360 | 92 | 1 341 | 2 080 | 400 | ||||
23148-2CS5/VT143 | 23148-BE-XL-2RSR | 240 | 400 | 128 | 2 191 | 3 200 | 340 | |||
23148-2CS5K/VT143 | 23148-BE-XL-K-2RSR | 240 | 400 | 128 | 2 191 | 3 200 | 340 | |||
23052-2CS5/VT143 | 260 | 400 | 104 | 1 677 | 2 550 | 360 | ||||
23052-2CS5K/VT143 | 260 | 400 | 104 | 1 677 | 2 550 | 360 | ||||
23152-2CS5/VT143 | 23152-BE-XL-2RSR | 260 | 440 | 144 | 2 668 | 3 900 | 320 | |||
23152-2CS5K/VT143 | 23152-BE-XL-K-2RSR | 260 | 440 | 144 | 2 668 | 3 900 | 320 | |||
24152-2CS5/VT143 | 260 | 440 | 180 | 3 092 | 4 900 | 240 | ||||
Designation (Bore diameter 260mm-280mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
23156-2CS5/VT143 | 23156-BE-XL-2RSR | 280 | 460 | 146 | 2 788 | 4 250 | 300 | |||
23156-2CS5K/VT143 | 23156-BE-XL-K-2RSR | 280 | 460 | 146 | 2 788 | 4 250 | 300 | |||
24156 CC/W33 | 24156-E1 | 24156CAE4 | 280 | 460 | 180 | 3 183 | 5 100 | 630 | 900 | |
24156 CCK30/W33 | 24156-E1-K30 | 24156CAKE4 | 280 | 460 | 180 | 3 183 | 5 100 | 630 | 900 | |
24156 CC/C4W33VA991 | 280 | 460 | 180 | 3 183 | 5 100 | 630 | 1 300 | |||
24156-2CS5/VT143 | 280 | 460 | 180 | 3 190 | 5 100 | 220 | ||||
24156-2CS5K30/VT143 | 280 | 460 | 180 | 3 190 | 5 100 | 220 | ||||
23060-2CS5/VT143 | 300 | 460 | 118 | 2 222 | 3 450 | 320 | ||||
23060-2CS5K/VT143 | 300 | 460 | 118 | 2 222 | 3 450 | 320 | ||||
24060-2CS5/VT143 | 300 | 460 | 160 | 2 827 | 4 750 | 240 | ||||
23160-2CS5/VT143 | 23160-BEA-XL-2RSR-MB1 | 300 | 500 | 160 | 3 373 | 5 100 | 260 | |||
Designation (Bore diameter 300mm-320mm) | Principal dimensions | Basic load ratings | Speed ratings | |||||||
EASIER / TKW | FAG | NSK | dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | ||||
23160-2CS5K/VT143 | 23160-BEA-XL-K-2RSR-MB1 | 300 | 500 | 160 | 3 373 | 5 100 | 260 | |||
24160-2CS5/VT143 | 300 | 500 | 200 | 3 881 | 6 300 | 212 | ||||
24160-2CS5K30/VT143 | 300 | 500 | 200 | 3 881 | 6 300 | 212 | ||||
23064-2CS5/VT143 | 320 | 480 | 121 | 2 348 | 3 800 | 320 | ||||
23064-2CS5K/VT143 | 320 | 480 | 121 | 2 348 | 3 800 | 320 | ||||
23164-2CS5/VT143 | 23164-BEA-XL-2RSR-MB1 | 320 | 540 | 176 | 3 929 | 6 100 | 260 | |||
23164-2CS5K/VT143 | 23164-BEA-XL-2RSR-K-MB1 | 320 | 540 | 176 | 3 929 | 6 100 | 260 | |||
23168-2CS5/VT143 | 23168-BEA-XL-2RSR-MB1 | 340 | 580 | 190 | 4 452 | 6 800 | 240 | |||
23168-2CS5K/VT143 | 23168-BEA-XL-2RSR-K-MB1 | 340 | 580 | 190 | 4 453 | 6 800 | 240 | |||
23172-2CS5/VT143 | 23172-BEA-XL-2RSR-MB1 | 360 | 600 | 192 | 4 521 | 6 950 | 220 | |||
23172-2CS5K/VT143 | 23172-BEA-XL-2RSR-K-MB1 | 360 | 600 | 192 | 4 521 | 6 950 | 220 | |||
23272-2CS5/VT143 | 360 | 650 | 232 | 5 669 | 8 300 | 160 | ||||
23272-2CS5K/VT143 | 360 | 650 | 232 | 5 669 | 8 300 | 160 | ||||
23076-2CS5/VT143 | 380 | 560 | 135 | 2 987 | 5 000 | 260 | ||||
23176-2CS5/VT143 | 23176-BEA-XL-2RSR-MB1 | 380 | 620 | 194 | 4 561 | 7 100 | 160 | |||
23176-2CS5K/VT143 | 23176-BEA-XL-K-2RSR-MB1 | 380 | 620 | 194 | 4 561 | 7 100 | 160 | |||
23080-2CS5/VT143 | 400 | 600 | 148 | 3 515 | 5 850 | 240 | ||||
23080-2CS5K/VT143 | 400 | 600 | 148 | 3 515 | 5 850 | 240 | ||||
23180-2CS5/VT143 | 23180-BEA-XL-2RSR-MB1 | 400 | 650 | 200 | 4 864 | 7 650 | 150 | |||
23180-2CS5K/VT143 | 23180-BEA-XL-K-2RSR-MB1 | 400 | 650 | 200 | 4 864 | 7 650 | 150 | |||
23184-2CS5/VT143 | 420 | 700 | 224 | 5 919 | 9 300 | 190 | ||||
23184-2CS5K/VT143 | 420 | 700 | 224 | 5 919 | 9 300 | 190 | ||||
23284-2CS5/VT143 | 420 | 760 | 272 | 7 683 | 11 600 | 128 | ||||
23284-2CS5K/VT143 | 420 | 760 | 272 | 7 683 | 11 600 | 128 | ||||
23088-2CS5/VT143 | 440 | 650 | 157 | 3 834 | 6 550 | 190 | ||||
23188-2CS5/VT143 | 440 | 720 | 226 | 6 220 | 10 000 | 180 | ||||
23188-2CS5K/VT143 | 440 | 720 | 226 | 6 220 | 10 000 | 180 | ||||
23192-2CS5/VT143 | 460 | 760 | 240 | 6 765 | 10 800 | 128 | ||||
23192-2CS5K/VT143 | 460 | 760 | 240 | 6 765 | 10 800 | 128 | ||||
23196-2CS5/VT143 | 480 | 790 | 248 | 7 367 | 12 000 | 170 | ||||
23196-2CS5K/VT143 | 480 | 790 | 248 | 7 367 | 12 000 | 170 |
