Double row ball bearing is a type of ball bearing. Its inner diameter and outer diameter are the same as single row ball bearings. It has the same raceway design, the size of the steel ball and the design of the retainer. The double row ball has two raceways. And the double-row steel ball design, so its height is higher than the single-row, double-row deep groove ball bearing in addition to bearing radial load, but also can bear the axial load acting in two directions.
When there is a misalignment between the inner and outer rings of a double row ball bearing, it will cause additional load. Thereby increasing the load borne by the steel ball and cage and shortening the working life of the bearing. Therefore, the allowable angle error is only 2 arc minutes. Any larger angular error will result in an increase in noise.
According to the design of the raceway, double row ball bearings have different design as follows:
1. Double row deep groove ball bearings (4200, 4300 series)
2. Double row angular contact ball bearings (3200, 3300, 5200, 5300, 3800, 3900, LR5, LFR series)
3. Double row self-aligning ball bearings (1200, 1300, 2200, 2300 Series)
4. Double row ball slewing bearing
Double row deep groove ball bearings
The design of double row deep groove ball bearings is basically the same as that of single row deep groove ball bearings. The deep groove ball shaft-shaped raceway plus the excellent closeness between the raceway and the steel ball. In addition to bearing radial loads, double row deep groove ball bearings can also bear axial loads acting in two directions.
Standard double row deep groove ball bearings are 4200A, 4300A type. Type A bearings have no ball gaps. Two reinforced nylon cages are inserted from both sides of the bearing. In addition to having a radial load capacity 1.62 times higher than that of single row deep groove ball bearings, double row deep groove ball bearings can also bear axial loads. Standard deep groove ball bearings have ordinary radial internal clearance. For more informtion, Please click Here Double Row Deep Groove Ball Bearings
Double row angular contact ball bearings
The design of double row angular contact ball bearings is basically the same as that of single row angular contact ball bearings, but only takes up a smaller axial space. The double row angular contact ball bearing can bear radial load and axial load acting in two directions, it can limit the axial displacement of the shaft or housing in both directions, and the contact angle is 30 degrees. A bearing configuration with higher rigidity can be provided, and it can withstand the overturning moment.
Double row angular contact ball bearings can withstand larger radial loads, mainly combined radial and axial loads and moment loads, limiting the axial displacement of the shaft on both sides. Mainly used in components that limit the bidirectional axial displacement of the shaft and the housing. 3200, 3300, 5200 and 5300 are normal design of double row angular contact ball bearings. For more informtion, Please click Here
Double Row Angular Contact Ball Bearings

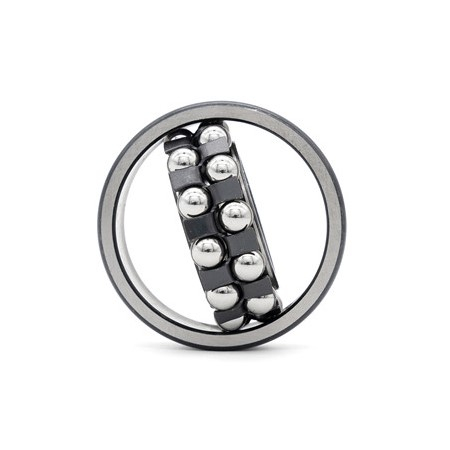

Double row self-aligning ball bearings
Basic Design Self-aligning ball bearings of the basic design are available with both a cylindrical bore and a tapered bore with a 1:12 taper. Tapered bore bearings are furnished with adapter sleeves, including nut and lock washer, with which the bearings can be secured to smooth or stepped shafts. They are identified by suffix letter K. Sealed Bearings Self-aligning bearings with cylindrical and tapered bores are available with contact seals on both sides, identified by the suffix 2RS1. The seals are made of oil and wear resistant synthetic rubber reinforced by a steel insert. The operating temperature range for the seals, with a suitable grease, is -40˚C to 120˚C (-40˚F to 248˚F).
Sealed bearings are supplied with a lithium base grease suitable for an operating temperature range of -30˚C to 110˚C (-22˚F to 230˚F). Sealed Self-aligning ball bearings bearings with a tapered bore require a special adapter sleeve and lock washer identified by the suffix letter C. The lock washers have a circular beading on the side facing the bearing to prevent interference with the seal.
TKW can supply different kinds of Self-Aligning Ball Bearings
Self-aligning Ball Bearings with cylindrical bore
Self-aligning Ball Bearings with tapered bore
Self-aligning Ball Bearings with adapter sleeve
Sealed Self-aligning Ball Bearings
Sealed Self-aligning Ball Bearings Extended Inner Ring
For more informtion, Please click Here Double Row Self-aligning Ball Bearings
TKW as the top quality China Bearing Manufacturer & Supplier, it can Supply complete Series double row ball bearings, And TKW Quality can replace The fomous brand in the world, it always learn and produce the bearings According to Japan, Euro and USA standard, TKW Competitive price and Quality Bearings save your cost and make longer and reliable service life for your applications. We can ship the goods within 24 hours for small quantity order, and for larger quantity demand, our normally production time is 7-25days, Different Bearing design we have different quantity in warehouse, Just contact with TKW for more...
Whatsapp: +86-13280450757
Wechat: +86-13280450757
E-mail: sales@xrbearing.com
