23152-2CS5/VT143
23152-2CS5/VT143 bearing price

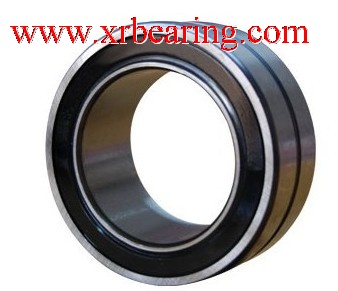

bearing size | Sealed spherical roller bearing 23152-2CS5/VT143 |
bearing inner diameter | 260mm |
bearing outer diameter | 440mm |
bearing width | 144mm |
23152-2CS5/VT143 design and applincation
23152-2CS5/VT143 Sealed Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.
23152-2CS5/VT143 bearings are widely used in Papermaking machinery, railway vehicle axle, rolling mill, roller gearbox,crusher,vibrating screen, printing machinery,woodworking machinery,industrial reducer,mine.and 23152-2CS5/VT143 bearing are popular size that could be used in many applications.
23152-2CS5/VT143 bearing,we have our own warehouse in Shanghai.
Advantage of our 23152-2CS5/VT143 Sealed spherical roller bearings
1.competitive price
2.many years experience cooperation with FAG,NSK,NTN,TIMKEN,KOYO,NACHI,SNR,ZKL,ZWZ,HRB etc.
3,Strong production capacity and large stock can make sure the delivery the goods as soon as possible
4.Reliable operation quality
bearing size | Sealed spherical roller bearing 23152-2CS5/VT143 |
bearing inner diameter | 260mm |
bearing outer diameter | 440mm |
bearing width | 144mm |
23152-2CS5/VT143 design and applincation
23152-2CS5/VT143 Sealed Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.
23152-2CS5/VT143 bearings are widely used in Papermaking machinery, railway vehicle axle, rolling mill, roller gearbox,crusher,vibrating screen, printing machinery,woodworking machinery,industrial reducer,mine.and 23152-2CS5/VT143 bearing are popular size that could be used in many applications.
23152-2CS5/VT143 bearing,we have our own warehouse in Shanghai.
Advantage of our 23152-2CS5/VT143 Sealed spherical roller bearings
1.competitive price
2.many years experience cooperation with FAG,NSK,NTN,TIMKEN,KOYO,NACHI,SNR,ZKL,ZWZ,HRB etc.
3,Strong production capacity and large stock can make sure the delivery the goods as soon as possible
4.Reliable operation quality
