89180 M Bearing

Inquire Add to Basket

  • 89180 M Cylindrical roller thrust bearing

  • Bearing 89180 M price

Keywords:89180 M bearing,89180 M cylindrical roller thrust bearing

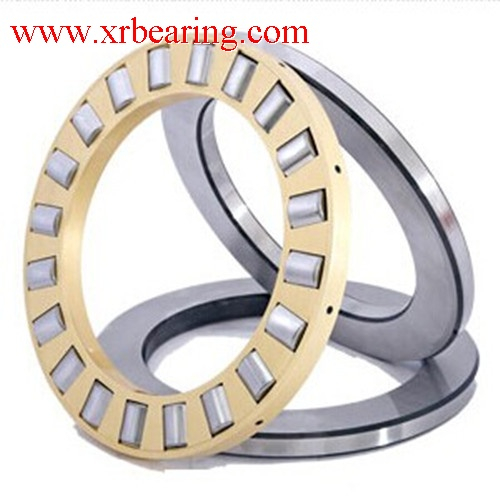

89180 M bearing is single direction cylindrical roller thrust bearing and commonly type and widely used in many application, the inner diameter is 400mm,outer size is 480mm,the width is 48mm,the weight of 89180 M bearing is 17.5kg,it consisted of axial cylindrical roller and brass cage assembly, housing locating washer, shaft locating washer,cylindrical roller thrust bearing is the thrust roller bearing like spherical roller thrust bearings,but it can only carry axial loads.

High precision 89180 M cylindrical roller thrust bearing
High precision cylindrical roller thrust bearing
89180 M Bearing,
400×480×48mm bearing
89180 M bearing type spherical roller thrust bearing
roller bearing inner diameter 400mm
roller bearing outer diameter 480mm
roller bearing width diameter 48mm
89180 M bearing weight 17.5kg
89180 M bearing are available from many design, variants, series and size,

►89180 M cylindrical roller thrust bearings (single direction) have specially designed raceways and accommodate a large number of cylindrical rollers.

►89180 M bearings are designed to achieve a high thrust capacity with low friction and continuous roller alignment. This bearing type is ideal for operating conditions

►cylindrical roller thrust bearings contain cylindrical rollers,they can subtain only axial loads,but they are suitable for heavy loads,and high axial rigidity.
 Design:
cylindrical roller thrust bearing 89180 M
►Metarial:High quality chrome steel
►Lubrication:Oil or grease
►sealed:Rubber sealed or press steel shielded
►dynamic load rating: 735kN
►static load rating:4650kN
►Fatigue load limit:320kN
►Reference speed:400r/min
89180 M bearing are widely used in industry area:
 ►Gear box
►Crane Hooks
►Industrial gearboxes
►Pulp & papernes
►Material handling
►Fluid machinery
►Mining & construction






































XRB is the 89180 M China bearing manufacturer & factory & exporter & supplier ,it can supply 89180 M bearing, Our large quantity 89180 M bearing Stock can meet your need with lowest price and fast delivery

Also you can find the OEM brand axial cylindrical roller bearing you need ：


We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our 89180 M bearing to your office at the first time.
