89313 TN Bearing

Inquire Add to Basket

  • 89313 TN bearing

  • Bearing 89313 TN price

Keywords:89313 TN bearing,89313 TN cylindrical roller thrust bearing

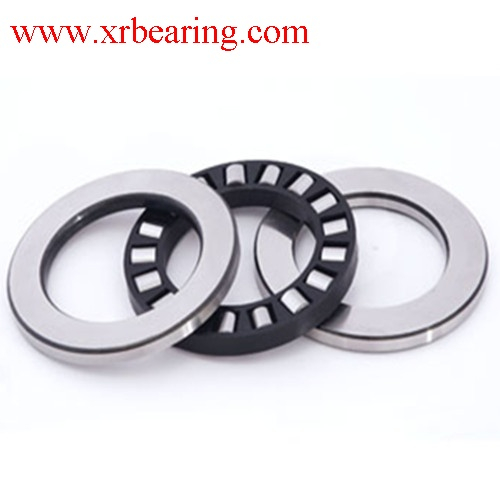

89313 TN bearing is single direction cylindrical roller thrust bearing and commonly type and widely used in many application, the inner diameter is 65mm,outer size is 115mm,the width is 30mm,the weight of 89313 TN bearing is 1.35kg,it consisted of K89313 TN axial cylindrical roller and nylon cage assembly,GS89313 housing locating washer,WS89313 shaft locating washer,cylindrical roller thrust bearing is the thrust roller bearing like spherical roller thrust bearings,but it can only carry axial loads.

High precision 89313 TN cylindrical roller thrust bearing
High precision cylindrical roller thrust bearing
89313 TN Bearing,
65×115×30mm bearing
89313 TN bearing type spherical roller thrust bearing
roller bearing inner diameter 65mm
roller bearing outer diameter 115mm
roller bearing width diameter 30mm
89313 TN bearing weight 1.25kg
89313 TN bearing are available from many design, variants, series and size,

►89313 TN cylindrical roller thrust bearings (single direction) have specially designed raceways and accommodate a large number of cylindrical rollers.

►89313 TN bearings are designed to achieve a high thrust capacity with low friction and continuous roller alignment. This bearing type is ideal for operating conditions

►cylindrical roller thrust bearings contain cylindrical rollers,they can subtain only axial loads,but they are suitable for heavy loads,and high axial rigidity.
 Design:
cylindrical roller thrust bearing 89313 TN
►Metarial:High quality chrome steel
►Lubrication:Oil or grease
►sealed:Rubber sealed or press steel shielded
►dynamic load rating: 153kN
►static load rating:640kN
►Fatigue load limit:65.5kN
►Reference speed:1400r/min
89313 TN bearing are widely used in industry area:
 ►Gear box
►Crane Hooks
►Industrial gearboxes
►Pulp & papernes
►Material handling
►Fluid machinery
►Mining & construction





































XRB is the 89313 TN China bearing manufacturer & factory & exporter & supplier ,it can supply 89313 TN bearing, Our large quantity 89313 TN bearing Stock can meet your need with lowest price and fast delivery

Also you can find the OEM brand axial cylindrical roller bearing you need ：


We accepted DHL,FEDEX,TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we are sure we can ship our 89313 TN bearing to your office at the first time.

E-mail: brandbearings@gmail.com, Skype:brandbearings
